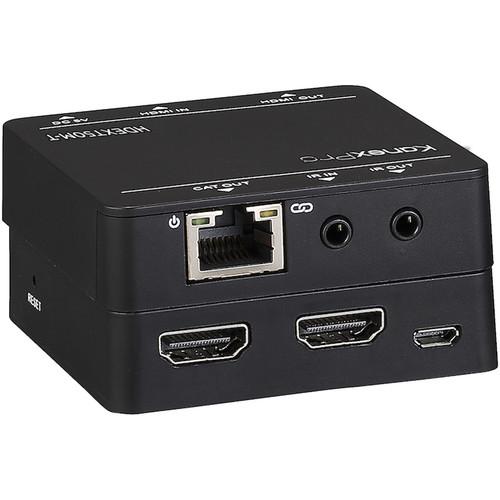

User Manual for KanexPro HDEXT50M HDMI Extender Kit Click to enlarge the picture
Contents of the user manual for the KanexPro HDEXT50M HDMI Extender Kit
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro HDEXT50M HDMI Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro HDEXT50M HDMI Extender Kit sends and receives DVI/HDMI signals beyond the ability of a standard HDMI/DVI cable, extending both video and audio up to 165' over a single Cat5/5e cable. You can auto-adjust, buffer, and equalize signals to maintain pixel-perfect resolution up to Full HD 1080p60.
In addition to being EDID compliant, the HDMI Extender over Cat5/5e supports 8-bit per channel (24-bit all-channel). It features digital audio support via HDMI and data rates of up to 1.65 Gbps per channel. The extender enables you to relocate sources, such as a Blu-ray player or satellite box, to a remotely located display. It is easy to install and can be mounted under a desk or on a rack. - Sends and receives DVI/HDMI signals beyond the ability of a standard HDMI/DVI cable
- Transmitter features an HDMI loop-through output for monitoring
- Extends video and audio over a single 165' Cat5/5e cable
- Enables you to auto-adjust, buffer, and equalize signals to maintain pixel-perfect resolution up to HD 1080p60
- Easy-access EQ setting on the side of the chassis
- Supports 8-bit per channel (24-bit all-channel)
- Data rates up to 1.65 Gbps per channel
- Enables you to relocate sources, such as a Blu-ray player or satellite box, to a remotely-located display
- Mountable under the desk or on a rack
UPC: 814556013427 In the Box KanexPro HDEXT50M HDMI Extender Kit Transmitter Unit Receiver Unit 2 x 5 VDC Power Supply Mounting Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDEXT50M HDMI Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDEXT50M Specs | Inputs | Transmitter:
1 x HDMI type A
1 x 3.5 mm, IR
Receiver:
1 x RJ45
1 x 3.5 mm, IR | | Outputs | Transmitter:
1 x RJ45
1 x HDMI type A, loop-through output
1 x 3.5 mm, IR
Receiver:
1 x HDMI type A
1 x 3.5 mm, IR | | Resolutions | 1080p/i
720p
576p/i
480p/i | | Transmission Distance | 165' / 50 m for 1080p | | Power Supply | 5 VDC, 1 A | | Operation Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F / -10 to 80°C | | Storage Humidity | 5 to 90% RH (no condensation) | | Regulatory Approvals | Converter: FCC, CE, UL
Power Supply: FCC, CE, UL | | Dimensions | 2.6 x 2.6 x 0.5" / 6.6 x 6.6 x 1.3 cm | | Weight | Transmitter: 1.3 oz / 36 g
Receiver: 1.3 oz / 38 g | | | | Package Weight | 0.77 lb | | Box Dimensions (LxWxH) | 7.7 x 4.35 x 2.85" |
