User Manual for KanexPro HDMI Full HD Extender over Cat6 Click to enlarge the picture
Contents of the user manual for the KanexPro HDMI Full HD Extender over
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro HDMI Full HD Extender over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|

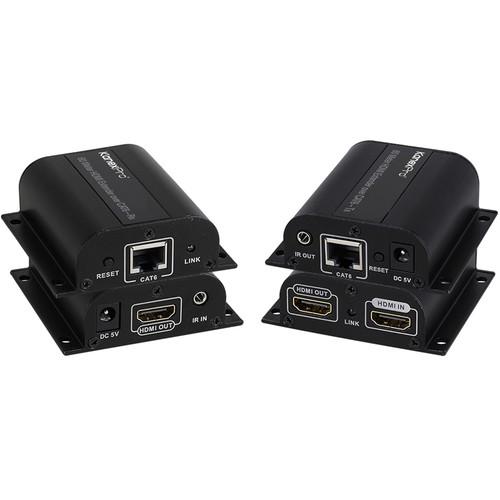

Product description The HDMI Full HD Extender over Cat6 (196') from KanexPro enables you to transmit and receive DVI/HDMI signals over distances further than those of standard HDMI/DVI cables, extending video and audio over a single Cat6/6a cable (not included). The HDMI Extender enables you to transmit a robust signal from an HDMI source (such as a Blu-ray device, cable box, or laptop) to a remotely-located display. The included IR-blaster extension cables help to maintain remote control over distant devices. The signal can be auto-adjusted, buffered, and equalized for optimal resolutions up to HD 1080p60. The HDMI Extender over Cat6 is suitable for small office, house of worship, and home theater Cat6 setups where the HDMI source device is located at a remote distance from the display.
This HDCP and EDID compliant extender supports a 16-bit per channel rate (48-bit total). It features digital audio support via HDMI, and full IR control over Cat6/6a. The transmitter's HDMI-out port is a handy feature that enables you to preview output on a local display. Both transmitter and receiver are compact in form, and have built-in mounting brackets. Note: This extender does not work with Cat5/5e cables; terminated and shielded Cat6/6a and RJ45 connectors are recommended - Carries DVI/HDMI signals beyond the range of a standard HDMI/DVI cable
- Extends video and audio over a single 196' Cat6/6a cable; maintains full IR control
- Transmitter has one HDMI output, enabling you to preview the signal locally
- Auto-adjustment, buffering, and signal equalization for optimal resolutions up to Full HD 1080p60
- HDCP (content protection) and EDID (for accurate displays) compliant
- Suitable for Cat6 setups where the HDMI source is remotely connected to the display
- Supports 16-bit rate per channel (48-bit total)
- Compact units are easy to install, and feature built-in mounting brackets and LED signal link indicators
UPC: 813982020962 In the Box KanexPro HDMI Full HD Extender over Cat6 (196') Transmitter Receiver 2 x AC Adapters IR Blaster Extension Cable IR Receiver Extension Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDMI Full HD Extender over Cat6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HD60M Specs | Interface | Transmitter
Input:
1 x HDMI
Output:
1 x Cat6/6a
1 x HDMI (preview)
1 x IR
Receiver
Input:
1 x Cat6/6a
1 x IR
Output:
1 x HDMI | | Resolutions | 1080p 50/60
1080i 50/60
720p 50/60
576p 50
576i 50
480p 60
480i 60 | | Supported Color Depth | Up to 12-bit | | Transmission Distance | Up to 196' (60 m) at 1080p60 | | Power Supply | 5 VDC | | Operation Temperature | 32 to 140°F (0 to 60°C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Power Consumption | Transmitter: <3 W
Receiver: <2 W | | Material of Construction | Metal | | Dimensions (LxWxH) | Each Unit:
2.81 x 2.62 x 0.97" (7.14 x 6.65 x 2.46 cm) | | Weight | Transmitter: 2.9 oz (81.6 g)
Receiver: 2.7 oz (77 g) | | | | Package Weight | 1.07 lb | | Box Dimensions (LxWxH) | 8.05 x 6.1 x 3.35" |
