User Manual for KanexPro HDMI Repeater With 3D Support - 10.2 Gbps All Channel Click to enlarge the picture
Contents of the user manual for the KanexPro HDMI Repeater With 3D Support
- Product category: HDMI Signal Extenders KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro HDMI Signal Extenders
|
User manual for the KanexPro HDMI Repeater With 3D Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|

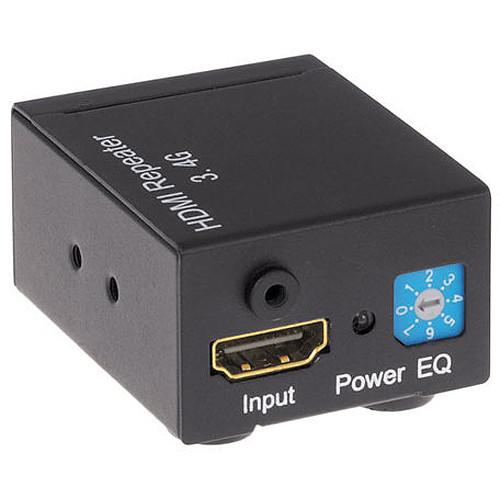

Product description The Kanex Pro HDMI Repeater With 3D Support - 10.2 Gbps All Channel provides a one-stop solution for extending an HDMI cable up to 115' (35 m) through regeneration and signal equalization. This 3D-compatible repeater has HDCP and EDID support and is capable of outputting full HD 1080p/60 to your projector or monitor, while eliminating digital noise from the video signal and maintaining the best possible picture quality. This repeater can be used for routing or extending sources like Blu-ray players or DVRs to remotely located projectors or other displays. - Extend your DVI or HDMI cables up to 115' (35 m)
- Supports data rates of up to 10.2 Gbps
- Maintains highest HDMI single-link video resolution of up to 1080p
- Conforms to HDMI 1.3 specifications (Deep Color, HD lossless audio formats and Lip Sync)
- Eight (8) levels of built-in selectable equalization
- Digital audio support through HDMI
- Front and back panel LEDs for input signal and power
- Rack mountable metal enclosure
- Requires 5 VDC external power supply
UPC: 814556013618 In the Box KanexPro HDMI Repeater With 3D Support - 10.2 Gbps All Channel 5 VDC Power Supply 1-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDMI Repeater With 3D Support - 10.2 Gbps All Channel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDREPEAT10G Specs | Input | HDMI x 1 | | Output | HDMI x 1 | | Transmission Range | 115' (35 m) | | Video Amplifier Bandwidth | 10.2 Gbps | | Vertical Frequency Range | 50/60 Hz | | Maximum Resolution | 1920 x 1080p at 60 Hz | | Power Supply | 5 V DC @ 2 A, 5 W | | Operating Temperature | 32 to 158° F (0 to 70° C) | | Storage Temperature | 14 to 176° F (-10 to 80° C) | | Operating Humidity | 10 to 85% (no condensation) | | Storage Humidity | 5 to 90% (no condensation) | | Approvals | FCC, CE, UL | | Dimensions | 2.0 x 1.5 x 1.4" (50 x 40 x 35 mm) | | Weight | 0.17 lb (78 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.7 x 5.0 x 2.4" |
