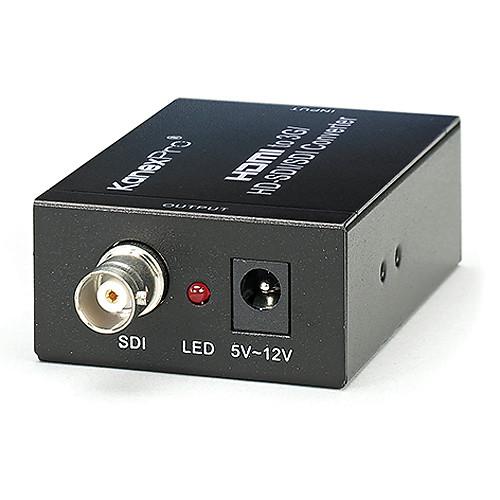

User Manual for KanexPro HDMI to 3G HD SD-SDI Converter Click to enlarge the picture
Contents of the user manual for the KanexPro HDMI to 3G HD SD-SDI
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
|
User manual for the KanexPro HDMI to 3G HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description A compact one-input/one-output converter with signal equalization and re-clocking, the KanexPro EXT-HDSDIX lets you route an HDMI signal to an SDI monitor up to 328 ft in 1080p, 656 ft in 1080i/720p, and 984 ft in 480i/576i, with audio and video synchronized. UPC: 813982020078 In the Box KanexPro HDMI to 3G/HD/SD-SDI Converter 5 VDC Power Supply Operation Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDMI to 3G HD SD-SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HDSDIX Specs | Input | 1x HDMI type A | | Output | 1x 3G/HD/SD-SDI on BNC | | Supported Input Resolutions | 1920 x 1080p@24/25/30/50/60
1920 x 1080i@50/60
1280 x 720p@24/25/30/50/60
480i (NTSC mode)
576i (standard PAL mode) | | Transmission Distance | 1080p up to 328 ft (100 m) via 3G-SDI
(SMPTE 424M/425M-AB, at bit-rates of 2.970 Gbps and 2.970/1.001 Gbps)
1080i/720p up to 656 ft (200 m) via HD-SDI
(SMPTE 292M, at bit-rates of 1.485 Gbps or 1.485/1.001 Gbps)
480i/576i up to 984 ft (300 m) via SD-SDI
(SMPTE 259M-C, at bit-rates of 270 Mbps) | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Storage Humidity | 5 to 90% RH (no condensation) | | Regulatory Approvals | Converter and Power Supply: FCC, CE, UL | | External Power Supply | 5 VDC | | Power Consumption | 5 W | | Dimensions | 3.1 x 1.6 x 1" (7.9 x 4 x 2.5 cm) | | Weight | 0.33 lb (150 g) | | | | Package Weight | 0.76 lb | | Box Dimensions (LxWxH) | 8.35 x 6.1 x 2.2" |
