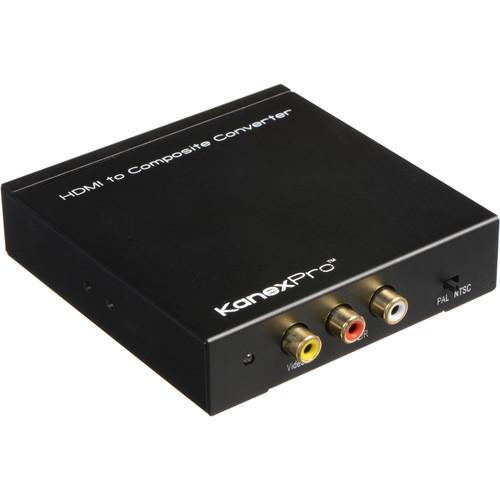

User Manual for KanexPro HDMI to Composite with Audio Converter Click to enlarge the picture
Contents of the user manual for the KanexPro HDMI to Composite with Audio
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
|
User manual for the KanexPro HDMI to Composite with Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro HDMI to Composite with Audio Converter is designed to convert HDMI signals into analog composite video with R/L audio. It supports HDMI input resolutions up to Full HD 1080p at 60Hz, and offers analog composite video output up to NTSC 480i or PAL 576i. It also strips the audio from HDMI sources and spreads it out to two-channel stereo audio for TVs.
This converter allows you to run your HD sources to analog A/V monitors or projector. The converter is not HDCP compliant, and therefore will not work with HD sources requiring HDCP compliance. For example, the more recent Blu-ray players require HDCP compliance, while the original ones did not. Note: Product is not HDCP compliant and will not work with HD sources requiring HDCP compliance, such as recent Blu-ray players. - Designed to convert HDMI signals into analog composite video with R/L audio
- Supports HDMI input resolutions up to 1080p (1920x1080 at 60Hz)
- Provides analog composite video output up to NTSC 480i or PAL 576i
- Decodes uncompressed analog audio signal from an HDMI source
UPC: 814556013298 In the Box KanexPro HDMI to Composite with Audio Converter 5V DC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDMI to Composite with Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDRCA Specs | Input | 1 HDMI | | Output | 1 RCA | | Video Amplifier Bandwidth | 1.65Gbps | | Vertical Frequency Range | 50/60Hz | | Resolutions | HDMI input: 480i/576i/480p/576p/720p/1080i/1080P
RCA output: NTSC/480i or 576p/PAL | | Audio Output | 2 channel LPCM | | Power Supply | 5V/2A DC (5W) | | Operating Temperature | 32 to 158° F (0 to 70° C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176° F (-10 to 80° C) | | Storage Humidity | 5 to 90 % RH (no condensation) | | Regulatory Approvals | Converter/Power supply: FCC, CE, UL | | Dimensions | 4 x 3.9 x 1" (102 x 100 x 25 mm) | | Weight | 1.4 lb (615 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.7 x 7.85 x 2.2" |
