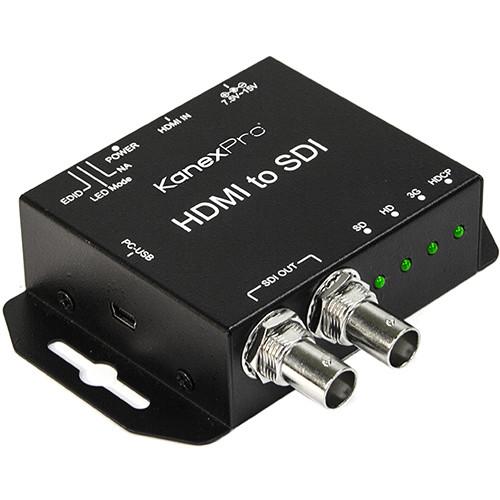

Product description Compact and all-metal, the Kanex Pro HDMI to Dual SDI Converter is a rugged, mobile solution for broadcasting, surveillance, and other professional applications. It converts a single HDMI input to two 3G/HD/SD-SDI outputs backed with signal equalization and re-clocking. It supports up to 1080p60 resolution and auto-detects the input signal and converts it to the correct output format. - Key Features
-
- Compact, all-metal
- HDMI input to dual 3G/HD/SD-SDI outputs
- Supports up to 1080p60 resolution
- Signal equalization and re-clocking
- Auto-detects the input signal
- Auto-switches between 3G, HD, and SD-SDI standards
- 2-channel audio
- Supports conversion to SMPTE 425M Level A, 1080p50/59.94/60, 4:2:2, 10-bit
- Supports cascading of multiple SDI signals in application
- Locking power supply
- Integrated mounting ears
- 3-pin dip switch (EDID/LED mode/NA)
UPC: 813982020924 In the Box KanexPro HDMI to Dual SDI Converter with Signal EQ & Re-Clocking Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDMI to Dual SDI Converter with Signal EQ & Re-Clocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SDI-HDSDXPRO Specs | Input | 1 x HDMI Type A (supports DVI adapter) | | Output | 2 x 3G/HD/SD-SDI (75 ohms inter-locked) | | Supported Resolutions | 1080p60/50/30/25/24
1080i60/50
720p60/50/30/25/24
576i
480i | | SDI Format | SD-SDI (SMPTE 259M)
HD-SDI (SMPTE 292M)
3G-SDI (SMPTE 424M / SMPTE 425M) | | Audio Support | 2-channel | | Audio Sample | Auto re-sample to 48 KHz (for stereo) | | Transmission Distance | 3G: Up to 427 ft (130 m)
HD: Up to 558 ft (170 m)
SD: Up to 984 ft (300 m)
*RG59 cable is required for SDI transmission (not included); 75 ohms coaxial cable recommended | | DIP Switch | 3-pin (EDID/LED mode/NA) | | Power Supply | 100 - 240 VAC, 7.5 - 15 VDC | | Firmware Updates | micro-USB port | | Housing | SECC | | Operating Temperature | 0 to 122°F (0 to 50°C) | | Operating Humidity | 10 to 85% RH (non-condensing) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Storage Humidity | 5 to 90% RH (non-condensing) | | Regulatory Approvals | FCC, CE, UL (converter and power supply) | | Dimensions | 4 x 2.5 x 1" (10.4 x 6.3 x 2.5 cm) | | Weight | 0.33 lb (150 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.45 x 6.05 x 1.8" |
