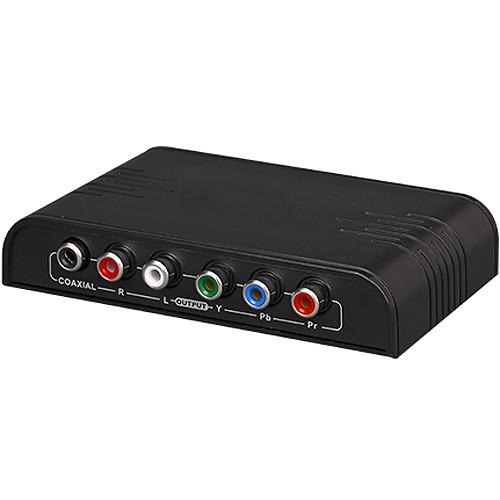

User Manual for KanexPro HDMI to YPbPr Component and Audio Converter Click to enlarge the picture
Contents of the user manual for the KanexPro HDMI to YPbPr Component and
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
|
User manual for the KanexPro HDMI to YPbPr Component and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The compact KanexPro HDMI to YPbPr Component and Audio Converter allows you to decode HDMI input signals and provides component video output with R+L audio from an HDMI source such as a laptop or DVD player to an older, analog display such as a TV or projector with YPbPr component connectors.
The Converter supports HDMI input resolutions up to 1920 x 1080p60, and it provides an analog output signal with resolutions up to 1080p. The analog side also outputs R+L audio stereo via two RCA plugs. The Converter is HDCP compliant. For operation, it requires a 5 VDC external power supply, which is included.
The manufacturer recommends using high-quality HDMI and YPbPr cables for use with the Converter, as lower quality cables may cause sync issues. Since this unit works with legacy devices, make sure your source and display are set to the supported resolutions listed below to ensure seamless sync. Note: The manufacturer recommends using high-quality HDMI and YPbPr cables for use with the Converter, as lower quality cables may cause sync issues. Since this unit works with legacy devices, make sure your source and display are set to the supported resolutions listed below to ensure seamless sync. - Supported Resolutions
- HDMI Input: 480i/576i/480p/576i/720p/1080i/1080p
YPbPr Component Output: 480i/576i/480p/576i/720p/1080i/1080p Basic Features - Allows you to decode HDMI input signals and output to YPbPr component video and RCA stereo audio
- Supports HDMI input and component output resolutions up to 1080p60
- Seamless integration of older, analog TVs and projectors with an HDMI source
- Requires a 5 VDC external power supply (included) for operation
UPC: 814556013304 In the Box KanexPro HDMI to YPbPr Component and Audio Converter 5 VDC External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDMI to YPbPr Component and Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDRGBRL Specs | Input | 1 x HDMI | | Output | 1 x YPbPr Component Set
2 x RCA Audio | | Vertical Frequency Range | 50 / 60 Hz | | Resolutions | HDMI Input: 480i/576i/480p/576i/720p/1080i/1080p
YPbPr Component Output: 480i/576i/480p/576i/720p/1080i/1080p | | Power Supply | 5 VDC, 2 A, 5 W | | Operating Temperature | 32 to 158°F / 0 to +70°C | | Operating Humidity | 10 to 85% RH (No Condensation) | | Storage Temperature | 14 to 176°F / -10 to +80°C | | Storage Humidity | 5 to 90% RH (No Condensation) | | Regulatory Approvals | Converter / Power Supply: FCC, CE, UL | | Dimensions | 3.5 x 1 x 2.7" / 88 x 25.5 x 68 mm | | Weight | 3.9 oz / 110 g | | | | Package Weight | 0.58 lb | | Box Dimensions (LxWxH) | 6.05 x 4.7 x 3.35" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
