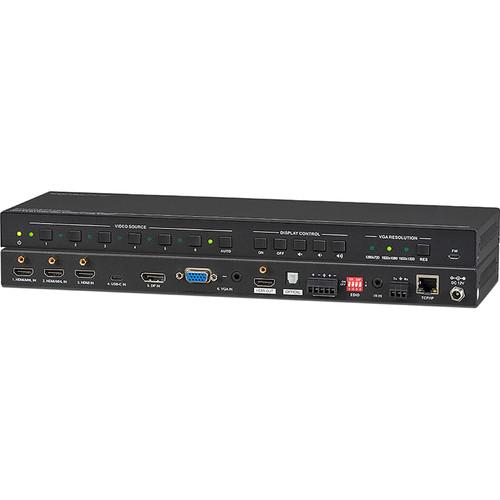

User Manual for KanexPro HDSC61D-4K 6-Input Collaboration Switcher & Scaler with 4K HDMI Output Click to enlarge the picture
Contents of the user manual for the KanexPro HDSC61D-4K 6-Input Collaboration Switcher &
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro HDSC61D-4K 6-Input Collaboration Switcher & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The HDSC61D-4K 6-Input Collaboration Switcher & Scaler with 4K HDMI Output from KanexPro is a four-input HDMI and two-input VGA scaler suitable for switching from up to six AV sources to one HDMI display. This switcher/scaler supports 4K resolutions and is capable of performing output blacking, which allows the switcher to cut off the on-screen video signal when switching between different sources. The HDSC61D-4K features audio de-embedding through three audio outputs, including a Toslink optical out. For control options, it can be paired virtually with any third-party control system using RS- 232 drivers, controllable by front-panel buttons, or via infrared. - Six-input presentation scaler switcher with HDMI output
- Selectable output resolutions up to 4K UHD
- Output black function for presentation mode
- VGA Video Support: C-video, YPbPr, and VGA
- Controllable via button, bidirectional IR, and RS-232
- CEC and HDCP 1.4 compliant
- USB port for instant firmware update
- Compact design for easy and flexible installation
UPC: 813982020221 In the Box KanexPro HDSC61D-4K 6-Input Collaboration Switcher & Scaler with 4K HDMI Output Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDSC61D-4K 6-Input Collaboration Switcher & Scaler with 4K HDMI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDSC61D-4K Specs | Inputs | 4 x HDMI
2 x VGA | | Video Signal Input | HDMI/DVI, VGA | | Video Signal Output | HDMI | | Resolution | HDMI: Up to 4k
VGA: Output resolution selectable | | Supported Input Resolutions | 800 x 600 @ 60/72/75 Hz
1024 x 768 @ 42/60/70/75/85 Hz
1152 x 864 @ 75 Hz
1280 x 768 @ 60/75/85 Hz
1280 x 960 @ 60/85 Hz
1280 x 1024 @ 60/75/85 Hz
1365 x 1024 @ 60/ Hz
1600 x 1024 @ 60 Hz
1600 x 1200 @ 60/65/70/75/85 Hz
1680 x 1050 @ 60 Hz
1792 x 1344 @ 60 Hz
1856 x 1392 @ 60/75 Hz
1920 x 1080 @ 60 Hz
1920 x 1200 @ 60 Hz
1920 x 1440 @ 60 Hz
3840 x 2160 @ 24/30/25 Hz
4096 x 2160 @ 24/25/30 Hz | | Audio Inputs | 2 x Stereo audio for VGA
1 x 3.5 mm Mini jack | | Audio Outputs | 1 x Dual-mono analog audio
1 x Stereo audio
1 x Optical audio | | Controls | RS232, IR remote | | Regulatory Approvals | UL, FCC, CE, RoHS | | Dimensions | 13.7 x 1.1 x 4.3" (34.7 x 2.8 x 11.0 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 16.5 x 9.2 x 3.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
