User Manual for KanexPro High-Speed Fiber Optic Active HDMI Cable with Ethernet Click to enlarge the picture
Contents of the user manual for the KanexPro High-Speed Fiber Optic Active HDMI
- Product category: HDMI Cables KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro HDMI Cables
|
User manual for the KanexPro High-Speed Fiber Optic Active HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|

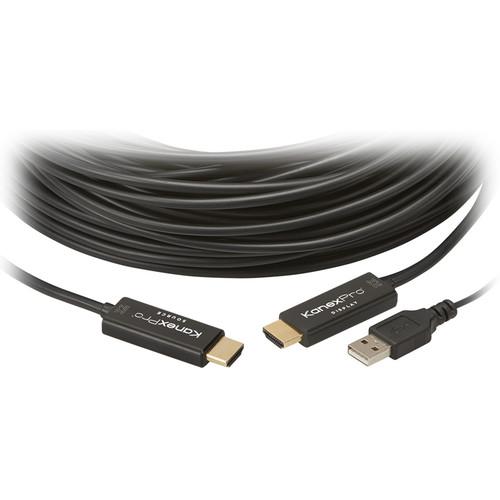

Product description Enjoy long cable runs with 4K support with the 98.43' KanexPro High-Speed Fiber Optic Active HDMI Cable. It features a hybrid optical cable and copper wire design to eliminate RF and EM interference and supports 1080p 3D, 4K with Deep Color, HDR, and multi-dimensional audio. This cable is directional and receives power from the connected USB cable on the display device end. - Supports video resolution up to 4096 x 2160p, 50/60 Hz
- Bandwidth up to 18 Gbps (6 Gbps per channel)
- Color sub-sampling of 4:4:4, 4:2:2, and 4:2:0 with Deep Color & HDR
- Integrated USB connector draws power from the display device
- EMI/RF-free for clear signal transmission
- Up to 32 audio channels for multi-dimensional audio
- Up to 1536 kHz audio sample frequency for enhanced audio fidelity
- Support for theatrical 21:9 aspect ratio
- Dynamic synchronization of video and audio streams
- Low power consumption of 0.2W
- Supports color depths up to 48 bits
UPC: 813982021105 In the Box KanexPro High-Speed Fiber Optic Active HDMI Cable with Ethernet (98.43') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro High-Speed Fiber Optic Active HDMI Cable with Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro CBL-AOC30M4K Specs | Connector 1 | HDMI Type-A Male | | Connector 2 | HDMI Type-A Male | | Cable Length | 98.4' / 30 m | | Bandwidth | 18 Gbps | | Maximum Resolution Support | 4096 x 2160 at 60 Hz | | 3D Support | Yes | | Ethernet Channel | Yes | | HDMI Version | 2.0 | | Jacket Type | Polyvinyl Chloride (PVC) | | Conductor Material | Fiber Optic, Copper | | Compliance | HDCP | | Wire Gauge | 28 AWG | | Outer Diameter | 0.16" / 4.2 mm | | Power Consumption | 0.2 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 8.4 x 7.9 x 2.5" |
