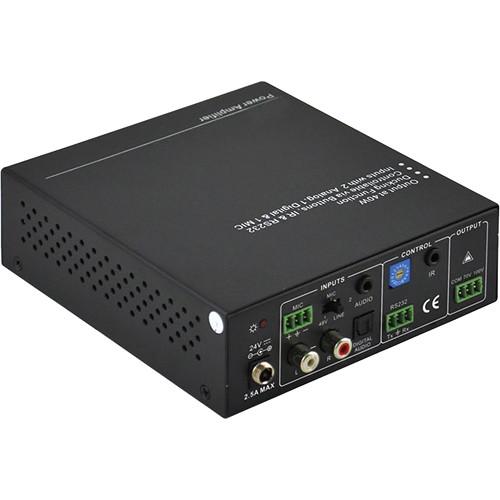

Product description The Mini 3-Input Audio Amplifier with Mic Mixer from KanexPro offers three audio inputs (1 digital / 2 analog) with mixer functionality. There are mic and line inputs, phantom power, and front-mounted jacks (RS-232 and IR control). The amplifier supports 40W output, 70 volt and 100 volt operation. Lastly, the audio amplifier supports mic mixing and EQ control. - Three audio inputs (one digital and two analog)
- One 3-level mic input with mixer function
- 40 watt amplifier output at 70 or 100V
- Ducking function for auto detect
- ID loop for RS-232 looping control
- Adjustable volume with bass and treble
- Control via front panel, RS-232 and IR control
- Supports dual-mono output
- Built-in microphone mixer (separately controllable)
- Line audio output with volume control
- Mic input supports 48V phantom power
- Supports balanced and unbalanced signals
- Convection cooled, antistatic case design
- LED indicator for power and operating status
- Internal universal power adaptable (100-240 VAC, 50/60 Hz)
UPC: 814556016077 In the Box KanexPro Mini 3-Input Audio Amplifier with Mic Mixer IR Remote Sensor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro Mini 3-Input Audio Amplifier with Mic Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro AP3DBL Specs | Audio Input | Stereo audio (RCA, 3.5mm) x 2
Digital audio (TOSLINK) x 1
Mic (Captive screw connector) x 1 | | Audio Output | Mono amplifier (3-pin captive screw connector) x 1 | | Output Type | 40 W, 70 V or 100 V | | Impedance | Input impedance for Inputs 1 & 2: >10 kΩ
Output impedance: 50 Ω / Stereo, 4-8 Ω / Amplifier
Mic Input Impedance: 48 V: 35 kΩ
Mic: 10 kΩ
Line: 75 kΩ | | Frequency Response | Input: 120 Hz - 20 kHz
Output: CMRR >70 dB @ 20 Hz - 20 kHz | | Signal to Noise Ratio | 80 dB at maximum output | | Bandwidth | 120 Hz - 20 kHz | | Stereo Channel Separation | Input: >75 dB @ 20 Hz - 20 kHz
Output: THD + Noise 1% (1 kHz), 0.3% (20 KHz) at nominal level | | Voltage Gain | 32 dB | | Audio Detection | Mic Audio Detection Delay: <1 ms | | Common Mode Rejection Ratio | >70 dB (20 Hz - 20 kHz) | | Control | RS-232 serial x 1
9-pin female D connector x 1
IR remote sensor | | Pin Configurations | 2 = TX, 3 = RX, 5 = GND | | TCP/IP | TCP/IP control through TCPRS2 | | Power Consumption | 3.6 W | | Power Supply | 24 VDC | | Dimensions (H x W x D) | 1.5 x 3.8 x 3.5" (38.1 x 96.5 x 88.9 mm) | | Weight | 0.67 lb (0.3 kg) | | | | Package Weight | 3.38 lb | | Box Dimensions (LxWxH) | 12.2 x 8.3 x 3.55" |
