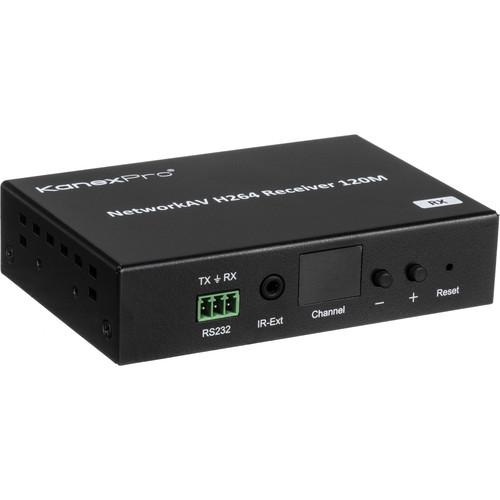

User Manual for KanexPro NetworkAV H.264 HDMI over IP Receiver Click to enlarge the picture
Contents of the user manual for the KanexPro NetworkAV H.264 HDMI over IP
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro NetworkAV H.264 HDMI over IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description Working in conjunction with a separately available transmitter, or within an established video network, the KanexPro NetworkAV H.264 HDMI over IP Receiver can receive HD video signals over Ethernet for display on a monitor, television, or projector. Using a H.264 compression, Full HD resolution can be maintained without bogging down the network. Since the video is transmitted over IP, standard networking equipment can be used to distribute video. The ability to distribute video from a single source to many displays through an Ethernet switch is great for digital signage and event-space coverage. Multimedia applications can serve video from a selection of sources to a single display using the simple front-panel interface. Other advantages of Ethernet are long cable runs up to 394', power delivery using PoE, and bidirectional IR and RS-232 control. Note: Separately available power supply required if PoE is not provided by the network. - Encode and extend 1080p resolutions up to 394'
- Features real-time AV decoding to broadcast 1080p
- H.264 Compression technology
- Can be used with DVI connection (requires separately available adapter)
- Supports one-to-many, many-to-many, and point-to-point broadcasting
- No external power source needed when connecting through a PoE network switch
- Supports LPCM audio format
- Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
- Wide-band IR pass through to control the source (38 kHz to 56 kHz)
- Bi-directional UART/RS232 (Up to 115200)
- Supports one-to-one, one-to-many, many-to-one, and many-to-many modes, with large cascading
UPC: 813982021204 In the Box KanexPro NetworkAV H.264 HDMI over IP Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro NetworkAV H.264 HDMI over IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-AVIPH264RX Specs | Inputs | 1 x RJ-45, Ethernet
1 x 3.5mm, IR | | Outputs | 1 x HDMI Type A | | Other I/O | 1 x 3-pin Phoenix, RS-232
1 x 3.5mm, IR ext | | Input Resolutions | 1080p at 24/25/29.97/30/50/59.94/60 Hz
1080i at 50 Hz
720p at 50/59.94/60 Hz
576p at 50 Hz
480p at 59.94/60 Hz
NTSC
PAL | | Protocol | H.264 over TCP/IP | | Transmission Distance | 394' / 120 m | | Audio Format | LPCM, 48 kHz sampling rate | | Bit-Rate | 15 Mbps | | IR Frequency | 38-56 kHz | | RS-232 | Baud Rate: 2400 bps (default) | | Power Supply | 5 VDC, 1 A | | Power Consumption | 3 W (maximum) | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Operating Humidity | 5-90% RH, non-condensing | | Dimensions | 4.7 x 3.1 x 1.1" / 12 x 8 x 2.8 cm | | Weight | 9.9 oz / 280 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.2 x 6.1 x 2.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
