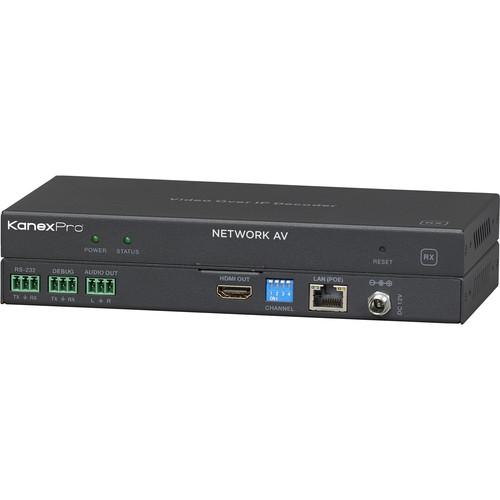

User Manual for KanexPro NetworkAV over IP Decoder with PoE & RS-232 Click to enlarge the picture
Contents of the user manual for the KanexPro NetworkAV over IP Decoder with
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro NetworkAV over IP Decoder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro EXT-NETAVTRX NetworkAV over IP Decoder with PoE & RS-232 is part of a system for transmitting HDMI signals over Category cable. This is the receiver, which is an AV over IP decoder/receiver that features one HDMI output, Phoenix connectors for audio output, debugging, and RS-232 control. The LAN (Ethernet) port supports PoE and receives the signal from an optional transmitter (not included). The decoder uses advanced H.264 compression algorithm to convert the IP signal into an HDMI signal that can be displayed on an HDMI monitor with up to 1.5ms latency.
With a transmitter/receiver pair (transmitter available separately), you can transmit your signal up to 330', and as the receiver supports PoE, you only need one power supply to run the system. It is compatible with a standard 1G IP switch, and you can connect multiple receivers to a switch to feed multiple monitors from a single transmitter. You can control the receiver via RS-232 or the built-in GUI. - Video Wall Function and Multi-View
- Create a 3x3 video wall or multi-view by adding multiple decoders to your application that can all be controlled by a central web-based GUI.
- Central Control
- The EXT-NETAVRX offers one central control over web GUI to manage all your sources and displays. The controller is built-in to the transmitter (not included), which will manage all your HDMI sources and display devices using Web GUI, mobile app or any third-party control system.
UPC: 813982021907 In the Box KanexPro NetworkAV over IP Decoder with PoE & RS-232 12 VDC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro NetworkAV over IP Decoder with PoE & RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-NETAVRX Specs | Material of Construction | Metal Enclosure | | HDMI Compliance | HDMI 1.4b | | HDCP compliance | HDCP 1.4 | | Video Bandwidth | 4.95 Gb/s | | Video Resolutions | 640 x 480p60 to 1920 x 1080p60 | | Output Video Type | H.264/MPEG-4 AVC | | Encoding Data Rate | Up to 30 Mb/s, Configurable | | Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | | Color Depth | 8-Bit | | HDMI Audio | LPCM 2-CH, 48 kHz | | Analog Audio | Stereo 2-CH | | ESD Protection | Human Body Model:
