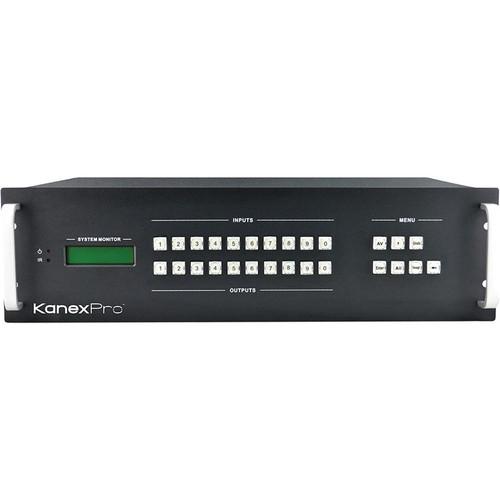

User Manual for KanexPro Professional 16 x 16 HDMI to HDBaseT Matrix Switcher Click to enlarge the picture
Contents of the user manual for the KanexPro Professional 16 x 16 HDMI
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro Professional 16 x 16 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro Professional 16 x 16 HDMI to HDBaseT Matrix Switcher is used to send high-definition video and audio signals from up to 16 sources to 16 displays or projectors. It utilizes HDBaseT technology to extend HDMI and control signals over CAT5e cables (sold separately) to devices up to 230’ (70m) away.
This 16 x 16 Matrix Switcher supports resolutions up to 1920 x 1200, 3D, and HDTV 1080p/60, and allows for rapid cross-point switching. It also offers full HDCP management for continuous encryption and authentication in addition to EDID support for each input and output, ensuring proper source power up and steady video transmission.
This matrix switcher is fully controllable through the RS-232 and optional TCP/IP ports when used with third-party control systems. It is suitable for signal management and HD video distribution systems in control centers, smart lecture halls, and medical, government, and residential environments. Note: The HDBASE70M Receiver used to connect the switcher to the destination device is sold separately. - Extends 16 HDMI inputs through HDBaseT to up to 16 HD displays
- Each run on a single CAT5e cable (sold separately) has a range of 230' (70m)
- Locking HDMI connectors for reliability
- Based on HDBaseT Lite Technology
- Integrated signal processing
- Cross-point ultra-switching for tying any input to any output
- Built-in signal re-clocking and equalizer
- Advanced HDCP and EDID management
- Built-in HDCP engine for continuous encryption
- Security lock on the front panel
- Controllable via TCP/IP and RS-232 ports
- 3U rack-mountable aluminum enclosure
- Dual internal power supply (100 VAC to 240 VAC, 50/60Hz)
UPC: 814556016060 In the Box KanexPro Professional 16 x 16 HDMI to HDBaseT Matrix Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro Professional 16 x 16 HDMI to HDBaseT Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDBASE16X16 Specs | Chassis | Input: 4 x input card with 16 x HDMI connector
Output: 4 x output card with 16 x HDBaseT connector, RS-232, and IR | | Transmission Range | HDBaseT: 230' (70 m) | | Bandwidth | For each Input/Output: 340 MHz (10.2 Gb/s) | | Impedance | Input/Output: 75 Ω | | Switching Speed | Maximum: 200 ns | | Gain | 0 dB | | Maximum Delay | 5 ns (±1 ns) | | Maximum Pixel Clock | 165 MHz | | Power Consumption | 50 W | | Serial Control | Port: RS-232, 9-pin female D connector | | Pin Configurations | 2 = TX, 3 = RX, 5 = GND | | Front Panel Control | Buttons | | TCP/IP | Control: Via Ethernet | | Installation | Rack mountable | | Frame Size | 3U rack chassis | | Power Supply | Dual internal, 110 VAC to 240 VAC, 50/60 Hz | | Humidity | 10 to 90% | | Temperature | -4 to 158°F (-20 to 70°C) | | Dimensions (W x H x D) | 19.0 x 6.8 x 12.6" (48.3 x 17.3 x 32.0 cm) | | Weight | 7.7 lb (3.5 kg) |
