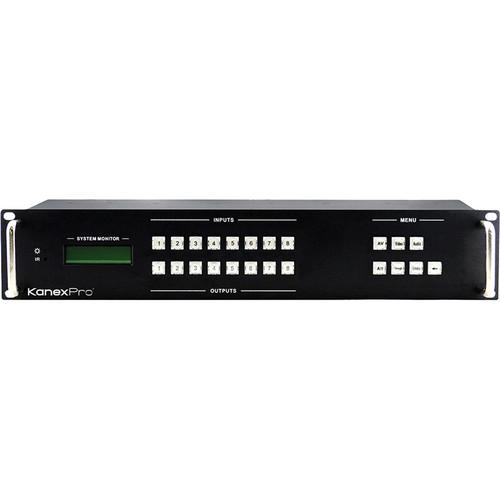

Product description The KanexPro Professional 8 x 8 HDMI to HDBaseT Matrix Switcher is used to send high-definition video and audio signals from up to 8 sources to 8 displays or projectors. It utilizes HDBaseT technology to extend HDMI and control signals over CAT5e cables (sold separately) to devices up to 230’ (70m) away.
This 8 x 8 Matrix Switcher supports resolutions up to 1920 x 1200, 3D, and HDTV 1080p/60, and allows for rapid cross-point switching. It also offers full HDCP management for continuous encryption and authentication in addition to EDID support for each input and output, ensuring proper source power up and steady video transmission.
This matrix switcher is fully controllable through the RS-232 and optional TCP/IP ports when used with third-party control systems. It is suitable for signal management and HD video distribution systems in control centers, smart lecture halls, and medical, government, and residential environments. Note: The HDBASE70M Receiver used to connect the switcher to the destination device is sold separately. - Extends 8 HDMI inputs through HDBaseT to up to 8 HD displays
- Each run on a single CAT5e cable (sold separately) has a range of 230' (70m)
- Locking HDMI connectors for reliability
- Based on HDBaseT Lite Technology
- Integrated signal processing
- Cross-point ultra-switching for tying any input to any output
- Built-in signal re-clocking and equalizer
- Advanced HDCP and EDID management
- Built-in HDCP engine for continuous encryption
- Security lock on the front panel
- Controllable via TCP/IP and RS-232 ports
- 3U rack-mountable aluminum enclosure
- Dual internal power supply (100 VAC to 240 VAC, 50/60Hz)
UPC: 814556016145 In the Box KanexPro Professional 8 x 8 HDMI to HDBaseT Matrix Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro Professional 8 x 8 HDMI to HDBaseT Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDBASE8X8 Specs | Chassis | Input: 2 x input card with 4 x HDMI connector
Output: 2 x output card with 4 x HDBaseT connector, RS-232, and IR | | Transmission Range | HDBaseT: 230' (70 m) | | Bandwidth | For each Input/Output: 340 MHz (10.2 Gb/s) | | Impedance | Input/Output: 75 Ω | | Switching Speed | Maximum: 200 ns | | Gain | 0 dB | | Maximum Delay | 5 ns (±1 ns) | | Maximum Pixel Clock | 165 MHz | | Power Consumption | 50 W | | Serial Control | Port: RS-232, 9-pin female D connector | | Pin Configurations | 2 = TX, 3 = RX, 5 = GND | | Front Panel Control | Buttons | | TCP/IP | Control: Via Ethernet | | Installation | Rack mountable | | Frame Size | 3U rack chassis | | Power Supply | Dual internal, 110 VAC to 240 VAC, 50/60 Hz | | Humidity | 10 to 90% | | Temperature | -4 to 158°F (-20 to 70°C) | | Dimensions (W x H x D) | 19.0 x 3.5 x 12.6" (48.3 x 8.9 x 32.0 cm) | | Weight | 6.6 lb (3.0 kg) |
