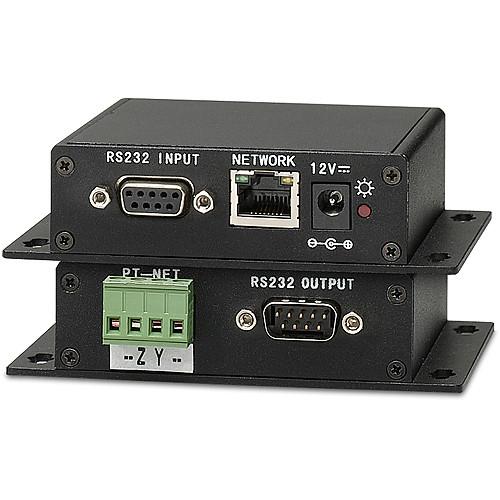

User Manual for KanexPro RS-232 to Ethernet Control Processor Click to enlarge the picture
Contents of the user manual for the KanexPro RS-232 to Ethernet Control Processor
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro RS-232 to Ethernet Control Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro RS-232 to Ethernet Control Processor is designed to integrate IP control for matrix switchers, signal processor, scaler, or lighting products that use RS-232 signals. While converting IP control protocols to RS-232 signals or serial commands, the processor allows you to monitor and control your device over a local or an internet network. You can edit the operation of the processor with included programmable software.
Using an internal auto-switching power supply, the RS-232 to Ethernet Control Processor is compatible with input AC power from 100 to 240 V (50/60 Hz). Housed in a static-resistant aluminum enclosure, the processor can be mounted on a wall or table. - Integrates IP control for matrix switchers, signal processor, scaler, or lighting products that use RS-232 signals
- RS-232 and Ethernet output
- Converts IP control signals to RS-232 signals or serial commands
- Allows you to monitor and control your device over a local or an internet network
- Internal auto-switching power supply
- Compatible with input AC power from 100 to 240 V (50/60 Hz)
- Housed in a static-resistant aluminum enclosure
- Can be mounted on a wall or table
- Front panel LED indicator for working status
UPC: 814556013946 In the Box KanexPro RS-232 to Ethernet Control Processor 5 V DC Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro RS-232 to Ethernet Control Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro TCPRS2 Specs | Input | Control signal: TCP/IP (compatible with internet) / RS232
Connector: RJ45 connector / 9-pin RS232 connectors | | RS-232 | Layout: 2 = TX, 3 = RX, 5 = GND | | Output | Control signal: RS232 (Ethernet for KanexPro Product)
Connector: RJ45 connector / 9-pin RS232 connectors | | Software | PC Software "TCPRS2 V 2.0" | | Frequency Response | 20 Hz to 20 KHz | | Power Supply | 110 to 240 V AC, 50/60 Hz | | Power Consumption | 5 W | | Temperature | -4 to 158° F (-20 to +70° C) | | Humidity | 10 - 90% | | Dimensions (W x H x D) | 0.8 x 1.71 x 0.5" (20 x 43.6 x 12 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 11.9 x 8.2 x 3.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
