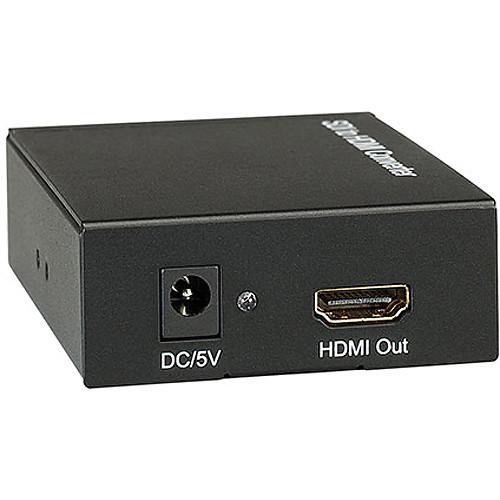

User Manual for KanexPro SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the KanexPro SDI to HDMI Converter
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
|
User manual for the KanexPro SDI to HDMI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro SDI to HDMI Converter enables you to connect SDI cameras to HDMI monitors. An SDI loop output allows at the same time connecting to an SDI monitor. It also allows cascading with additional units in order to connect to more HDMI monitors.
This converter supports and automatically recognizes 3G/HD/SD SDI inputs. It supports resolutions from 480i to 1080p60, 8/10/12-bit color depth, and RGB and YCbCr 4:4:4 / 4:2:2 color sampling on both input and output, and it supports 8 channels of 48k digital audio.
You can use SDI cables up to 130 ft for HD resolutions and 300 ft for SD resolutions. The SDI loop output re-clocks the length of the SDI input cable. RG59 cables are required for SDI transmissions. A power supply and a set of small rack mount ears are included. - 3G/HD/SD SDI to HDMI Converter
-
- Connects SDI cameras to HDMI monitors
- SDI loop output allows connecting to an SDI monitor and cascading with additional units
- Supports resolutions up to 1080p60
- 8/10/12-bit color depth
- RGB and YCbCr 4:4:4 color sampling
- 8 channels of 48k digital audio
- Small rack mount ears included
UPC: 814556015872 In the Box KanexPro SDI to HDMI Converter Power Supply Small Rack Mount Ears Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-SDI3GX Specs | Input | 1x 3G/HD/SD SDI | | Output | 1x HDMI (DVI compatible)
1x 3G/HD/SD SDI loop output | | Supported Resolutions | 1080p24/25/30/50/60 @ 60 Hz
1080i50/60 @ 60 Hz
720p24/25/30/50/60 @ 60 Hz
576i, 625i, 525i, 480i 1080P,1920*1080 • 720P; 1280*720 • 1280*720, 480I (NTSC mode) 576i Standard PAL mode | | Color Depth | 8/10/12-bit | | Sampling | RGB and YCbCr 4:4:4 | | Audio | 8 channels of 48k digital audio | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Storage Humidity | 5 to 90% RH (no condensation) | | Approvals | FCC, CE, UL | | Power | 2.5 W power consumption
5 VDC @ 2A included power supply | | Dimensions | 3.9. x 2.75 x 1" (10 x 7 x 2.5 cm) | | Weight | 0.4 lb (181 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.0 x 5.3 x 3.1" |
