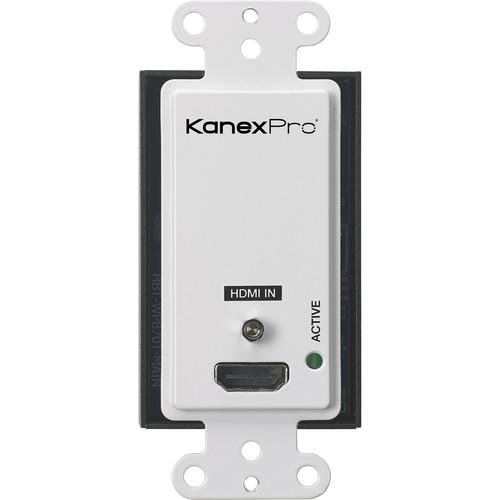

User Manual for KanexPro Single HDMI 2.0 over HDBaseT Wall Plate Transmitter with IR & PoC Click to enlarge the picture
Contents of the user manual for the KanexPro Single HDMI 2.0 over HDBaseT
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro Single HDMI 2.0 over HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro Single HDMI 2.0 over HDBaseT Wall Plate Transmitter with IR & PoC is a Decora-style interface that fits in a standard US single-gang wall switch box. Providing an HDMI port and LED indicator light on the front, the interface puts the connectivity for HDBaseT, IR, RS-232 control, and power on the back of the unit, keeping the clutter of connectors and cables from view. Though small in size, this transmitter can send UHD 4K signals up to 130' and HD signals up to 230' over a Cat 5e/6 cable to a compatible receiver.
The transmitter is compliant with HDCP 1.4 and 2.2 standards and supports PoC, which allows you to power the unit either directly or over the Category cable from a powered receiver. The transmitter supports bidirectional IR and RS-232 control, which doesn't limit the location that you can control connected devices from. An integrated LED indicates when the transmitter is active. -
- Single-gang, one HDMI input wall plate over HDBaseT
- Extend 4K/60 4:4:4 up to 130'
- Extend 1080p/60 4:4:4 up to 230'
- Supports HDMI 2.0 with 18 Gb/s bandwidth
- Digital Audio support up to 7.1 channels of HD audio
- HDCP 2.2 /1.4 Compliant
- Bidirectional IR & RS-232 control
- Remote power support thru PoC (either from Tx or Rx)
- PoC power consumption is less than 10W
- Simple point-to-point transmission over Cat 5e/6
- Active LED status indicator
UPC: 813982021914 In the Box KanexPro Single HDMI 2.0 over HDBaseT Wall Plate Transmitter with IR & PoC 2 x 2-Pin Phoenix Connector 2 x 3-Pin Phoenix Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro Single HDMI 2.0 over HDBaseT Wall Plate Transmitter with IR & PoC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro WP-EXTHDBTX1 Specs | Connections | Input
HDMI: 1 x Type A (19-pin female)
Output
HDBaseT: 1 x RJ45
Interface
IR: 1 x 3-Pin Phoenix Jack (In/Out)
RS-232: 1 x 3-Pin Phoenix Jack (In/Out)
Power
24 VDC: 1 x 2-Pin Phoenix Jack (In) | | HDMI Format Support | Video
Video Bandwidth: 18 Gb/s
Video Resolutions: Up to 4K2K 50/60 (YUV 4:4:4), 4K2K 30, 1080p 120, and 1080p 3D 60
Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 10-/12-Bit
Audio
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Optical Audio Formats
LPCM 2CH/LPCM 5.1: Dolby Digital 2/5.1CH, DTS 2/5.1CH | | HDMI Compliance | HDMI: 2.0b
HDCP: 1.4 & 2.2 | | ESD Protection | Human Body Model:
