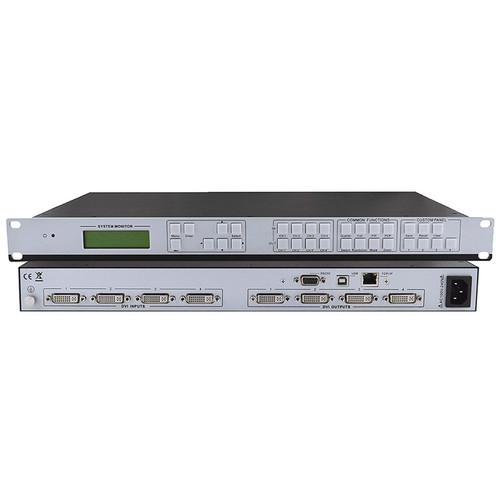

Product description The KanexPro SW-VDYWALL 2 x 2 DVI Video Processor with Multi-Viewer features 4 DVI inputs and 4 DVI outputs, and enables you to configure it to either a 2 x 2 video wall or create a 4 x 1 multi-viewer. This high-performance processor supports image overlapping and output scaling function to your specific needs. It is fully compliant with HDCP and supports EDID management.The video wall does not require all the 4 sources and 4 displays to be connected in order to work, one can connect and select between 1 to 2 inputs to 4 outputs, such as Apple TV or Blu-ray (sold separately) to 4 displays. The included software, using RS-232 connection to a computer, will help you set up all the different layout configurations such as PIP, POP, switching functions, resolutions, and save & recall functions.The built-in scaler supports various PC & HD resolutions of up to 1920 x 1200. The embedded scaler converts an input signal to match the native resolutions of output displays, up-scaling if needs to be. The scaler is also manually adjustable through front-panel buttons, featuring selectable output settings of up to 1920 x 1200 @ 60 Hz.This video processor is suitable for use at operation centers, military installations, shopping malls, and airports where demand for high-resolution 4 x 4 video wall is critical. - 2 x 2 video wall processor
- 4 x 1 multi-viewer function
- Supports HDMI input / output
- Various layouts controlled by software
- High bandwidth of 10.2 Gb/s
- Supports image-overlapping
- Built-in control for screen size & position
- Adjustable contrast & brightness
- Easy firmware update through USB
- Control via RS-232 & TCP/IP
In the Box KanexPro SW-VDYWALL 2 x 2 DVI Video Processor with Multi-Viewer Software Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro SW-VDYWALL 2 x 2 DVI Video Processor with Multi-Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SW-VDYWALL Specs | | | Video Input | 4 x DVI (female DB24+5) | | Video Output | 4 x DVI (female DB24+5) | | TMDS | 2.9 / 3.3 V; 50 Ω | | | | Bandwidth | 340 MHz (10.2 Gb/s) | | Time Delay Skew | Maximum Time-Delay: 5 ns (±1 ns) | | Crosstalk | <-50 dB@ 5 MHz | | Switching Speed | 200 ns (maximum) | | | | Standards | DVI: 1.0 / HDMI: 1.3
Supports EDID and DDC, HDCP compliant | | Control | Command & Control:
Front buttons, USB, & RS232 (9-pin female D connector)
TCP/IP control option available | | | | Power Supply | 100 to 240 VAC, 50/60 Hz | | | | Temperature | At 25 W: -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90% | | | | Dimensions | Chassis Dimension (W x H x D) (1U High, Full Rack Wide):
19.02 x 1.73 x 9.25" (483.00 x 44.00 x 235.00 mm) | | Weight | 11.46 lb (5.20 kg) |
