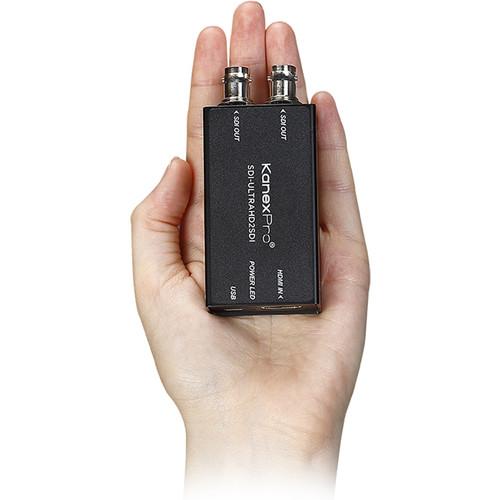

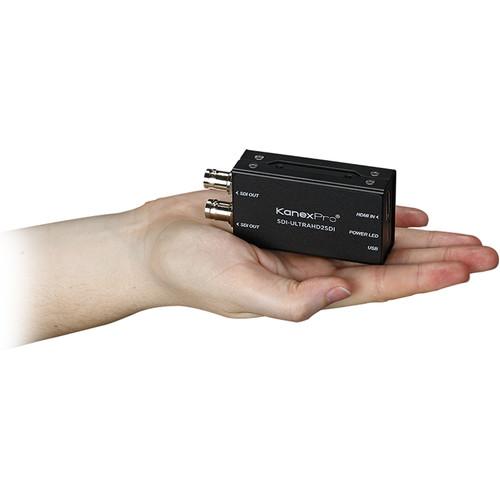

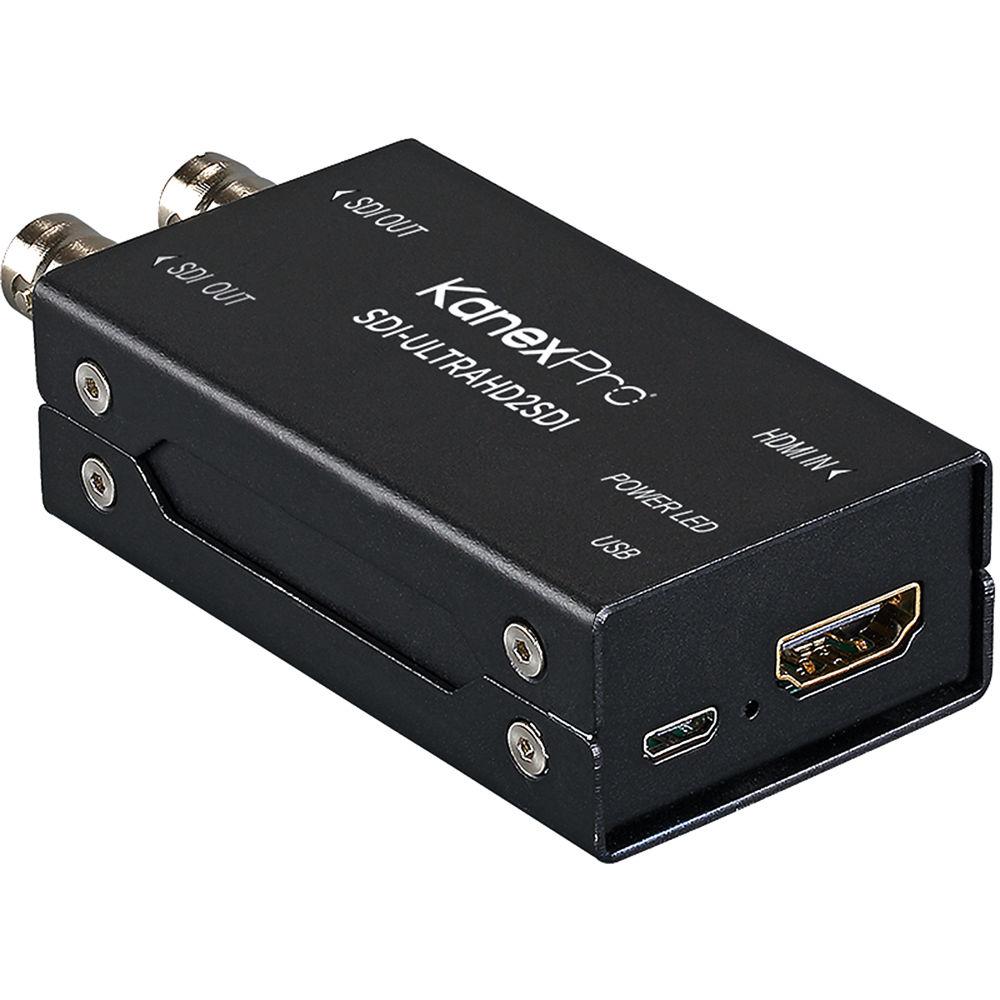

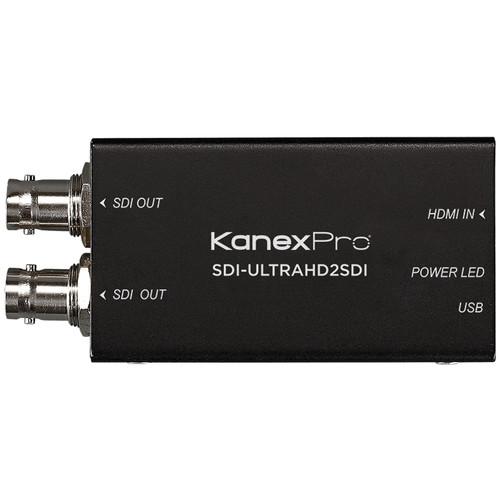

User Manual for KanexPro Ultra-Compact HDMI to SDI Broadcast Quality Converter Click to enlarge the picture
Contents of the user manual for the KanexPro Ultra-Compact HDMI to SDI Broadcast
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
 |
User manual for the KanexPro Ultra-Compact HDMI to SDI Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro Ultra-Compact HDMI to SDI Converter provides a convenient way of sending up a 1080p HDMI source, such as a camera or laptop, simultaneously to two SDI monitors. The unit supports NTSC and PAL formats.
The converter is highly compact and housed in a robust aluminum enclosure, and is powered via a micro-USB port. A USB power cable and power adapter are included, and you can also connect to a standard USB charger or even just a computer for power. The SDI and HDMI ends support standard SDI/HDMI cable lengths (with 3G-SDI at up to 328 ft). - Key Features
-
- Send up to a 1080p HDMI signal simultaneously to two SDI monitors
- Supports standard SDI cable distances
- HDMI input
- Two 3G/HD/SD-SDI outputs
- Powered via micro-USB port
- 5V power adapter and USB cable included
- Robust aluminum enclosure
UPC: 813982021433 In the Box KanexPro Ultra-Compact HDMI to SDI Broadcast Quality Converter 5V Power Adapter USB Cable Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro Ultra-Compact HDMI to SDI Broadcast Quality Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SDI-ULTRAHD2SDI Specs | Input | 1 x HDMI type-A
1 x micro-USB (power and software update) | | Output | 2 x 3G/HD/SD-SDI | | SDI Format Support | 1080p 23.976/23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
625i 50
525i 59.94
NTSC
PAL | | HDMI Format Support | 1080p 23.976/23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
576i
480i | | SDI Compliance | SMPTE 292M
SMPTE 259M
SMPTE 424M | | HDMI Color Space | YUV | | HDMI Color Precision | 4:2:2 | | Supported Cable Lengths | 3G-SDI: 328 ft (100 m)
HD-SDI: 425 ft (130 m)
SD-SDI: 984 ft (300 m) | | Power Consumption | 2 W | | Voltage Range | 3.3 - 5 V | | Operating Temperature | 32 to 140°F (0 to 60°C) | | Storage Temperature | 32 to 140°F (0 to 60°C) | | Relative Humidity | 0 - 90% non-condensing | | Dimensions | 2.9 x 1.6 x 0.9" (7.4 x 4.1 x 2.3 cm) | | Weight | 1.6 oz (45 g) | | | | Package Weight | 0.87 lb | | Box Dimensions (LxWxH) | 4.65 x 3.3 x 3.1" |
