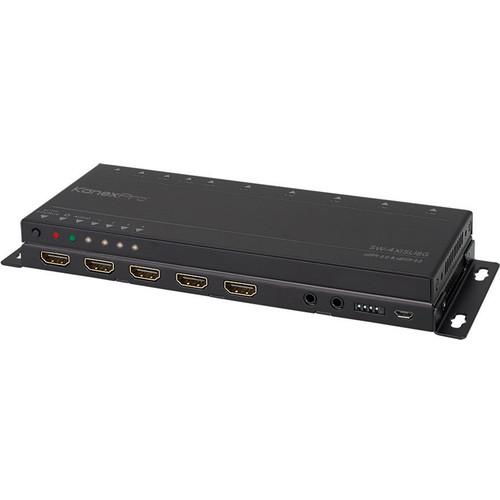

User Manual for KanexPro UltraSlim 4K HDMI 4x1 Switcher Click to enlarge the picture
Contents of the user manual for the KanexPro UltraSlim 4K HDMI 4x1 Switcher
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro UltraSlim 4K HDMI 4x1 Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro UltraSlim 4K HDMI 4x1 Switcher enables you to switch among four HDMI sources and output to one 4K HDMI display. Supporting resolutions of up to 4K x 2K @ 60 Hz, this switcher features auto-identification of inputs, 4:4:4 color sampling, and 18 Gbps of bandwidth. ARC (Audio Return Channel), CEC, and EDID-management functions offer streamlined remote control, cabling, and display options. Suited for residential and corporate AV setups, the UltraSlim 4K HDMI 4x1 Switcher enables you to switch between various HDMI devices such as laptops, cameras, tablets, and mobile phones. Audio de-embedding and a 3.5mm audio input enable you to pair your video with a separate audio source. The UltraSlim 4K HDMI 4x1 Switcher features a height of less than a half-inch, and includes a micro-USB port for firmware updates. Inputs can be selected using the front panel buttons, the included IR remote control, or by RS-232 commands. This HDMI switcher is HDCP 2.2 compliant and can transmit 4K signals via HDMI cable up to 30 feet away. Features - Auto-switch four HDMI sources to one 4K HDMI display
- Supports 4K x 2K video @ 60 Hz with 4:4:4 color sampling; HDCP 2.2 compliant
- Suitable for residential and corporate AV applications with varying input sources such as cameras, laptop computers, tablets, and mobile phones
- Audio de-embedding and a 3.5mm audio input enable you to pair your video with a separate audio source
- Front panel, IR remote, and RS-232 control options; front panel LEDs display input/output signal presence
- Compact design is less than 1/2" in height and weighs under six ounces
UPC: 813982021235 In the Box KanexPro UltraSlim 4K HDMI 4x1 Switcher IR Remote Control 3.5mm IR Receiver 5V Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro UltraSlim 4K HDMI 4x1 Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SW-4X1SL18G Specs | Inputs/Outputs | 4 x HDMI inputs
1 x HDMI output | | DDC Signal Voltage | 5 V peak-to-peak (TTL) | | Maximum Single Link Range | 4K x 2K @ 24/30/50/60 Hz | | Output Video | HDMI 2.0 with full 3D, 4K x 2K @ 60 Hz | | HDCP Compliance | 2.2 | | Operating Frequency | 30/50/60 Hz | | Maximum Data Rate | 18 Gbps | | Supported Resolutions | Interlaced:
1080i, 576i, 480i
Progressive:
4K x 2K @ 60 Hz, 1080p, 720p, 576p, 480p | | Power Supply | 5 VDC @ 1 A | | Maximum Power Consumption | 5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 7.6 x 0.4 x 3.1" (194 x 11.4 x 80 mm) | | Weight | 0.35 lb (158 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.4 x 5.3 x 4.8" |
