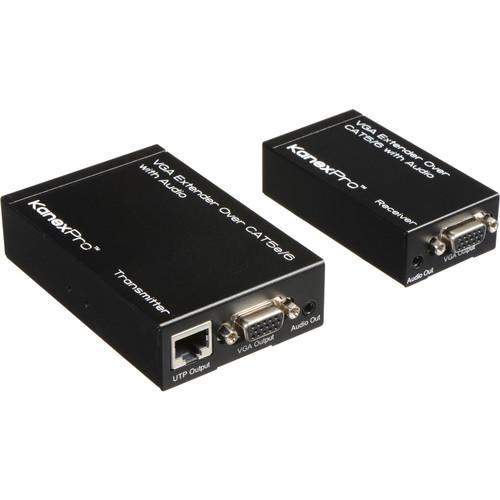

Product description The VGA Extender over CAT 5/6 with Audio enables extending transmission of VGA signals with stereo audio up to 1000' over a single CAT 5e/6 cable. The extender supports signal resolutions up to WUXGA and both the transmitter and receiver feature 3.5mm audio jacks, allowing you to embed audio in the signal traveling over the UTP cable and then de-embed the audio at the receiver's end.
The receiver features separate gain and peaking rotary switches for adapting to various cable lengths. The transmitter offers an additional VGA port for local display, which allows you to monitor the video being sent as data. The output module performs buffering to reject noise interference. The VGA Extender is rack- or under-desk-mountable and includes two power supplies that provide the required 5 VDC for operation. - Used to extend transmission distances for VGA signals with stereo audio up to 1000' over a single Cat 5e/6 cable
- The transmitter features a 15-pin HD connector for video in, while the receiver features a 15-pin HD connector for video out
- Supports signal resolution up to WUXGA (1920 x 1200 @ 60 Hz) and HDTV to projectors
- Receiver features separate gain and peaking rotary switches for adjusting to the length of the cable run
- Features a 3.5mm jack on the transmitter and receiver for stereo audio support
- An integrated 15-pin HD connector in the transmitter enables you to view the video signal you are sending
- Rack- or under-desk-mountable
UPC: 814556013465 In the Box KanexPro VGA Extender over CAT 5e/6 with Audio 2 x 5 VDC External Power Supplies Mounting Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro VGA Extender over CAT 5e 6 with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro VGAEXTX1 Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x 3.5 mm Audio (Input)
1 x HD15 VGA (Output)
1 x RJ45 Ethernet (Output)
Receiver:
1 x RJ45 Ethernet (Input)
1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Output) | | Supported Resolutions | 1920 x 1200 | | | | DC Input Power | 5 VDC at 2 A | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | 14 to 176°F / -10 to 80°C | | Operating Humidity | 10 to 85% | | Storage Humidity | 5 to 90% | | | | Certifications | CE, FCC, UL, as per Manufacturer | | Dimensions | 4.0 x 2.6 x 1.0" / 102.0 x 66.0 x 25.5 mm (Transmitter)
3.2 x 1.4 x 0.8" / 82.6 x 35.6 x 20.0 mm (Receiver) | | Weight | 0.5 lb / 215.0 g (Transmitter)
0.2 lb / 115.0 g (Receiver) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.7 x 7.6 x 2.3" |
