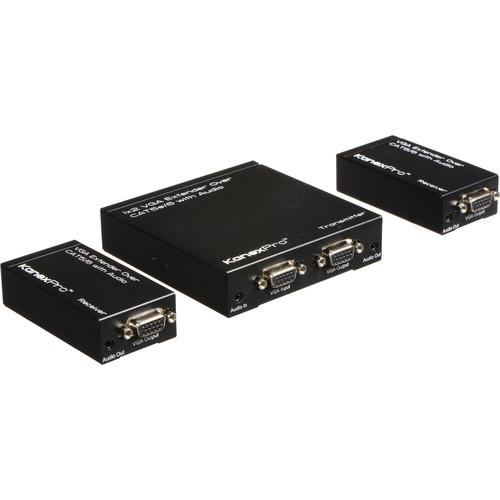

Product description The KanexPro VGA Extender over Cat5e/6 with Audio (1 x 2) is a professional 1 input and 2 outputs extender for use with applications that use VGA video signals with stereo audio. With 2 independent receivers, the extender allows you to send VGA signals up to 1000’ (300m) via Cat5e/6 cables. Using a separate gain and peaking rotary switch, the receivers allows you to transmit signals with an option for adjusting brightness and skew over long distance transmission. In addition, it includes a local VGA output for monitoring the data being sent across.
Employing 15-pin HD input/output connectors, the VGA Extender offers support for graphics card resolutions from VGA to WUXGA and from HDTVs to projectors. Each output is separately buffered, and this helps in maintaining signal integrity and rejecting noise interference for lossless transmission. The Extender is EDID compliant and can be mounted on a rack or under the desk. For operation, it requires a 5VDC external power supply (included). - Professional 1 input and 2 outputs extender for use with applications that use VGA video signals with stereo audio
- Allows you to send VGA signals up to 1000' (300m) via Cat5e/6 cables
- Separate gain and peaking rotary switch
- Options for adjusting brightness and skew
- Local VGA output for monitoring
- 15-pin HD input/output connectors
- Support for graphics card resolutions from VGA to WUXGA
- Supports HDTVs to projectors
- Separately buffered outputs
- Maintains signal integrity and rejects noise interference for lossless transmission
- Rack or under-desk mountable
- Requires a 5VDC external power supply (included) for operation
UPC: 814556013458 In the Box KanexPro VGA Extender over CAT5/6 with Audio (1 x 2) 1-year Warranty Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro VGA Extender over CAT5 6 with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro VGAEXTX2 Specs | Interface | Transmitter
Input: VGA x 1 / 3.5mm stereo x 1
Output: Cat5e/6 x 2 / VGA output (local) x 1 / 3.5mm stereo x 1
Receiver
Input: Cat5e/6 x 1
Output: VGA x 1 / 3.5mm Stereo x 1 | | Vertical Frequency Range | 60 / 75 / 85Hz | | Resolutions | 640x480, 800x600, 1024x768, 1280x720, 1280x768, 1280x960, 1280x1024, 1600x900, 1600x1200, 1920x1080, 19200x1200 | | Power Supply | 5V/2A DC, 5W | | Operating Temperature | 32 to 158° F (0 to +70° C) | | Operating Humidity | 10 to 85 % RH (no condensation) | | Storage Temperature | 14 to 176° F (-10 to +80° C) | | Storage Humidity | 5 to 90 % RH (no condensation) | | Regulatory Approvals | Converter / power supply: FCC, CE, UL | | Dimensions | VGA extender: 4 x 4.6 x 1" (102 x 117 x 25.5 mm)
Receiver: 3.25 x 1.4 x 0.8" (82.6 x 35.6 x 20 mm) | | Weight | VGA extender: 0.66 lb (300 g)
Receiver: 0.25 lb (115 g) | | | | Package Weight | 1.89 lb | | Box Dimensions (LxWxH) | 10.3 x 9.7 x 2.4" |
