User Manual for KanexPro VGA to 4K HDMI Converter Click to enlarge the picture
Contents of the user manual for the KanexPro VGA to 4K HDMI Converter
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
|
User manual for the KanexPro VGA to 4K HDMI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|

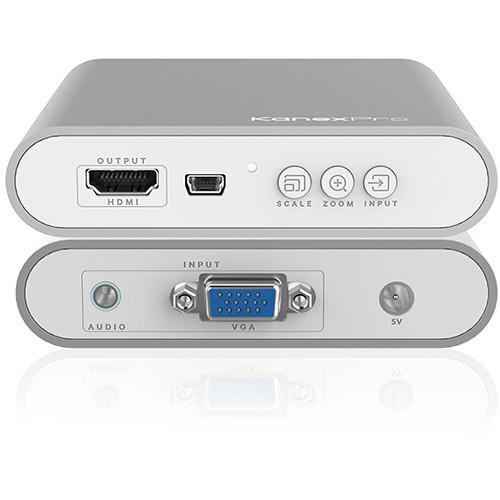

Product description Incorporate VGA-based hardware into your 4K setup with the KanexPro VGA to 4K HDMI Converter. Using internal hardware, this converter will upscale, resize, and digitize an incoming VGA signal via 19-pin DIN from a computer or other A/V units to UHD (3840x2160), so it will be compatible with your 4K HDMI switching and display equipment. The input supports up to a 1080p60 resolution signal, and the 60 Hz refresh rate will be maintained as long as the output equipment supports it. Audio is also supported via a 3.5mm input. The analog audio is then embedded in the HDMI stream. Features - Scale and convert an analog VGA signal to be compatible with your UHD 4K display
- Built-in scaling hardware to upscale video resolutions up to 3840x2160 at 60 Hz
- Supports various VESA standards and VGA formats
- Internal signal processing of color and image details
- Selective resolution and zoom buttons for optimal image sizing
- Firmware upgradable via USB
- 5 VDC power supply included
UPC: 813982020450 In the Box KanexPro VGA to 4K HDMI Converter DC Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro VGA to 4K HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro CON-VGA-HD4K Specs | | | A/V Inputs | 1x VGA (19-pin DIN)
1x 3.5mm stereo audio input | | A/V Outputs | 1x HDMI | | Computer | 1x Mini-USB | | | | Input | VGA (all @ 60 Hz): 640x480, 800x600, 1024x768, 1280x720, 1280x768, 1280x1024, 1360x768, 1920x1080 | | Output | HDMI: 3840x2160 @ 30/60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20 to 90% (non-condensing) | | Power Consumption | 3 W (max) | | ESD Protection | 3.8 kV (air-gap discharge)
3.4 kV (contact discharge) | | Dimensions | 3.7 x 3.3 x 1.1" / 93 x 85 x 28 mm | | Weight | 0.7 lb / 299 g | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 8.4 x 6.05 x 2.25" |
