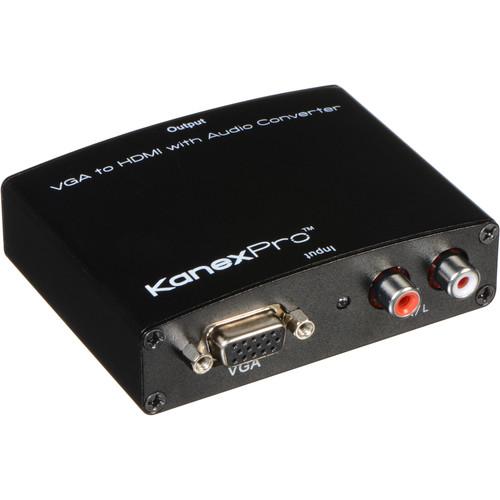

User Manual for KanexPro VGA with RCA Audio to HDMI Converter Click to enlarge the picture
Contents of the user manual for the KanexPro VGA with RCA Audio to
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
|
User manual for the KanexPro VGA with RCA Audio to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description This compact VGA with Audio to HDMI Converter from KanexPro enables you to convert a VGA video signal and separate RCA audio signal to an HDMI output, and in this way connect your VGA/RCA sources to an HDMI display for a full audiovisual experience.
On output, the converter supports resolutions up to Full HD 1080p and computer resolutions up to 1600 x 1200. It converts the input resolution to the closest output resolution. - Key Features
-
- Convert VGA and L/R RCA signals to an HDMI output
- VGA and L/R RCA inputs
- HDMI output
- Embeds L/R RCA audio into the HDMI output
- Supports output resolutions up to 1080p and 1600 x 1200
- Supports data rates up to 6.75 Gbps
UPC: 814556013601 In the Box KanexPro VGA with RCA Audio to HDMI Converter 5VDC External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro VGA with RCA Audio to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro VGARLHD Specs | Input | 1 x VGA
1 x L/R RCA | | Output | 1 x HDMI 1.2a | | Input Video Signal | 0.5 - 1.0 V p-p | | Input DDC Signal | 5 V p-p (TTL) | | Supported Input Resolutions | 640 x 480 at 60 / 75 Hz
800 x 600 60 / 75 Hz
1024 x 768 60 / 75 Hz
1280 x 720 60 / 75 Hz
1280 x 768 60 / 75 Hz
1280 x 960 60 / 75 Hz
1280 x 1024 60 / 75 Hz | | Supported Output Resolutions | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Computer Resolutions: up to 1600 x 1200 (if available on the HDMI display)
*The input resolution is automatically converted to the closest output resolution. | | Frequency | Up to 165 MHz | | Video Amplifier Bandwidth | 1.65 Gbps | | Power Supply | 5 VDC, 1 A | | Power Consumption | 5 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Humidity | 5 to 95% RH (no condensation) | | Dimensions | 3.5 x 1 x 2.7" (8.9 x 2.5 x 6.9 cm) | | Weight | 0.24 lb (109 g) | | | | Package Weight | 0.92 lb | | Box Dimensions (LxWxH) | 6.7 x 4.95 x 2.35" |
