Product description New Kanto Living Mobile Mounts Read More - MTM55 and MTM55PL-S Install Video | Kanto Mounts

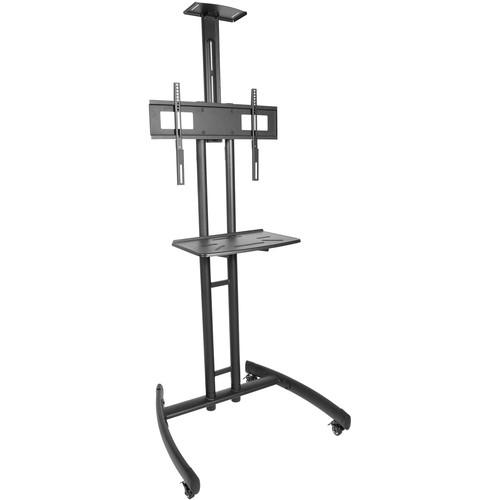

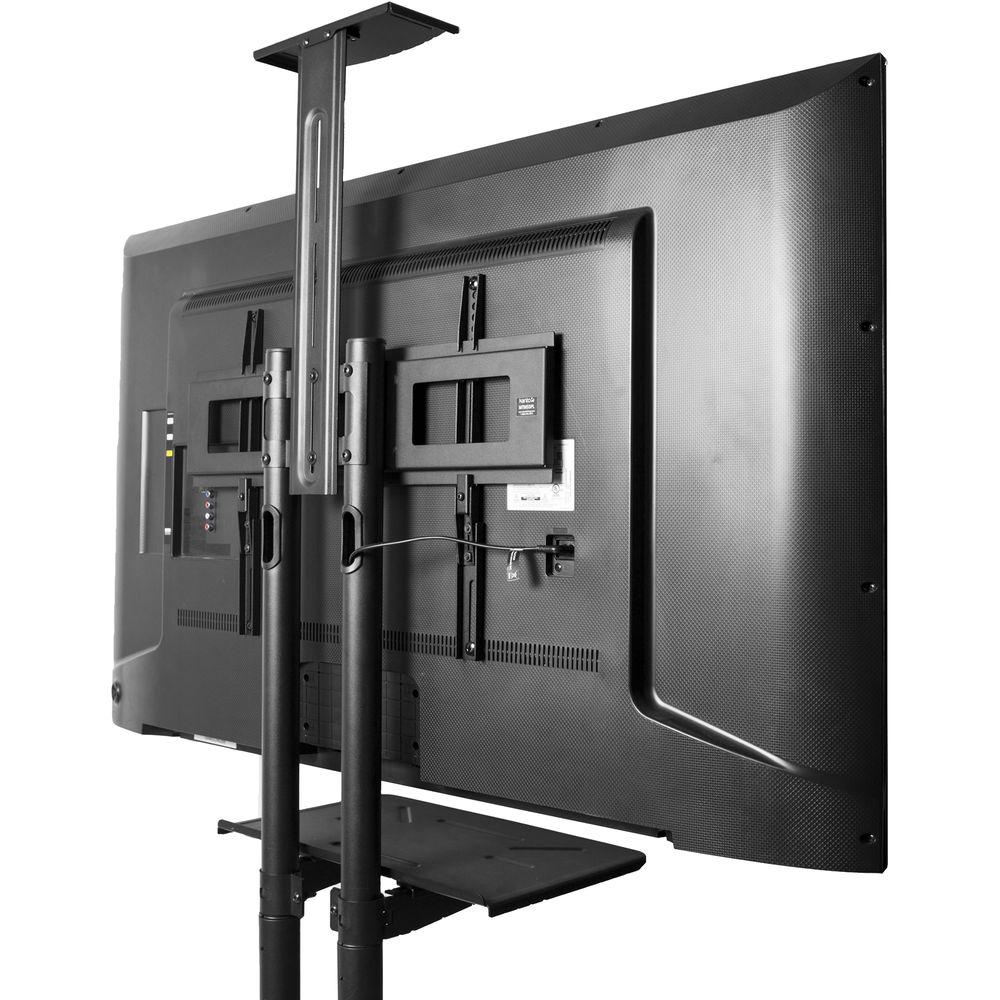

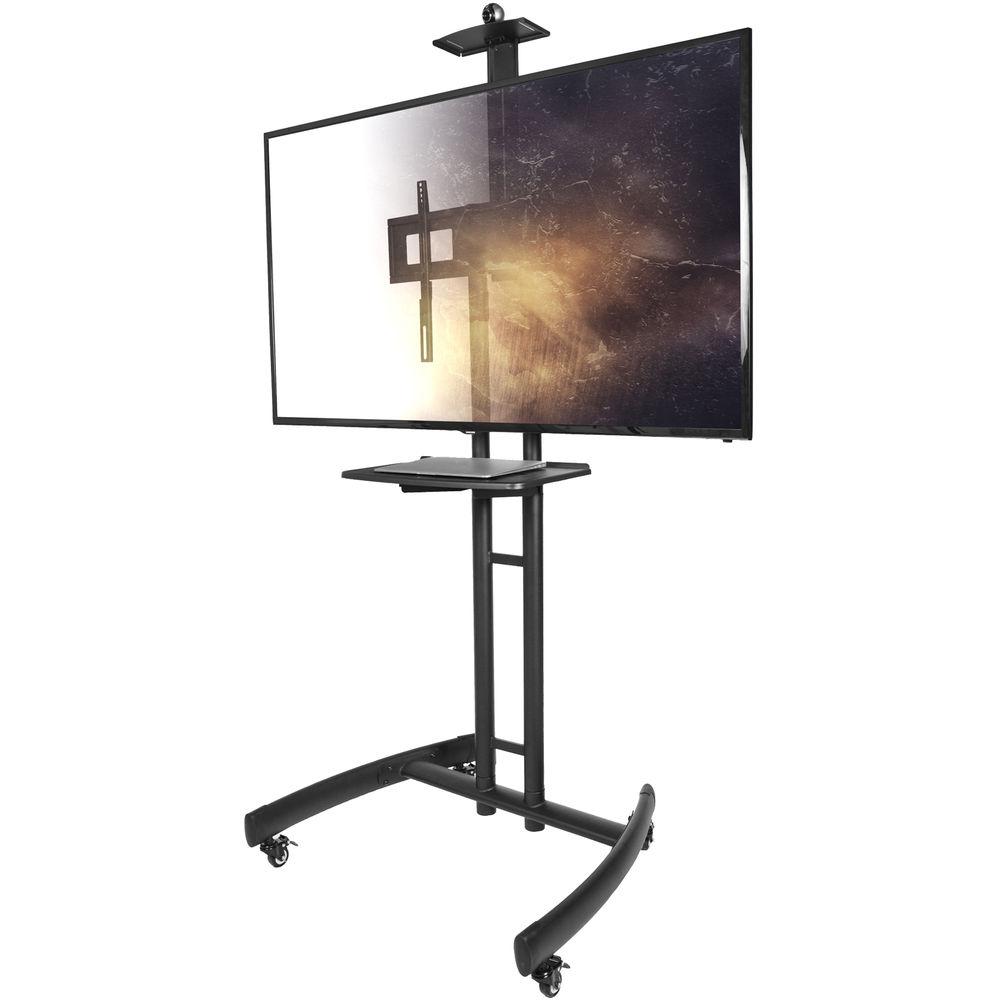

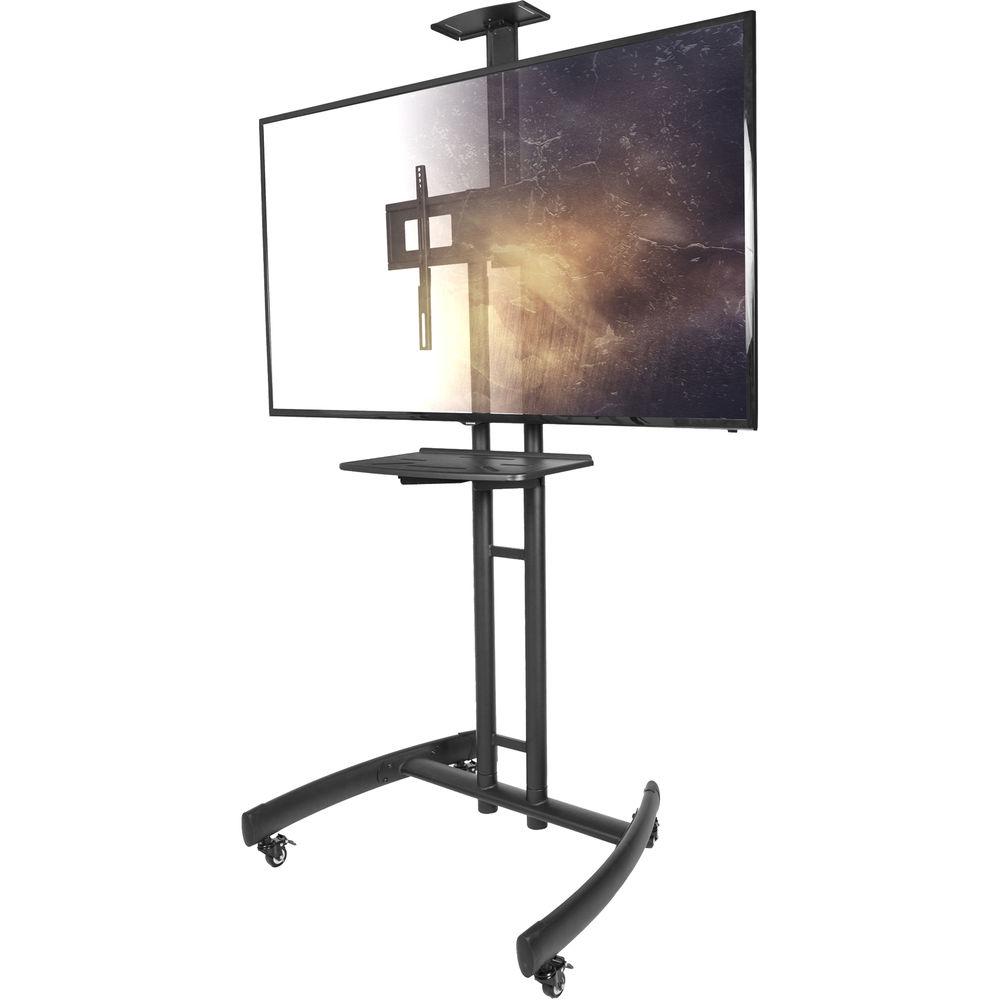

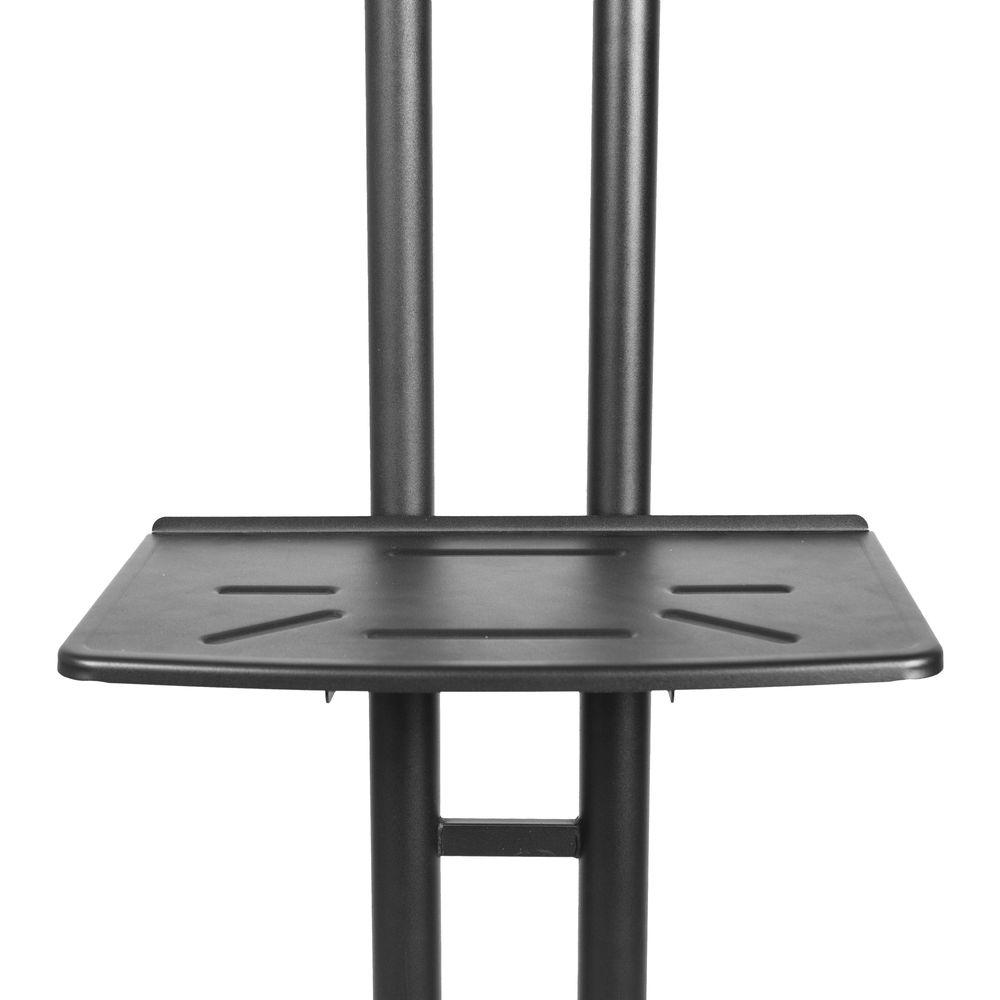

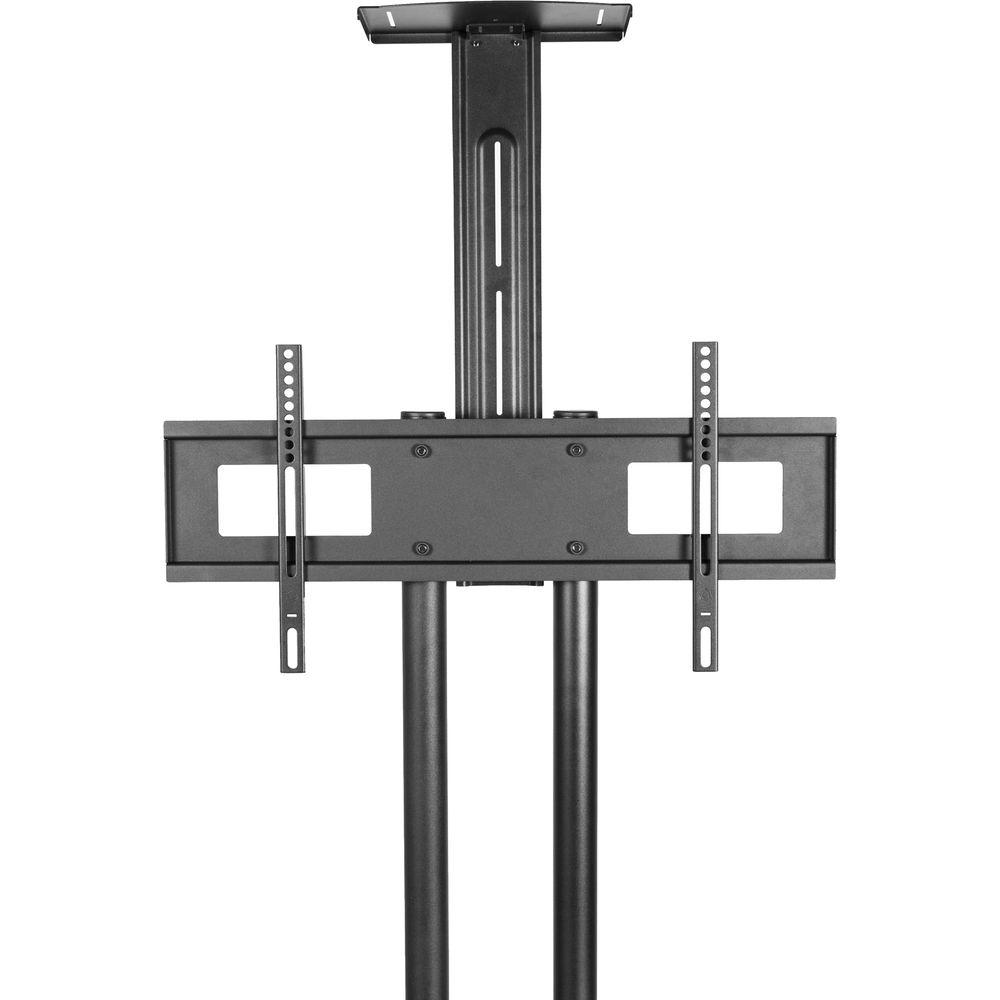

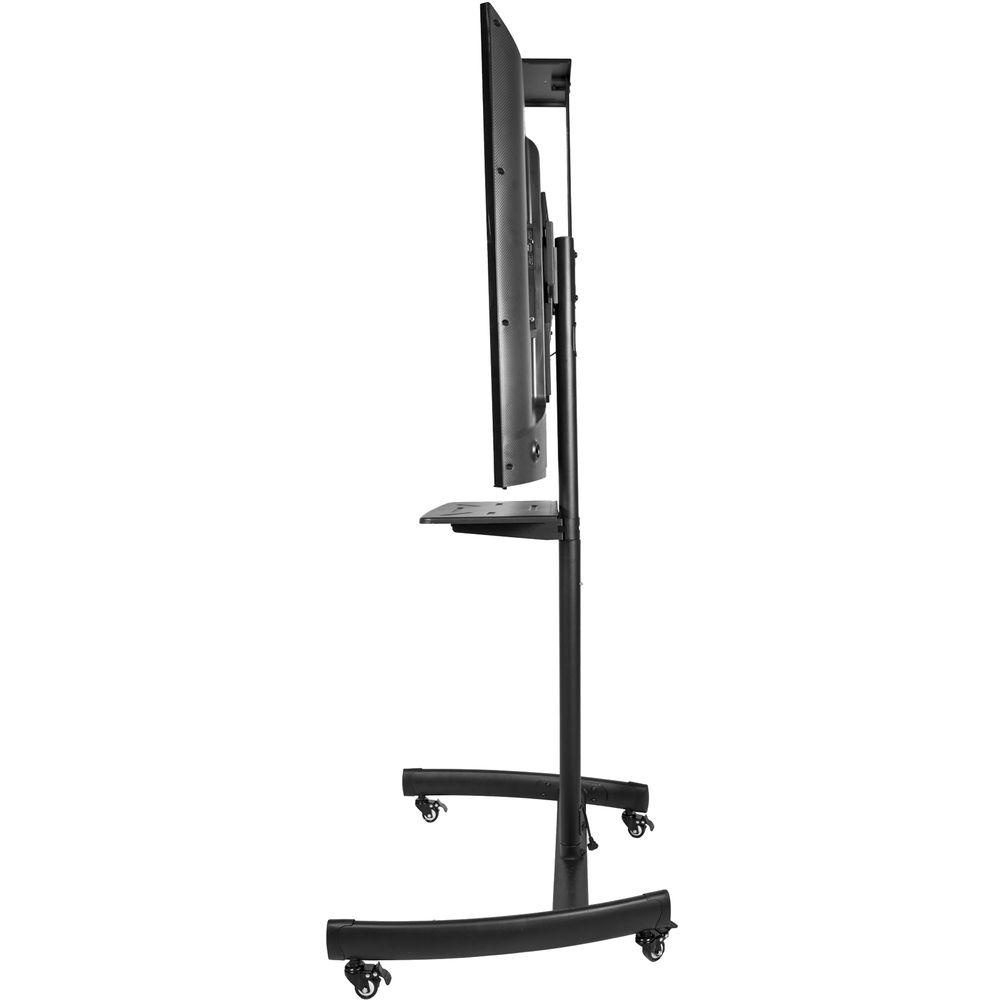

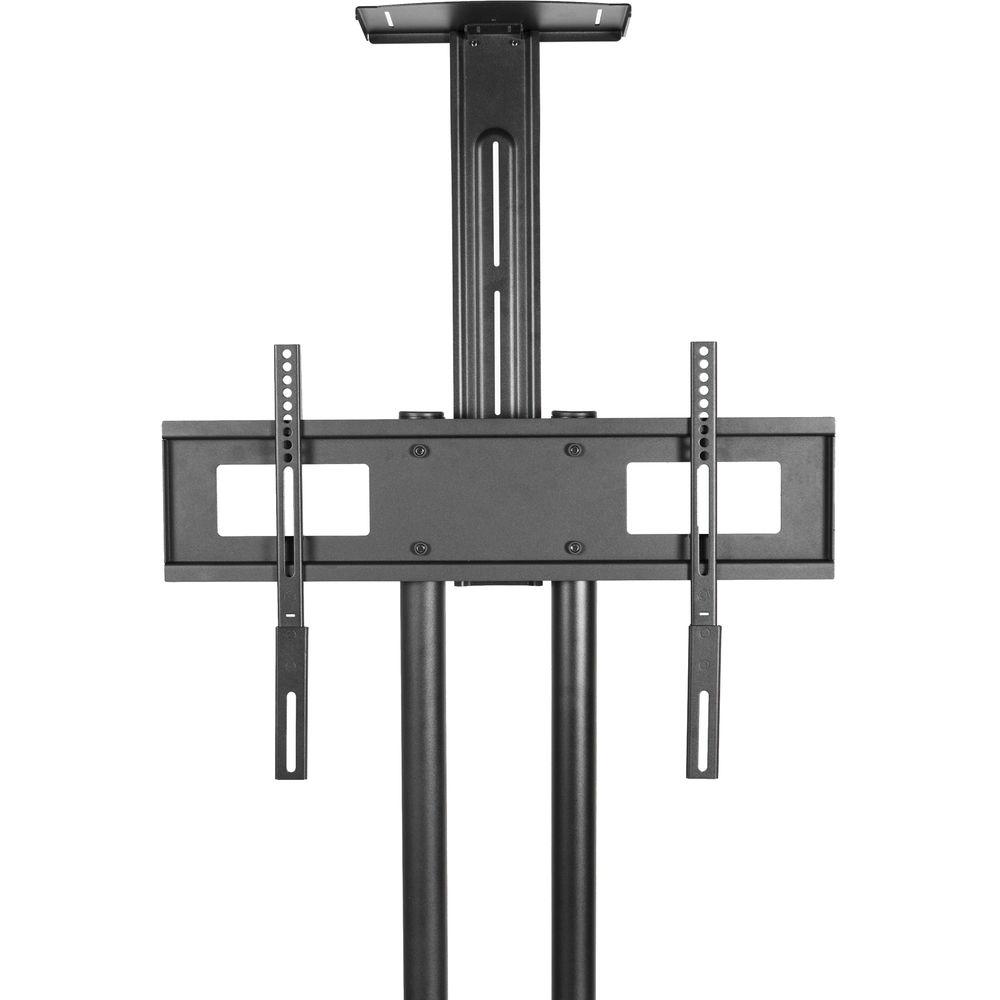

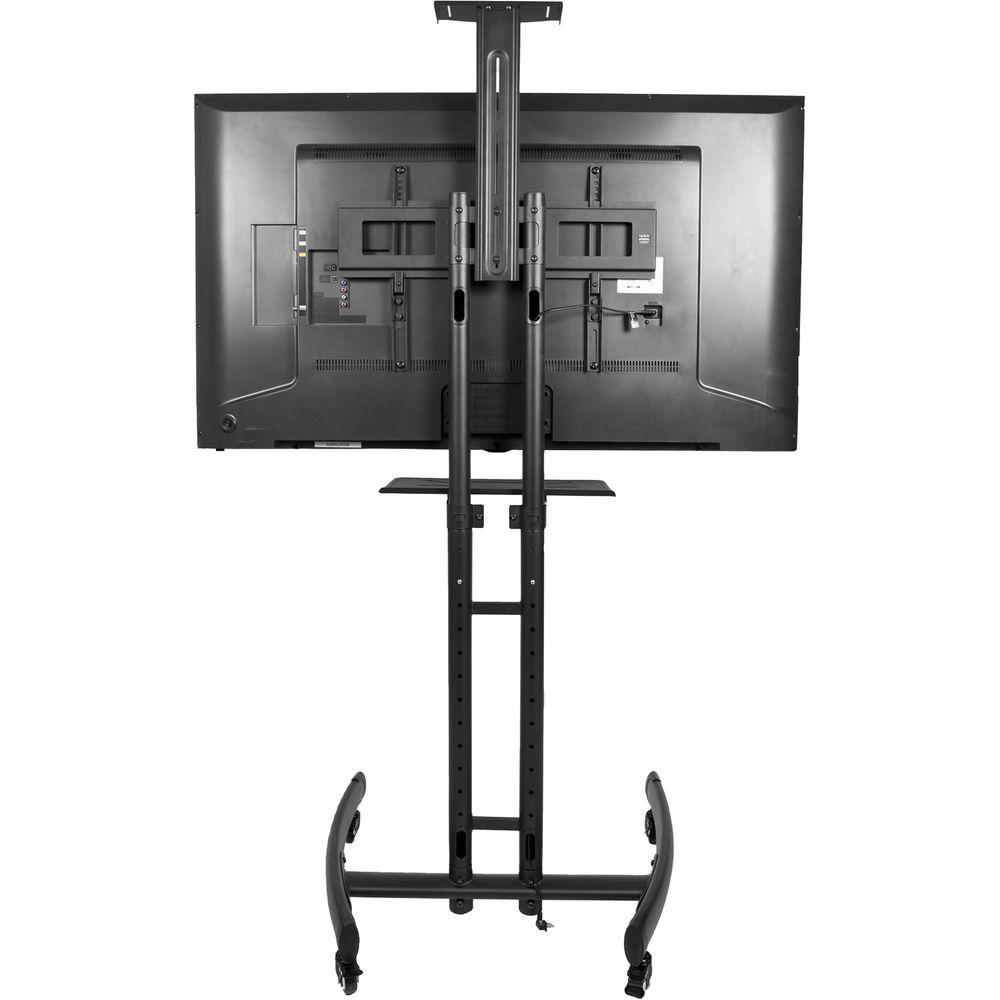

This Kanto Living Mobile TV Mount is constructed out of steel and safely supports 32 - 55" flat-panel TVs. It offers adjustable mounting brackets that support VESA mounts from 75 x 75 to 600 x 400 standards found among most TVs. It also features an adjustable steel tray that attaches in the middle to hold laptops, AV equipment, gaming consoles, and other accessories, as well as a small top shelf for webcams. The middle shelf supports up to 15 lb, and in total the TV mount supports 80 lb lb.

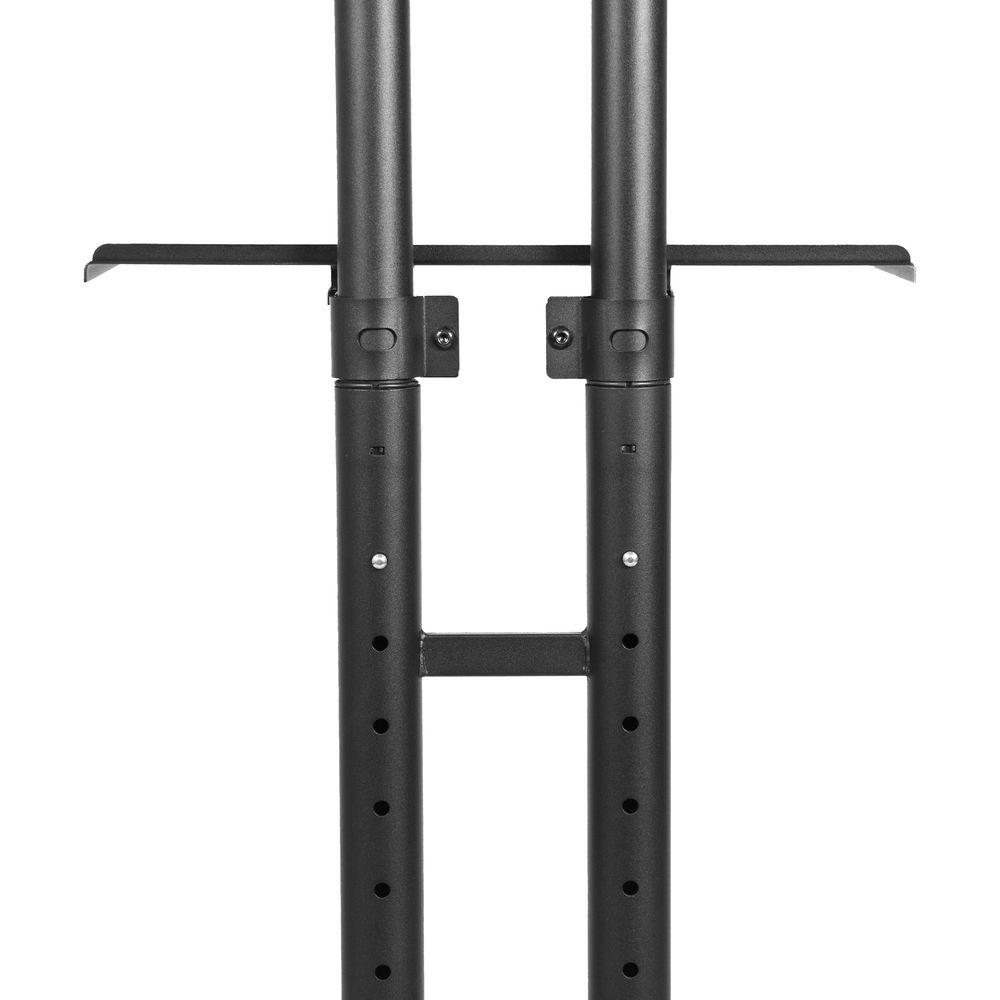

Once your TV is secured, you can easily adjust its height position. Using two buttons on the center columns, adjust the center of your TV between 38 - 58" in height in 2" increments for optimal viewing. A cable management system consisting of cutouts along the center columns allows you to keep your entire system neat, with cables organized and out-of-sight.
The entire system stays stable in once place thanks to individual wheels locks on all of the four wheels. A pedal on each wheel allows you to enable the locking mechanism for that wheel by stepping on it, or release the lock by flipping the pedal up. The wheels are designed with 2" rubber casters, providing for smooth and scratch-free movement from place to place. The Mobile TV Mount provides a safe way of maneuvering your TV around your home or office. - Key Features
-
- Supports 32 - 55" TVs with 75 x 75 to 600 x 400 VESA mounts
- 80 lb total weight capacity
- Adjustable steel middle tray with 15 lb capacity
- Top shelf for webcams
- 38 - 58" height adjustment from the center of the screen
- Cable management system
- Four individual wheels locks
- 2" rubber casters
UPC: 800152717531 In the Box Kanto Living Mobile TV Mount for 32 - 55" Displays (Steel Tray) Adjustable Middle Steel Tray Top Camera Shelf TV Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanto Living Mobile TV Mount for 32 - 55" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanto Living MTM55PL-S Specs | Supported Screen Sizes | 32 to 55" / 81.0 to 140.0 cm | | Mounting-Hole Pattern | 75 x 75 to 600 x 400 mm (Specific VESA Patterns Supported: 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 300 mm, 600 x 400 mm, 75 x 75 mm) | | Height Adjustment | 38.0 to 58.0" / 100.0 to 150.0 cm | | Load Capacity | 15 lb / 6.8 kg (Shelf)
80 lb / 36.3 kg | | Number of Shelves | 2 | | Shelf Surface | 19.7 x 12" / 50 x 30.5 cm
10 x 4.9" / 25.5 x 12.5 cm (Top) | | Construction Material | Steel | | Number of Casters | 4 | | Caster Size | 2" / 5.1 cm | | Dimensions | 71.4 x 32.8 x 29.4" / 181.0 x 83.0 x 75.0 cm | | Weight | 47 lb / 21 kg | | | | Package Weight | 49.0 lb | | Box Dimensions (LxWxH) | 38.0 x 13.0 x 9.0" |
