User Manual for Kanto Living Mobile TV Mount for 37 - 65" Displays Click to enlarge the picture
Contents of the user manual for the Kanto Living Mobile TV Mount for
- Product category: Flat Panel Carts Kanto Living
- Brand: Kanto Living
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kanto Living Flat Panel Carts
 |
User manual for the Kanto Living Mobile TV Mount for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kanto Living product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kanto Living user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kanto Living product will considerably shorten its lifespan!
|
Product description New Kanto Living Mobile Mounts Read More - MTM65 Plus Installation Tutorial | Kanto Living

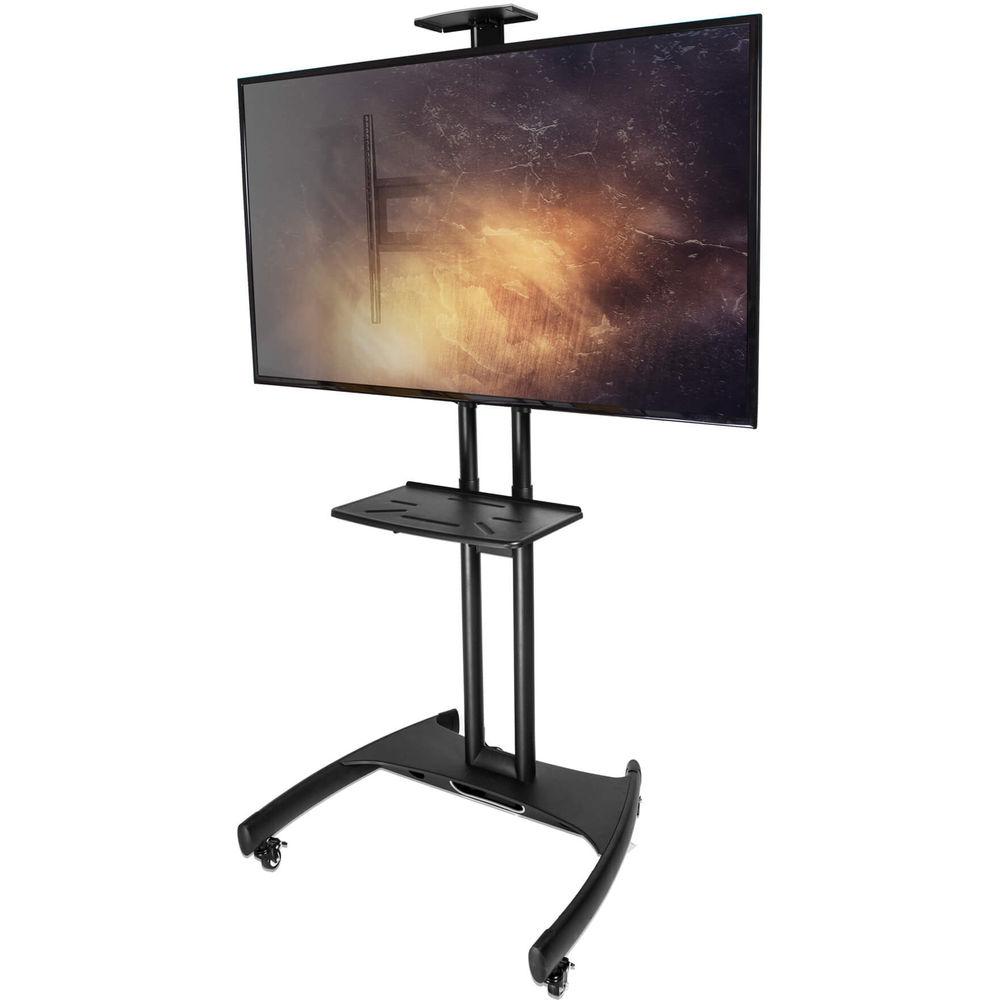

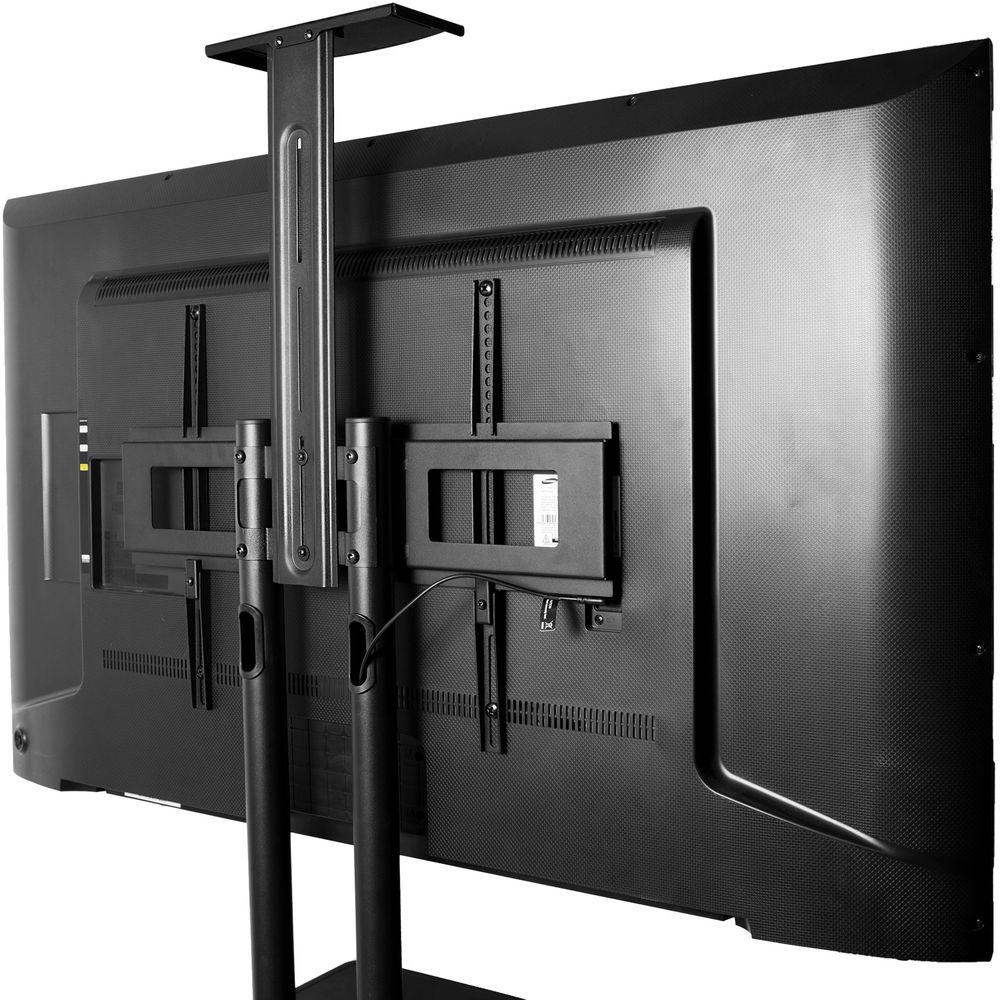

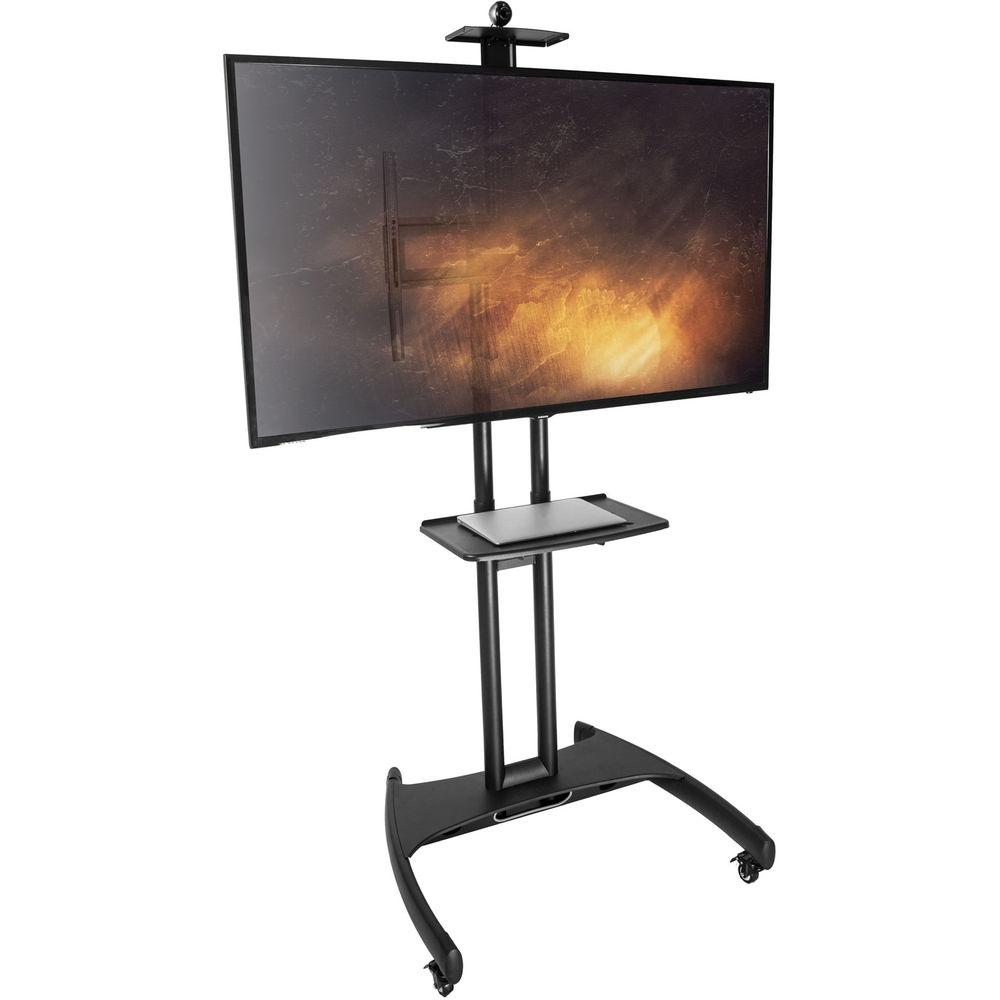

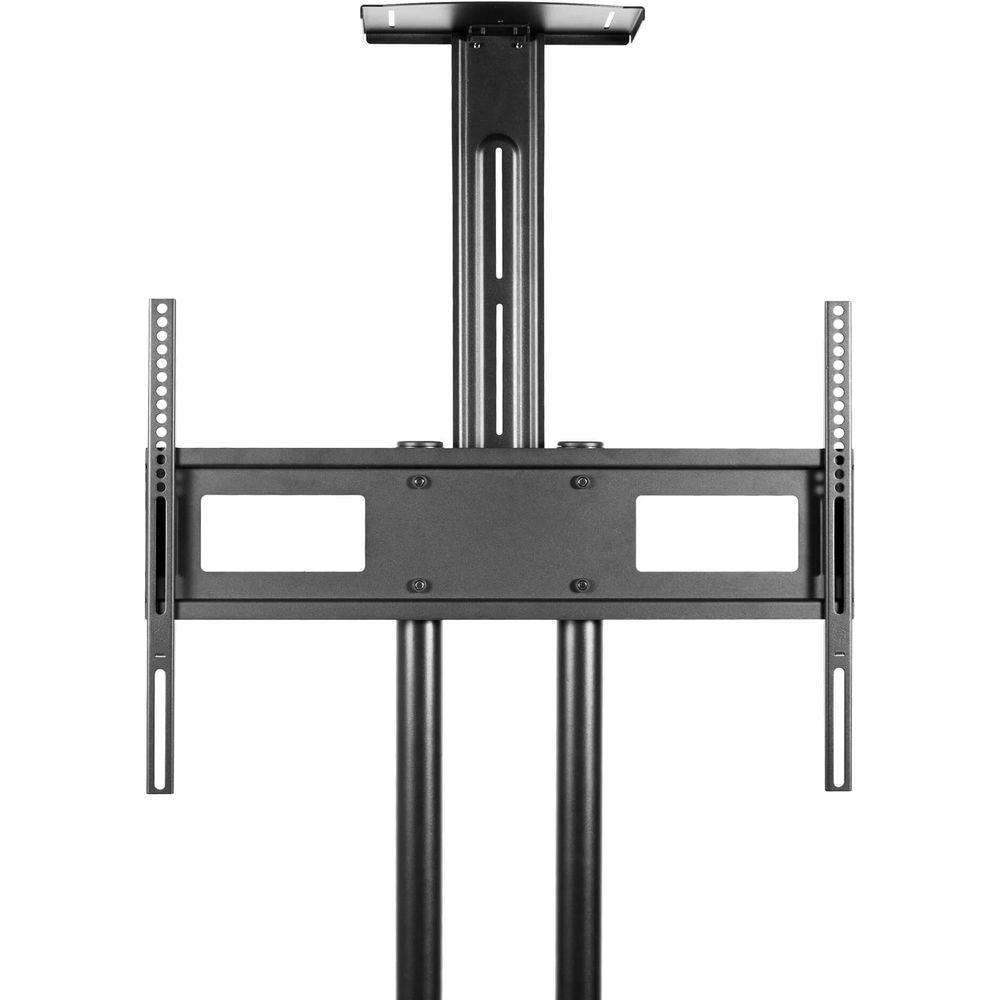

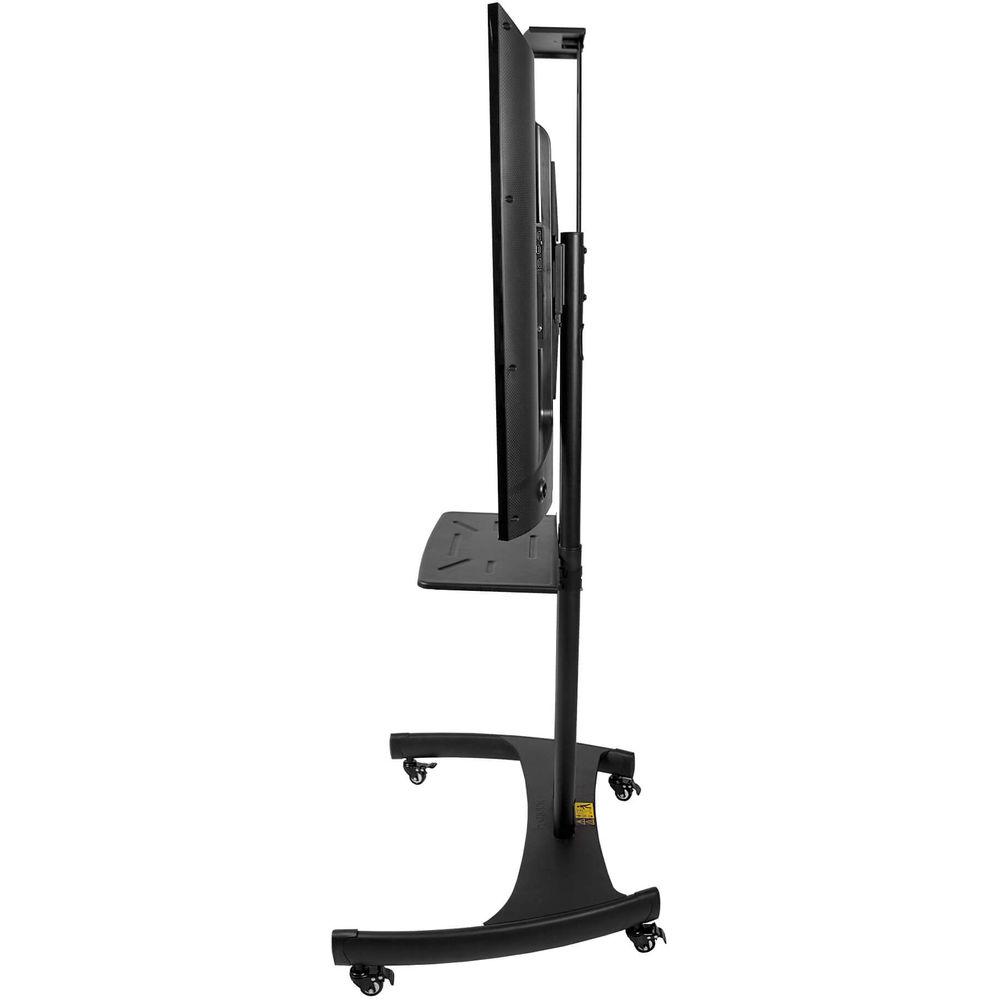

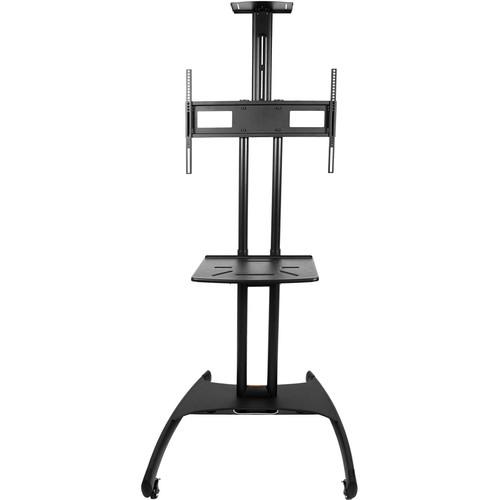

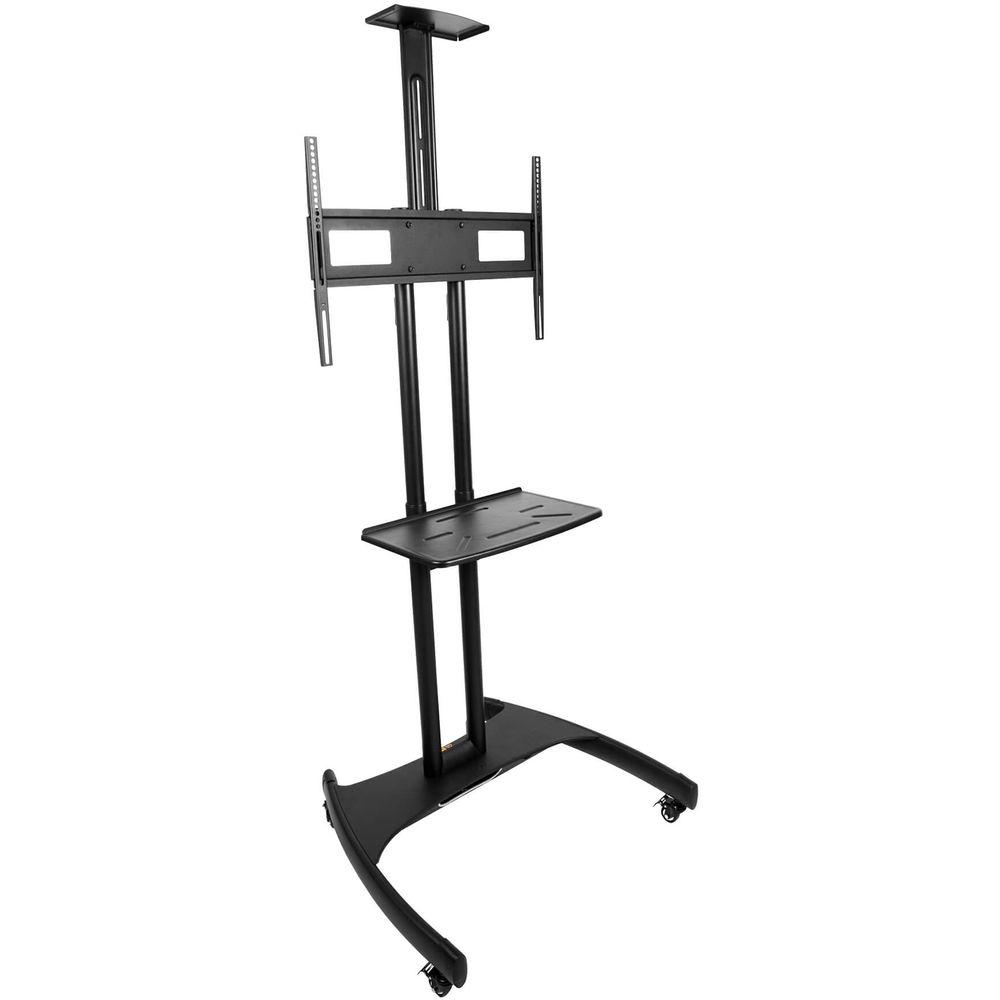

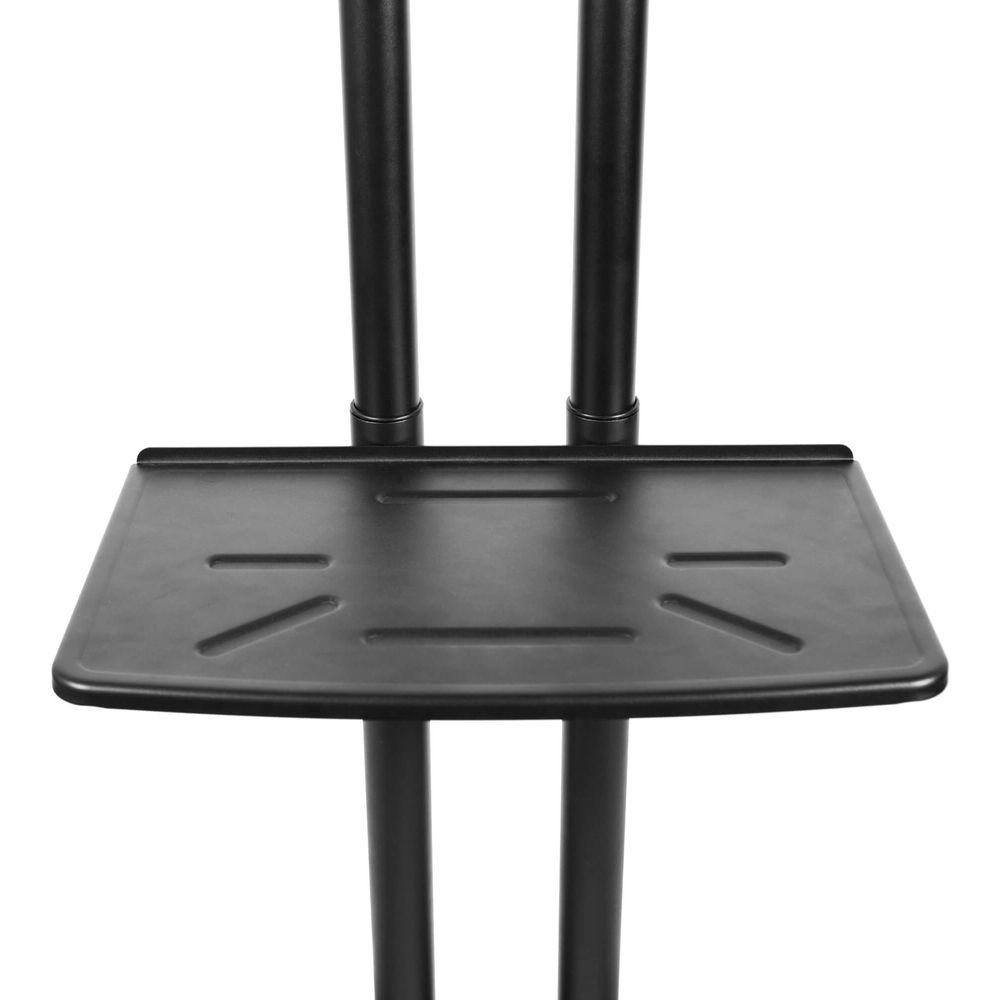

This Kanto Living Mobile TV Mount is constructed out of steel and safely supports 37 - 65" flat-panel TVs. It offers adjustable mounting brackets that support VESA mounts from 75 x 75 to 600 x 400 standards found among most TVs. It also features an adjustable steel tray that attaches in the middle to hold laptops, AV equipment, gaming consoles, and other accessories, as well as a small top shelf for webcams. The middle shelf supports up to 15 lb, and in total the TV mount supports 100 lb lb.

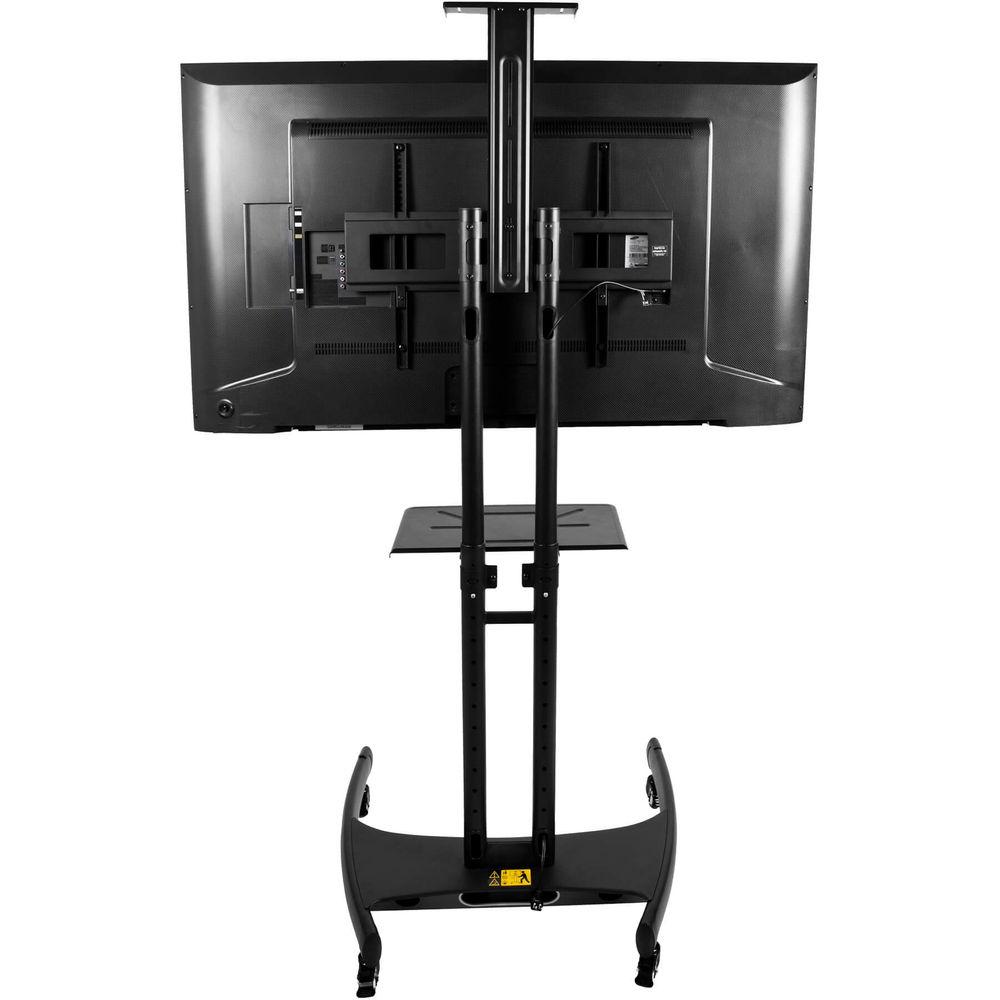

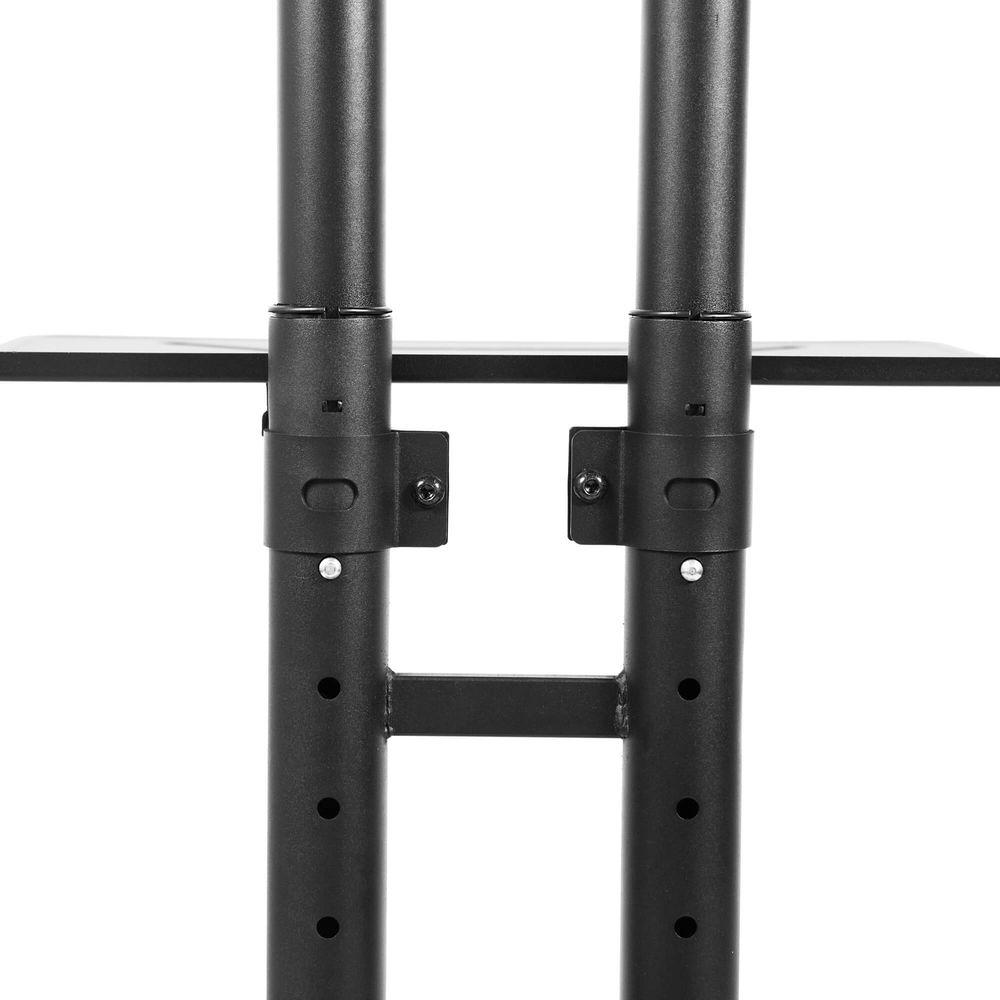

Once your TV is secured, you can easily adjust its height position. Using two buttons on the center columns, adjust the center of your TV between 38 - 58" in height in 2" increments for optimal viewing. A cable management system consisting of cutouts along the center columns allows you to keep your entire system neat, with cables organized and out-of-sight.
The entire system stays stable in once place thanks to individual wheels locks on all of the four wheels. A pedal on each wheel allows you to enable the locking mechanism for that wheel by stepping on it, or release the lock by flipping the pedal up. The wheels are designed with 2" rubber casters, providing for smooth and scratch-free movement from place to place. The Mobile TV Mount provides a safe way of maneuvering your TV around your home or office. - Key Features
-
- Supports 37 - 65" TVs with 75 x 75 to 600 x 400 VESA mounts
- 100 lb total weight capacity
- Adjustable steel middle tray with 15 lb capacity
- Top shelf for webcams
- 38 - 58" height adjustment from the center of the screen
- Cable management system
- Four individual wheels locks
- 2" rubber casters
UPC: 800152713069 In the Box Kanto Living Mobile TV Mount for 37 - 65" Displays (Steel Tray) Adjustable Middle Steel Tray Top Camera Shelf TV Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanto Living Mobile TV Mount for 37 - 65" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanto Living MTM65PL-S Specs | Supported Screen Sizes | 37 to 65" / 94.0 to 165.0 cm | | Mounting-Hole Pattern | 75 x 75 to 600 x 400 mm (Specific VESA Patterns Supported: 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 300 mm, 600 x 400 mm, 75 x 75 mm) | | Height Adjustment | 38.0 to 58.0" / 100.0 to 150.0 cm | | Load Capacity | 100 lb / 45.4 kg
15 lb / 6.8 kg (Shelf) | | Number of Shelves | 2 | | Shelf Surface | 19.7 x 12" / 50 x 30.5 cm
10 x 4.9" / 25.5 x 12.5 cm (Top) | | Construction Material | Steel | | Number of Casters | 4 | | Caster Size | 2" / 5.1 cm | | Dimensions | 76.7 x 32.8 x 28.2" / 195.0 x 83.0 x 72.0 cm | | Weight | 50 lb / 23 kg | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 37.0 x 34.0 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
