User Manual for Kanto Living PDX680 Full-Motion Wall Mount for 39 to 80" Displays Click to enlarge the picture
Contents of the user manual for the Kanto Living PDX680 Full-Motion Wall Mount
- Product category: Monitor Wall Mounts Kanto Living
- Brand: Kanto Living
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kanto Living Monitor Wall Mounts
 |
User manual for the Kanto Living PDX680 Full-Motion Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kanto Living product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kanto Living user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kanto Living product will considerably shorten its lifespan!
|
Product description - PDX680 Installation Tutorial | Kanto Living
- PDX680 Full Motion TV Mount | Walkthrough

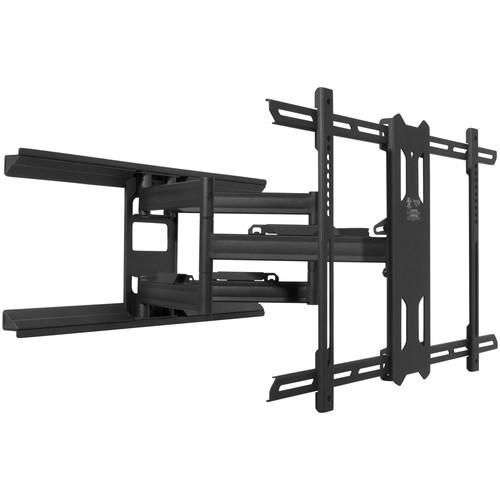

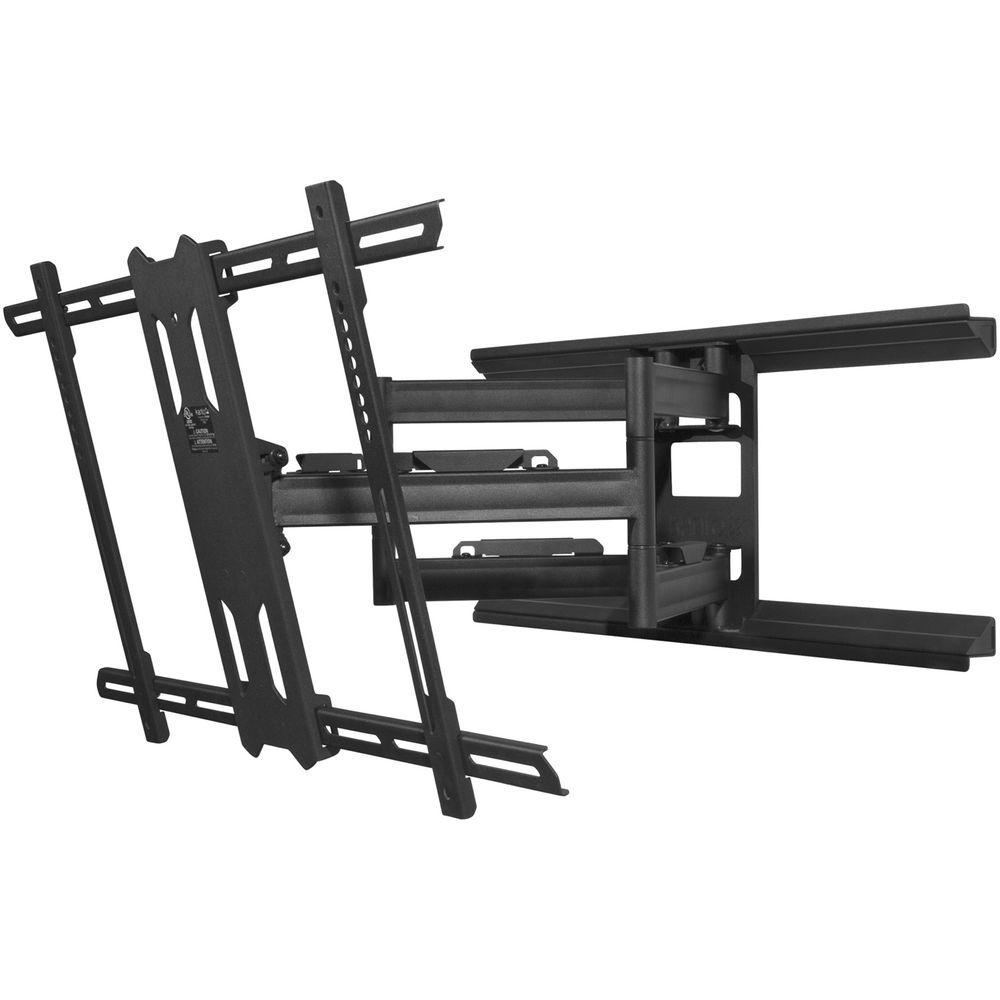

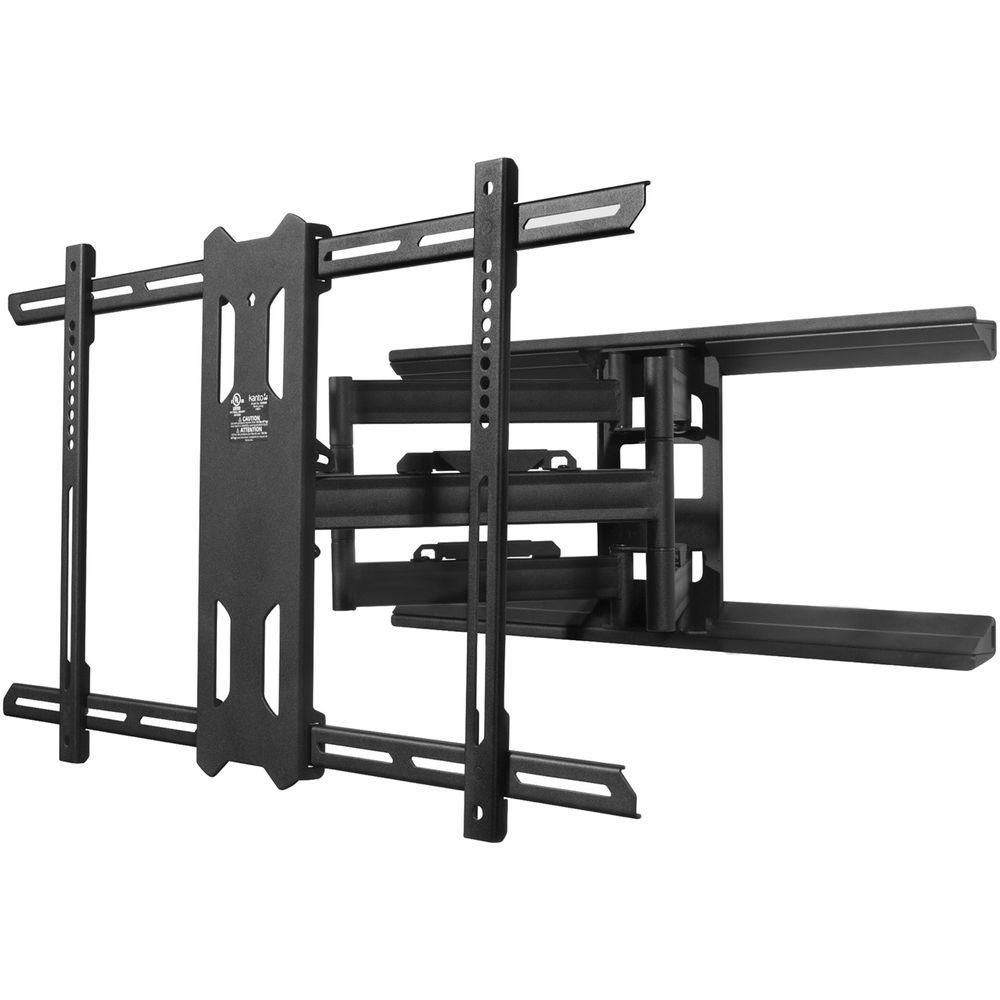

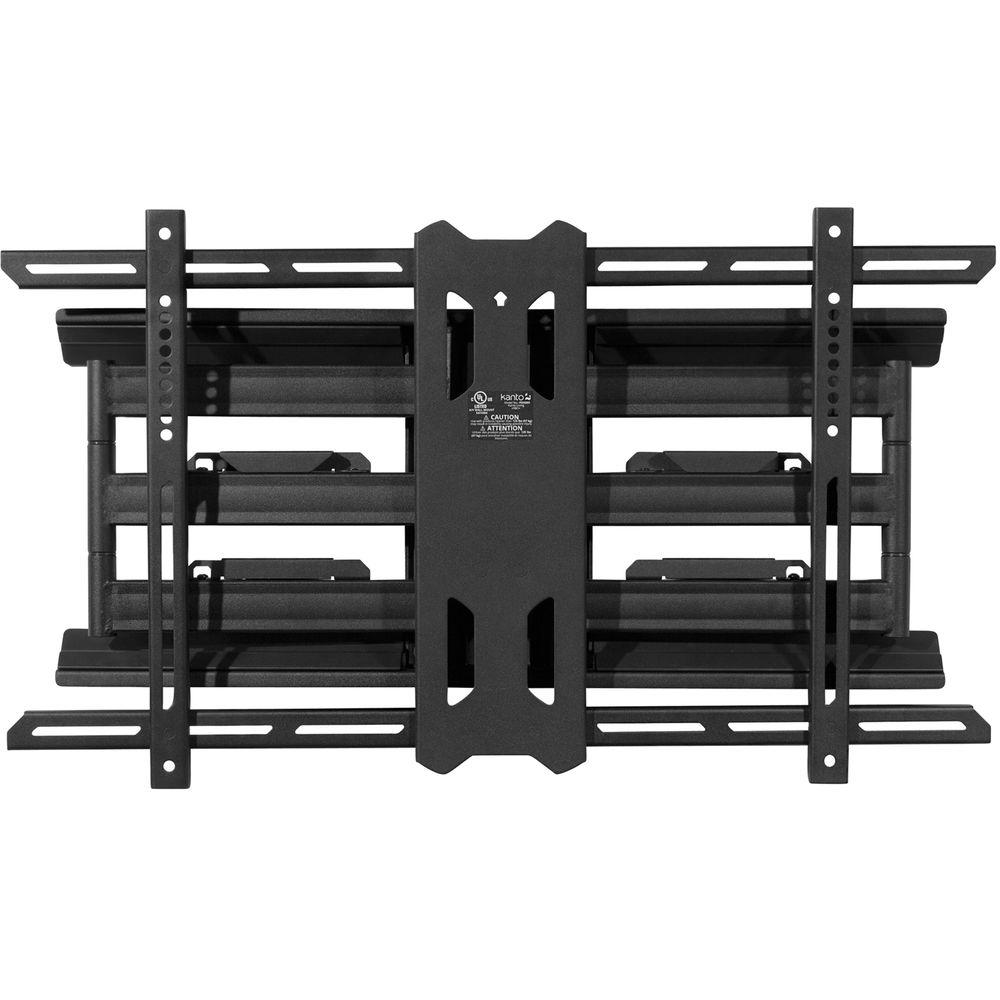

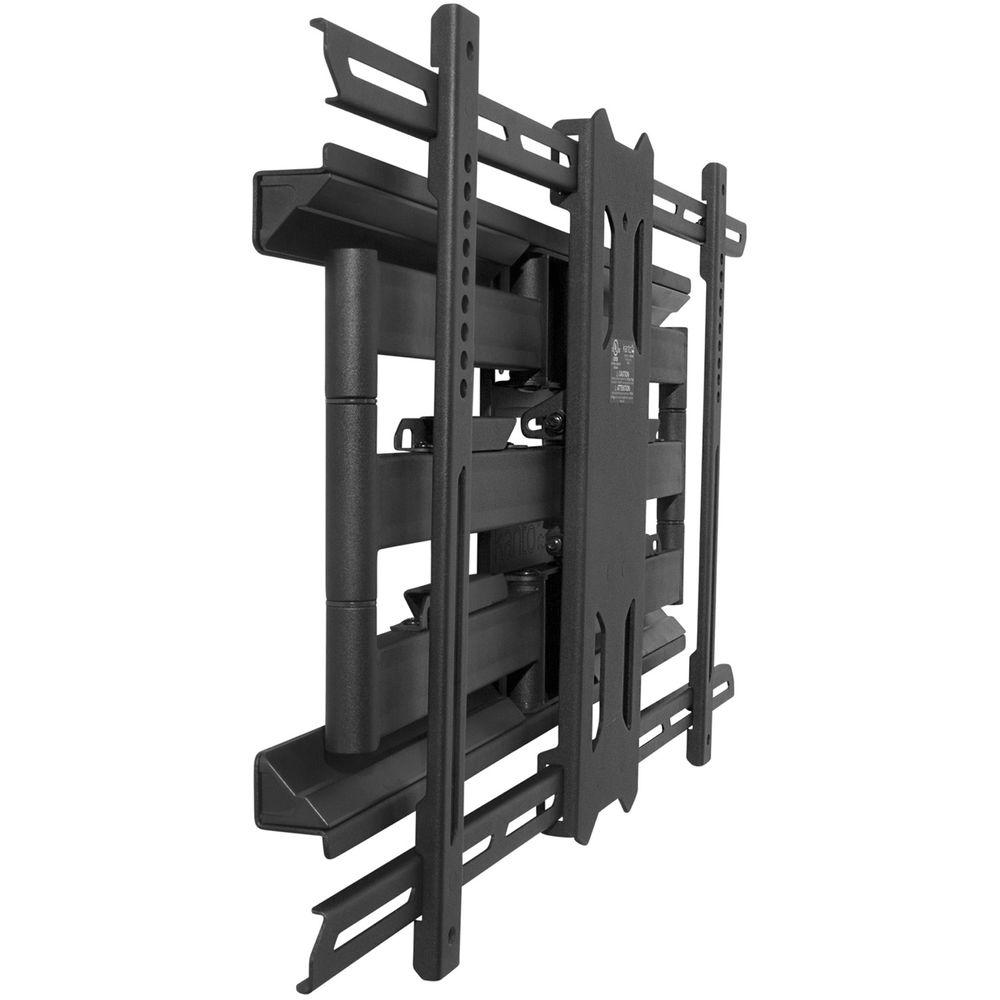

Mount your 39 to 80" display weighing up to 125 lb with the black Kanto PDX680 Full-Motion Wall Mount. It supports displays with 200 x 100 to 700 x 400mm mounting patterns and can extend from the wall up to 24", or fully retract to provide a 2" profile. It provides -3 to 15° of tilt, up to 170° of swivel, and has adjustable horizontal leveling. - Low-Profile Design
- The design of the PDX680 allows your display to sit as close as 2" from the wall when fully retracted.
- Enhanced VESA Compatibility

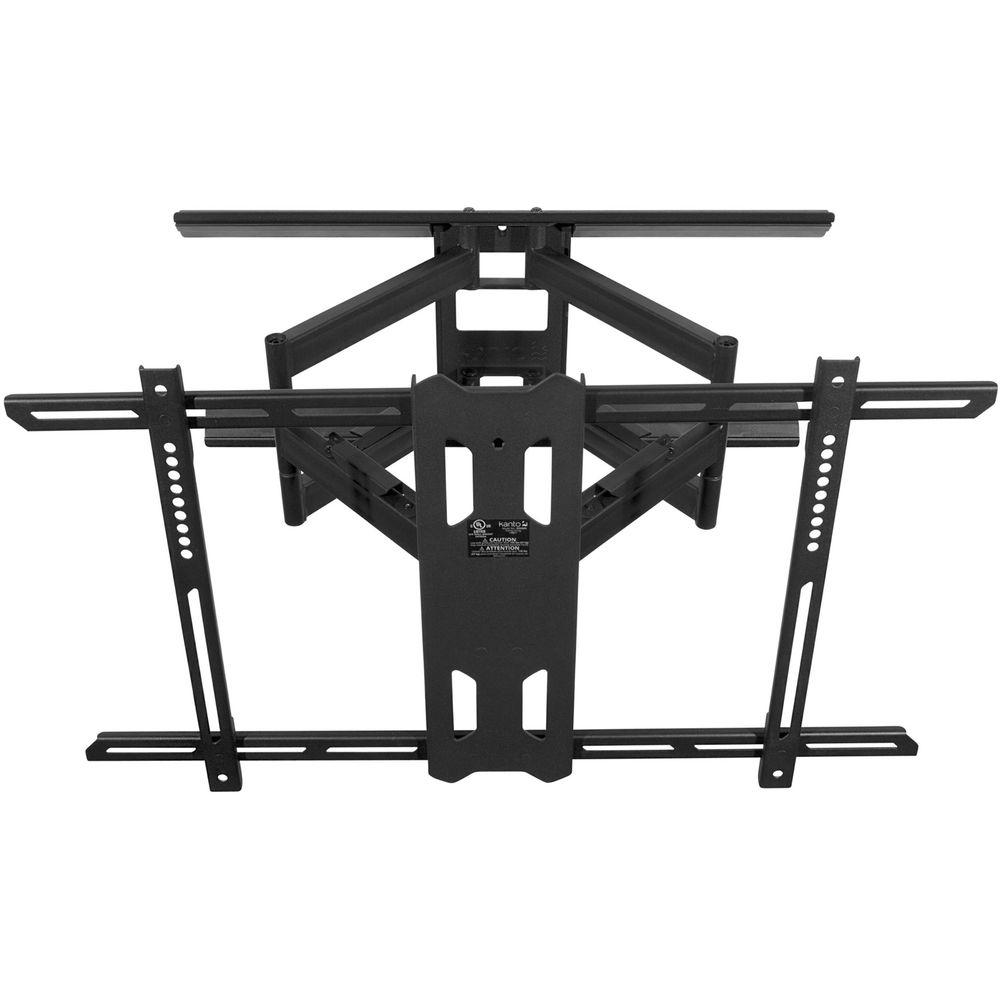

- The H-frame mounting bracket accommodates VESA sizes from 200 x 100 to 700 x 400mm. The mounting arms allow you to raise or lower your display depending on its VESA pattern.
- Magnetic Lag Bolt Covers

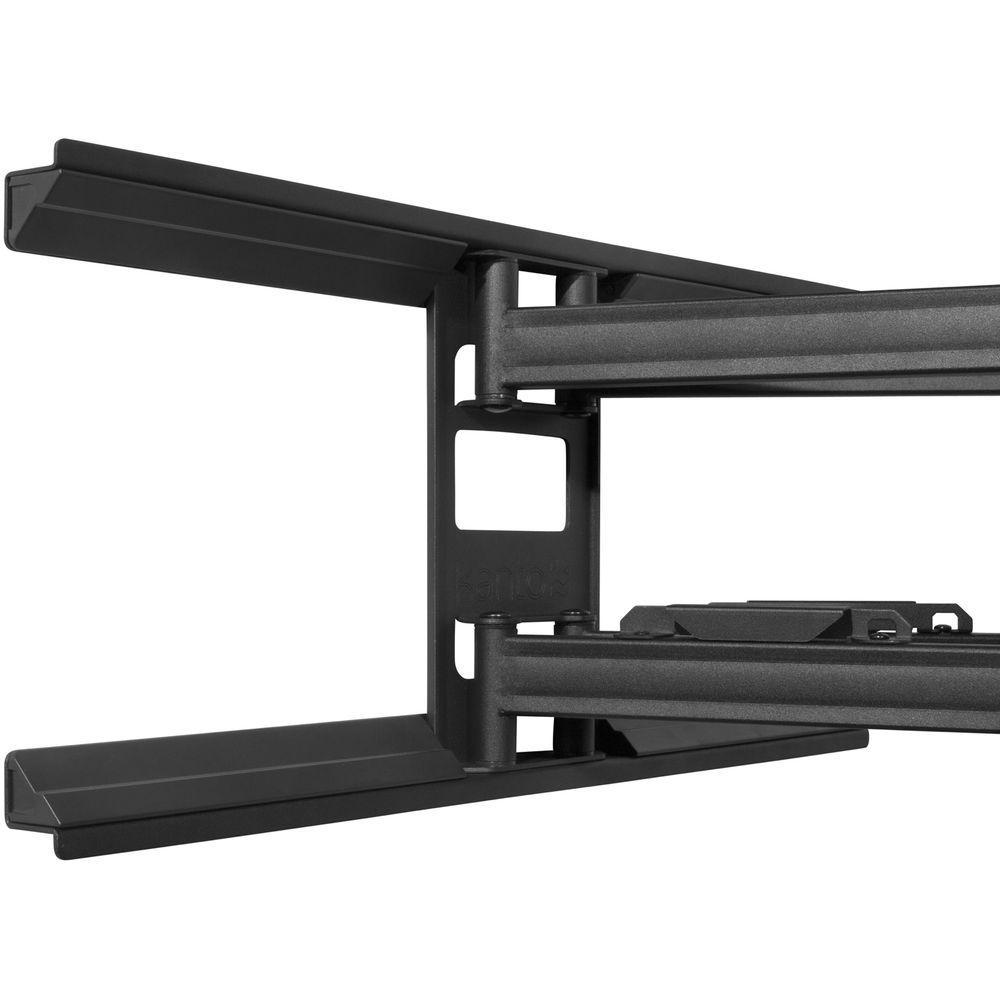

- Magnetic covers go over the lag bolts to help give the wall plate an elegant look. Remove the covers when you install or remove the wall plate from the wall.
- Extends up to 24" from the Wall
- Despite its low-profile design, the PDX680 can extend up to 24" from the wall, allowing you to tilt and swivel your display or extend it from an alcove.
- Supports up to 125 lb
- The solid steel frame of the PDX680 can hold up to 125 lb, even at full extension.
- Swivels up to 170°

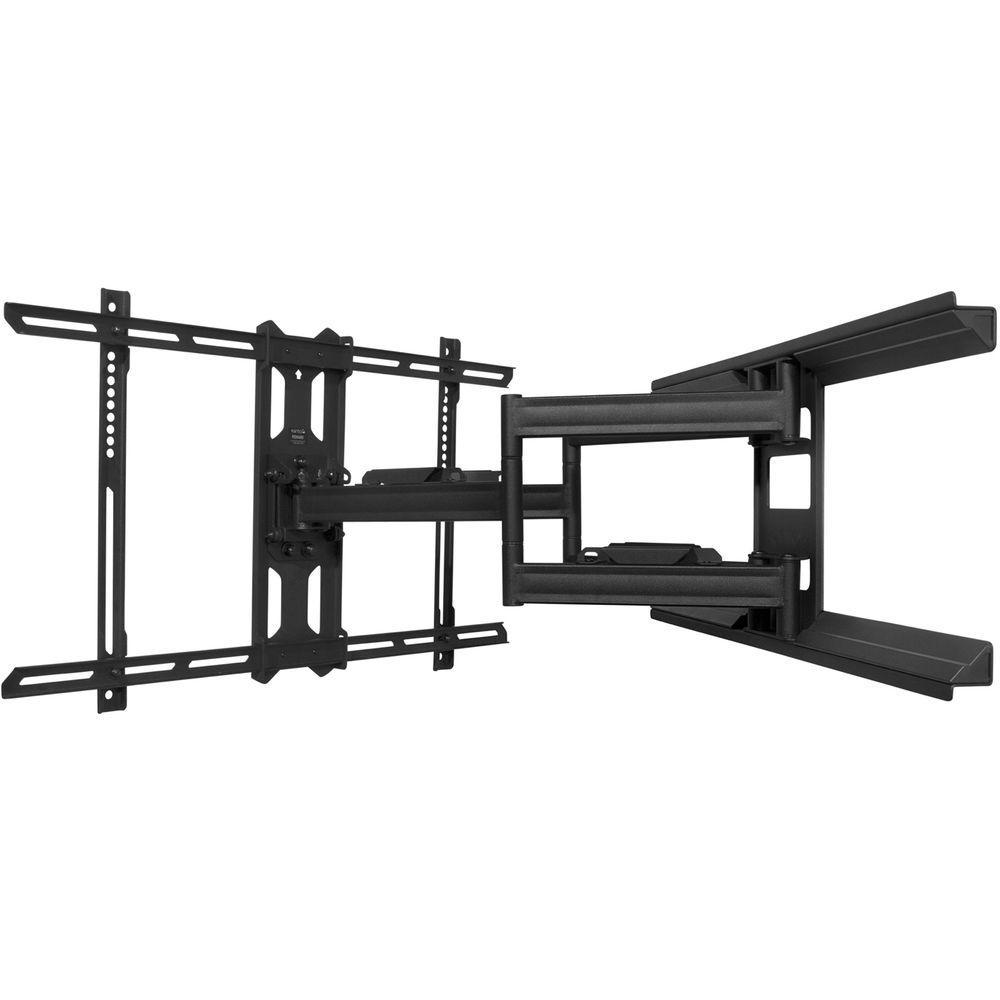

- The articulating arms of the PDX680 allow for up to 170° of swivel with a 39" display; the larger the display, the less swivel the mount will be able to provide.
- Tilt Mechanism

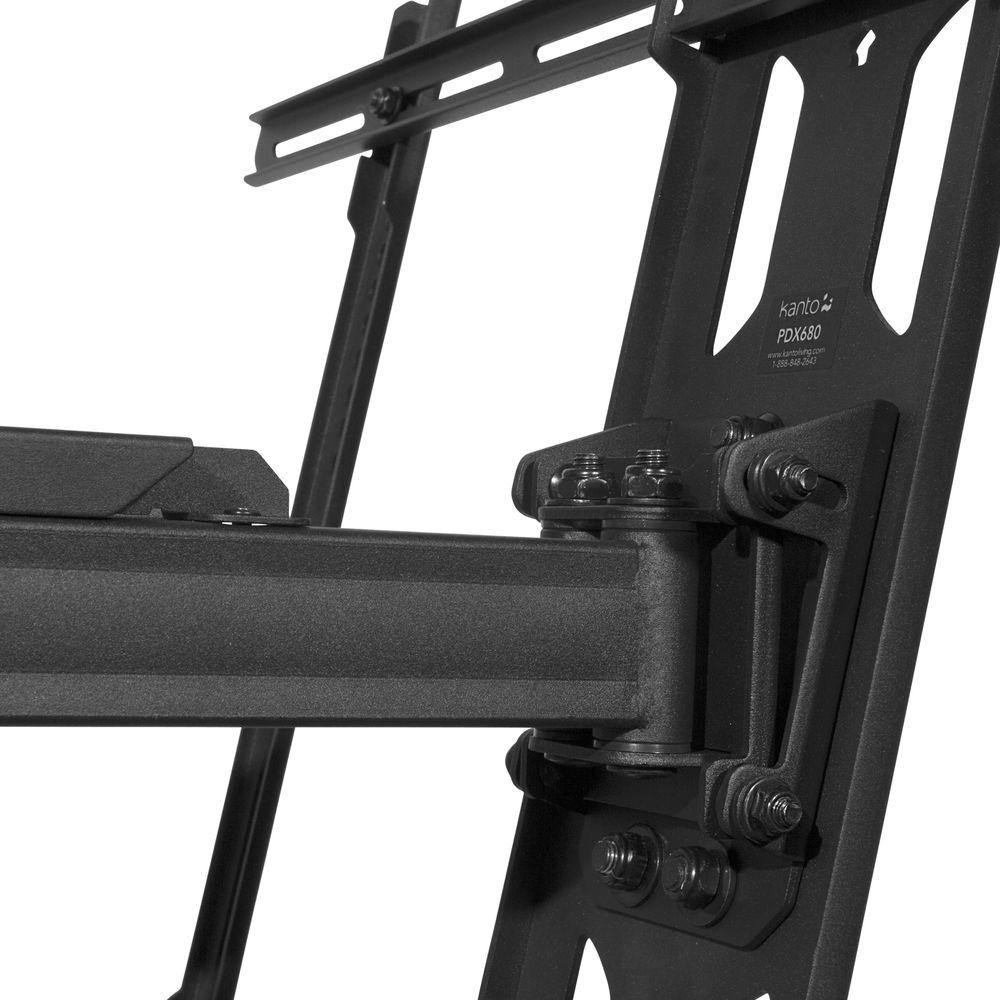

- The tilt mechanism lets you angle your display up to 15° forward or 3° backward. Once you reach your preferred viewing angle, tighten the nuts to secure your display in place.
- Integrated Cable Management

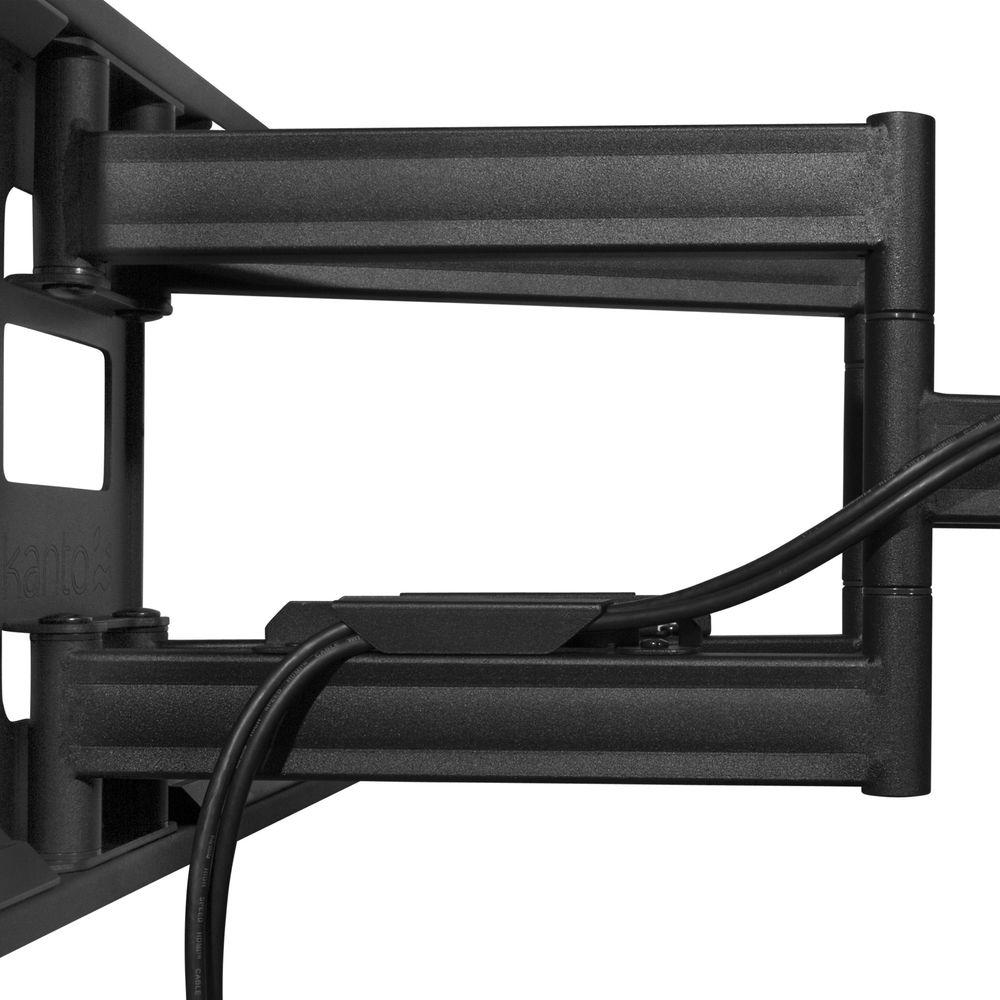

- Four cable management raceways are attached to the bottom of the wishbone arms. These are accessed by loosening a screw, twisting them to the side, laying the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides, whichever you prefer.
UPC: 800152715315 In the Box Kanto Living PDX680 Full-Motion Wall Mount for 39 to 80" Displays (Black) Assembly Hardware Mounting Hardware for Wood Studs and Concrete Walls Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanto Living PDX680 Full-Motion Wall Mount for 39 to 80" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanto Living PDX680 Specs | | | Supported Screen Sizes | 39 to 80" / 99.1 to 203.2 cm | | Supported Weight Capacity | 125 lb / 56.8 kg | | Mounting-Hole Pattern | 200 x 100 to 700 x 400 mm | | | | Tilt Adjustment | -3 to +15
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
