User Manual for Kanto Living PF400 Fixed Wall Mount for 40 to 90" Displays Click to enlarge the picture
Contents of the user manual for the Kanto Living PF400 Fixed Wall Mount
- Product category: Monitor Wall Mounts Kanto Living
- Brand: Kanto Living
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kanto Living Monitor Wall Mounts
 |
User manual for the Kanto Living PF400 Fixed Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kanto Living product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kanto Living user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kanto Living product will considerably shorten its lifespan!
|

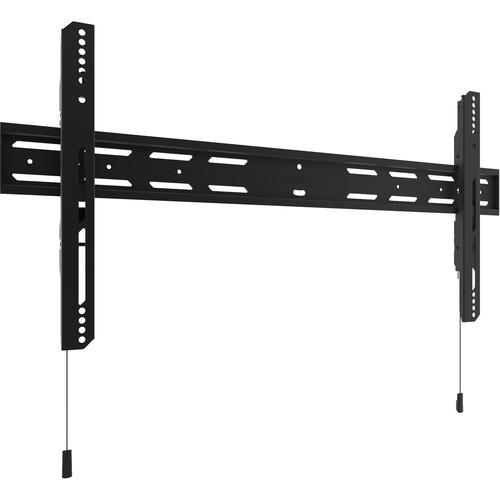

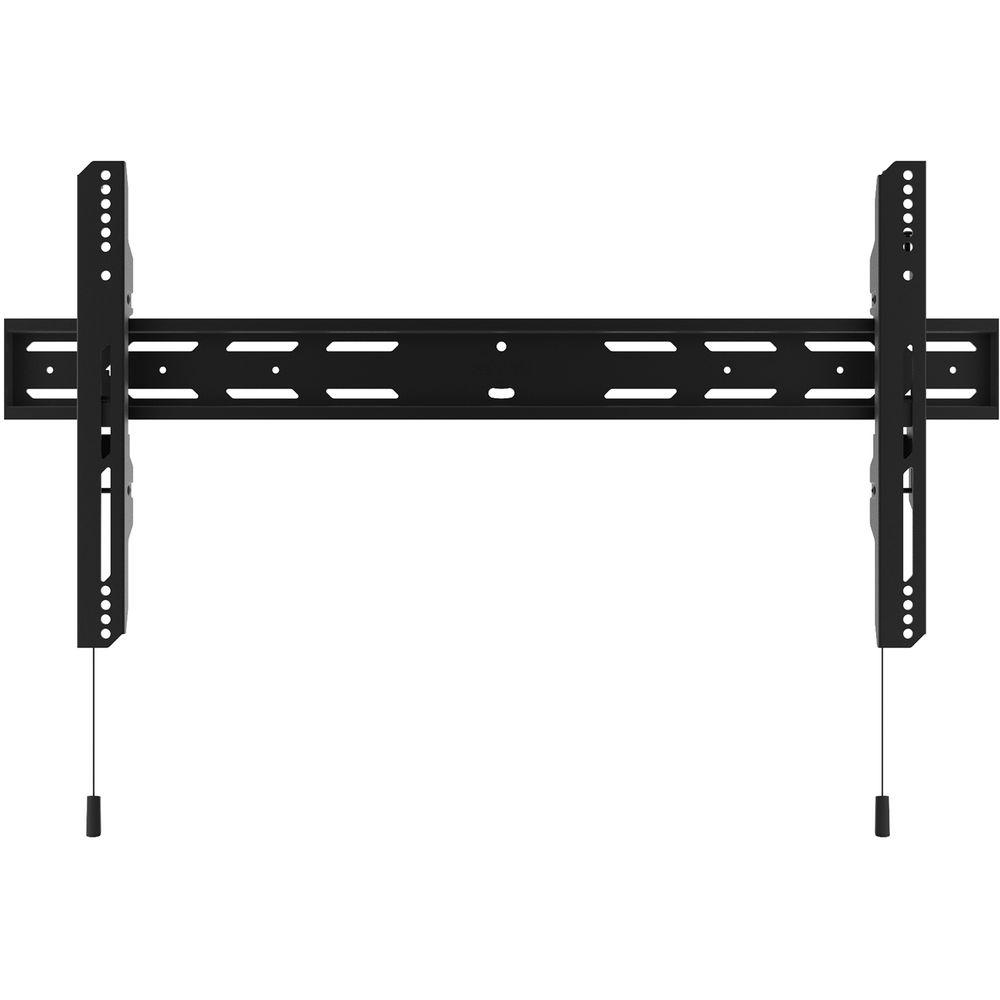

Product description Mount your 40 to 90" display weighing up to 200 lb with the Kanto PF400 Fixed Wall Mount. It supports displays with 100 x 100 to 800 x 400mm mounting patterns and holds your display just 1.4" from the wall. It provides post-installation horizontal leveling and includes security screws to help deter theft. - Low-Profile Design

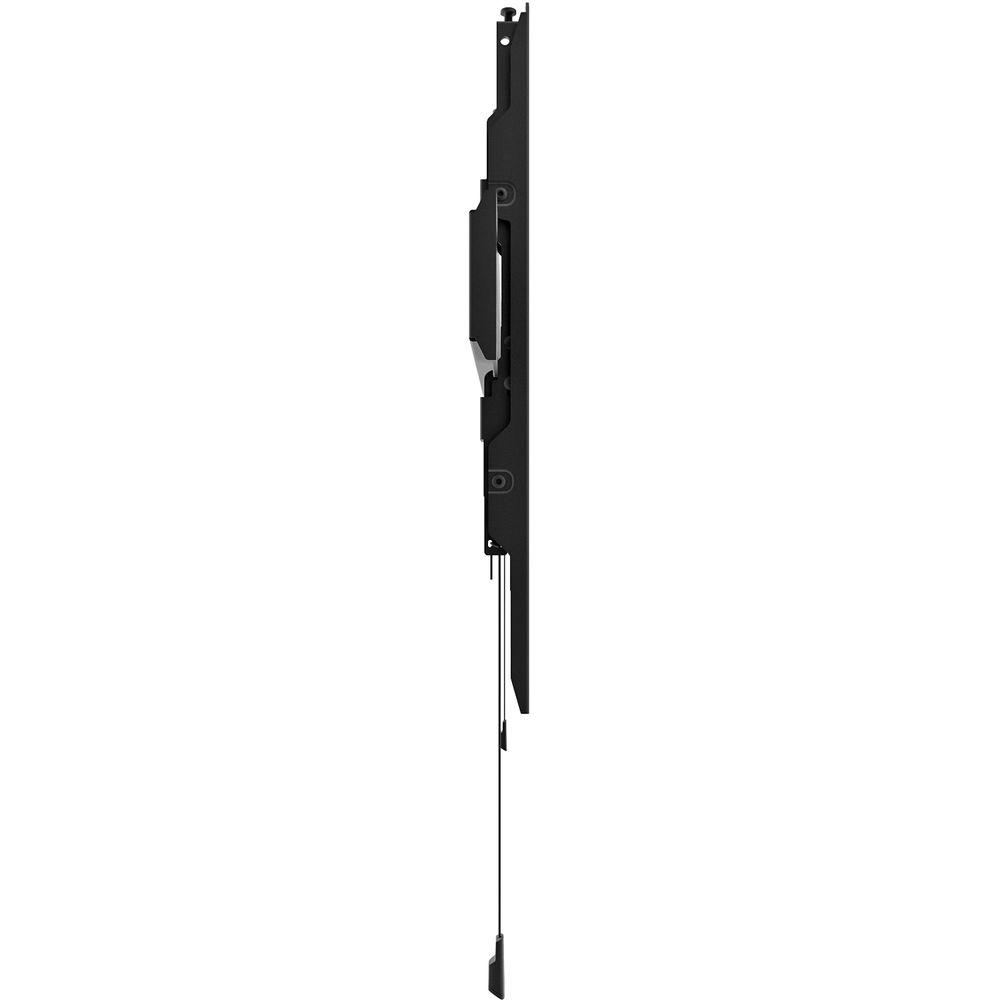

- The slim wall plate and mounting brackets of the PF400 allow your display to sit just 1.4" from the wall.

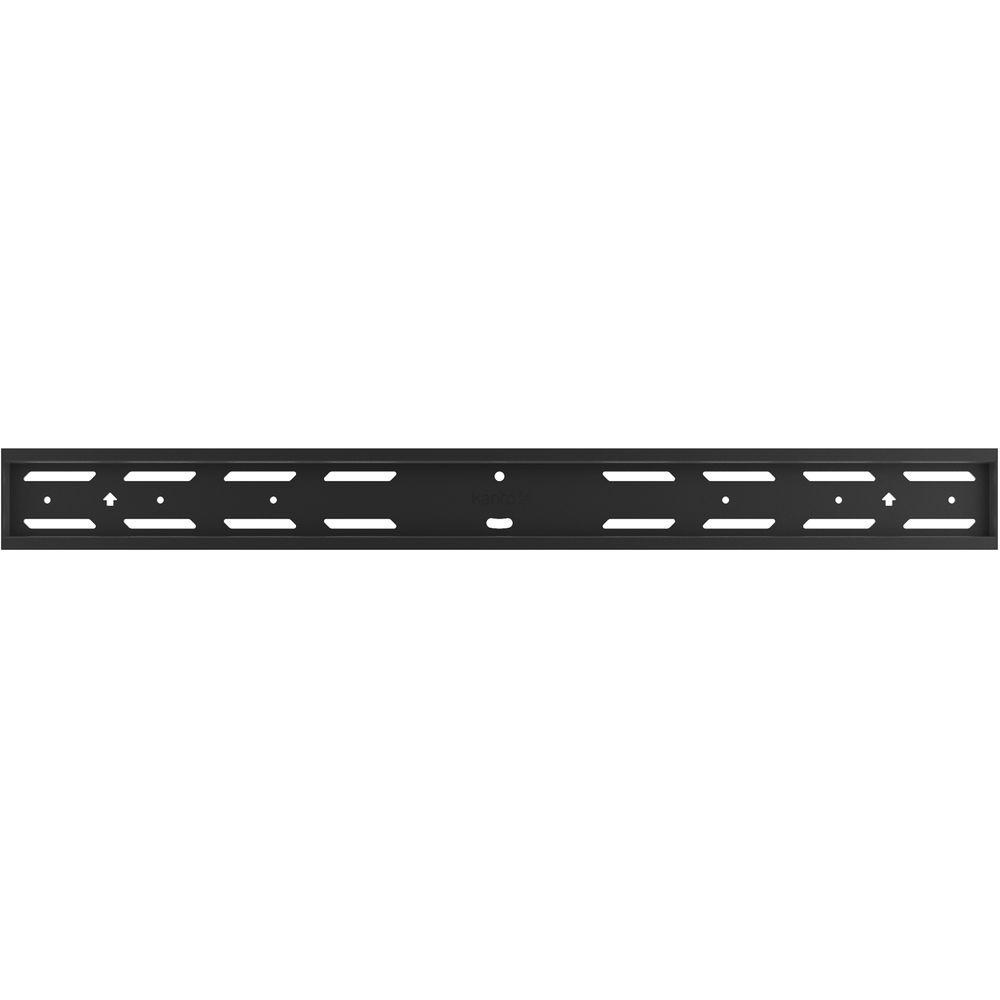

- Wide Wall Plate
- At 34.8" wide, the steel wall plate can be installed across three studs with 16" spacing or two studs with 24" spacing

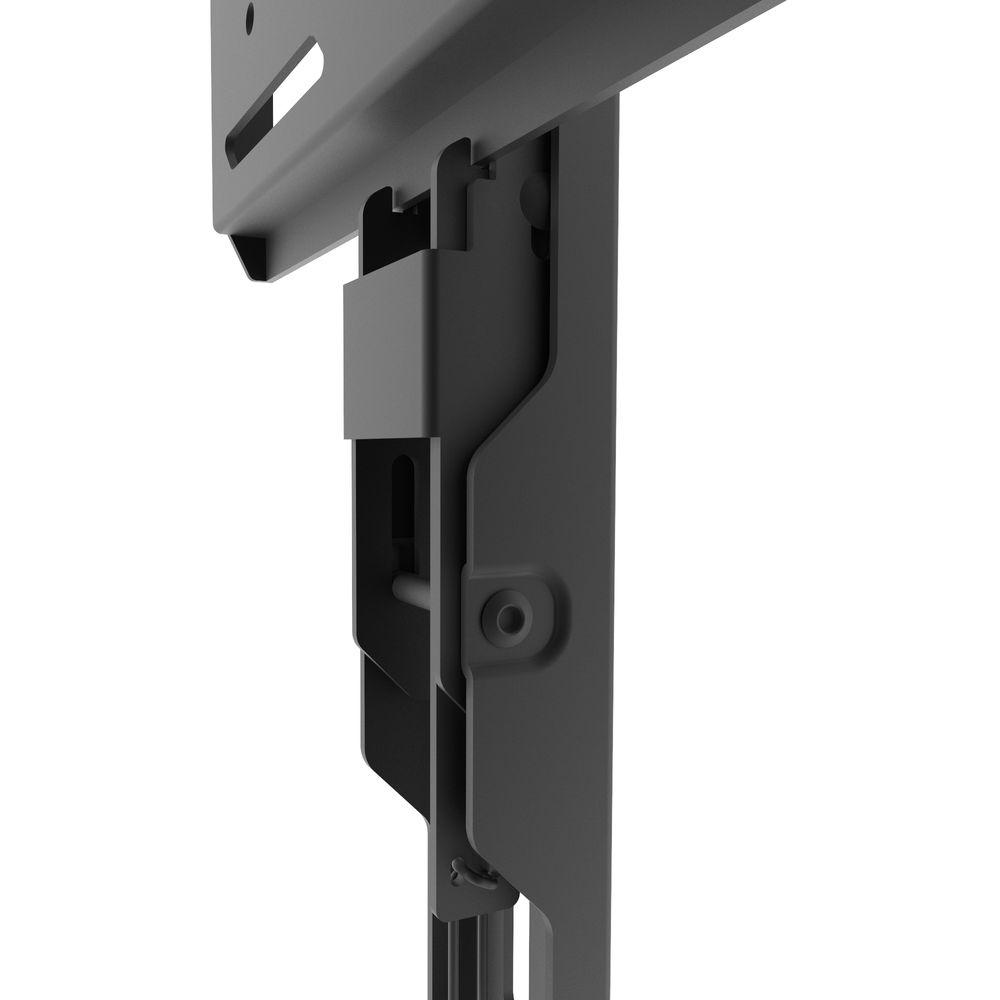

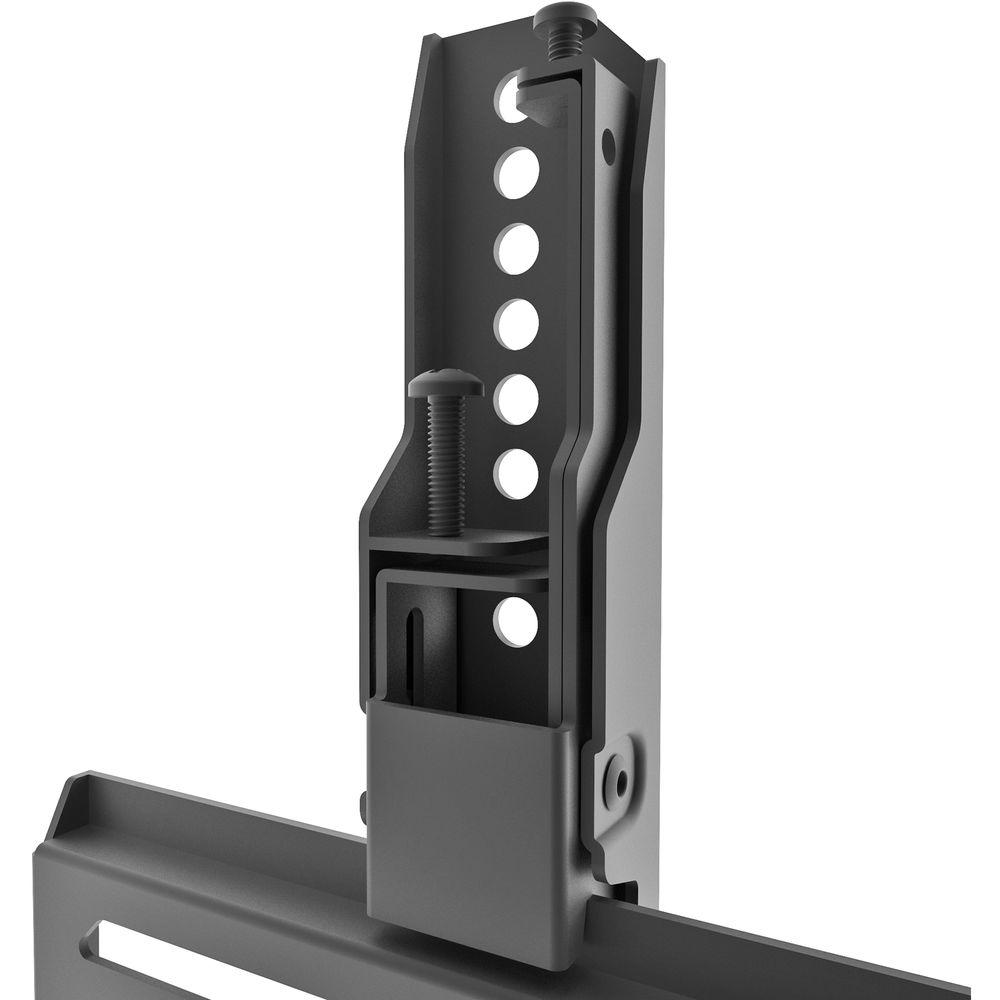

- Post-Installation Leveling

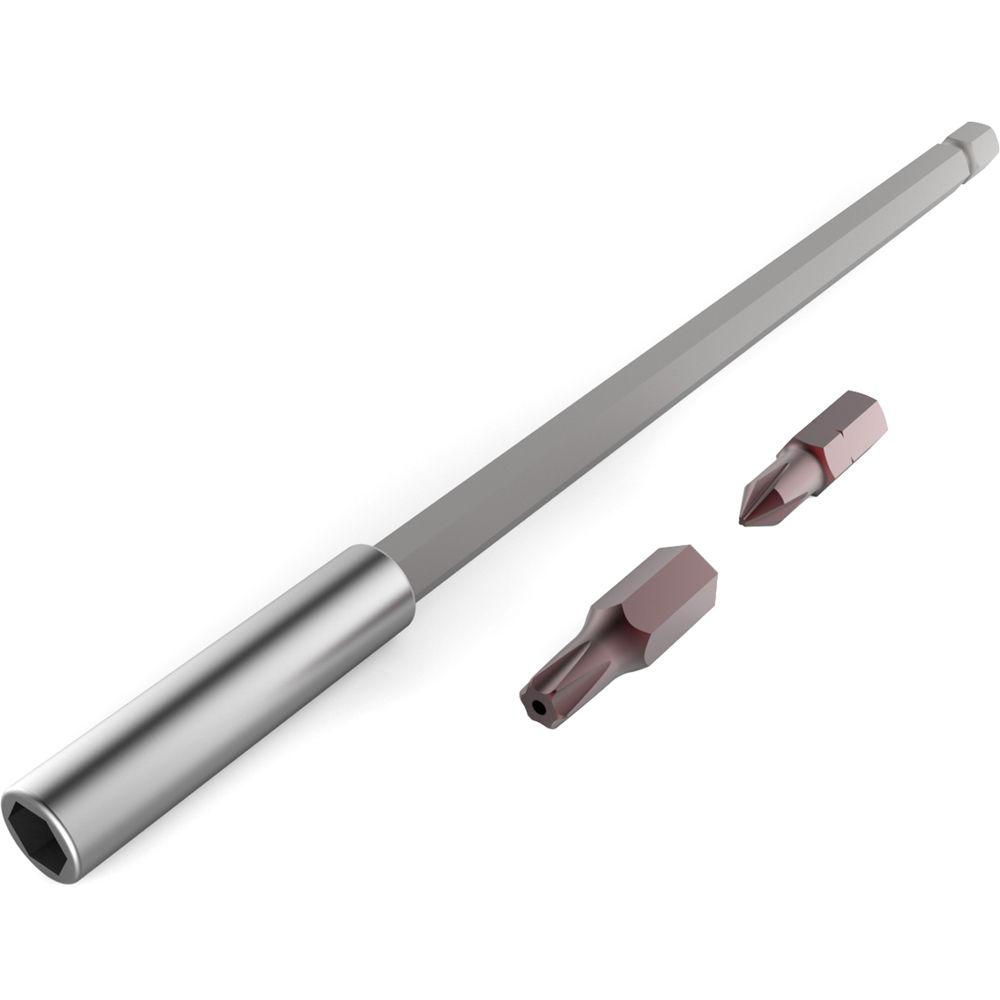

- Precision leveling can be achieved with two adjustable screws. Use the included 6" extension bit to access them after your display has been mounted.

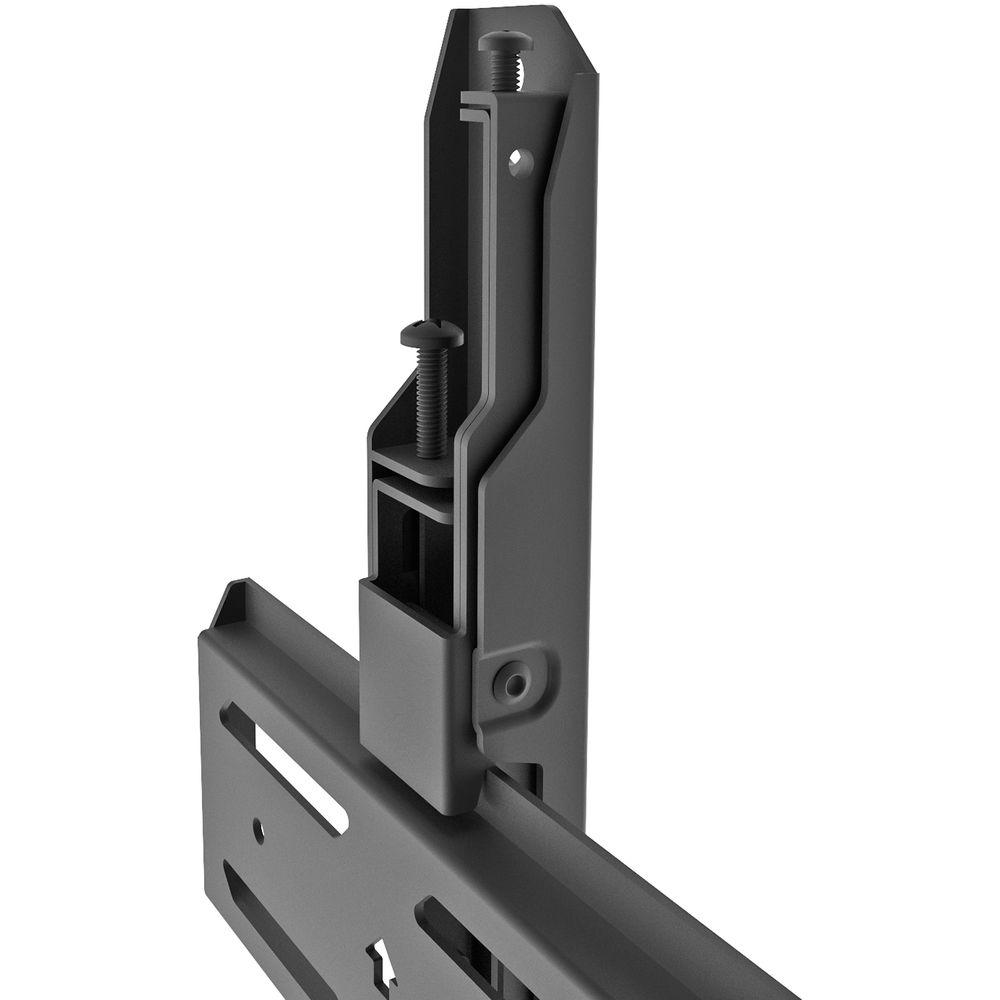

- Lockable Arms
- Two security screws can be tightened using the included key and extension bit to help prevent your display from being removed.

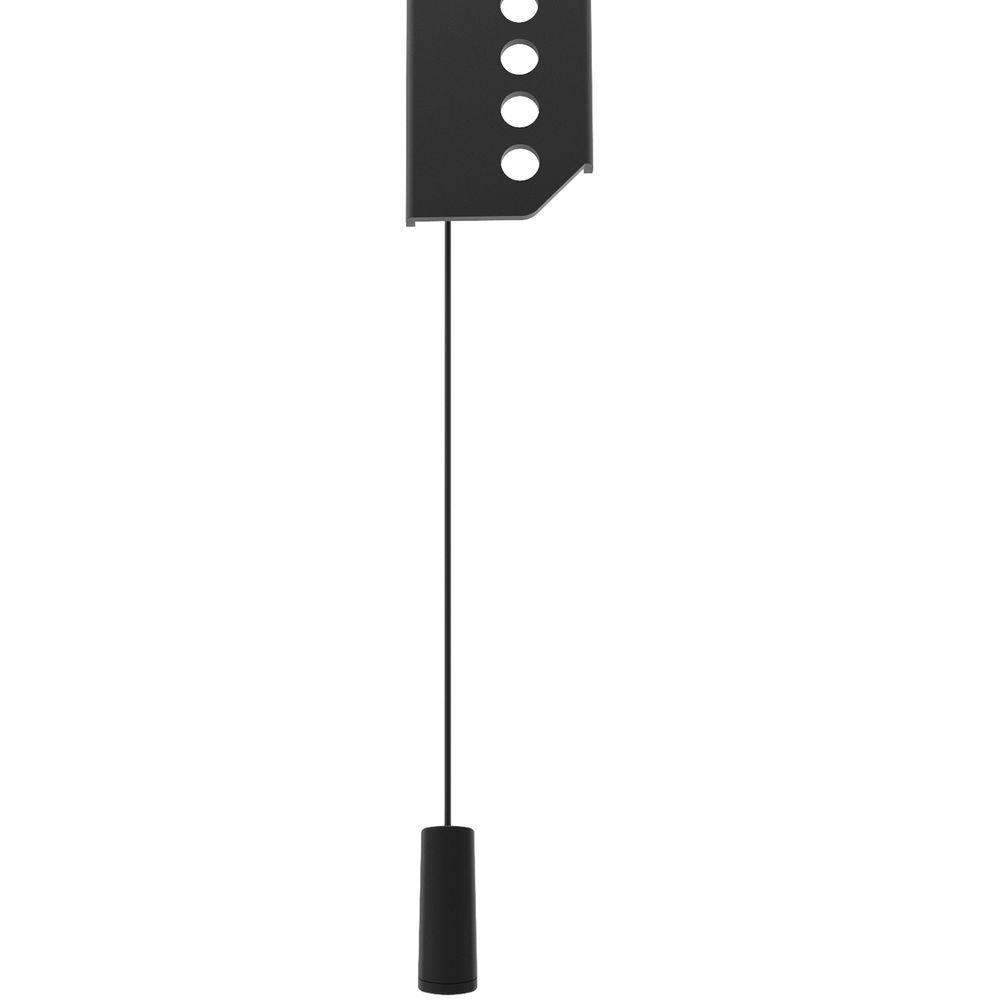

- Magnetic Quick Release Cords
- Removing your display from the wall is as easy as pulling on two quick release cords. Each cord has a magnetic end, allowing them to be tucked out of sight.
- Additional Features
-
- Powder coated finish
- Integrated cable management

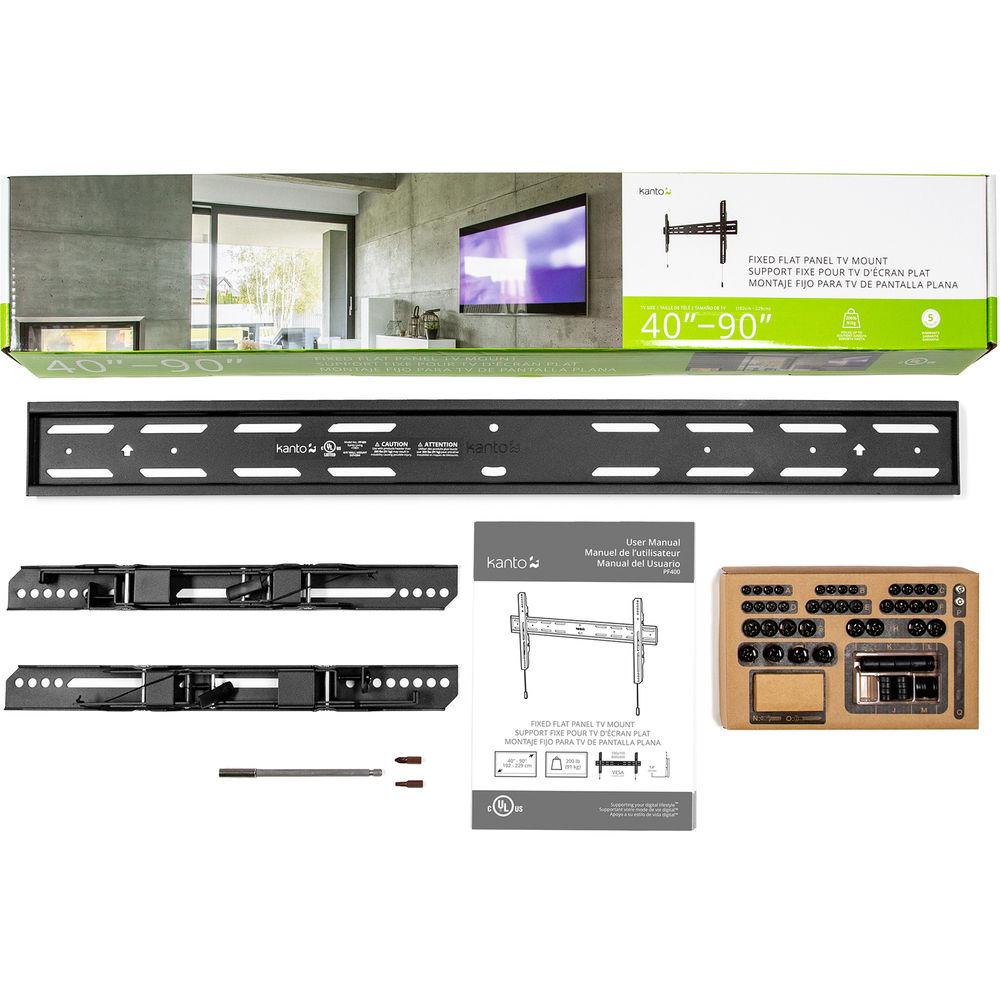

UPC: 800152718248 In the Box Kanto Living PF400 Fixed Wall Mount for 40 to 90" Displays Assembly Hardware Mounting Hardware for Wood Stud and Concrete Installations Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanto Living PF400 Fixed Wall Mount for 40 to 90" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanto Living PF400 Specs | | | Supported Screen Sizes | 40 to 90" / 101.6 to 228.6 cm | | Supported Weight Capacity | 200 lb / 90.72 kg | | Mounting-Hole Pattern | 100 x 100 to 800 x 400 mm | | | | Tilt Adjustment | None | | Screen Pivot (Arm) | None | | Orientation | Landscape | | | | Construction Material | Steel | | Security | Security Screws | | Mounting Requirements | Double Stud, Triple Stud | | Stud Distance | 16.0" / 40.6 cm
Up to 24.0" / 61.0 cm | | Distance from Mounting Surface | 1.4" / 3.56 cm | | Wall Plate Size | 34.8" / 88.39 cm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 36.4 x 7.0 x 3.4" |
