User Manual for Kanto Living PT400 Tilting Wall Mount for 40 to 90" Displays Click to enlarge the picture
Contents of the user manual for the Kanto Living PT400 Tilting Wall Mount
- Product category: Monitor Wall Mounts Kanto Living
- Brand: Kanto Living
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kanto Living Monitor Wall Mounts
 |
User manual for the Kanto Living PT400 Tilting Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kanto Living product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kanto Living user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kanto Living product will considerably shorten its lifespan!
|

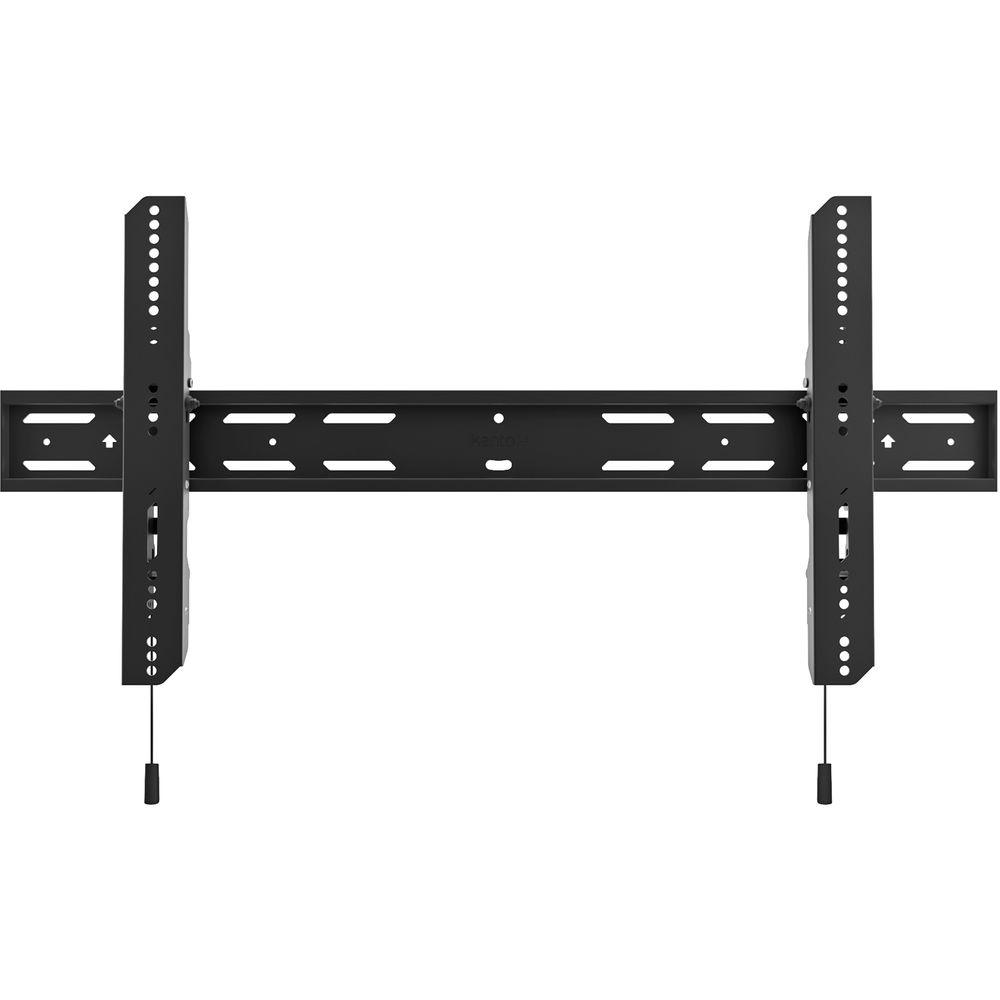

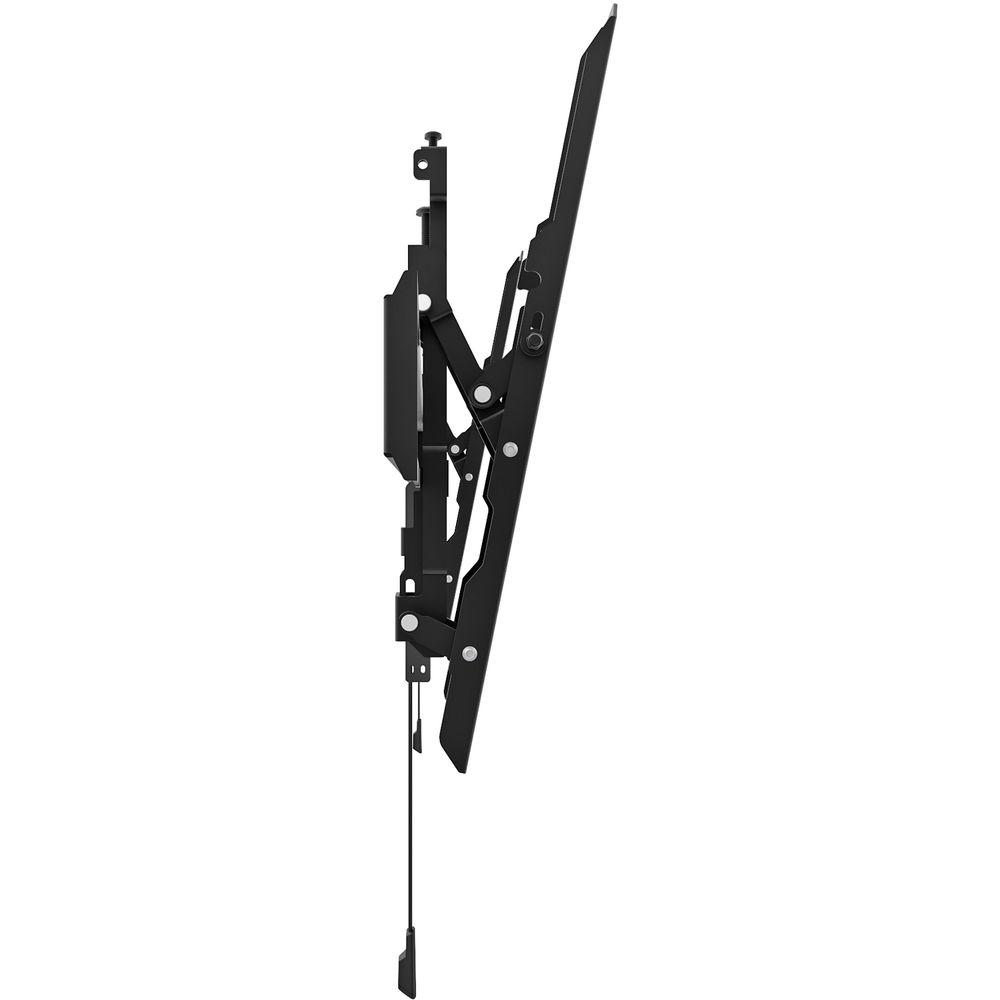

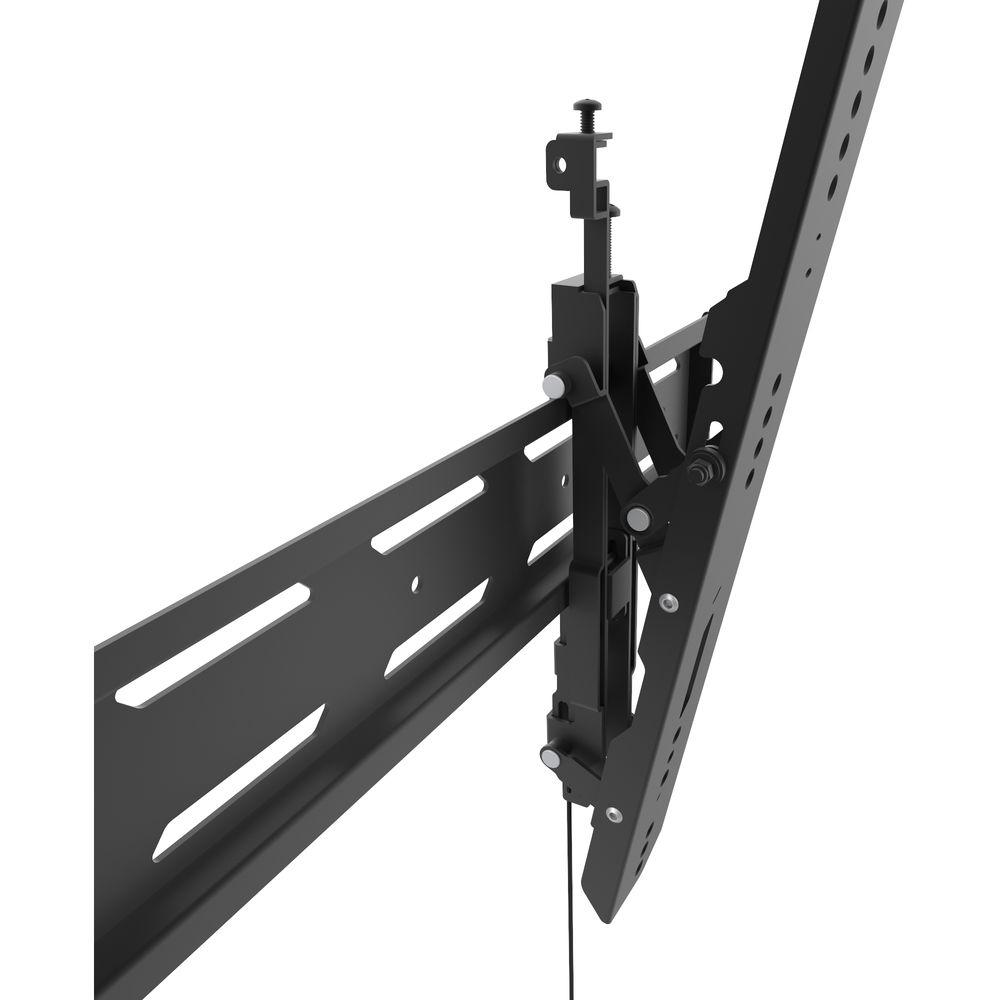

Product description Mount your 40 to 90" display to the wall with the Kanto Living PT400 Tilting Wall Mount. It supports displays weighing up to 200 lb with 100 x 100 to 800 x 400mm VESA patterns and provides up to 12° of forward tilt. - Up to 12° of Forward Tilt
- Tilt your TV up to 12° forward in order to reduce glare and improve line-of-sight.

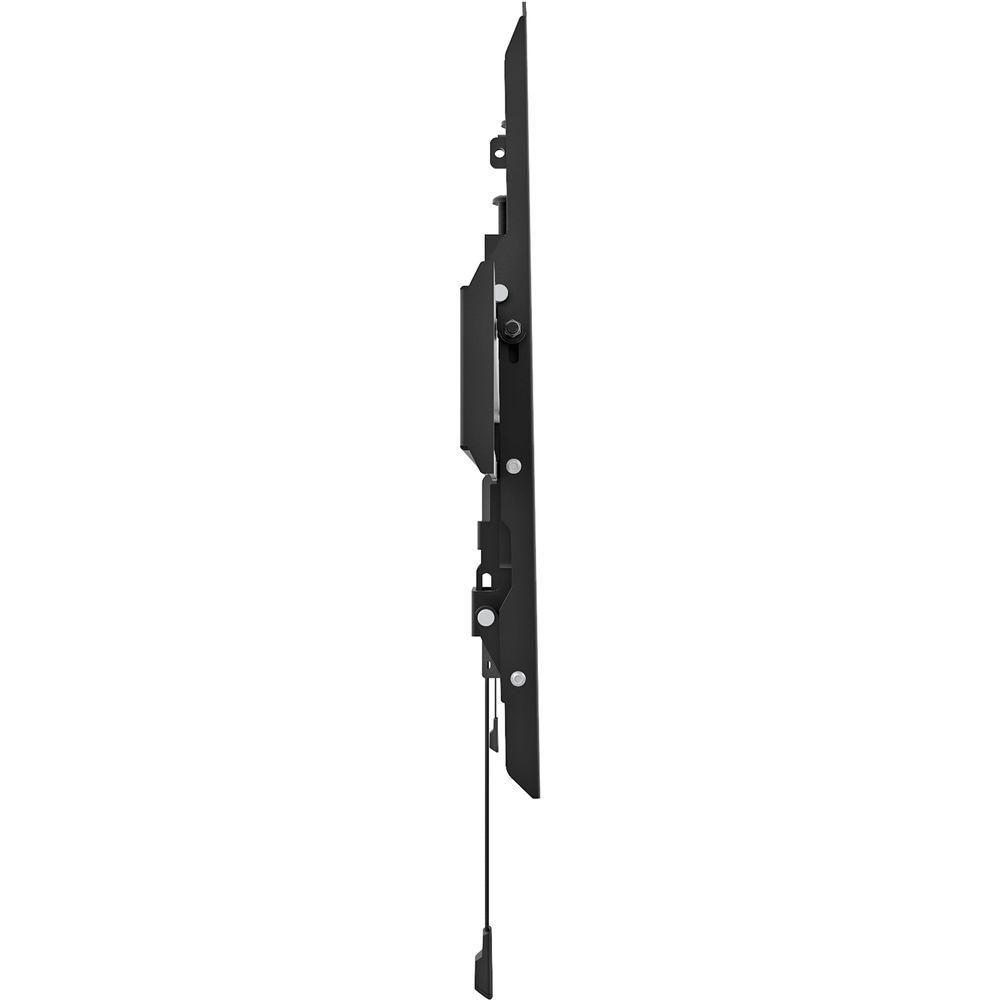

- Low-Profile Design
- The slim wall plate and mounting brackets of the PT400 allow your display to sit just 1.4" from the wall.
- Wide Wall Plate
- Measuring 34.8" wide, the wall plate can be installed across three studs with 16" spacing or two studs with 24" spacing.
- Post-Installation Leveling

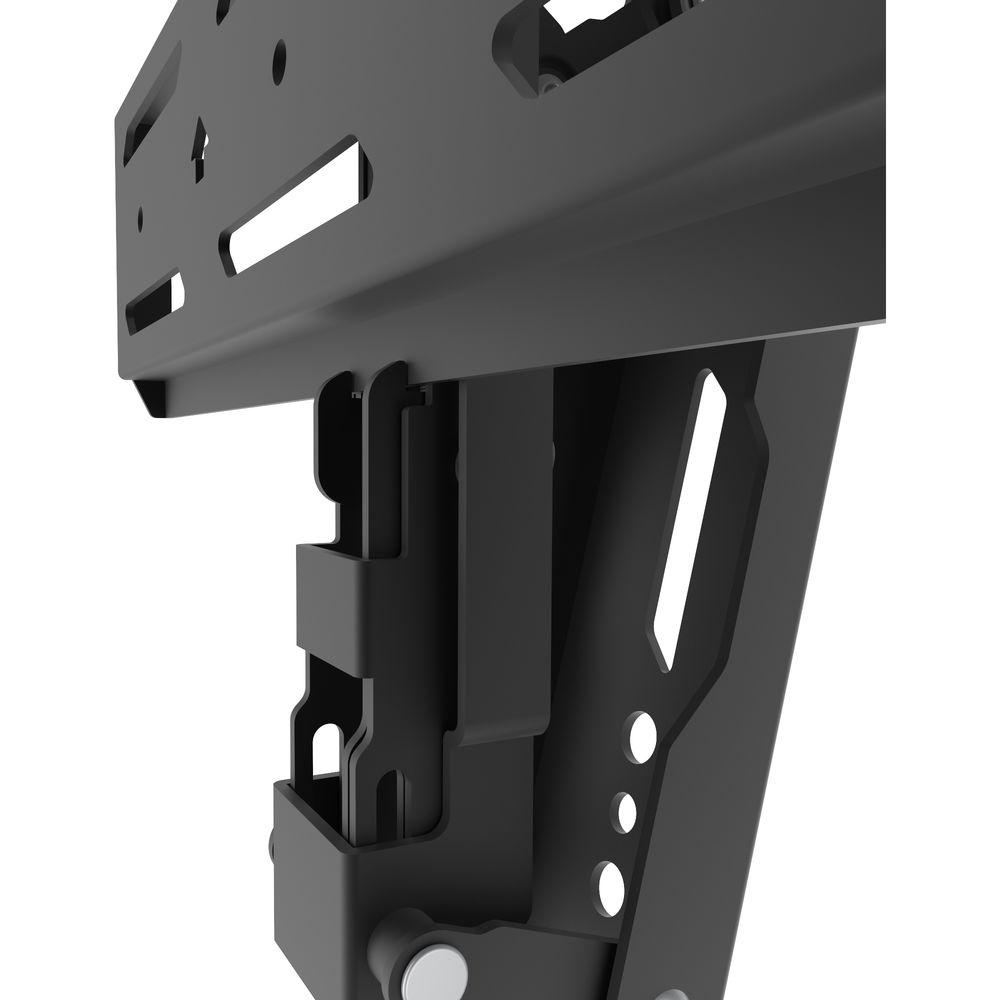

- Ensure your display is level by adjusting the individual screws located on top of each mounting bracket.
- Magnetic Quick Release Cords
- Removing your display from the wall plate is as easy as pulling on the two quick release cords. These cords include magnetic ends, making it easy to tuck them out of sight.
- Lockable Arms
- Two security screws can be tightened with the included key to help preventyour display from being removed. Alternatively, an optional lock can be attached to the mounting brackets to secure them in place.
UPC: 800152718224 In the Box Kanto Living PT400 Tilting Wall Mount for 40 to 90" Displays Mounting Hardware for Wood Stud and Concrete Installations Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanto Living PT400 Tilting Wall Mount for 40 to 90" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanto Living PT400 Specs | | | Supported Screen Sizes | 40 to 90" / 101.6 to 228.6 cm | | Supported Weight Capacity | 200 lb / 90.72 kg | | Mounting-Hole Pattern | 100 x 100 to 800 x 400 mm | | | | Tilt Adjustment | 12
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
