User Manual for Kanto Living YU2 Powered Desktop Speakers Click to enlarge the picture
Contents of the user manual for the Kanto Living YU2 Powered Desktop Speakers
- Product category: Computer Speakers Kanto Living
- Brand: Kanto Living
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kanto Living Computer Speakers
 |
User manual for the Kanto Living YU2 Powered Desktop Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kanto Living product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kanto Living user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kanto Living product will considerably shorten its lifespan!
|

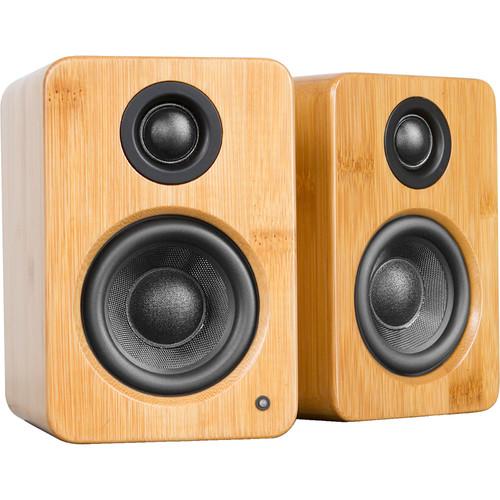

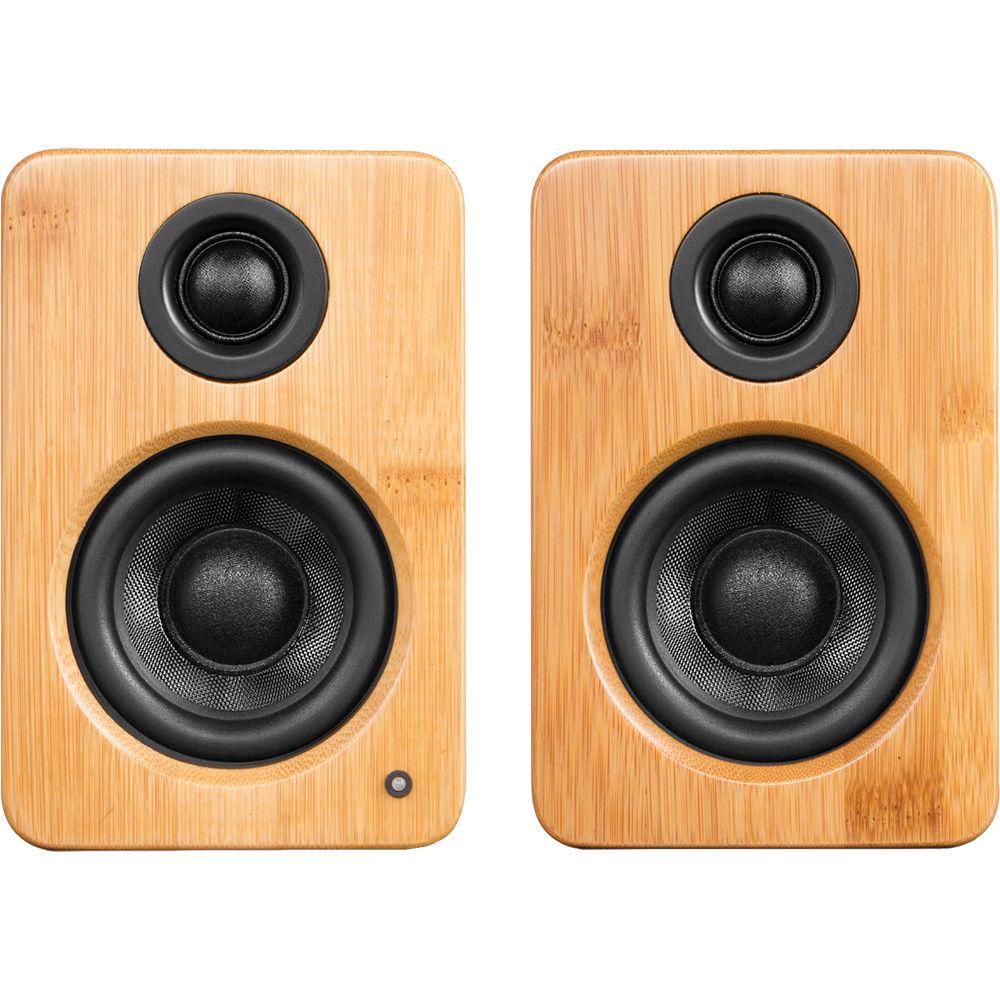

Product description The YU2 Powered Desktop Speakers from Kanto Living features 3" composite drivers along with ¾" silk dome tweeters housed in bamboo cabinets to surround you in sounds. It comes equipped with a USB port as well as an integrated soundcard to stream high-quality audio from your computer. It also sports a 3.5mm AUX jack for your multimedia devices. With this combination of features, the speakers produce a frequency response of 80 Hz to 20 kHz and 50 watts of total RMS power.

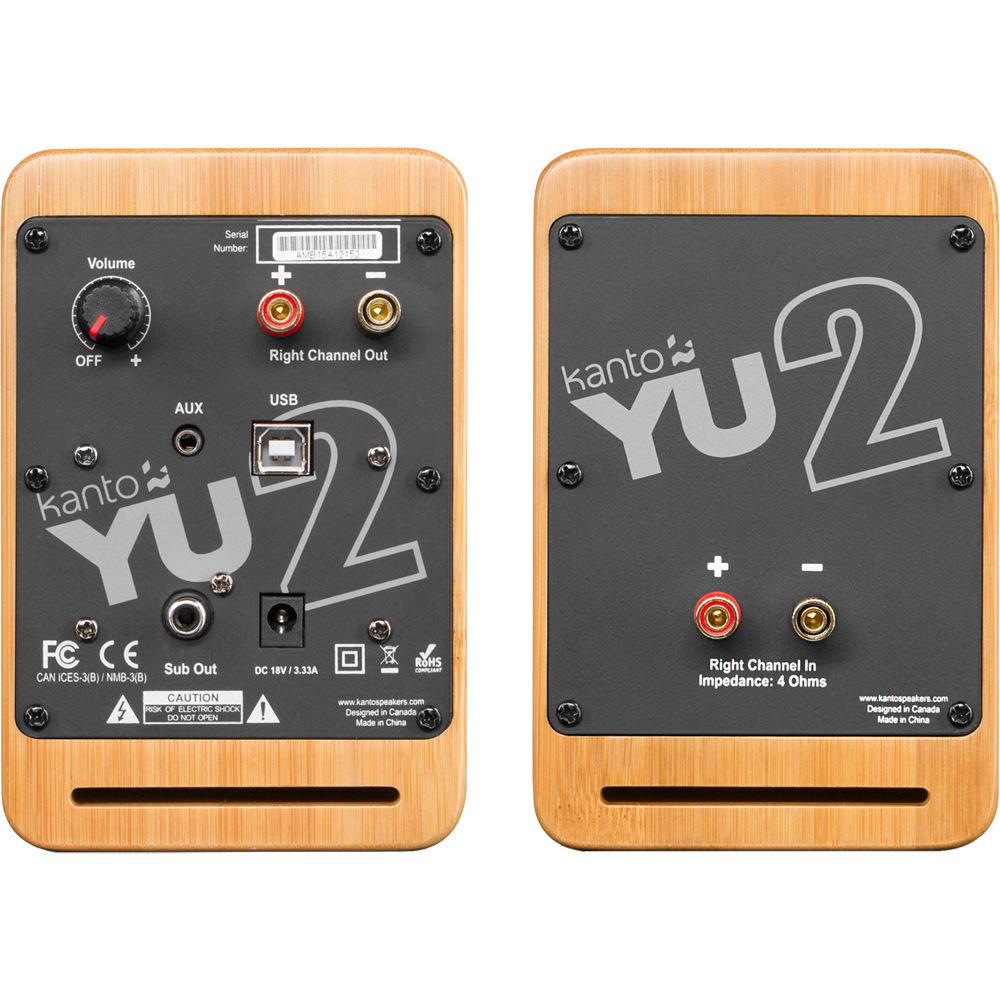

The YU2 has knurled binding posts that create a connection between the active left speaker and the passive right speaker. This wiring system lets you customize the length of the included 10' speaker wire or use a longer wire. For convenience, a volume control knob doubles as a power switch. To connect with an optional subwoofer, a sub-out port is onboard. Included along with the speakers are a power cord, feet kit, 3.5mm audio cable, and USB cable. - 3" composite drivers provide distortion-free, mid-range, and bass tones
- ¾" silk dome tweeters deliver crisp highs
- Smooth rotating volume knob doubles as a power switch
- AUX input and USB port for connection versatility
- Bass port designed to eliminate port turbulence while extending bass response
- Speaker connection from Active (LEFT) to Passive (RIGHT) using knurled binding posts
UPC: 800152714769 In the Box Kanto Living YU2 Powered Desktop Speakers (Bamboo) 8 x Self-Adhesive Rubber Feet AC/DC Adapter 10' Speaker Wire 10' 3.5mm AUX Cable USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanto Living YU2 Powered Desktop Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanto Living YU2 Specs | Tweeter | ¾" / 1.9 cm silk dome | | Woofer | 3.0" / 7.6 cm composite | | Amplifier Type | Class D | | Nominal Impedance | 4 Ohm | | Sensitivity | 84 dB (2.83 V/1 W/1 m) | | Frequency Response | 80 Hz to 20 kHz | | Crossover Frequency | 2-way: 2.5 kHz | | Inputs | 1 x 3.5mm stereo
1 x USB audio DAC | | Output | 1 x subwoofer | | Terminals | Left and right binding posts | | Input Sensitivity | 450 mV | | Power Output | 25 W RMS per channel
50 W peak per channel | | Total Harmonic Distortion | < 0.1% | | Power | 100 to 240 VAC, 50/60 Hz (auto switching)
Standby: < 0.5 W | | Dimensions (W x D x H) | 3.9 x 5.3 x 5.9" / 9.9 x 13.5 x 15.0 cm | | Weight | Active: 3.1 lb / 1.4 kg
Passive: 2.9 lb / 1.3 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 13.2 x 8.2 x 7.9" |
