User Manual for Kanto Living YU6 2-Way Powered Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Kanto Living YU6 2-Way Powered Bookshelf
- Product category: Wireless Home Speakers Kanto Living
- Brand: Kanto Living
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kanto Living Wireless Home Speakers
 |
User manual for the Kanto Living YU6 2-Way Powered Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kanto Living product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kanto Living user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kanto Living product will considerably shorten its lifespan!
|
Product description - The New YU | YU4 and YU6
- YU6 Unboxing by Kanto

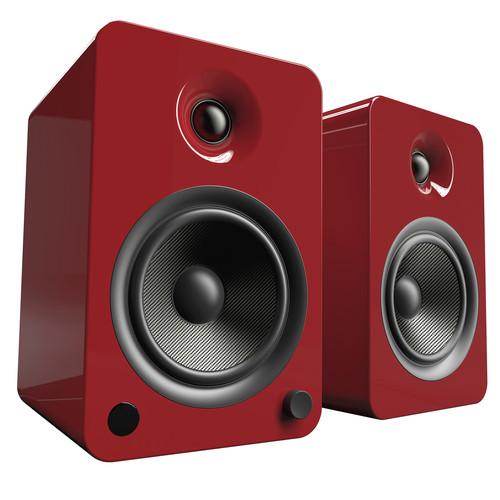

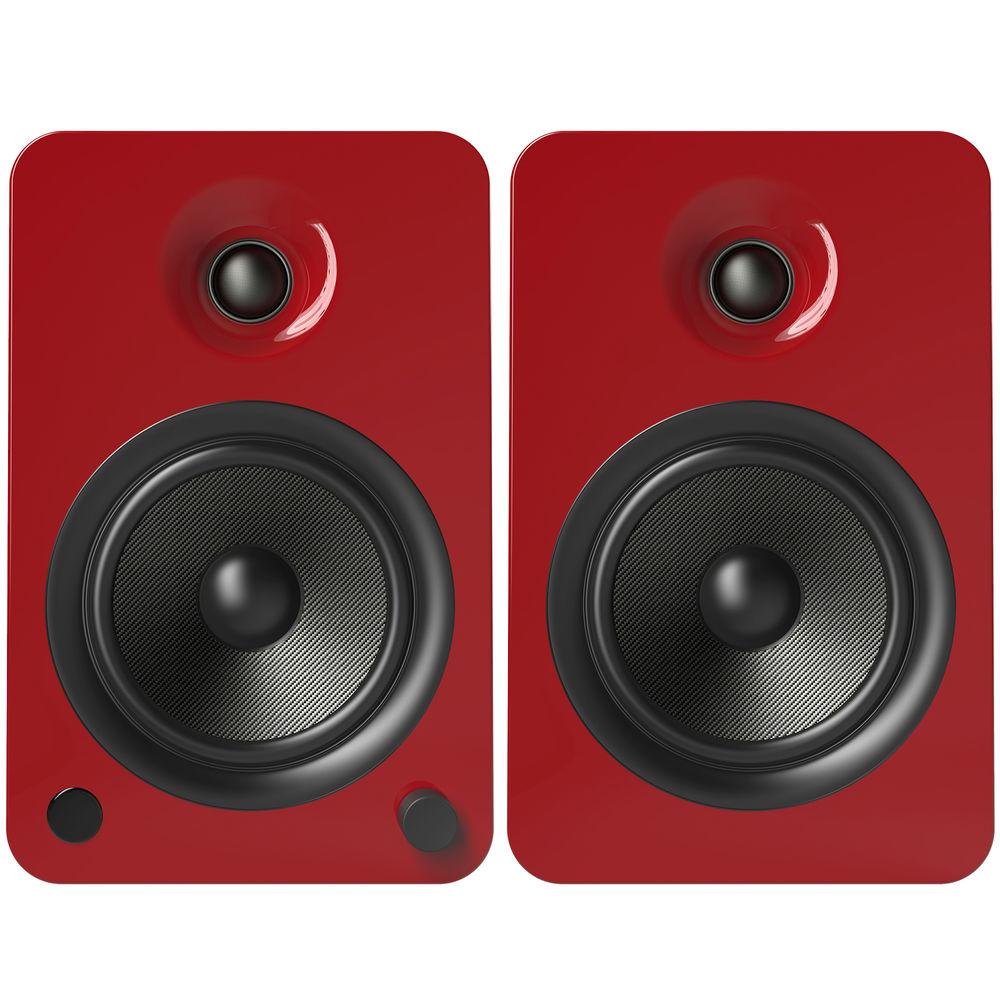

Play audio from nearly any device with the pair of gloss red Kanto Living YU6 2-Way Powered Bookshelf Speakers. They feature an RCA, 1/8" mini, and two optical TOSLINK inputs, plus built-in Bluetooth for wireless connectivity. The RCA input can function as either a line-level or phono input via a rear-mounted switch, and a ground terminal is onboard to attach to your turntable. A 5V USB port is also built-in to keep your phone charged during playback. Each speaker has a 5.25" Kevlar woofer and a 1" silk dome tweeter to produce a total RMS output of up to 100W. An IR remote is included, along with speaker wire and an 1/8" AUX cable for instant connectivity. - Turntable-Friendly
- For laid-back listeners, hardcore gamers, and vinyl enthusiasts alike, the 6 was designed to do it all. All you need to do is provide the source.
- Designed for Sound and Aesthetics
- Kanto speakers feature sanded cabinets, woven Kevlar drivers, and silk dome tweeters to embody both sound and design.
- Enhanced Connectivity
- Inspired by an appreciation for both digital and analog connectivity, the 6 is designed to give you the freedom to enjoy all your devices. Connect your turntable directly to the speakers' built-in phono preamp, transmit audio from your display via optical TOSLINK, or connect your subwoofer for extra bass.
- Remote Control
- The included remote control allows you to switch between sources, tune your sound, and control playback while streaming via Bluetooth.
- Additional Features
-
- A rear-mounted switch allows you to flip between Phono and Line RCA input types.
- Keep your phone charged with the rear-mounted 5V USB port.
- Auto-standby mode helps conserve energy when the speakers are not in use.

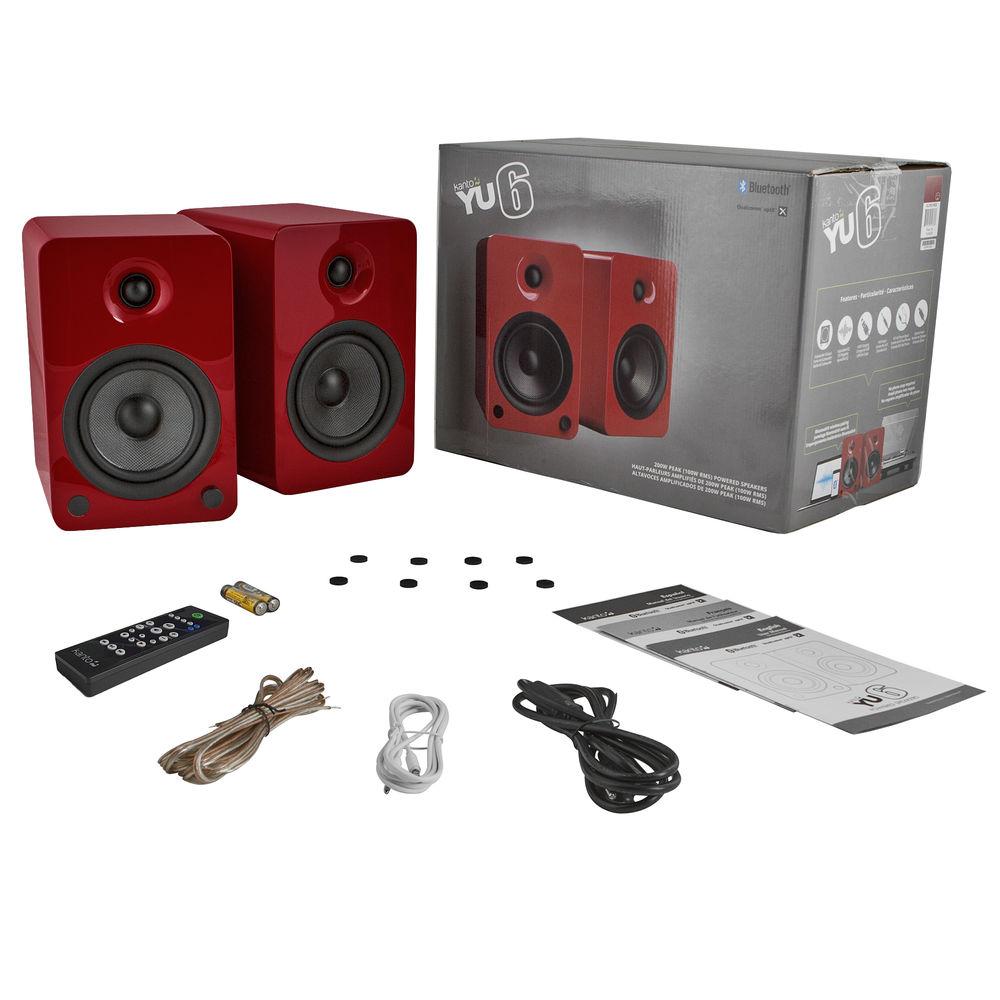

UPC: 800152717388 In the Box Kanto Living YU6 2-Way Powered Bookshelf Speakers (Pair, Gloss Red) Remote Control 2 x AAA Batteries Speaker Wire 1/8" AUX Cable 8 x Rubber Feet Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanto Living YU6 2-Way Powered Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanto Living YU6 Specs | | | Drivers | 1x 5.25" (13.3 cm) Kevlar woofer per speaker
1x 1" (2.54 cm) silk dome tweeter per speaker | | Total Power Output | RMS: 100 W total
Peak: 200 W total | | Amplifier Type | Class D | | Port | 1.75" (4.4 cm) dual flared bass ports | | Frequency Response | 50 Hz to 20 kHz | | THD | <0.3% | | Crossover Type | 2-way | | Crossover Frequency | 2 kHz | | | | Input Connector | Left Speaker:

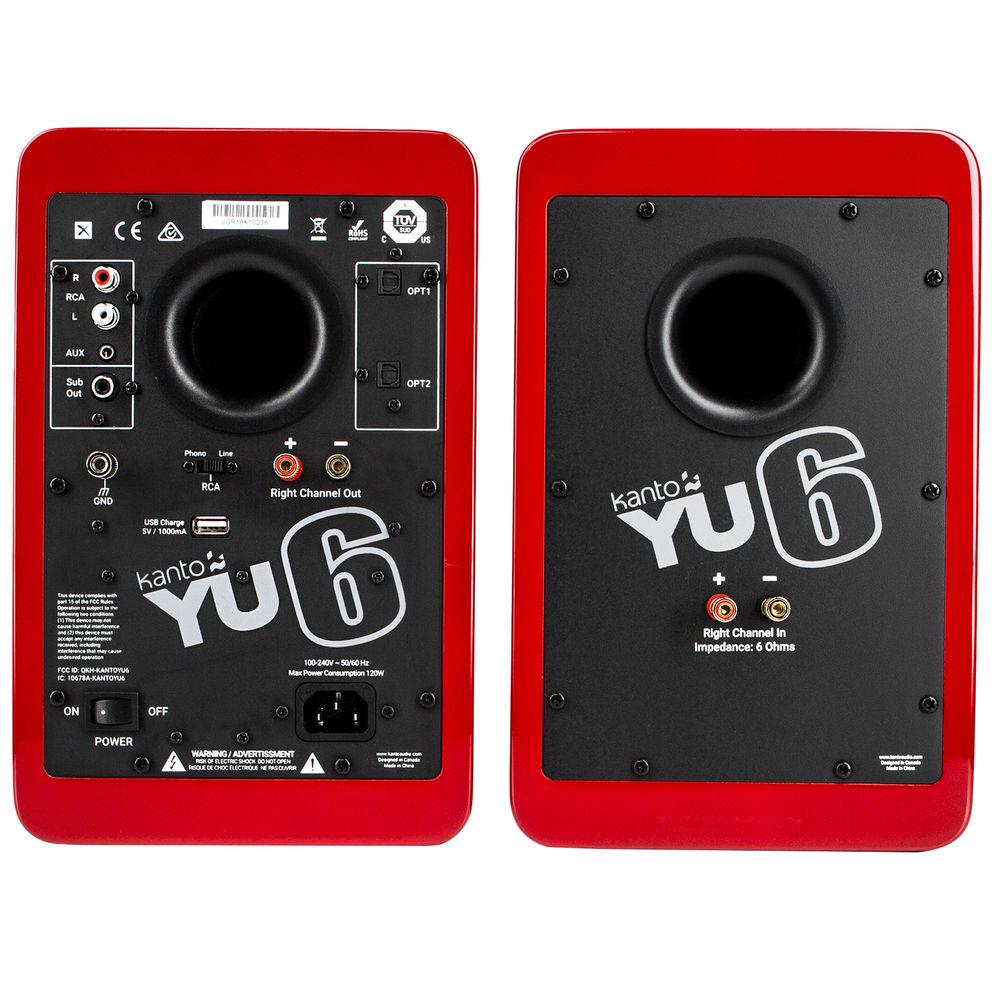

1 x RCA L/R pair with phono preamp
2 x Optical TOSLINK
1 x 1/8" (3.5 mm) AUX
Right Speaker:
1 x Knurled speaker binding post pair from left speaker | | Output Connector | Left Speaker:
1 x RCA line-level connection to subwoofer
1 x Knurled speaker binding post pair to right speaker
1 x USB charge 5 V, 1 A | | Wireless | Bluetooth with aptX | | Other Connections | Left Speaker:
1 x AC input
1 x Ground terminal | | Input Sensitivity | 560 mV | | | | Construction Material | MDF | | Mounting Options | 1/4"-20 mounting hole on base | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Standby Power Consumption | <0.5 W | | Dimensions (W x H x D) | Each Speaker: 6.9 x 10.7 x 8.1" (17.5 x 27.2 x 20.5 cm) | | Weight | Left Speaker: 11.4 lb (5.2 kg)
Right Speaker: 8.7 lb (4 kg) | | | | Package Weight | 27.3 lb | | Box Dimensions (LxWxH) | 19.0 x 14.6 x 12.0" |
