User Manual for KAT HD400 High-Definition 2.1 Stereo Speaker System Click to enlarge the picture
Contents of the user manual for the KAT HD400 High-Definition 2.1 Stereo Speaker
- Product category: Electronic Drum Accessories KAT
- Brand: KAT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KAT Electronic Drum Accessories
 |
User manual for the KAT HD400 High-Definition 2.1 Stereo Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KAT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KAT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KAT product will considerably shorten its lifespan!
|

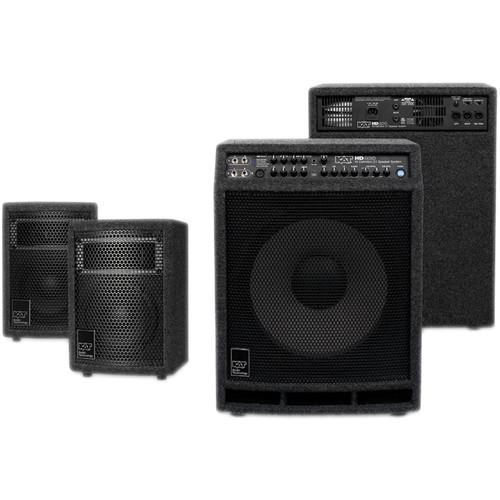

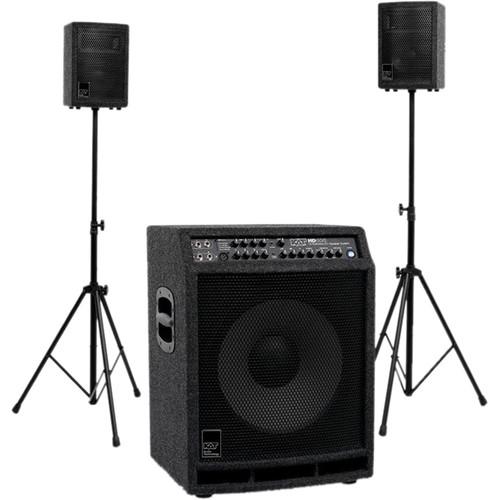

Product description The HD400 from Kat Percussion is a 400W RMS stereo system designed for amplifying electronic drums. Its 15" subwoofer doles out a punchy and pervasive low end, while two complementing satellite speakers deliver a richly detailed mid-range and high-end response in stereo. The HD400 also includes a pair of height-adjustable tripod stands for the satellite speakers and two 18' cables for connecting the system to its respective stereo monitors.

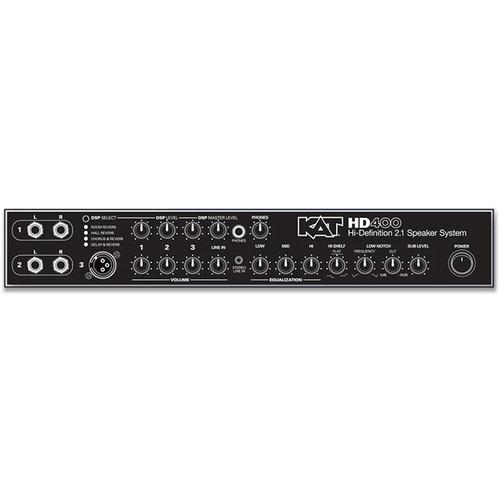

Turn your attention to the control panel and you'll notice plenty of tone-shaping possibilities: a three-band EQ, a low-notch filter for tuning your sub frequencies to the room, a high-shelf for taming unruly cymbal sounds, and DSP controls for adding effects across individual channels and the master output. There are two sets of stereo 1/4" inputs, as well as a balanced XLR jack, an 1/8" auxiliary line-in jack, and a 1/4" headphone jack for solo practicing. - Key Features
-

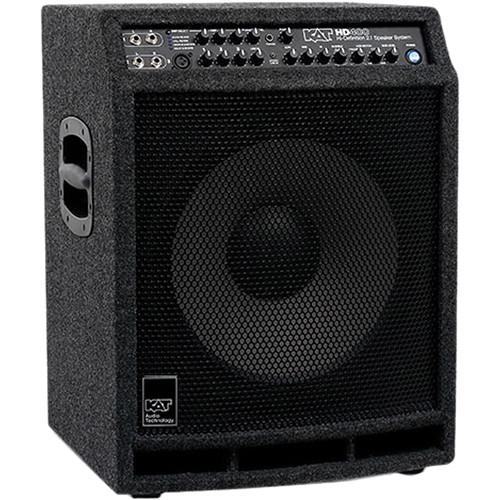

- 15" subwoofer with volume control

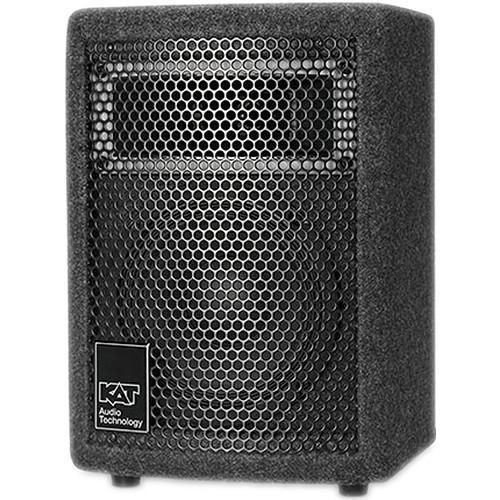

- 2x two-way satellite speakers with built-in pole stand adapters
- 1x XLR input for low-impedance microphones or equipment with balanced outputs
- On-board DSP including chorus and reverb
- DSP level controls for inputs and master channel
- 1x 1/8" jack for external audio
- High-shelf filter tames harsh, unruly cymbal sounds and snare attack
- Low-notch filter pinpoints low-end frequencies between 100 and 450 Hz that may need to be reduced depending on surrounding acoustics
- Integrated three-band EQ
- 1/4" stereo headphone output powered by dedicated headphone amp with volume control
- 2x stereo outputs
- 2x direct mono/stereo line outs
- 1x direct microphone line out on rear panel
- Direct line-out volume control on rear panel
- Subwoofer side handles for easy lifting and transporting
- LED power indicator on front panel
- 2x height-adjustable tripod speaker stands
- 2x 18' speaker cables
UPC: 647139332987 In the Box KAT HD400 High-Definition 2.1 Stereo Speaker System 2 x Height-Adjustable Tripods for Mounting Satellite Speakers 2 x 18' Cables for Connecting Satellite Speakers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KAT HD400 High-Definition 2.1 Stereo Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKAT HD400-US Specs | | | Output Power | 1x 15" internal speaker: 400 W RMS at 4 Ohms
2x Headphone outputs: 500 mW RMS at 32 Ohms
2x Satellite speakers: 50 W RMS at 8 Ohms | | Frequency Response | 45 Hz to 15 kHz | | Hum & Noise | -55 dBV, all controls turned down
-50 dBV, all controls turned halfway | | Input Impedance | 10 kOhms | | Audio Input Levels | Input 1: -16 dBV for full output
Input 2: -10 dBV for full output
Auxiliary input: -10 dBV for full output
1/8" input: -10 dBV for full output | | Line Out | 0 dBV | | EQ Controls | Center-flat 12 dBV 3-band EQ at 60 Hz, 800 Hz, and 10 kHz | | | | Frequency Response | 150 Hz to 15 kHz | | SPL | Continuous: 117 dB
Peak: 120 dB | | | | Frequency Response | 45 to 150 Hz | | SPL | Continuous: 124 dB
Peak: 127 dB | | | | AC Power Requirements | 600 W at full output
26 W at idle | | Dimensions (H x W x D) | Subwoofer: 23.8 x 18.6 x 16.2" / 605 x 473 x 412 mm
Satellites: 13.0 x 8.8 x 8.6" / 330.2 x 222.3 x 218.0 mm | | Weight | Subwoofer: 53 lb / 27 kg
Satellites: 10 lb / 4.5 kg | | | | Package Weight | 69.4 lb | | Box Dimensions (LxWxH) | 27.8 x 22.8 x 20.6" |
