User Manual for KAT KT3 6-Piece Advanced Electronic Drum Kit Click to enlarge the picture
Contents of the user manual for the KAT KT3 6-Piece Advanced Electronic Drum
- Product category: Electronic Drums KAT
- Brand: KAT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KAT Electronic Drums
|
User manual for the KAT KT3 6-Piece Advanced Electronic Drum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KAT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KAT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KAT product will considerably shorten its lifespan!
|

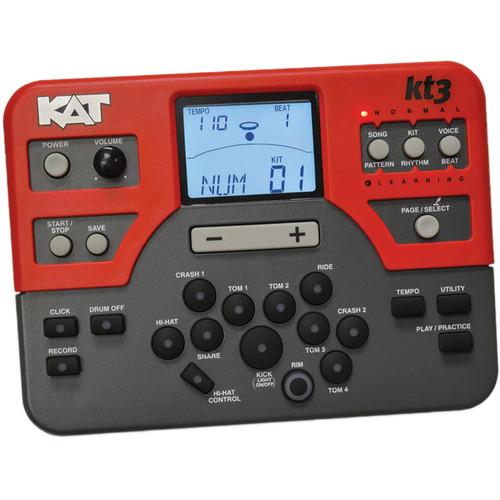

Product description The KT-3 from KAT is a 6-piece electronic drum kit carefully crafted and engineered by professional drummers. The kit features over 550 sounds, with 70 kits (45 factory, 25 user programmable) that offer a wide range of musical styles including rock, reggae, jazz, and electronic. Additionally, the module includes 100 tracks you can play along with, while the metronome offers nine time signatures to help you lock in a groove. The 5-pin DIN MIDI-Out connector allows you to connect to outboard modules and MIDI interfaces, while the USB connection conveniently provides MIDI-In/Out of any connected computer. Note: Note! The KT-3 does not ship with a kick drum pedal - USB Control Module
-
- 550 Studio Grade Drum, Cymbal, DJ, EFX, and Percussion sounds
- 70 Drum Kits, 45 Factory preset and 25 additional user kits
- Full user-programming options:
- Panning
- Individual voice-pitch adjustment
- Reverb
- Pad sensitivity control
- Curves
- Individual voice volume
- MIDI note assignment
- 3-band EQ
- Tempo adjust and more
- 100 built-in play-along tracks
- Input for mp3 player, smartphone or tablet
- USB/ MIDI connectivity
- Learning mode for training and accuracy
- Integrated sequencer for recording
- Built-in Click Track
- Touch-button panel for editing and reviewing sounds without striking kit pads
- Programmable, 30/60 minute auto-power shutoff
- Built-in general MIDI Sound Card provides great sounding play-along tracks

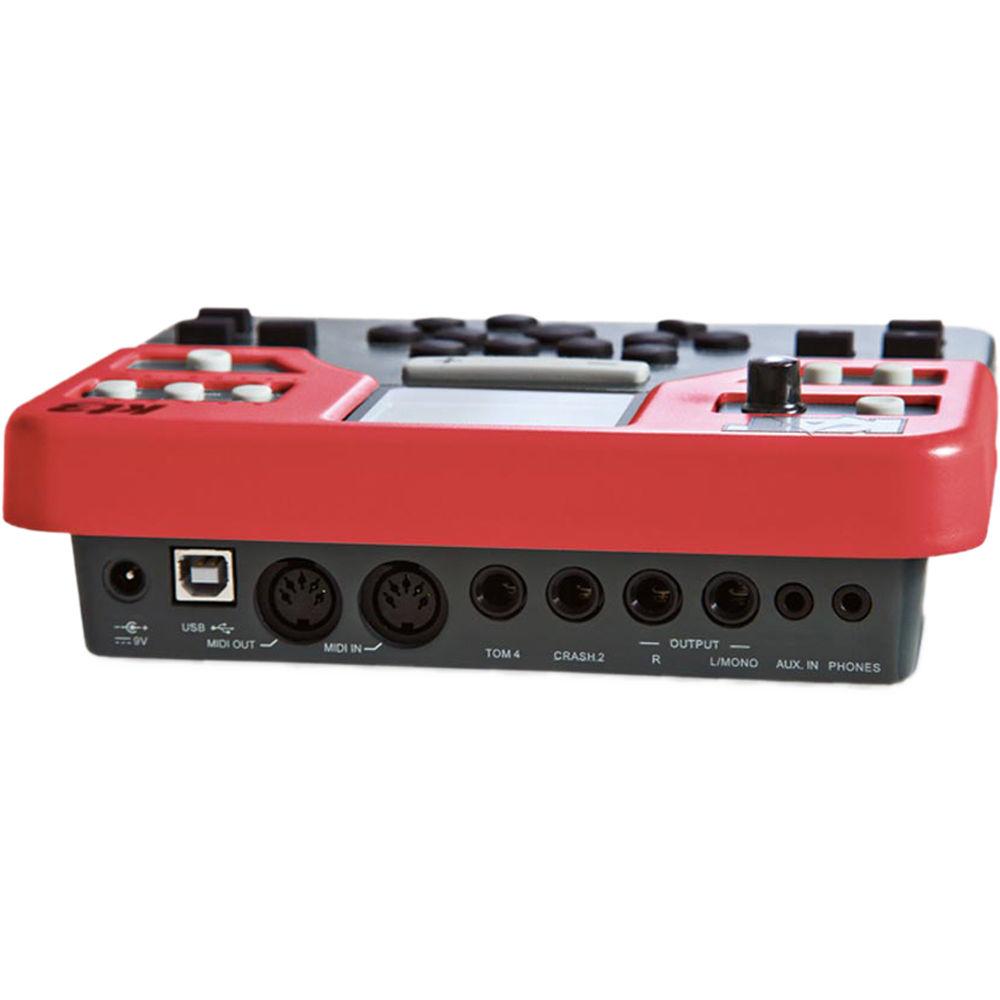

- Connectivity
-
- USB 2.0 / MIDI output for use with computer software for recording and playback
- The 1/8 " audio-input jack allows you to connect a CD player, MP3 player, smartphone or tablet, allowing you to play along with your favorite tunes
- Two 1/4" output jacks conveniently plug into a PA system or console for studio recording or live performances
- 1/8" stereo output jack for your headphones or in-ear monitors for private playing
- Two trigger-input jacks for adding an additional drum pad and/ or cymbal (sold separately)
- Playability
-
- 6-piece kit with newly-designed 11" dual-zone drum pads
- Ultra-sensitive pads for natural dynamic tracking
- Extremely quiet pads and cymbals with a natural stick rebound and feel

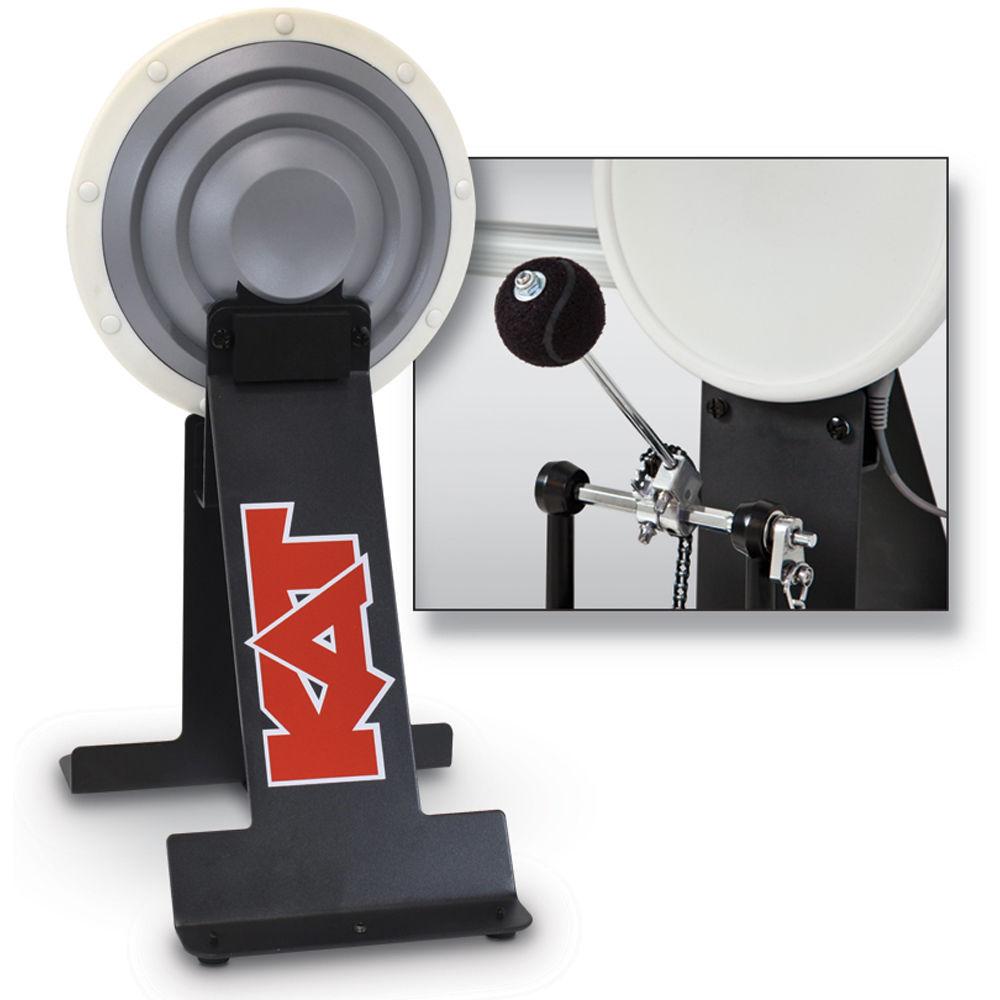

- Double-pedal compatible 9" bass drum tower
- Three fully adjustable cymbal boom arms for the ultimate in setup flexibility
- Larger cymbals than other drum sets in its class. Ride cymbal features a bell trigger
- Independently programmable, dual-zone crash and ride cymbals to double your kit's cymbal sounds

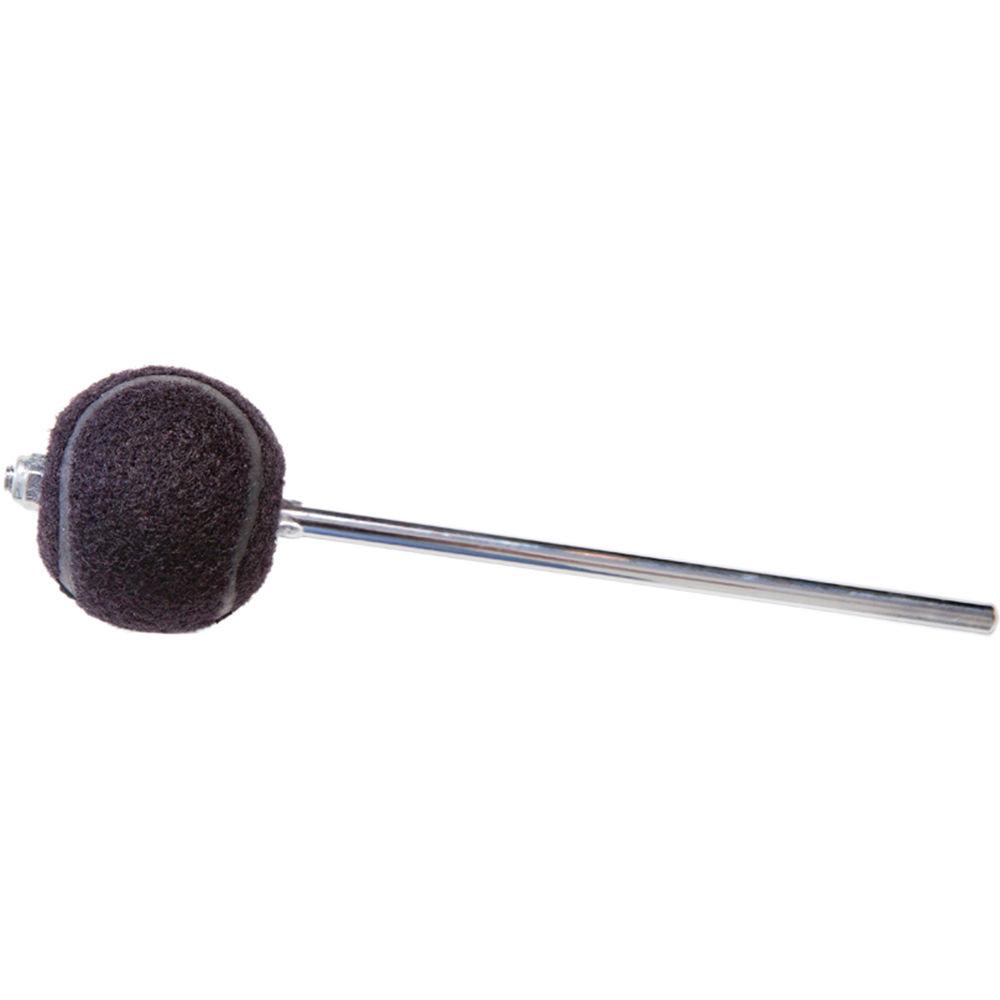

- Silent-Strike bass drum beater included
- Easy Setup
-
- Pre-positioned rack clamps allow quick and easy setup
- Feather-light, durable, non-slip rack includes snare brace to secure precise snare-pad positioning
- One-piece wire harness is pre-labled for easy setup
- Matching hook-and-loop ties keep cables neat and organized
- Red accents give the KT3 a distinctive look
- Bass Drum Pedal not included
UPC: 717070413103 In the Box KAT KT3 6-Piece Advanced Electronic Drum Kit KT3 USB Control Module Kick Tower w/ 9" Pad Hi-Hat Trigger Pedal 11" Snare Pad 2 x 9" Tom Pads 2 x 11" Tom Pads 14" Ride Cymbal 2 x 12" Crash Cymbal 12" Hi-Hat Cymbal Silent-Strike Bass Drum Beater Drum Rack and Mounting Hardware Multi-Pin Breakout Audio-Cable Snake for Pads 2 x 8' Stereo Trigger Cables Pair of Drumsticks Drum Key 5 x Gray Hook-and-Loop Ties Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KAT KT3 6-Piece Advanced Electronic Drum Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKAT KT3-US Specs Kit Configuration | Kick Tower Single-Zone Pad: 9.0" / 22.9 cm Dual-Zone Snare Pad: 11.0" / 27.9 cm Dual-Zone Tom Pads (Tom1 & Tom2): 2x 9.0" / 22.9 cm Dual-Zone Tom Pads (Tom3 & Tom4): 2x 11.0" / 27.9 cm Dual-Zone Crash Cymbal with Choke: 2x 12.0" / 30.5 cm Dual-Zone Ride Cymbal with Bell Trigger: 14.0" / 35.6 cm Single-Zone Hi-Hat Cymbal: 12.0" / 30.5 cm Hi-Hat trigger pedal | Tone Generator | Maximum Polyphony: 64 Drum Kits: 70 (45 preset kits + 25 user kits) General MIDI Kits: 11 GM Kits Drum Instruments: 550 (Drums, Percussion, SFX) 23 Hi-Hat Combos Effects: Reverb, 3-Band Equalizer | Connections | Trigger-Input Jack (9 Inputs): DB25 Tom4 External Trigger Input: 1/4" / 6.35 mm Crash 2 External Trigger Input: 1/4" / 6.35 mm Output (L/Mono, R): 2x 1/4" / 6.35 mm Aux In: 1/8" / 3.5 mm Headphones: 1/8" / 3/5 mm USB: Type-B MIDI In and Out: 2x 5-pin DIN Power: 9 V | Drum Sound Module | Power Volume knob Start/stop Save Click Drum off Record Song/Pattern Kit/Rhythm Voice/Beat Page/Select Tempo Utility Play/Practice 12 pad select buttons +/- | Sequencer | Normal: Song 100 Learning: Beat 20, Rhythm 12, Pattern 10 Resolution: 120 Ticks per quarter note Recording Method: Real-time Maximum Note Storage: Approximately 1100 notes Tempo: 30 to 280 | Display | Backlit segment LCD | Power | 9 VDC | Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
