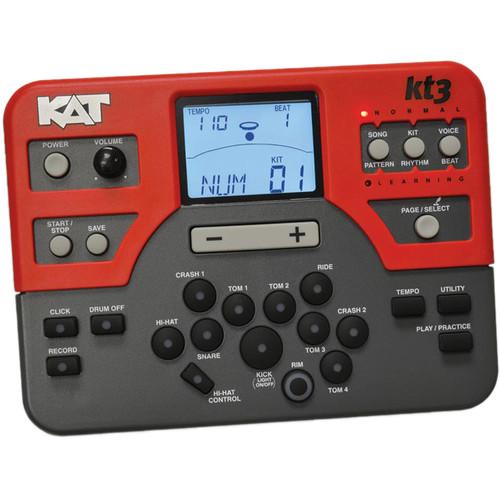

User Manual for KAT KT3M - Electronic Drum Sound Trigger Module Click to enlarge the picture
Contents of the user manual for the KAT KT3M - Electronic Drum Sound
- Product category: Electronic Drums KAT
- Brand: KAT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KAT Electronic Drums
|
User manual for the KAT KT3M - Electronic Drum Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KAT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KAT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KAT product will considerably shorten its lifespan!
|
Product description The KT-3M from KAT is an electronic drum module for a 6-piece electronic drum kit carefully crafted and engineered by professional drummers. The module features over 550 sounds, with 70 kits (45 factory, 25 user programmable) that offer a wide range of musical styles including rock, reggae, jazz, and electronic. Additionally, the module includes 100 tracks you can play along with, while the metronome offers several time signatures to help you lock in a groove. The 5-pin DIN MIDI-Out connector allows you to connect to outboard modules and MIDI interfaces, while the USB connection conveniently provides MIDI-In/Out of any connected computer. - USB Control Module
-
- 527 Studio-Grade Drum, Cymbal, DJ, EFX, and Percussion sounds
- 70 Drum Kits, 45 Factory preset and 25 additional user kits
- Full user-programming options:
- Panning
- Individual voice-pitch adjustment
- Reverb
- Pad sensitivity control
- Curves
- Individual voice volume
- MIDI note assignment
- 3-band EQ
- Tempo adjust and more
- 100 built-in play-along tracks
- Input for mp3 player, smartphone or tablet
- USB/ MIDI connectivity
- Learning mode for training and accuracy
- Integrated sequencer for recording
- Built-in Click Track
- Touch-button panel for editing and reviewing sounds without striking kit pads
- Programmable, 30/60 minute auto-power shutoff
- Built in general MIDI Sound Card provides great sounding play-along tracks
- Connectivity
-
- USB 2.0 / MIDI output for use with computer software for recording and playback
- The 1/8 " audio-input jack allows you to connect a CD player, MP3 player, smartphone or tablet, allowing you to play along with your favorite tunes
- Two 1/4" output jacks conveniently plug into a PA system or console for studio recording or live performances
- 1/8" stereo output jack for your headphones or in-ear monitors for private playing
- Two trigger-input jacks for adding an additional drum pad and/ or cymbal (sold separately)
UPC: 736021429994 In the Box KAT KT3M - Electronic Drum Sound/Trigger Module Multi-Pin Breakout Audio-Cable Snake for Pads 2 x 8' Stereo Trigger Cables Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KAT KT3M - Electronic Drum Sound Trigger Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKAT KT3M Specs | Tone Generator | Maximum Polyphony: 64
Drum Kits: 70 (45 preset kits + 25 user kits)
General MIDI Kits: 11 GM Kits
Drum Instruments: 527 (Drums, Percussion, SFX) 23 Hi-Hat Combos
Effects: Reverb, 3-Band Equalizer | | Connections | Trigger-Input Jack (9 Inputs): DB25
Tom4 External Trigger Input: 1/4" / 6.35 mm
Crash 2 External Trigger Input: 1/4" / 6.35 mm
Output (L/Mono, R): 2x 1/4" / 6.35 mm
Aux In: 1/8" / 3.5 mm
Headphones: 1/8" / 3/5 mm
USB: Type-B
MIDI In and Out: 2x 5-pin DIN
Power: 9 V | | Drum Sound Module | Power
Volume knob
Start/stop
Save
Click
Drum off
Record
Song/Pattern
Kit/Rhythm
Voice/Beat
Page/Select
Tempo
Utility
Play/Practice
12 pad select buttons
+/- | | Sequencer | Normal: Song 100
Learning: Beat 20, Rhythm 12, Pattern 10
Resolution: 120 Ticks per quarter note
Recording Method: Real-time
Maximum Note Storage: Approximately 1100 notes
Tempo: 30 to 280 | | Display | Backlit segment LCD | | Power | 9 VDC | | Dimensions | 7.5 x 5.5 x 4.7" / 19.0 x 14.0 x 12.0 cm | | Weight | 1.1 lb / 0.5 kg |
