User Manual for Kawai MP11SE The Pianist's Stage Piano Click to enlarge the picture
Contents of the user manual for the Kawai MP11SE The Pianist's Stage Piano
- Product category: Stage Pianos & Organs Kawai
- Brand: Kawai
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kawai Stage Pianos & Organs
 |
User manual for the Kawai MP11SE The Pianist's Stage Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kawai product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kawai user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kawai product will considerably shorten its lifespan!
|

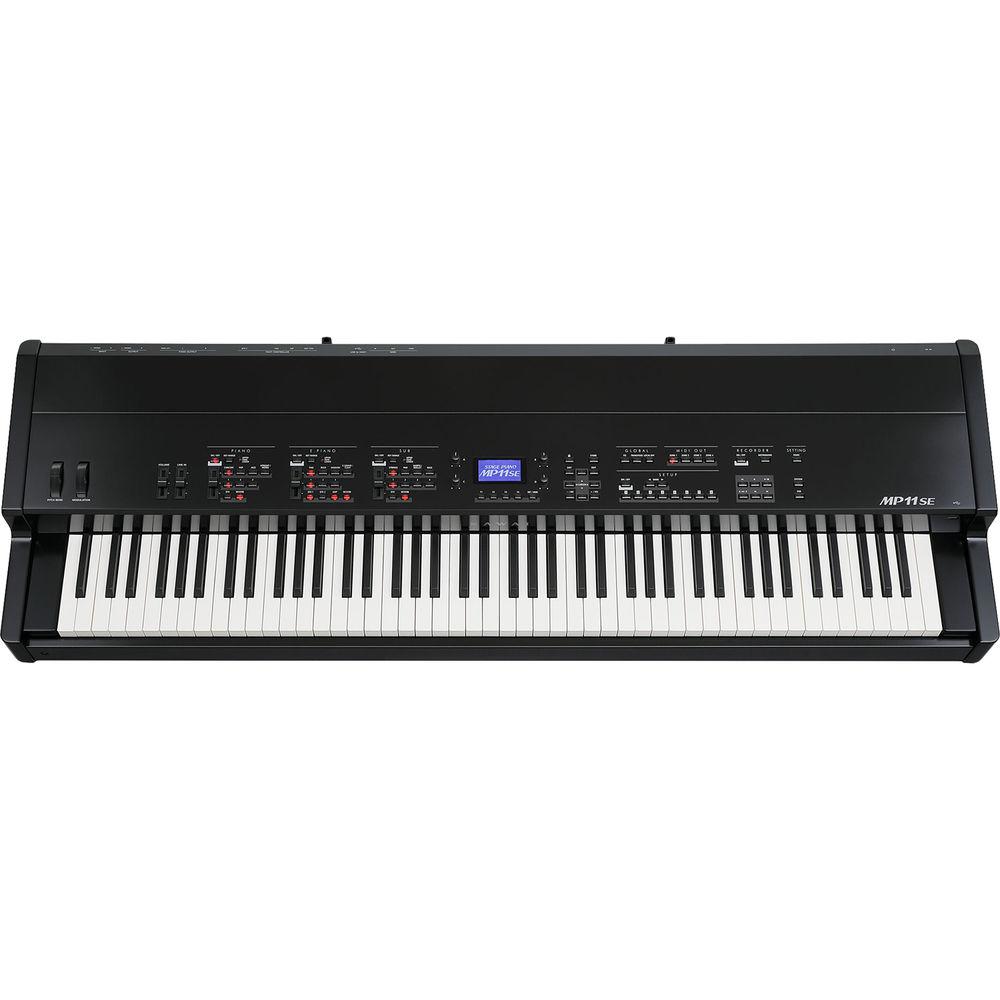

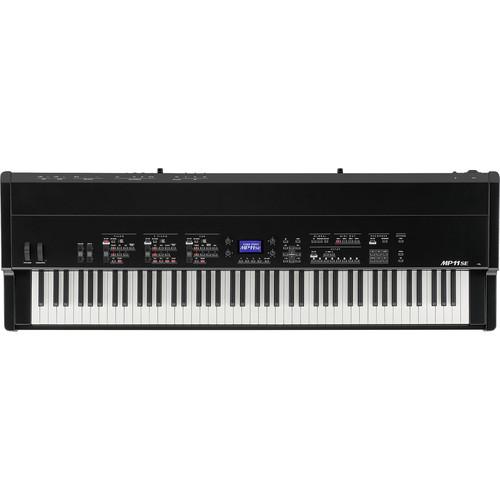

Product description The MP11SE The Pianist's Stage Piano from Kawai is an 88-key digital piano featuring a graded-hammer-action keyboard with synthetic ivory keytops, designed to emulate the feel of an acoustic piano. It can be used in several environments with its authentic tine, reed, and modern electric pianos, crunchy clavs, and natural electric grands for professional musical applications.Each key is painstakingly recorded, analyzed, and reproduced as a digital waveform and preserves the harmonic character of the EX concert grand piano sound. The MP11SE's wooden keys deliver a faithful representation of the original acoustic source, giving you the feel and touch of an acoustic grand piano experience.This stage piano is built with three sound categories: acoustic pianos, electric pianos, and subsidiary sounds that are organized as independent sections. In addition, the effect section is equipped with reverbs, resonances, and effects. Each sound section has a hardware volume fader, which simplifies the creation of layers, splits, and key ranges, while preventing effects and other settings applied to one section from accidentally influencing another.Furthermore, premium quality strings and soothing pads are available and suited for layering, while the rich electric and acoustic bass sounds work nicely with left-hand splits. A choice selection of harpsichord and mallet voices completes the line-up, for those occasions that require that specific sound.Finally, the MP11SE is built with a sturdy metal chassis and wooden side arms. It is designed with 1/4" and XLR outputs, 1/4" inputs, and features 4-channel MIDI master control functions. A GFP-3 triple pedal unit is also included. The MP11SE has everything you need—a realistic acoustic sound, authentic other sounds, and articulate control for music professionals who do not accept compromise. - Acoustic Pianos
- Concert, jazz, and pop grand pianos, and a full-bodied traditional upright
- Cherished Vintage Electric Pianos
- A collection of authentic tine, reed, and modern electric pianos, crunchy clavs, and an electric grand.
- Subsidiary Sounds
- Studio-quality strings, pads, basses, and other essential sounds for creating splits, layering with acoustic pianos and EPs, or playing solo.
- Accessible, Intuitive Panel
- Large graphic LCD display, four assignable real-time control knobs, and a well-organized, usable panel interface. Leave the manual at home and concentrate on playing, rather than trying to remember which button does what.
- Authentic Keyboard Action
- A keyboard action for serious pianists crafted entirely from wood. Grand Feel delivers an authentic playing experience.
- Powerful MIDI Control
- Connect to Windows or Mac via USB, and to your favorite semi-weighted boards via standard MIDI, then control both simultaneously. The MP11SE allows up to four MIDI channels to be controlled at the same time, each with its own custom key ranges and user-definable pedal and knob CC# assignments.
- Generous Setup Memories
- Store and recall every customized sound, knob position, fader level, and adjustable parameter at the touch of a button. With over 200 setup memories, the MP11SE is suitable for busy stage musicians who like to plan several shows ahead, before going out on the road.
- Pedals and MIDI Jacks
- Connect directly to the house PA using XLR cables, and to personal monitors with the high-quality line out jacks. Enjoy realistic damper, sostenuto, and soft playing control by connecting the included Kawai GFP-3 triple pedal unit, or assign a range of alternative functions to individual pedals.
- Quality Design
- The finished wooden side panels, sleek gloss-black paintwork, and raised fallboard displaying the Kawai family name give the MP11SE a distinctly acoustic presence. Its sturdy aluminum and steel chassis (and reinforced base) reassures players that this instrument is built for the stage.
In the Box Kawai MP11SE The Pianist's Stage Piano Power Cable Music Rest GFP-3 Triple Pedal Unit Limited 3-Year Warranty for Parts Limited 1-Year Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kawai MP11SE The Pianist's Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKawai MP11SE Specs | | | Action Type | Grand Feel Action:
88 wooden keys
Grade-weighted hammers
Ivory touch white key surfaces
Let-off simulation
Triple sensor key detection
Counterweights | | Pedal | GFP-3 Triple Pedal Unit:
Damper (with half-pedal support)
Soft
Sostenuto | | | | Piano Sound | Harmonic Imaging XL (HI-XL)
88-key stereo sampling
SK-EX, SK-5, EX recording
256-note maximum polyphony
Piano Resonance:
Damper resonance
String resonance
Undamped string resonance | | Piano Adjustment | Virtual Technician: 22 parameters
Touch curve (incl. user touch curve)
Voicing:
Damper resonance
Damper noise
String resonance
Undamped string resonance
Key-off effect
Fall-back noise
Hammer delay
Topboard simulation
Decay time
Minimum touch
Stretch tuning (incl. 88-key user tuning)
Temperament (incl. user temperament)
Temperament key
Key volume (incl. 88-key user key volume)
Half-pedal adjust
Soft pedal depth
Brilliance
Stereo width
Key-off noise (E. Piano)
Key-off delay (E. Piano) | | Number of Sounds | 40 voices | | Reverb | 6 types | | Other Effects | 129 types | | Display | 128 x 64-pixel LCD with backlight | | Music Rest | Detachable type | | | | Basic Functions | Dual
Split
Transpose
Tuning
Registration | | Recorder | Total Memory: Approximately 90,000 notes
Number of Songs: 10 songs
Parts: 1 part | | Metronome | Time Signatures: 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, and 12/8
Drum Rhythms: 100 patterns | | | | USB Audio Recorder | Record Playback: MP3, WAV
Other Functions: Overdubbing, line-in recording | | Headphone | 1 x 1/4" (6.3 mm) stereo jack | | MIDI | MIDI in, MIDI out, and MIDI thru | | Line In | 1/4" (6.3 mm) L/Mono, R (unbalanced) | | Line Out | 1/4" (6.3 mm) L/Mono, R (unbalanced) | | USB | USB to Host
USB to Device | | Other Connectors | XLR fixed (L, R) [balanced] + ground lift switch | | Footswitch Input | Damper, sostenuto, and soft (for GFP-3)
Exp + Exp type switch | | Power Consumption | 20 W | | Dimensions (W x D x H) | 54.0 x 18.0 x 7.5" (138 x 45.5 x 19 cm) | | Weight | 75 lb (34 kg) | | | | Package Weight | 99.65 lb | | Box Dimensions (LxWxH) | 61.0 x 24.0 x 11.0" |
