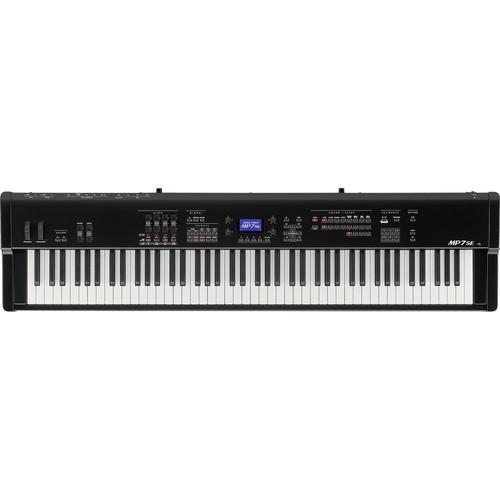

User Manual for Kawai MP7SE Stage Piano Click to enlarge the picture
Contents of the user manual for the Kawai MP7SE Stage Piano
- Product category: Stage Pianos & Organs Kawai
- Brand: Kawai
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kawai Stage Pianos & Organs
|
User manual for the Kawai MP7SE Stage Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kawai product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kawai user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kawai product will considerably shorten its lifespan!
|
Product description The MP7SE Stage Piano from Kawai is an 88-key digital piano featuring a graded-hammer-action keyboard with synthetic ivory keytops designed to emulate the feel of an acoustic piano. It can be used in several environments with its authentic tine, reed, and modern electric pianos, crunchy clavs, tonewheel organ with drawbar control, and natural electric grands for professional musical applications.Each key is painstakingly recorded, analyzed, and reproduced as a digital waveform and preserves the harmonic character of the EX concert grand piano sound. The MP7SE's ivory touch keys deliver a faithful representation of the original acoustic source, giving you the feel and touch of an acoustic grand piano experience.This stage piano is built with eight sound categories: piano, electric piano, drawbar, organ, strings/vocal, brass/wind, pads and synths, and bass/guitar sounds that are organized as independent sections. In addition, the effects section is equipped with reverbs, resonances, and other effects. The intuitive panel of the MP7SE has four independent zones, allowing multiple sounds to be intuitively layered together, split, or assigned to a custom key range.Finally, the MP7SE is built with a sturdy steel and aluminum chassis. It is designed with 1/4" and XLR outputs, 1/4" inputs, and 4-channel MIDI master control functions. An F-10H pedal unit is also included. The MP7SE has everything you need—a realistic acoustic sound, authentic other sounds, and articulate control for music professionals who do not accept compromise. - Responsive Hammer III Keyboard
- The MP7SE's Responsive Hammer III (RH III) keyboard action recreates the touch of an acoustic grand piano, with its realistic movement and accurate 3-sensor technology providing a smooth, natural, and highly responsive piano playing experience. The weight of the keyboard is appropriately graded to mirror the heavier bass hammers and lighter treble hammers of an acoustic piano, while structural reinforcements within the action assembly ensure greater stability during fortissimo and staccato passages.
- Pianos for Concert, Pop, and Jazz
- The MP7SE captures the sound of Kawai's SK-EX, EX, and SK-5 acoustic grand pianos, with all 88 keys of these instruments meticulously recorded, analyzed, and faithfully reproduced using proprietary Harmonic Imaging technology. With separate categories for Concert, Pop, and Jazz playing, the MP7SE offers a selection of high-quality acoustic piano sounds suitable for various musical styles, including separate sub-categories for upright and mono pianos.
- Vintage EPs, Twin Effects, and Amp Simulation
- The MP7SE also features a selection of vintage electric piano sounds, each with its own distinctive characteristics. Enjoy their natural sound, or pass the signal through a wide variety of classic effects stompboxes, before plugging into one of the five classic amp and speaker cabinets—complete with realistic microphone character and position modelling.
- Classic Tonewheel Organs with Drawbar Control and Authentic Percussion
- The MP7SE's tonewheel organ simulation transforms the stage piano into a vintage electromechanical organ, complete with nine real-time adjustable drawbars and authentic percussion controls. Organ enthusiasts can dial in favorite drawbar registrations, adjust the 'condition' of the organ tone, and select their preferred rotary speaker character, then store the sound to memory for immediate recall. With organ mode selected, the MP7SE adjusts the strike point for the keyboard, allowing runs and licks to be played on its fully weighted action as easily as the real thing.
- High-Quality Strings, Pads, Brasses, Basses, and More
- The MP7SE features a broad range of high-quality strings, pads, synths, brass and woodwind voices, basses, guitars, and a whole host of other useful sounds. They are ideal for building layers, adding texture to other instruments, or for playing individually, at the front of the mix. And if the stock sound isn't quite perfect, feel free to customize and tweak using the MP7SE's flexible ADSR parameters and resonance/cut-off controls—all immediately accessible directly from the panel.
- Four-Zone Master Keyboard Controller
- The MP7SE maintains the MP series' classic four-zone approach, with each zone able to play internal sounds, external MIDI devices, or both types simultaneously. Zones can be played individually, or freely split, layered, and velocity switched to create personalized performances. The MP7SE's powerful customization allows parameters and settings for each zone to be adjusted and controlled independently, making for a versatile all-in-one performance instrument.
- Intuitive Operation, Large LCD, Real-Time Assignable Control Knobs
- The MP7SE's control panel is clearly arranged and easy to use, with related functions grouped together and placed where you'd expect to find them. A large LCD display and four assignable control knobs, allow several parameters to be adjusted directly in real time, without getting lost in menus—concentrate on playing, rather than trying to remember which button does what.
- 256 Setup Memories
- The MP7SE allows every single customized sound, knob position, fader level, and adjustable parameter to be stored in memory as a setup and recalled at the touch of a button. With over 250 setup memories, the MP7SE is ideal for busy stage musicians who like to plan several shows ahead, before going out on the road.
- USB to Device Functionality with MP3/WAVE/SMF File Recording Playback
- The MP7SE is equipped with USB connectors that allow the instrument to be connected to a computer for MIDI use, but also to load and save data to USB memory devices directly. This USB to device feature allows customized sounds, setup memories, and recorder songs stored in internal memory to be saved to USB for posterity. USB memory devices can also be used to play back MP3, WAV audio, or SMF MIDI files, allowing performing musicians to play along with professional backing tracks, or simply learn the chords or melody for a new piece. It is also possible to save performances directly as MP3, WAV, or SMF files for emailing to band members, casual listening away from the keyboard, or further editing using an audio workstation.
In the Box Kawai MP7SE Stage Piano F-10H Pedal Unit Music Rest Power Cable Limited 3-Year Warranty for Parts Limited 1-Year Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kawai MP7SE Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKawai MP7SE Specs | Action Type | Responsive Hammer III (RH2): 88 weighted keys Ivory touch key surfaces Let-off simulation Counterweights Triple sensor key detection | Pedal | F-10H Pedal Unit: Damper (with half-pedal support) | | Piano Sound | Harmonic Imaging XL (HI-XL) 88-key stereo sampling SK-EX, SK-5, EX recording 256-note maximum polyphony Piano Resonance: Damper resonance String resonance Undamped string resonance | Piano Adjustment | Virtual Technician: 23 parameters Touch curve (incl. user touch curve) Voicing: Damper resonance Damper noise String resonance Undamped string resonance Key-off effect Fall-back noise Hammer delay Topboard simulation Decay time Minimum touch Stretch tuning (incl. 88-key user tuning) Temperament (incl. user temperament) Temperament key Key volume (incl. 88-key user key volume) Half-pedal adjust Soft pedal depth Stereo width Key-off noise (E. Piano) Key-off delay (E. Piano) Wheel noise level (Organ) | Number of Sounds | 256 Voices (8 Categories): Piano X 32, E. Piano X 32, Drawbar X 32, Organ X 32, Strings/Vocal X 32, Brass/Wind X 32, Pad/Synth X 32, Bass/Guitar X 32 | Maximum Polyphony | 256 notes | Zones | Types: Main, Sub1, Sub2, Sub 3 Modes: Int, Ext, Both | Reverb | 6 types (Room, Lounge, Small Hall, Concert Hall, Live Hall, Cathedral) Parameters: PreDelay, Reverb Time, Reverb Depth | Effects | 129 types (Main zone), 23 types (Sub zones) Parameters: Up to 10 parameters, depending on effect type Modules: Main zone: EFX1 EFX2 Sub Zones: EFX | Amp Simulator (Main Zone Only) | Types: 5 types (S. Case, M. Stack, J. Combo, F. Bass, L. Cabi) Parameters: Drive, Level, Amp EQ Lo, Amp EQ Mid, Amp EQ Hi, Mid Frequency, Mic Type, Mic Position, Ambience | Tonewheel Organ (Main Zone Only) | Drawbars: 16', 5 1/3', 8', 4', 2 2/3', 2', 1 3/5', 1 1/3', 1' (real-time adjustable by panel faders/knobs and MIDI) Percussion: Off/On, Normal/Soft, Slow/Fast, 2nd/3rd | Virtual Technician | Touch Curve: 6 types (Light+, Light, Normal, Heavy, Heavy+, Off), User1~5 Parameters: Piano: Voicing, Stereo Width, String Resonance, Damper Resonance, Key-off Effect, Damper Noise, Hammer Delay, Fall-back Noise, Topboard E. Piano/Harpsi/Bass: Key-off Noise, Key-off Delay Drawbar: Key Click Level, Wheel Noise Level Temperament and Tuning: 7 types (Equal, Pure Major/Minor, Pythagorean, Meantone, Werkmeister, Kirnberger), User1~2 Fine Tune, Stretch Tuning, Key of Temperament | EQ Section | 4-band equalizer (Low Gain, Mid1 Gain, Mid1 Q, Mid1 Freq., Mid2 Gain, Mid2 Q, Mid2 Freq., High Gain) | Display | 128 x 64-pixel LCD with backlight | Music Rest | Detachable type | | Basic Functions | Dual Split Transpose Tuning Registration | Recorder | Internal: Approximately 90,000 note memory capacity Number of Songs: 10 songs Transpose song, Convert song to Audio, Load SMF, Save SMF Audio: Play MP3/WAV, Save MP3/WAV, Overdub, Recorder Gain | Metronome | Click: 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, and 12/8 Drum Rhythms: 100 patterns | Internal Memory | Sound: 256 memories (8 x 8 x 4) Setup: 256 memories (8 x 8 x 4) Poweron: 1 memory | | USB Functions | Load/Save: One Sound, One Setup, SMF, All Sound, All Setup, All Backup Other Functions: Delete, Rename, Format | Edit Protocol | INT Mode: 116 parameters (Reverb, EFX/AMP, Sound, Tuning, Key Setup, Controllers, Knob Assign, Virtual Tech.) EXT Mode: 64 parameters (Channel/Program, Setup, Transmit, MMC, Key Setup, Controllers, Knob Assign) | System Menu | 52 parameters and functions (Utility, Pedal, MIDI, Offset, User Edit, Reset) | Panel Controls | Pitch Bend, Modulation, SW1, SW2, Volume, Line In, Zone Mixer, Control Knobs A~D (assignable), MMC | Headphone | 1/4" (6.3 mm) stereo jack | Line Out | 1/4" (6.3 mm) L/Mono, R (unbalanced) | Line In | 1/4" (6.3 mm) L/Mono, R (unbalanced) | MIDI | MIDI in, MIDI out, and MIDI thru | USB | USB to Host USB to Device | Footswitch Input | DAMPER (for F-10H), Damper/Sostenuto (for F-30), Soft (for F-30/FSW), EXP | Other Connectors | AC input | Power Consumption | 20 W | Dimensions (W x D x H) | 53.1 x 13.4 x 6.7" (135 x 34.0 x 17.0 cm) | Weight | 49.6 lb (22.5 kg) |
