Keeley Dark Side Pedal

Search your instruction manual in PDF to download

User Manual for Keeley Dark Side Pedal

Click to enlarge the picture
Keeley Dark Side Pedal Contents of the user manual for the Keeley Dark Side Pedal
  • Product category: Effects Pedals Keeley
  • Brand: Keeley
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Keeley Effects Pedals

Keeley Dark Side Pedal Keeley Dark Side Pedal
User manual for the Keeley Dark Side Pedal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Keeley product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Keeley user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Keeley product will considerably shorten its lifespan!



Product description

Inspired by David Gilmour's unmistakable and legendary guitar tones, Robert Keeley set out and created the Dark Side Pedal. This two-sided pedal combines a 1977 vintage fuzz circuit and a 24-bit digital modulation/delay effects section, each can be engaged with its own footswitch. Stomp on the Fuzz switch to bring on distorted fuzz tones, which are gritty but not overbearing, making them great for crunchy rhythm riffing or even smooth lead lines. Bring the modulation in on clean tones for atmospheric vibes. Using the mode switch and the blend control, bring in a Flange/Rotary blend, a Phase/U-Vibe blend, or a multihead Delay. If you have an expression pedal, plug it into the EXP input, and gain control of the Rate/Feedback knob for real-time effect control. This is especially cool in Delay mode where you can cause the delay circuit to self-oscillate at will. For even more controlled chaos and tonal options, push the Order switch to reverse the order of the Fuzz and Mod sections.

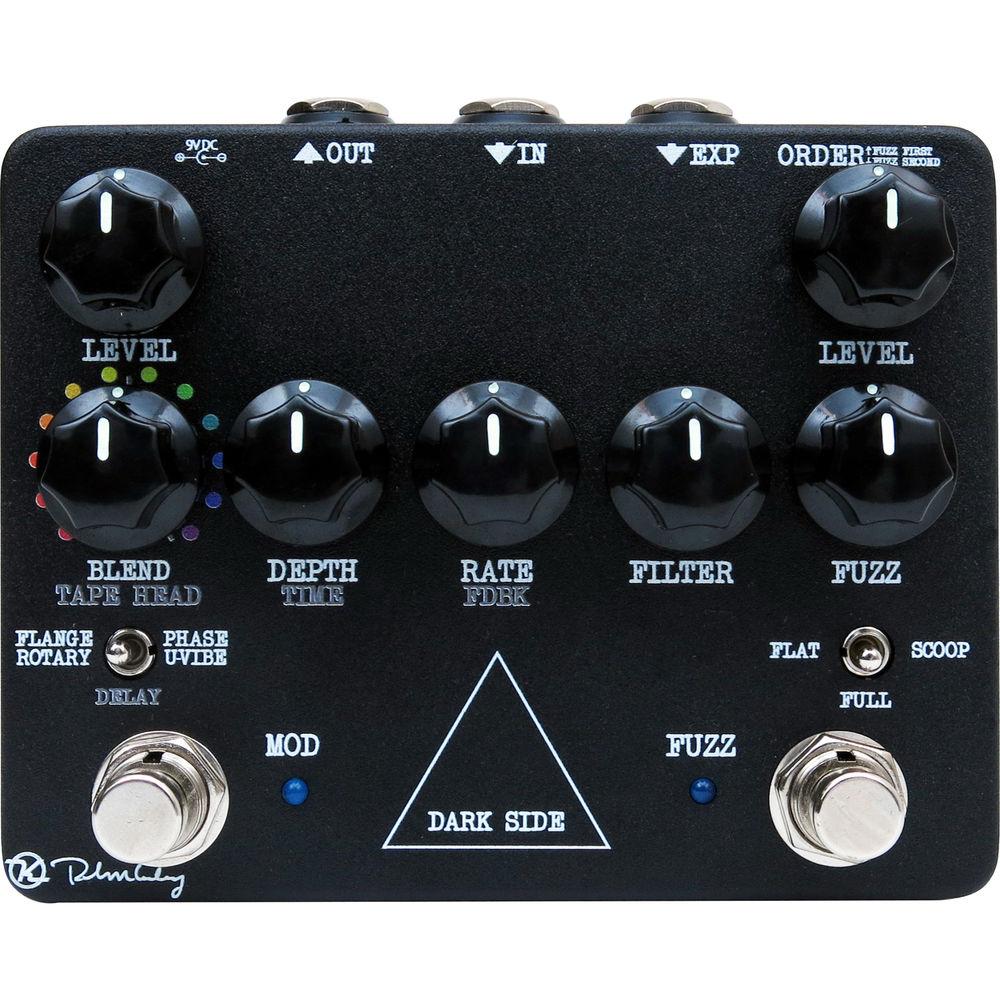

Fuzz Controls

  • Mid Switch: Lets you choose the shape of the mid-frequency curve for different fuzz tones
  • Filter: Acts as a tone control for the Fuzz circuit
  • Fuzz: Turn it up for more fuzz
  • Level: Controls the final output of the Fuzz circuit

Modulation Controls

  • Mode Select Switch: Select betwen Flange/Rotary, multihead Delay emulation, or Phase/U-Vibe effects
  • Blend / Tape Head: Depending on the mode selected, this knob selects the head configuration in Delay mode and controls the signal blend between Flange and Rotary or Phase and U-Vibe in those modes, respectively
  • Depth: Controls modulation depth, becomes a time control in Delay mode
  • Rate: Controls modulation speed, becomes a feedback/regen control in Delay mode (this control can be accessed through the expression pedal input for real-time control while playing)
  • Level: Sets the final output level of the Mod section
In the Box Keeley Dark Side Pedal
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Keeley Dark Side Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Keeley Dark Side Specs

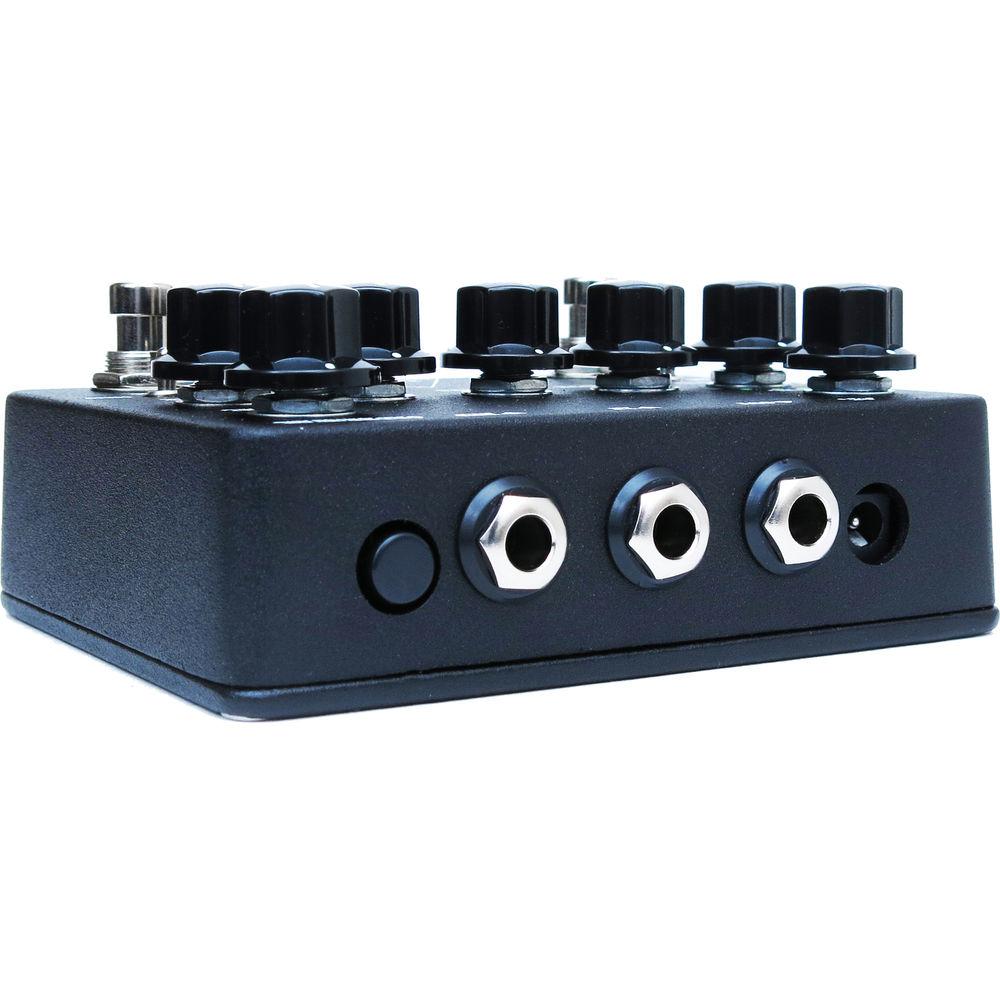

    Input 1 x 1/4" instrument TS
    Output 1 x 1/4" instrument TS
    Power Supply 9 VDC power supply required (center negative)
    Power Draw 75 mA

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 55 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Keeley Dark Side Pedal

    Subject: Hi. I didn’t even get a chance to try it once! :( plz help
    Date: 12.04.2024 04:05:16Name: Eric Tasakovic
    I ordered a dark side pedal second hand online for 20 bucks cheaper than it would have been to buy it new….20 measly bucks. Anyway…it didn’t come with a power supply. I messed up and accidentally plugged in a 9v ac output power supply in, instead of the required 9v dc. I’m so mad at myself. It smoked and I’m pretty sure it’s just a 280 paper weight now. I haven’t tried the right power supply because I don’t have one. It just came in the mail today, and I was so excited to try it that I overlooked the 9v ac output on the adapter I had. So stupid….. anyway I’m gonna lose sleep over this, but I was wondering if there is anyway to repair it? Or even better if it’s fused and I can open it up and change a fuse? Hoping for some good news. Any help you can share is greatly appreciated. Thank you for your time in reading this and for any help or information you can send my way.
    -Eric Tasakovic
