User Manual for Keeley GC-2 Compressor and Limiting Amplifier Pedal Click to enlarge the picture
Contents of the user manual for the Keeley GC-2 Compressor and Limiting Amplifier
- Product category: Effects Pedals Keeley
- Brand: Keeley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Keeley Effects Pedals
|
User manual for the Keeley GC-2 Compressor and Limiting Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Keeley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Keeley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Keeley product will considerably shorten its lifespan!
|

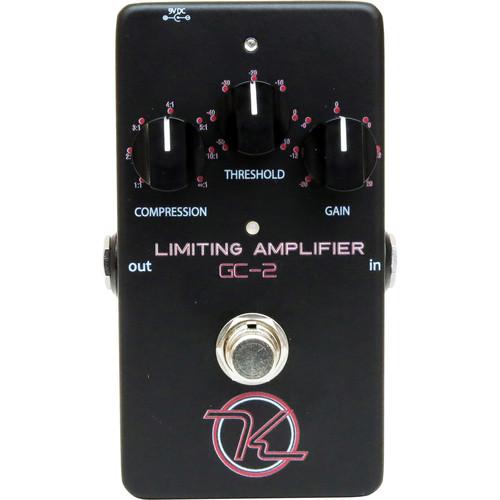

Product description If an extra-polished compression sound not typically available from classic guitar pedal circuits is what you're seeking, Keeley's GC-2 Limiting Amplifier Pedal might just be what you need. Rather than using classic CA3080 or LM13700 circuits which offer great classic tones, the GC-2 leverages the high-fidelity THAT 4320 circuit. The voltage handling of this circuit is far greater and enables greater clarity and articulation reminiscent of much larger rack units. Additionally, this compressor offers dedicated Compression, Threshold, and Gain controls to let you precisely dial in the amount of compression or limiting necessary to achieve your desired tone, from natural to over-the-top squashed, without distorting. Controls - Compression: Selects the level of compression ranging from 1:1 (no compression) to infinity (hard limiting)
- Threshold: Sets the trigger point of the compression from -50 dB to 10 dB. Lower settings bring the compressor in earlier, and higher settings require harder playing for the compressor to kick in
- Gain: Use this control to bring back lost volume as a result of compression. Turning past unity gain will result in a volume boost
In the Box Keeley GC-2 Compressor and Limiting Amplifier Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Keeley GC-2 Compressor and Limiting Amplifier Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKeeley GC-2 Limiting Amplifier Specs | Input | 1 x 1/4" instrument TS
Impedance: 1 MOhm | | Output | 1 x 1/4" instrument TS
Impedance: 100 Ohms
Voltage Gain: +30 dB boost | | Attack Time | 10 dB: 15 ms
20 dB: 5 ms
30 dB: 3 ms | | Release Time | 1 dB: 8 ms
5 dB: 40 ms
10 dB: 80 ms
20 dB: 160 ms
30 dB: 240 ms | | Bandwidth | >20 kHz | | THD | 0.1% | | Noise | -95 dBV | | Power Supply | 9 VDC power supply required (center negative) | | Power Draw | 15 mA | | Dimensions | Width: 2.4" / 6 cm
Height: 4.4" / 11 cm |
