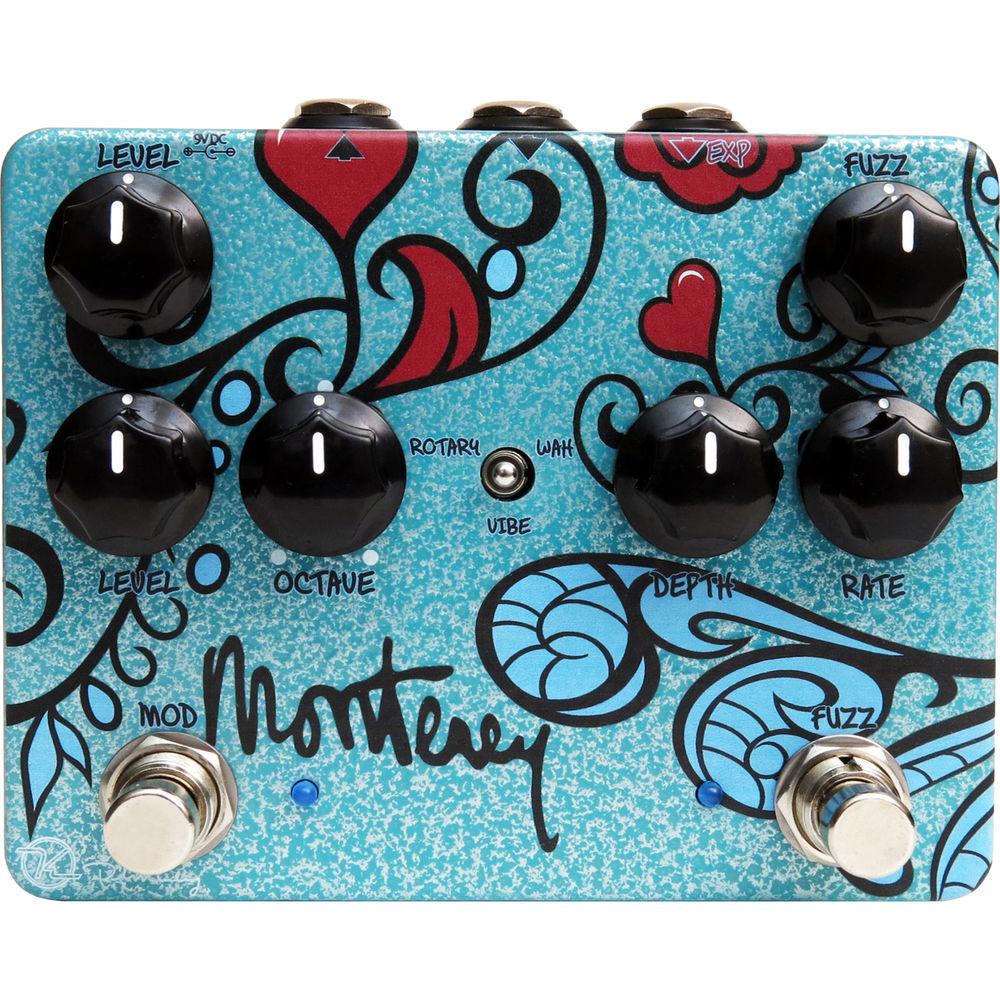

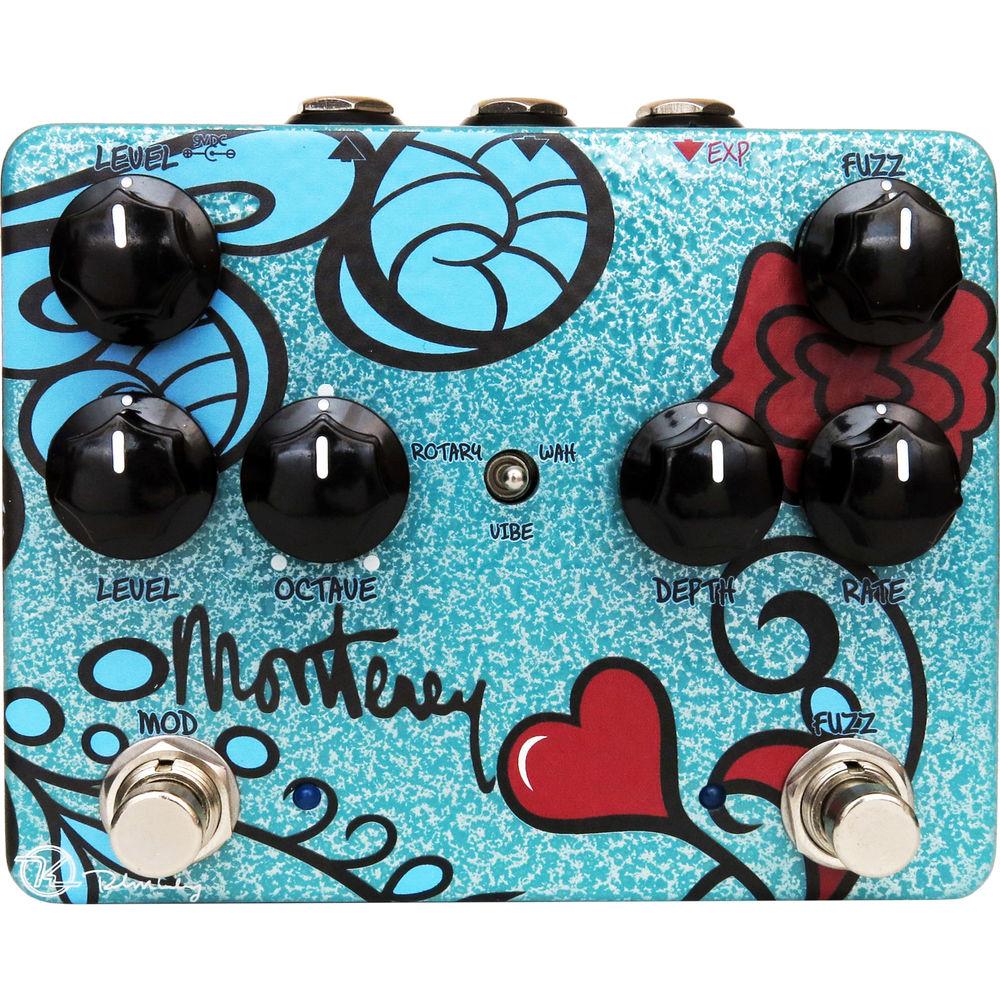

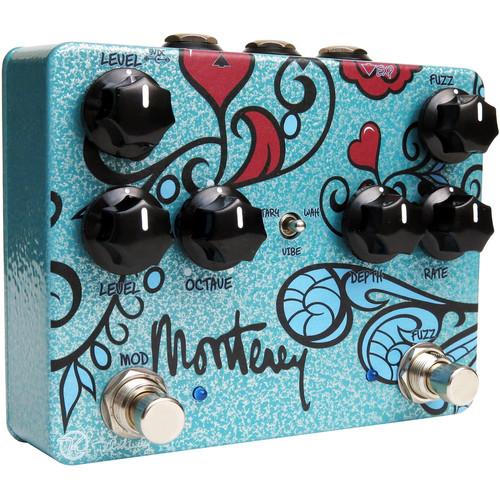

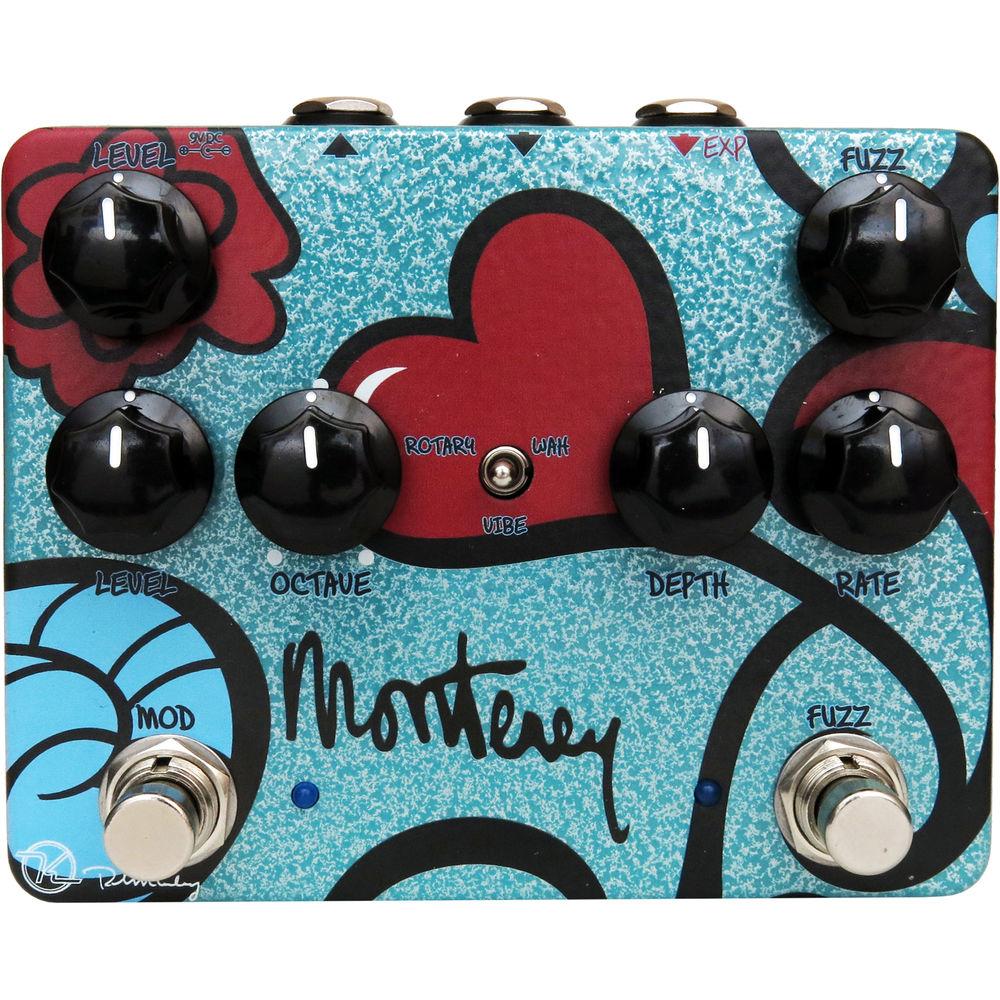

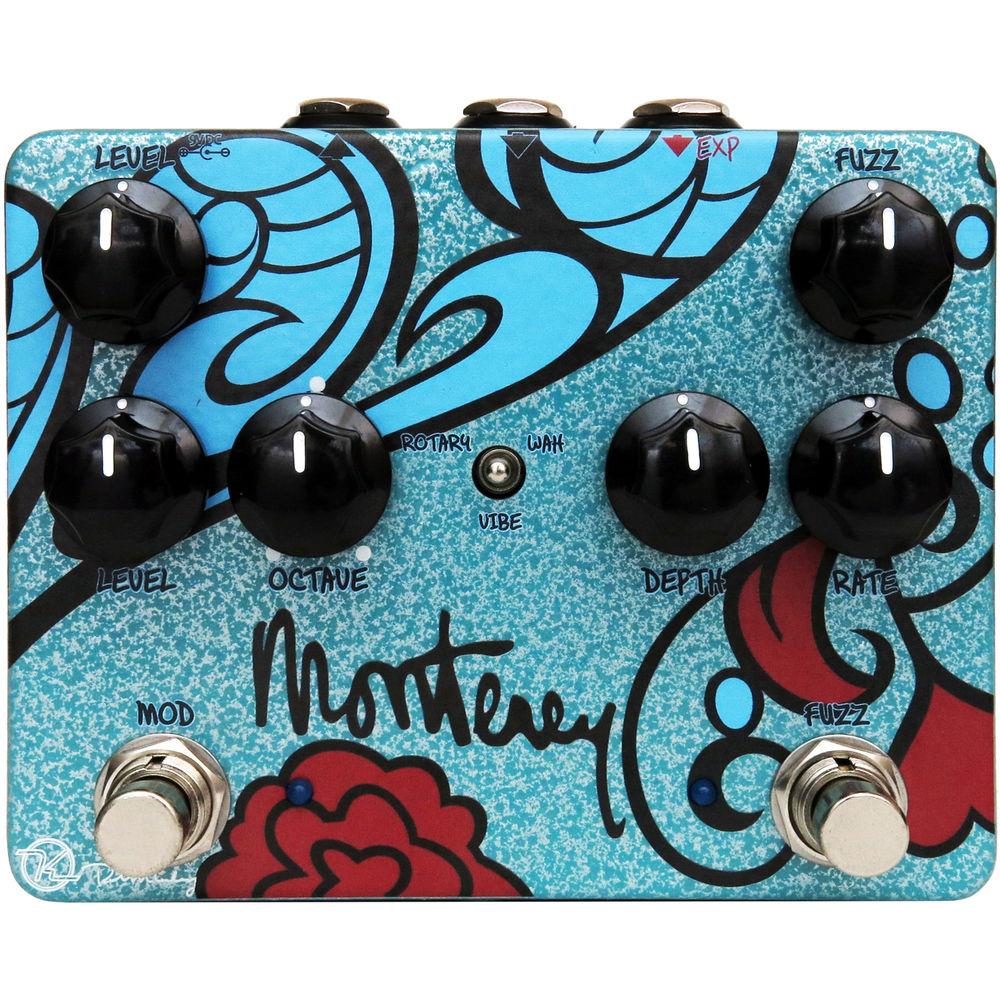

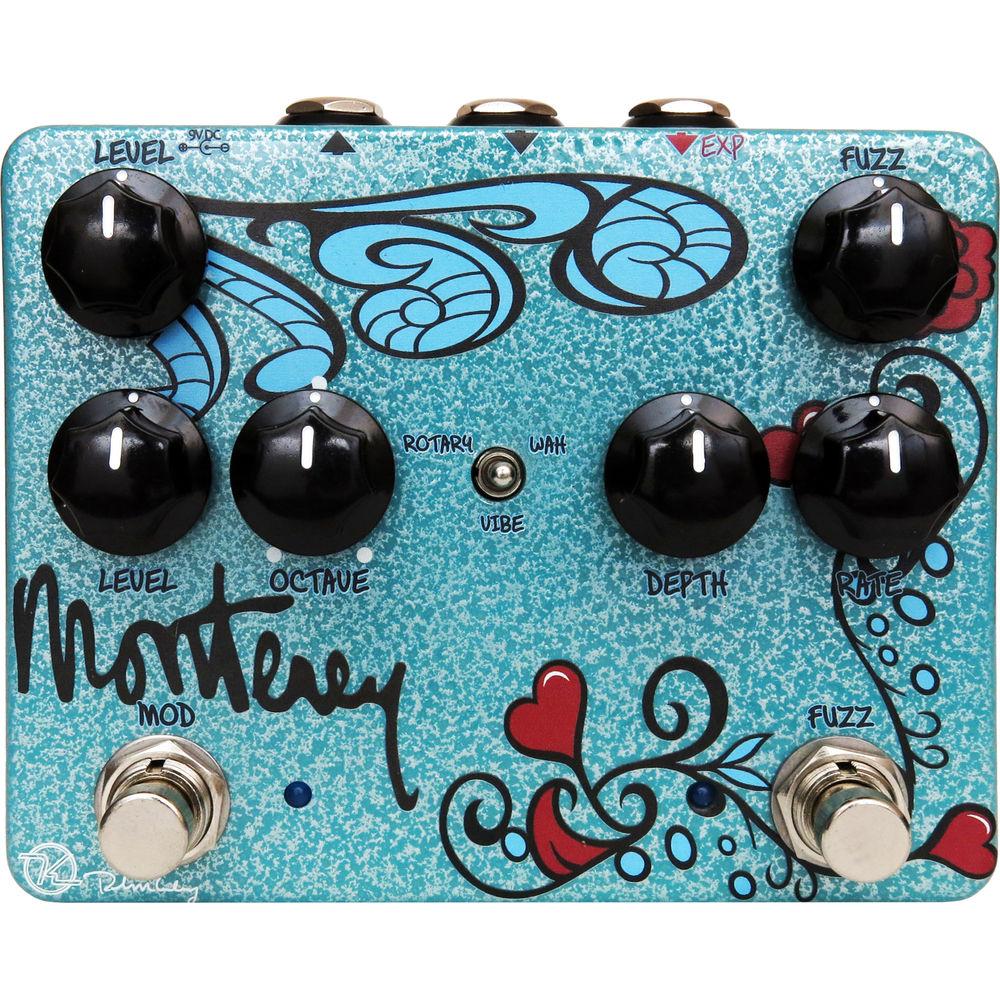

User Manual for Keeley Monterey Rotary Fuzz Vibe Pedal Click to enlarge the picture
Contents of the user manual for the Keeley Monterey Rotary Fuzz Vibe Pedal
- Product category: Effects Pedals Keeley
- Brand: Keeley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Keeley Effects Pedals
 |
User manual for the Keeley Monterey Rotary Fuzz Vibe Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Keeley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Keeley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Keeley product will considerably shorten its lifespan!
|

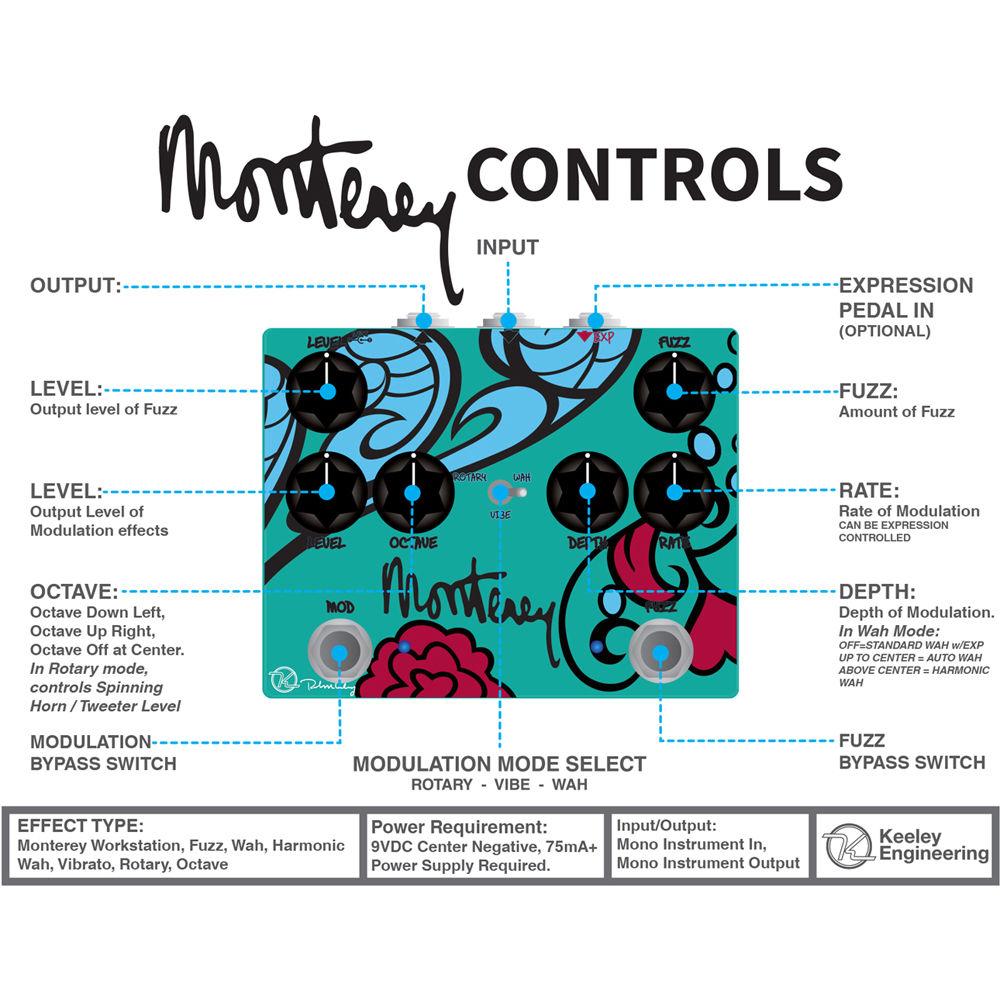

Product description Cop early fuzz and mod tones with one pedal, the Keeley Monterey Pedal. Featuring Fuzz and Modulation sides, each side of the pedal has its own footswitch, so you can use the fuzz without the modulation and vice-versa. By default the Fuzz circuit is first, but Keeley gives you the option to position it after the Modulation circuit in your signal chain. The Fuzz circuit itself is based off of vintage Fairchild Semiconductor transistors, ensuring great fuzz tones without the temperature related issues that commonly plague germanium devices. Fuzz and Level controls let you adjust the fuzz to your liking, from a slight crunch to high-gain lead fuzz tones. The Modulation section is switchable between Rotary, Vibe, and Wah effects, all of which can be manipulated in real-time using the expression pedal input. An octave effect can also be applied to any of the modulation effects for creating a larger soundscape. Activate both the Fuzz and Modulation sections to unleash an array of vintage rock-n-roll tones. Fuzz Controls - Fuzz: Turn it up for more fuzz
- Level: Controls the final output level of the Fuzz circuit
Modulation Controls - Modulation Mode Switch: Select between Rotary, Vibe, and Wah effects
- Rate: Controls modulation speed
- Depth: Controls modulation depth. In Wah mode, a full clockwise position allows for expression pedal control, a center position enables auto-wah, and above center enables harmonic wah
- Octave: Adds octave-up or octave-down sounds depending on knob position. In Rotary mode, this knob controls the spinning horn/tweeter level
- Level: Controls the final output level of the modulation effect
In the Box Keeley Monterey Rotary Fuzz Vibe Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Keeley Monterey Rotary Fuzz Vibe Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKeeley Monterey Rotary Fuzz Vibe Specs | Input | 1 x 1/4" instrument TS
1 x 1/4" expression pedal TS | | Output | 1 x 1/4" instrument TS | | Power Supply | 9 VDC power supply required (center negative) | | Power Draw | 75 mA | | Dimensions | Width: 4.7" / 12 cm
Height: 3.7" / 9.4 cm |
