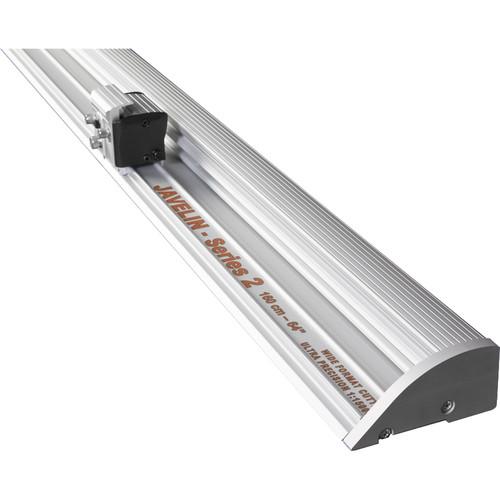

User Manual for KeenCut 84" Javelin Series 2 Cutter Bar Click to enlarge the picture
Contents of the user manual for the KeenCut 84" Javelin Series 2 Cutter
- Product category: Trimmers & Cutters KeenCut
- Brand: KeenCut
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KeenCut Trimmers & Cutters
|
User manual for the KeenCut 84" Javelin Series 2 Cutter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KeenCut product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KeenCut user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KeenCut product will considerably shorten its lifespan!
|
Product description The 84" Javelin Series 2 Cutter Bar from KeenCut is a 90" silver anodized aluminum baseboard with a track that has an adjustable bearing and slide system. On the baseboard, a cut groove runs the length of the track to accommodate various blade depths and avoid cutting into the baseboard. The ergonomically designed head comes with three different vertical cutting blade holders, each geared toward a variety of different materials.The Graphik Blade Holder accepts blades that are designed to cut tougher materials, such as acrylic, corrugated cardboard, matboard, and material up to 0.5" thick. The Medium-Duty Blade Holder accepts standard utility blades for general-purpose cutting, and the Textile Blade Holder comes enclosed with the circular blade, which will cut and trim more delicate materials like paper and fabrics. KeenCut recommends using a cutting board under your material when using the Textile Blade Holder. The depth of the Graphik and utility blades can be adjusted, and the spring-loaded cutting head retracts when not in use.The optional surface-mounted lift-and-hold system mounts to the top of a standard workbench. The Javelin 2 sits in-between the system, which enables you to lift and suspend the clamping bar while you load material into the cutter. The track clamps down and holds the material firmly in place because of the silicone rubber grips that follow the length under the track. - 90" anodized aluminum baseboard with a track that has an adjustable bearing and slide system
- Cuts material up to 84" long
- Spring-loaded, retractable head comes equipped with three different types of blade holders for cutting a variety of materials
- Optional surface-mounted lift-and-hold system mounts to the top of a standard workbench; cutter sits in-between the system, allowing you to load material easily
- Track clamps down and holds your material firmly in place via silicone rubber grip strips that run the length under the track
In the Box KeenCut 84" Javelin Series 2 Cutter Bar 60396 Vertical Graphix Blade Holder Vertical Medium-Duty Blade Holder for Series 2 Cutter Bars 60397 VABHC Vertical Blade Holder 100 x Medium-Duty Blades 10 x Graphik D 0.017" Blades Limited 5-Year Warranty Limited 20-Year Warranty on the Ball Bearings Table of Contents
|
Upload User Manual
Have you got an user manual for the KeenCut 84" Javelin Series 2 Cutter Bar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKeenCut Javelin Series 2 Specs | Cut Length | 84" / 213.4 cm | | Blade Depth | 0.5" / 13 mm (Graphik)
0.4" / 10 mm (Medium Duty) | | Material of Construction | Aluminum | | Dimensions | 90.0 x 5.2" / 228.6 x 13.2 cm |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
