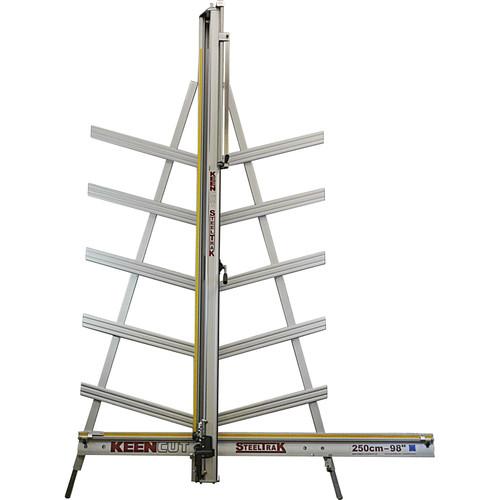

User Manual for KeenCut 98" SteelTraK Vertical Substrate Cutter Click to enlarge the picture
Contents of the user manual for the KeenCut 98" SteelTraK Vertical Substrate Cutter
- Product category: Trimmers & Cutters KeenCut
- Brand: KeenCut
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KeenCut Trimmers & Cutters
|
User manual for the KeenCut 98" SteelTraK Vertical Substrate Cutter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KeenCut product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KeenCut user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KeenCut product will considerably shorten its lifespan!
|
Product description The 98" SteelTraK Vertical Substrate Cutter from KeenCut is specifically made for the design and display industries, with the ability to cut sign and banner materials such as plexiglass, glass, and aluminum composite. The steel-composite, twin-wheel cutting head has pre-lubricated ball bearings that slide smoothly on a steel track, enabling you to operate the cutting head effortlessly because of its integral counterbalance. This eliminates noise while maintaining a dust-free environment.The turn-and-lock, rotating turret head houses three different types of cutting tools.The head accepts a standard medium-duty utility blade, which can be used in a variety of applications, while a fourth head can be added with the optional glass-cutting kit. The 98" steel track has a clamping system that runs the length of the track, and, along with the anodized aluminum extruded back beams, ensures that small or large materials are held securely with a firm support. The sight and cutting lines are the same, taking away the guesswork on where the blade will fall. Positionable production stops are located on the left- and right-hand side of the track. Vertical and horizontal scales are both imprinted with metric and Imperial sizes.The SteelTraK can be wall mounted or left freestanding; the telescopic legs can be adjusted for height and expanded for a wider stance. An optional FSK250 Freestanding Kit is available; this mounts directly to the back of the SteelTraK, providing rigidity similar to wall mounting as well as mobility within the space it is being used in. - Applications
- Designed to cut the following materials:
- Cast acrylic ≤6mm
- Plexiglas ≤6mm
- Aluminium bomposite (DiBond) ≤4mm
- V-grooves DiBond ≤ 6mm with optional SteelTraK V-groover
- MDF ≤3mm
- Glass ≤6mm with optional glass cutting kit
- Cardboard ≤13mm
- Conservation board ≤13mm
- Foam Centred board ≤13mm
- Flexible polycarbonate ≤3mm
- Mountboard ≤13mm
- Polystyrene ≤13mm
- Aluminium sheet ≤ 1mm with optional STALC
- PVC foam board (Forex) ≤13mm
In the Box KeenCut 98" SteelTraK Vertical Substrate Cutter Limited 5-Year Warranty Limited 20-Year Warranty on Sliding Bearings Table of Contents
|
Upload User Manual
Have you got an user manual for the KeenCut 98" SteelTraK Vertical Substrate Cutter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKeenCut Steeltrak Specs | Cut Length | 98" / 250 cm | | Maximum Thickness of Material | 0.5" / 13 mm (Paper)
0.2" / 6 mm (Plexiglass)
0.2" / 6 mm (Glass)
0.16" / 4 mm (Aluminum) | | Dimensions | 128.0 x 30.0 x 48.0" / 326.0 x 78.0 x 123.0 cm |
