User Manual for Ken-A-Vision 7160 7160P Video Flex Document Camera with Carrying Case Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision 7160 7160P Video Flex Document
- Product category: Video Presenters & Document Cameras Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Video Presenters & Document Cameras
 |
User manual for the Ken-A-Vision 7160 7160P Video Flex Document contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|

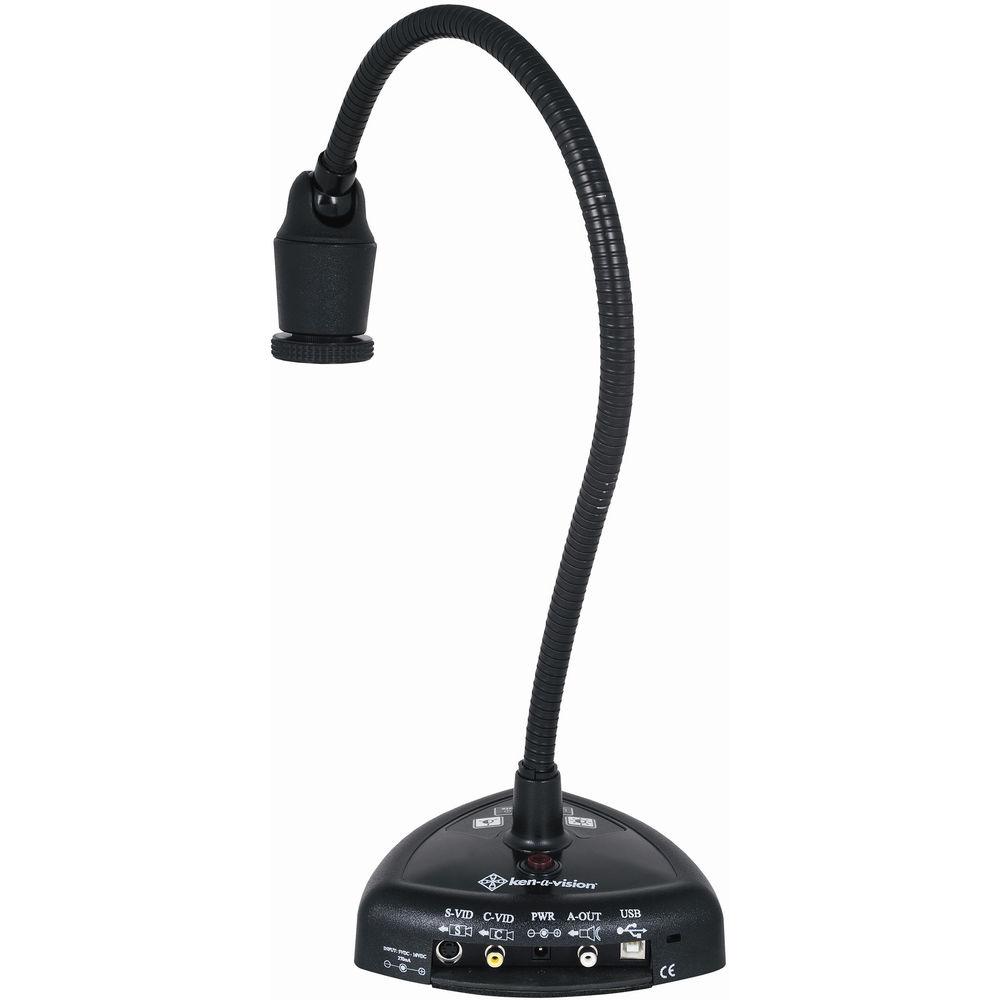

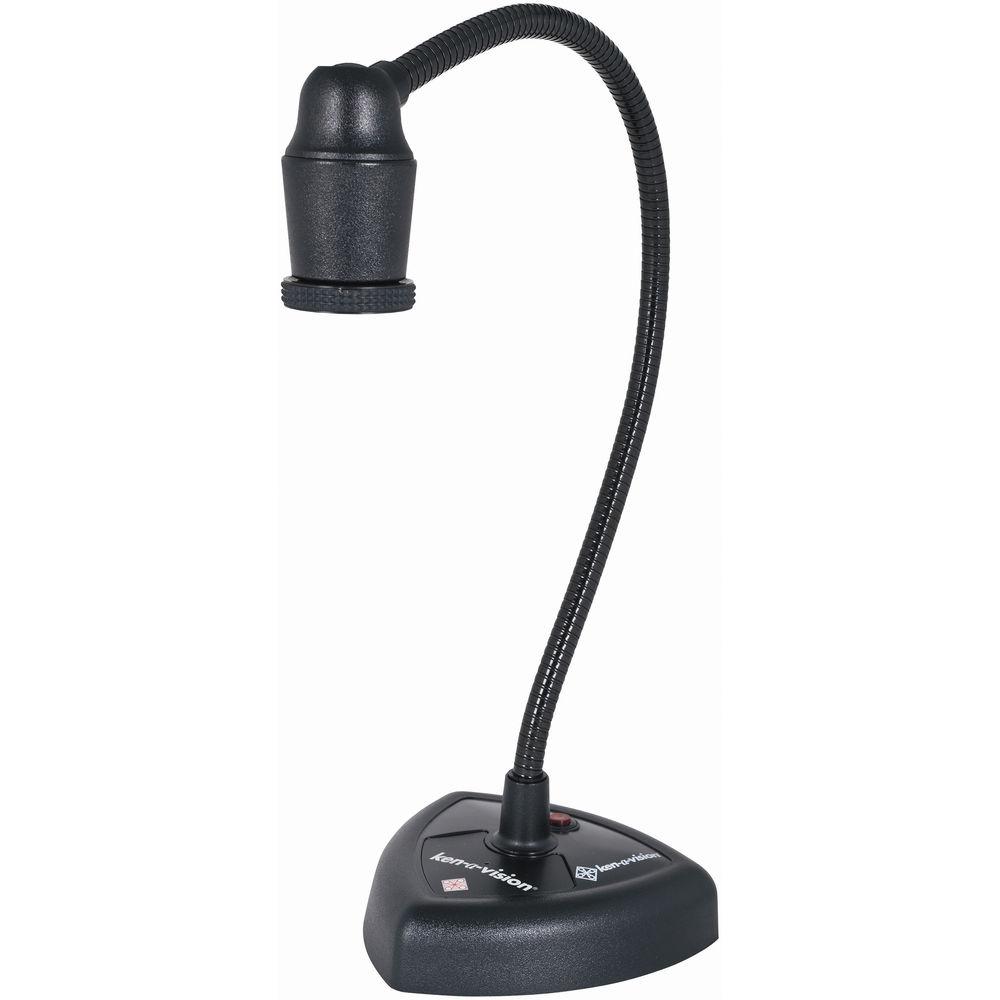

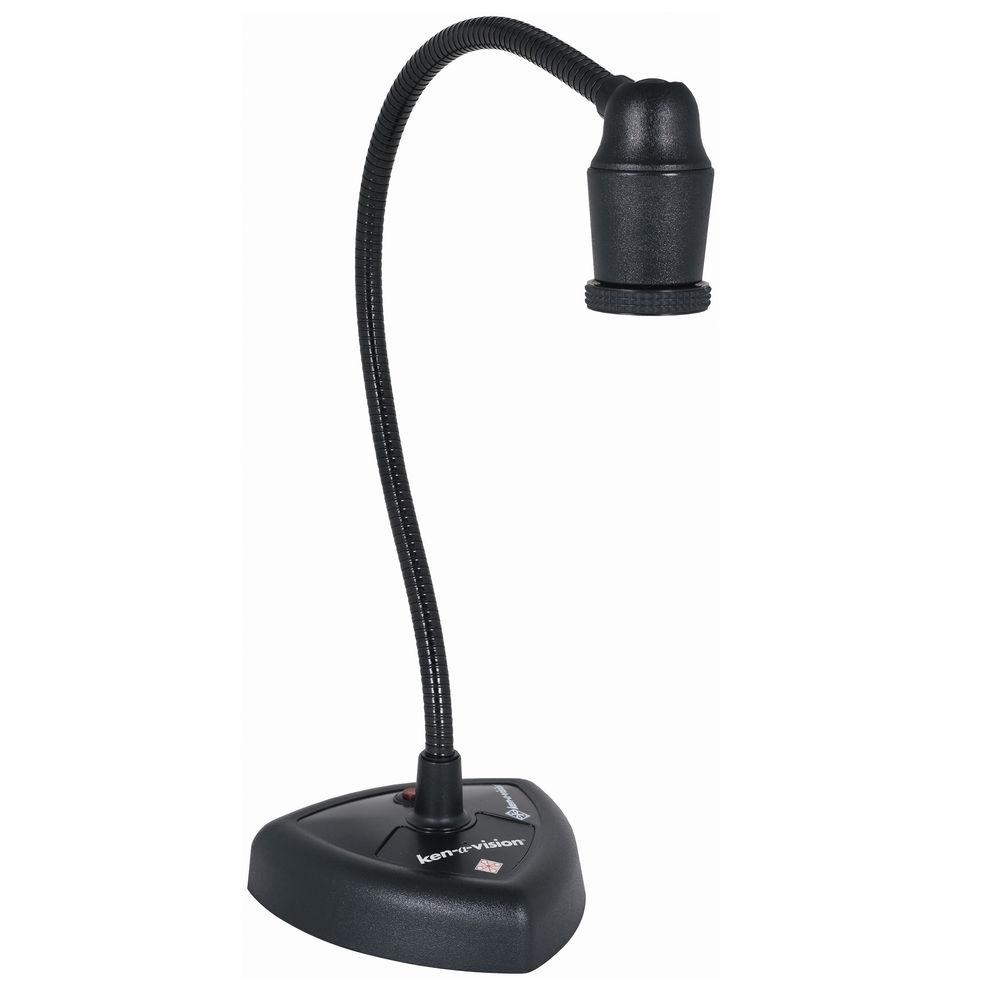

Product description The 7160 / 7160P Video Flex Document Camera from Ken-A-Vision is designed for laboratories and science classrooms. It features a quick turn manual focus system, a sturdy flexible neck, and heat/chemical resistant polycarbonate construction. This camera comes with a carrying case and microscope adapter. Using multiple connectors, the images can be simultaneously displayed through a television monitor and multimedia projector. Note: Power supply must be used with all connections. - Easy-to-position ball and socket head with manual quick turn focus system
- Small, dynamic base with simple buttons
- Heat and chemical resistant construction
- Microscope eyepiece adapter and carrying case included

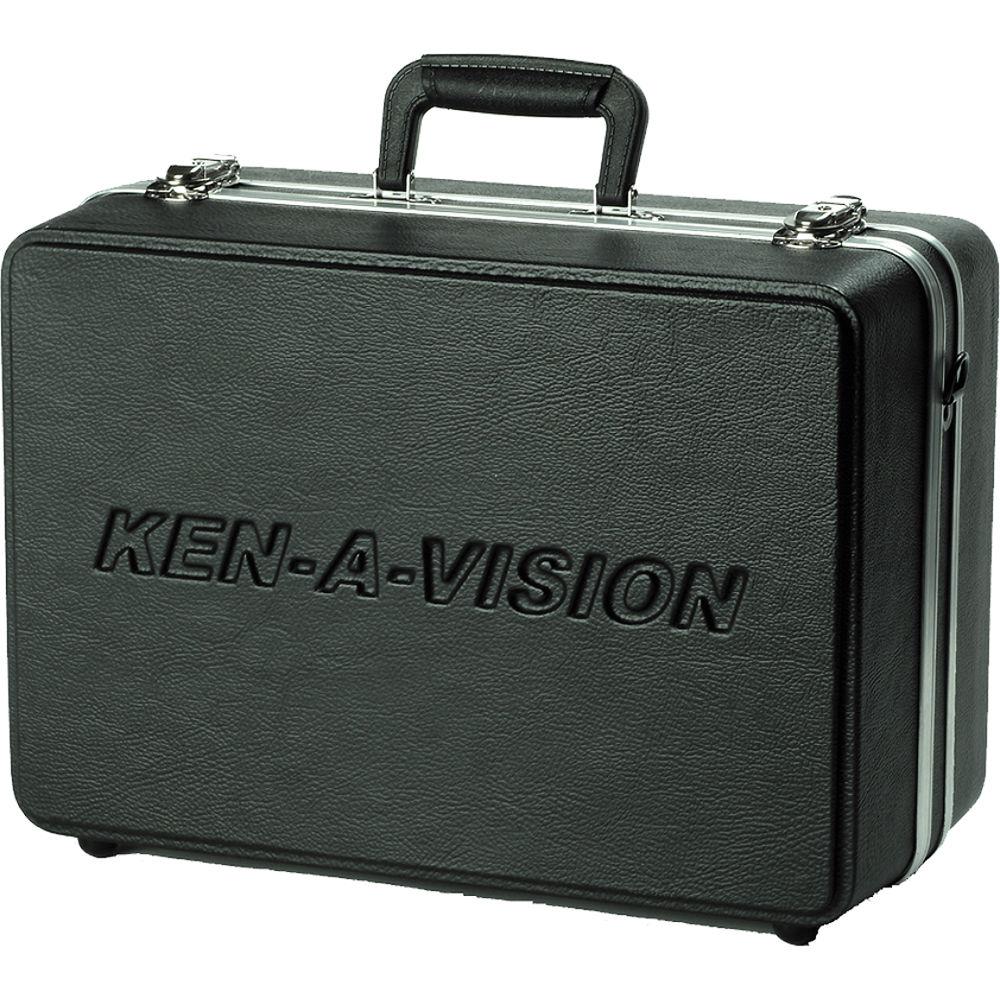

In the Box Ken-A-Vision 7160 / 7160P Video Flex Document Camera with Carrying Case Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision 7160 7160P Video Flex Document Camera with Carrying Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision 7160/7160P Specs | | | Sensor | 1/3" CCD | | Frame Rate | 30 fps | | Effective Pixels | 976 x 582 | | | | Capture Area | 9.25 x 7.5" / 23.4 x 19 cm | | Video Connections | 1 x RCA Composite Output
1 x 4-Pin Mini-DIN S-Video Output | | Horizontal Resolution (TV Lines) | 650 TVL | | Minimum Illumination | 0.01 lux | | | | Focal Length | 6 mm to Infinity | | | | Supported Microscope Eyepieces | 1.1" / 28 mm, 1.35" / 34.5 mm | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | | | Operating Temperature | 14 to 113°F / -10 to 45°C | | | | Certifications | CE, CSA, RoHS, WEEE, as per Manufacturer | | Material | Aluminum, Plastic | | Cable Length | 6' / 1.8 m | | Gooseneck Length | 25" / 63.5 cm | | Dimensions | 7.0 x 7.0 x 28.0" / 18.0 x 18.0 x 71.0 cm | | Weight | 10 lb / 4.5 kg | | | | Package Weight | 13.4 lb | | Box Dimensions (LxWxH) | 18.1 x 13.4 x 8.9" |
