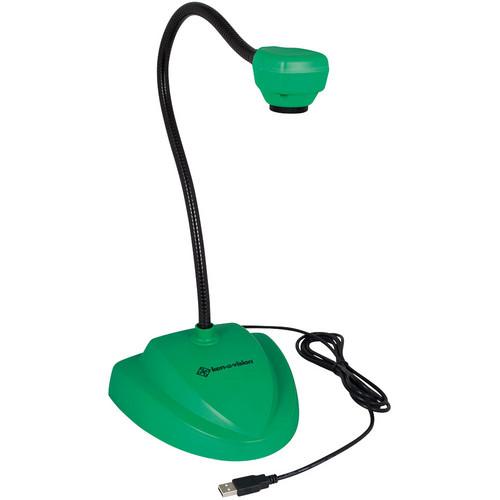

User Manual for Ken-A-Vision 7880 Vision Viewer Auto Focus Document Camera Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision 7880 Vision Viewer Auto Focus
- Product category: Video Presenters & Document Cameras Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Video Presenters & Document Cameras
|
User manual for the Ken-A-Vision 7880 Vision Viewer Auto Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|
Product description The Ken-a-Vision 7880 Vision Viewer, in green, offers an auto focus feature that's useful for classroom and other presentations by automatically focusing in on the documents you place and replace under the camera eye. The camera connects to a computer by a 5.5' integrated USB cable to project the documents onto a big display, like an interactive whiteboard. A display would connect to the same computer to interact with the camera. An included software applies effects such as zoom, annotation, and split screen over the documents displayed. The software is cross-platform compatible, supporting Windows, Mac, and Linux, and mostly all current interactive whiteboards are compatible.
The camera features a 3.2MP CMOS sensor and captures both images and video in up to 2048 x 1536 resolution. You can manually adjust the resolution to capture at a lower one. When outputting to a computer monitor the max resolution is used, and when outputting to a plasma or other TV, 720p is used. - Controls
-
- Digital Zoom: up to 16x
- Auto focus camera head
- White Balance: Auto or manual
- Color / B&W
- Gamma Adjustment: Auto or manual
- Negative / Positive
- Image Rotation: 360° in both directions
- Capture / Freeze
- Audio Recording: Synchronized recording
- Annotation: In software or working with interactive whiteboard interfaces
- Light Control: Adjustable via software with Memory Control
- Full Screen: Desktop-enabled icon and single click software button
- Image Compression: Software-enabled JPEG
- Split Screen
- Multiple Camera Support
- Time Lapse Recording: both Image and Video playback
- Drawing: Multiple pallete tools
- Video Playback: Through varied programs
- Document Orientation
- Auto Format Image: 16:9 format and/or 4:3 format auto or manual
- Distance Learning: Single click software button UVC compliant
- Export to MS Office: to MS Word or Excel
- Wide angle (16:9) camera view
- Factory-installed USB cable
- Compatible with interactive whiteboards
- Applied Vision 4 Software
-
- Full-page viewing
- Multi-lingual support
- Cross-platform support (Windows, Mac, Linux)
- Interactive whiteboard compliant
- Multiple camera support
- Full-screen viewing
- Video recording
- Still image capture
- Image editing and analysis
- Video rotation
- Digital zoom
- 3D rendering
- Measurement
UPC: 679856033618 In the Box Ken-A-Vision 7880 Vision Viewer Auto Focus Document Camera (Green) Applied Vision 4 Software Limited 3-Year Warranty Limited 5-Year Warranty on Goose Neck Coating Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision 7880 Vision Viewer Auto Focus Document Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision 7880 Specs | | | Sensor | 1/4" CMOS | | Sensor Resolution | 3.2 MP | | Aperture | f/2.8 | | Frame Rate | 640 x 480 @ 30 fps
2048 x 1536 @ 13 fps | | Effective Pixels | 2048 x 1536 | | Output Resolution | 1920 x 1080 | | | | Capture Area | 17 x 14" / 43 x 36 cm at 18.5" / 47 cm High | | I/O Connections | 1 x USB 2.0 Type-A | | Minimum Illumination | 20 lux | | | | Operating System Support | Linux, Windows, macOS/OS X | | | | Power Source | USB Bus-Powered Port | | DC Input Power | 5 VDC at 0.2 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Cable Length | 5.5' / 1.7 m | | Gooseneck Length | 20" / 51 cm | | Dimensions | 7.0 x 7.0 x 25.0" / 17.8 x 17.8 x 63.5 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 10.0" |
