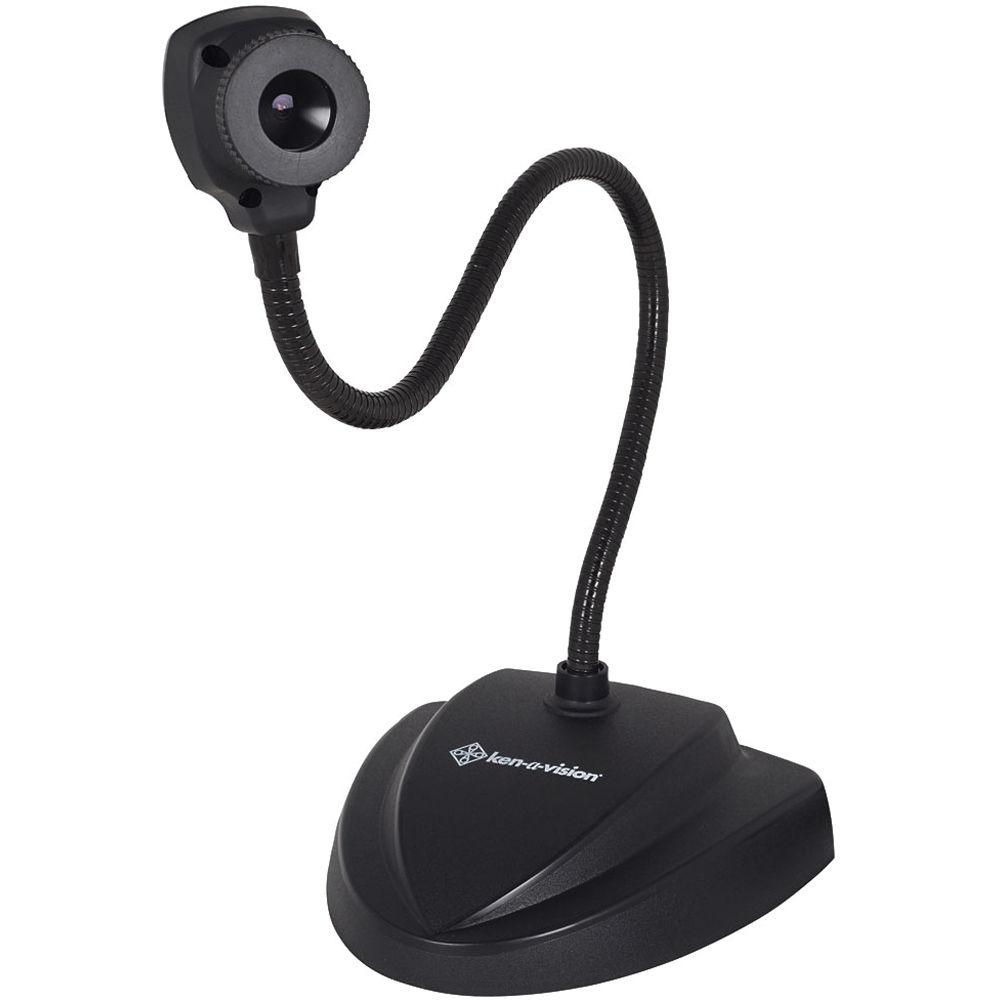

User Manual for Ken-A-Vision 7890P Vision Viewer Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision 7890P Vision Viewer
- Product category: Video Presenters & Document Cameras Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Video Presenters & Document Cameras
 |
User manual for the Ken-A-Vision 7890P Vision Viewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|

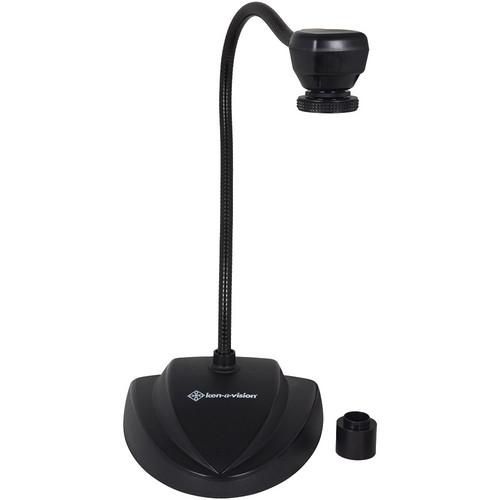

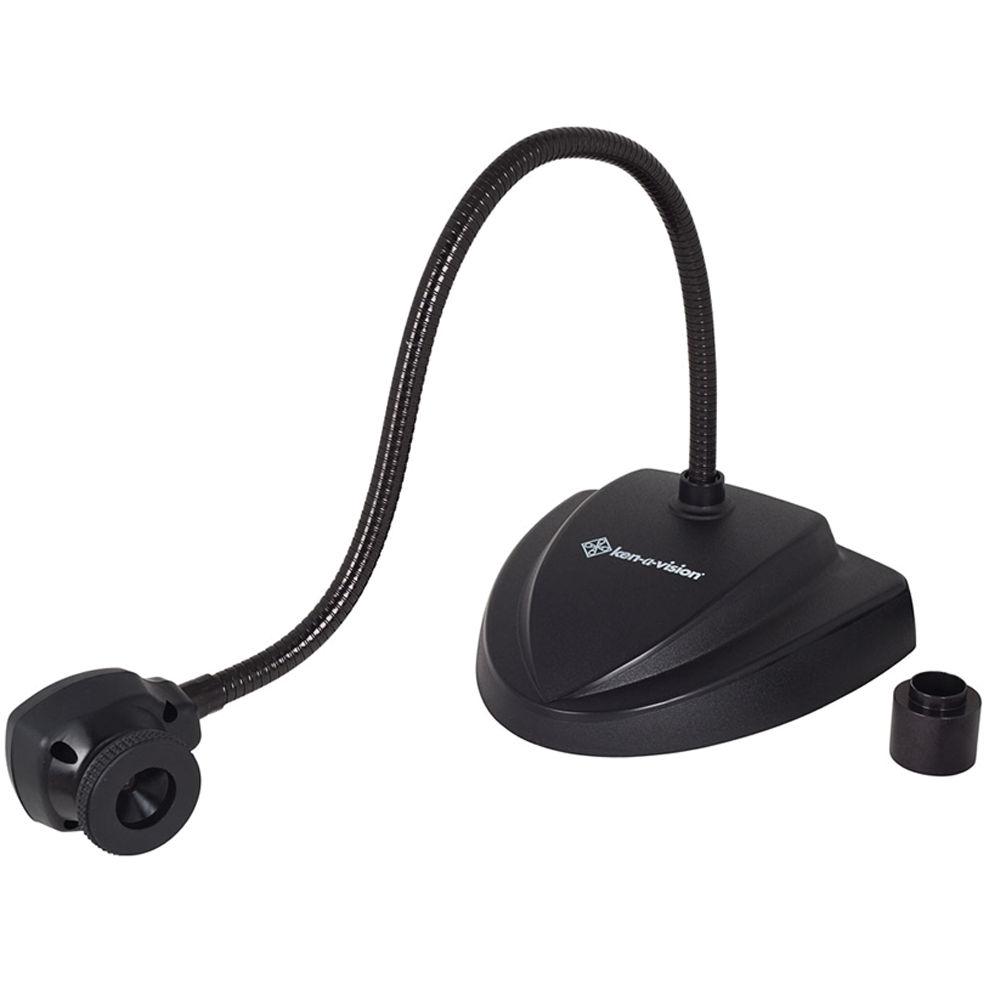

Product description This version of the 7890P Vision Viewer from Ken-A-Vision outputs standard definition composite video in the PAL system. The Vision Viewer is a presentation camera with a resolution of 350 TVL, and features a 28mm microscope eyepiece adapter. By connecting the camera to a TV, monitor, or projector you can show images from a microscope or enlarge an object on your table top for the benefit of a classroom or other large group of people. It may also be connected to a DVR or other recording device for subsequent use in educational or demonstrational videos. - Camera attached to 360 x 180° flexible gooseneck
- Manually focusing camera head
- Composite video output with 12' integrated cable
- 28mm microscope eyepiece adapter included
In the Box Ken-A-Vision 7890P Vision Viewer (PAL) 28mm Microscope Eyepiece Adapter Power Supply Limited 3-Year Warranty Limited 5-Year Warranty on Coating of Surgical Flexible Neck Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision 7890P Vision Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision 7890P Specs | | | Sensor | 1/4" CCD | | Frame Rate | 25 fps | | Effective Pixels | 512 x 491 | | | | Capture Area | 11.5 x 7.5" / 29.2 x 19.1 cm | | Video Connections | 1 x RCA Composite Output | | Horizontal Resolution (TV Lines) | 350 TVL | | Minimum Illumination | 20 lux | | | | Focal Length | 25 mm to Infinity | | | | Focus Modes | Manual | | Exposure Modes | Auto | | | | Supported Microscope Eyepieces | 1.1" / 28 mm | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | | | Operating Temperature | -5 to 131°F / -15 to 55°C | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Cable Length | 12' / 3.7 m | | Dimensions | 7.0 x 7.0 x 25.0" / 17.8 x 17.8 x 63.5 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 10.0" |
