User Manual for Ken-A-Vision FlexCam 2 Camera Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision FlexCam 2 Camera
- Product category: Video Presenters & Document Cameras Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Video Presenters & Document Cameras
 |
User manual for the Ken-A-Vision FlexCam 2 Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|

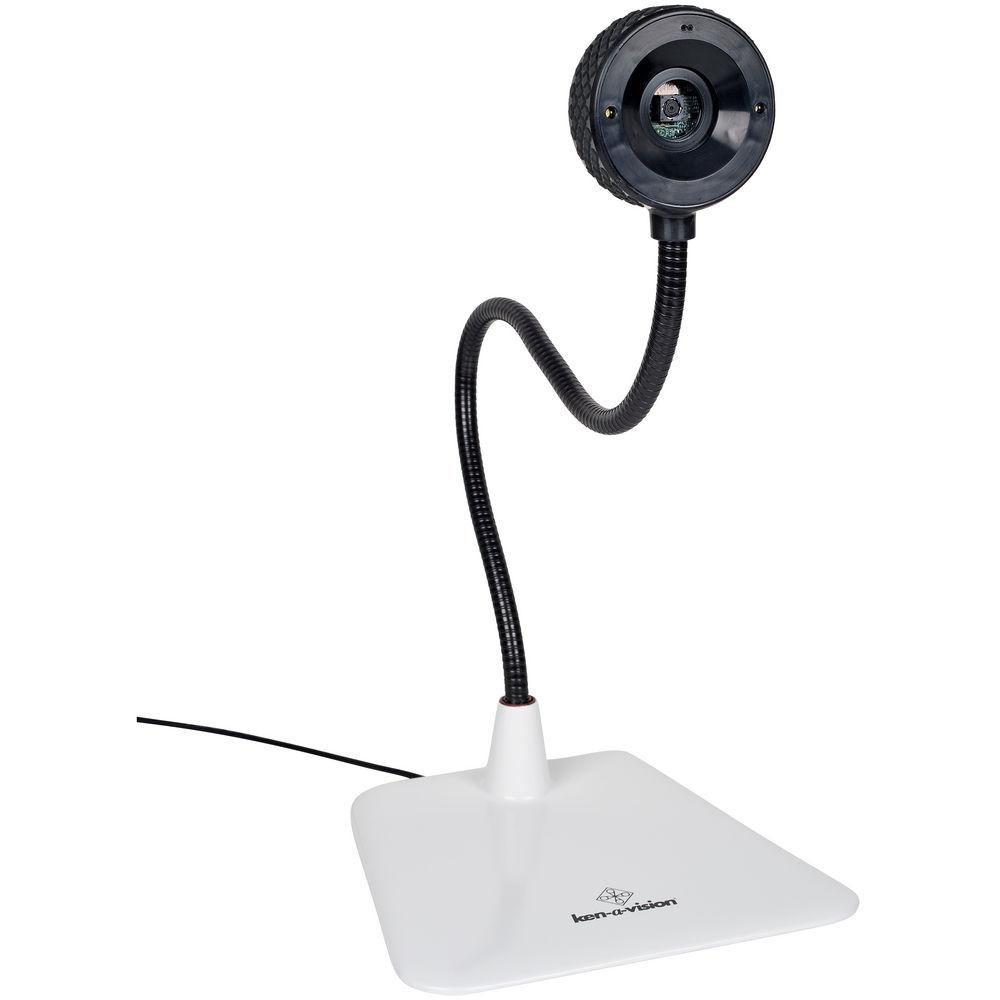

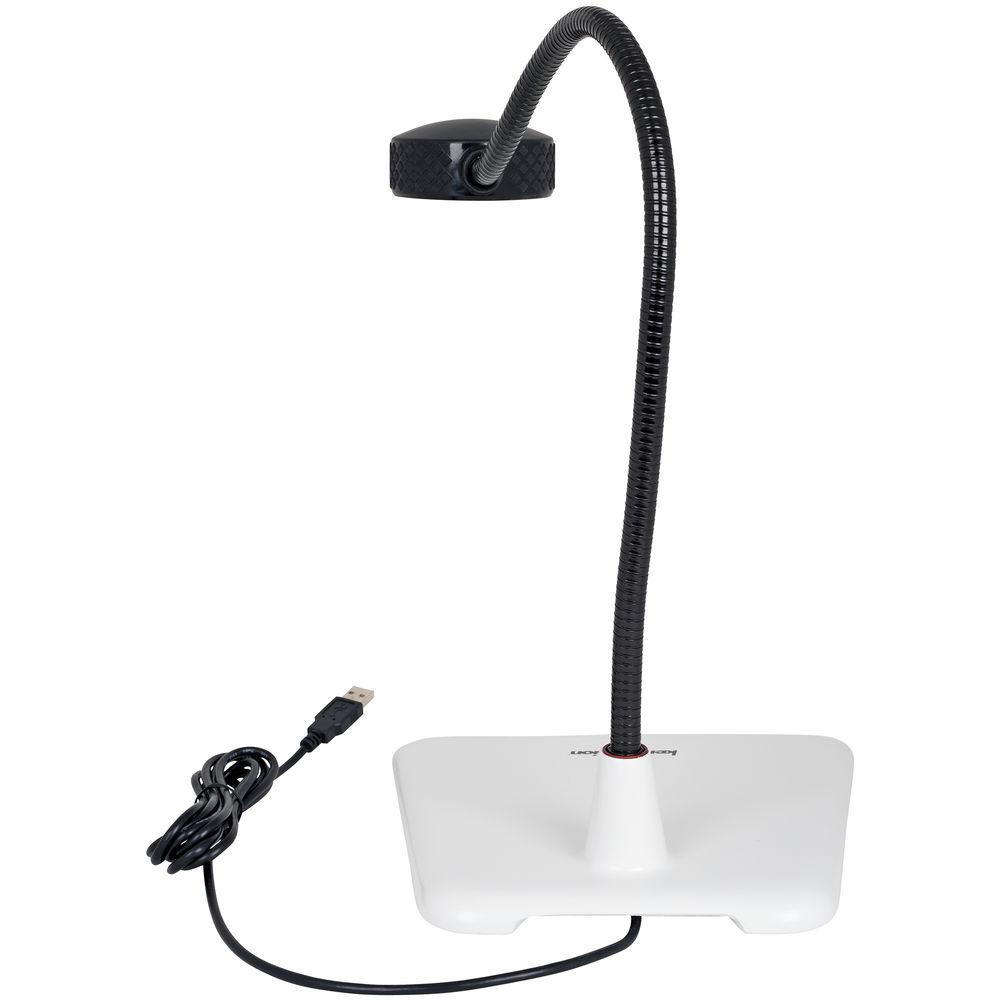

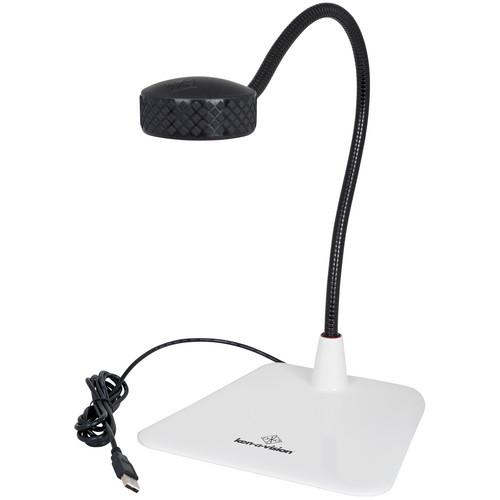

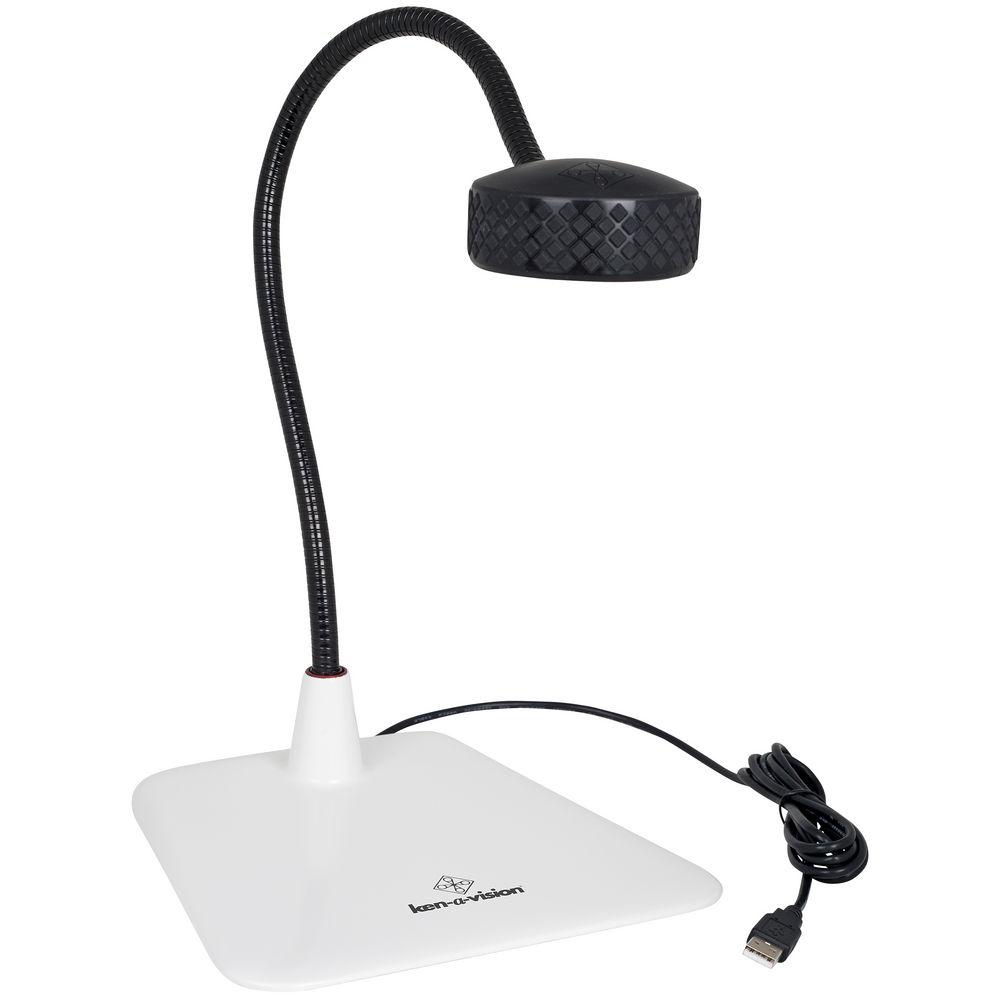

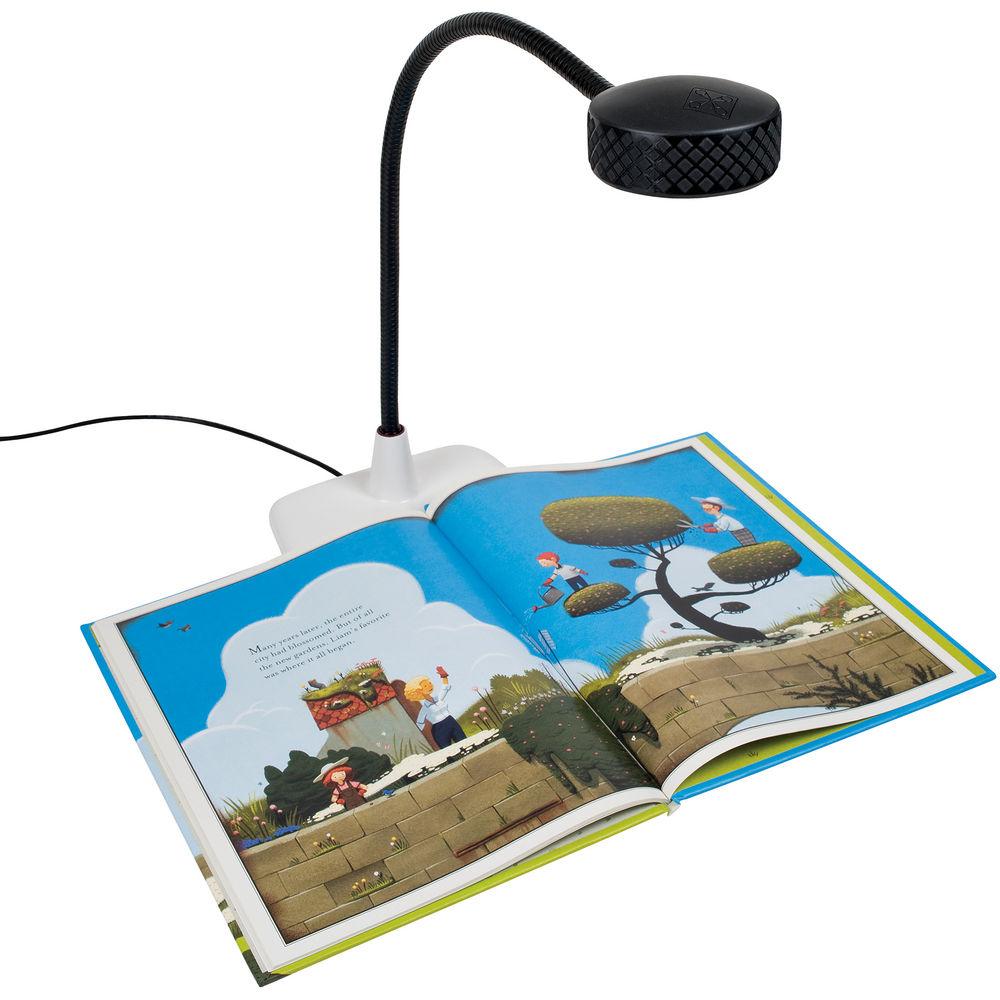

Product description The Ken-A-Vision Manufacturing, Inc. FlexCam 2 Camera features a stable flat stand that offers more usable surface area by virtually disappearing under documents or books. It features a 5MP camera head that is coated in textured over-molded rubber, making it easy to grip. The position of the head can be adjusted thanks to the flexible, sturdy neck that retains its position and does not sag. The FlexCam 2 also features controls, which are readily accessible directly on the camera head. This camera is optimized for use with the EduCam mobile app, which allows broadcasting to various devices, Macs, PC, smartphones, and tablets. - Main Highlights
-
- Broadcast to students devices with free-download EduCam mobile app, available on iTunes and Google Play
- 5MP camera
- LED lights
- Flat stand for stability
- Sturdy, flexible neck does not sag
- Audio connection
- USB video class with no driver required to operate
- MSI Support: Installation, maintenance, and removal of software via Microsoft Server
- Image / video stored in the computer memory
- Advance Imaging: For Science, Math, or Geography studies to include 3D rendering, measurement of varied angles, counting, art
- Free updates available for the life of the product on software and hardware
- IWB (Interactive White Board) compliant
- Microscope adapter (included) fits most 28mm compound microscopes
- UL certified
- Controls
-
- Digital Zoom (up to 16x) is controlled via Applied Vision 4 software buttons
- Auto or manual white balance, color / B&W, and auto or manual gamma adjustments, and 360° image rotation in both directions controlled by software buttons
- Capture / freeze images via software button
- Built-in mic with multiple quality modes for audio recording
- Annotation through the software
- Light controlled by button on the camera head and through the Applied Vision 4 Software
- Applied Vision 4 Software
-
- Windows and Mac compatible
- Free software upgrades and unlimited site licenses
- Supports JPEG image compression and split screen
- Full¬ Screen View: Desktop-enabled icon and single-click software button via software
- Multiple Camera Support: 2 to 8 cameras running simultaneously
- Time lapse recording for both image and video playback
- Multiple pallet tools for drawing
- Video playback through varied programs
- Document Orientation: Single-click hardware button
- Supports 16:9 format and/or 4:3 format; auto or manual select via the software
- UVC compliant distance learning via a single-click software button
- Export to MS Office: Drop down to MS Word or Excel and vector graphics with .svg extension
UPC: 679856020076 In the Box Ken-A-Vision FlexCam 2 Camera 28mm Microscope Eyepiece Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision FlexCam 2 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision FlexCam 2 Specs | | | Sensor | CMOS | | Sensor Resolution | 5 MP | | Aperture | f/2.8 | | Frame Rate | 1024 x 768 @ 30 fps
1600 x 1200 @ 15 fps
2048 x 1536 @ 13 fps | | Effective Pixels | 2048 x 1536 | | Output Resolution | 1920 x 1080 | | | | Capture Area | 11 x 17" / 27.9 x 43.2 cm | | I/O Connections | 1 x USB 2.0 Type-A | | | | Focal Length | 10 mm | | Focus Rotation | 170° | | | | Built-In LED Lighting | 2 | | Focus Modes | Auto | | | | Operating System Support | Linux, Windows, macOS/OS X | | Supported Video Compression | MJPEG | | | | Power Source | USB Bus-Powered Port | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Cable Length | 5.91' / 1.8 m | | Gooseneck Length | 20" / 51 cm | | Dimensions | 8.0 x 8.0" / 20.3 x 20.3 cm (Base) | | Weight | 4.5 lb / 2 kg | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 8.8 x 8.5 x 8.1" |
