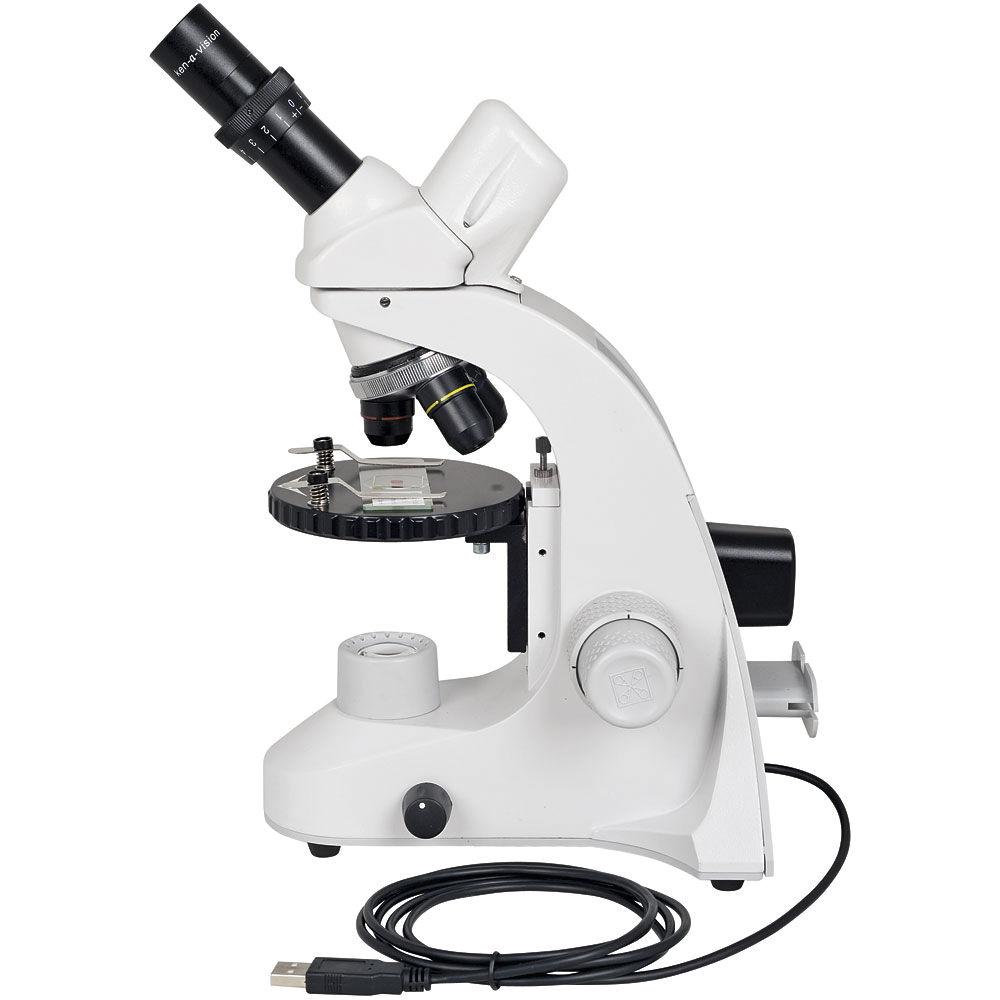

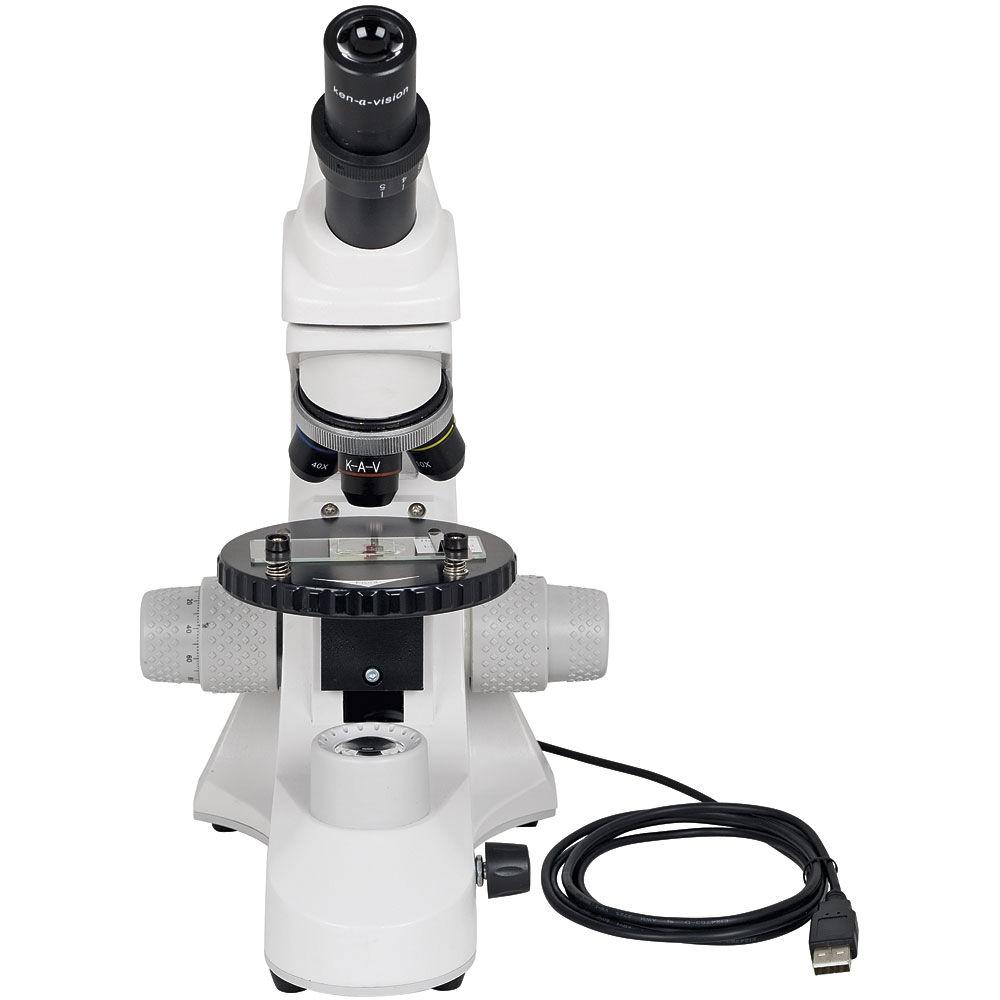

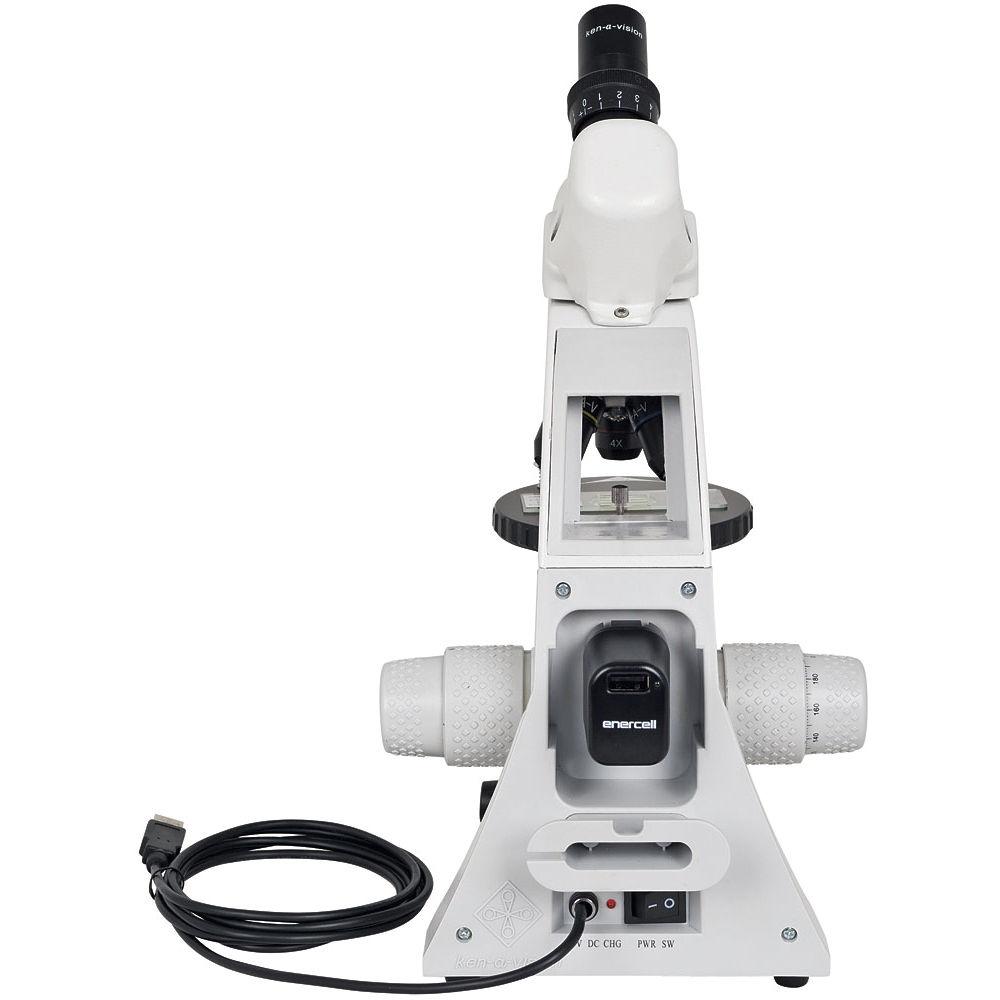

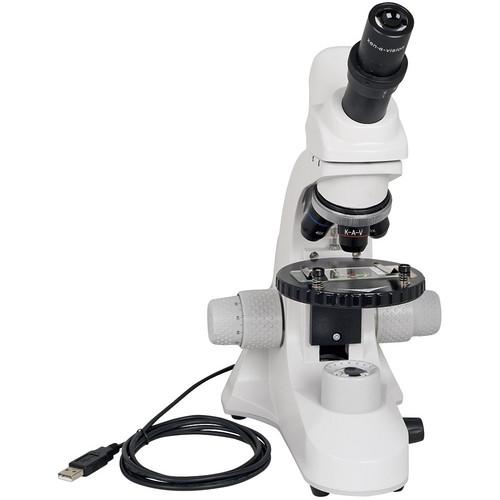

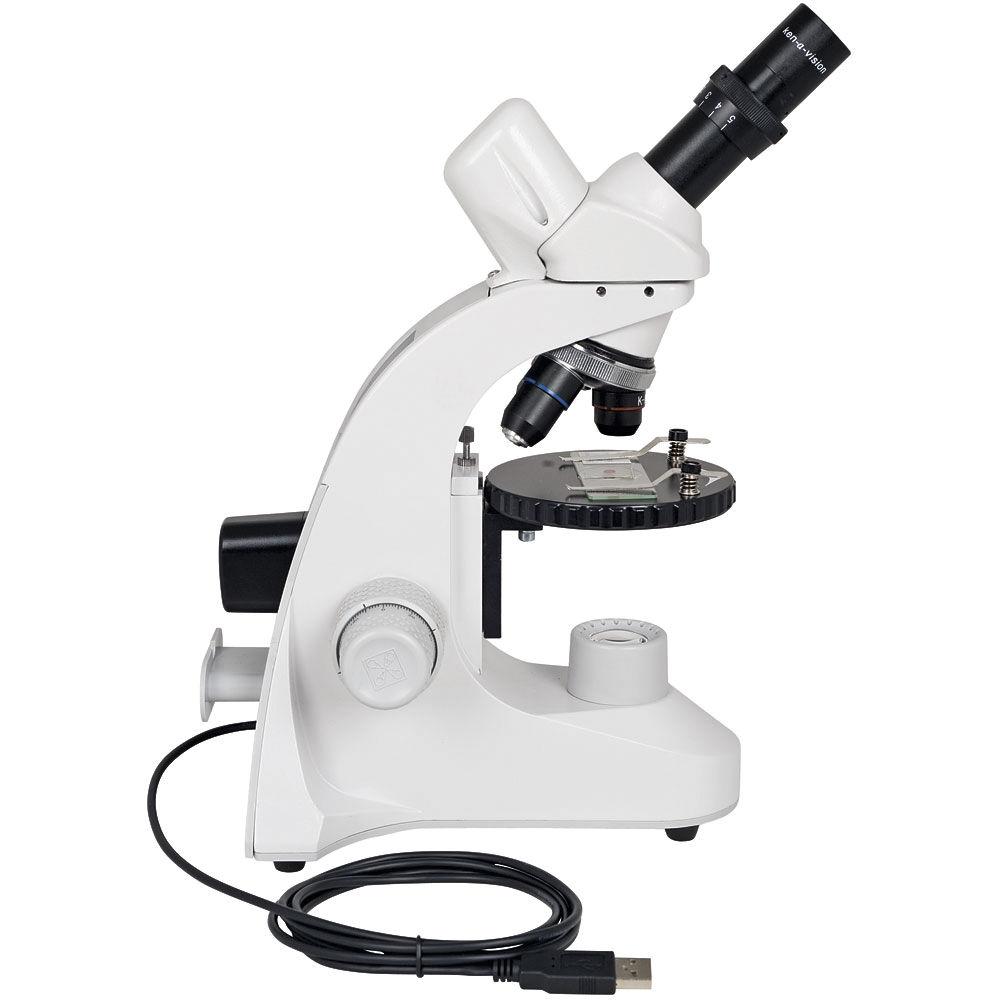

Product description Make your observation and conduct lab studies using the Ken-a-Vision T-17541C Digital CoreScope 2 Microscope. This versatile monocular microscope can be used as a cordless or plugged-in device and features three achromatic objectives, a 2.1MP camera, and a floating round stage with two metal clips. The optical system of this microscope delivers clear, crisp, and vivid images using its achromatic objectives, which are made from a special optical glass that causes minimal color distortion. These objectives are also compliant with the DIN standard, which means that you can use any other optional DIN objectives on this microscope. With the included 10x eyepiece you will see a wide field of view and can take advantage of the integrated pointer. All the elements have been crafted from environmentally-clean, lead-free glass and have been treated with special anti-humidity coatings that protect lenses from moisture and algae growth, which is common in hot and humid regions. To ensure that images are bright and have good contrast, the scope is outfitted with a bottom LED illumination system, whose brightness can be controlled using a built-in rheostat.

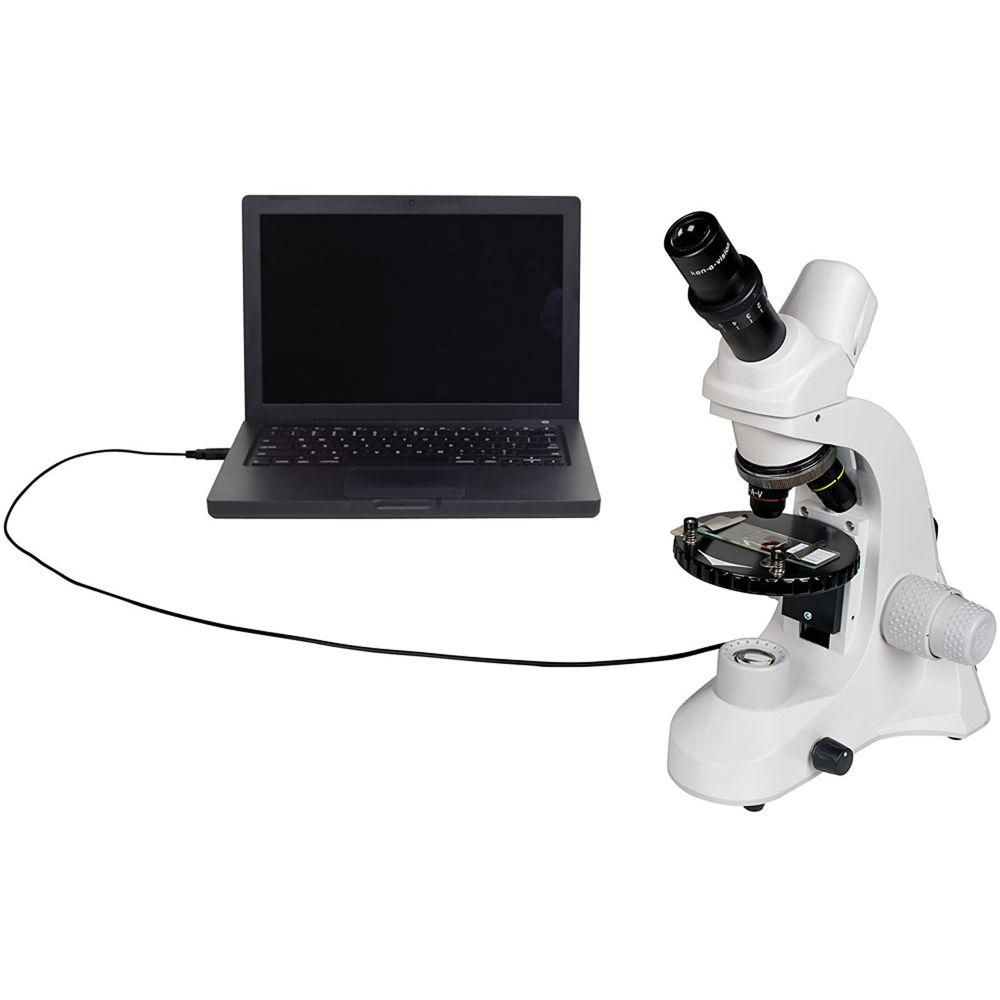

To obtain ideal image sharpness, the focusing system provides coaxial coarse and fine adjustments with knurled knobs. Using the built-in 2.1MP CMOS camera and included software, you will be able to stream your data live and capture high resolution images and videos (at up to 30 fps) on your Windows, Mac, or Linux computer.
For holding your samples, the scope offers a round 3.8" floating stage with two spring-loaded clips. The floating feature means that users can move the stage with their hands in almost any horizontal direction to obtain a desirable specimen position. To ensure a strong construction, necessary for a repeatable precision operation for years to come, the frame is made of cast aluminum and offers an arched back that can be used as a carrying handle. - Digital Camera
-
- 2.1MP CMOS sensor
- 1080p HD video resolution at up to 30 fps
- Compatibility with Mac, Windows, and Linux, via EduCam Plus Software
- Can work with tablets and smartphones
- Optics & Illumination
-
- 45° inclined monocular viewing
- 4x, 10x, and 40xS achromatic DIN objectives
- 10x widefield eyepiece with a pointer
- Anti-humidity coatings prevent damage from moisture and algae growth
- Included micrometer for specimen scale calibration
- Bottom LED illumination
- 0.65 NA condenser lens
- Rheostat brightness adjustment
- Focusing
-
- Fine and coarse focusing
- Dual low-position coaxial focusing knobs with graduations
- Sample Stage
-
- 3.8" round floating stage
- Allows X-Y motion of specimen
- Two metal spring-loaded clips
- Construction Details
-
- Cast aluminum frame
- 3-hole reversed nosepiece
- Ball-bearing objective turret
- Arched back can be used as a carry handle
In the Box Ken-A-Vision T-17541C Digital CoreScope 2 Microscope (White) - EduCam Plus Software
- USB Power Supply
- USB Cable
- 3 x AA NiMH Batteries
- Slide Micrometer
- Dustcover
- Limited 1-Year Warranty on Camera
- Limited 10-Year Warranty on Microscope
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision T-17541C Digital CoreScope 2 Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision T-17541C Specs | Microscope Type | Compound | | Camera | 2.1 MP CMOS
1920 x 1080 (at 30 fps) resolution | | Computer Compatibility | Compatible with Windows, Mac, and Linux
Compatible with tablets and smartphones | | Eyepiece | 10x, widefield | | Objectives | 4x, 10x, 40xS
DIN-compatible | | Nosepiece | Reversed 3-hole | | Focuser | Coarse and fine | | Light Source | LED | | Condenser System | 0.65 NA condenser | | Battery | 3 x AA rechargeable NiMH batteries | | Power | USB 2.0 | | Specimen Stage | 5.1 x 4.7" / 13.0 x 12.0 cm | | Dimensions | 15.8 x 12.0 x 9.0" / 40.0 x 30.5 x 22.9 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 15.7 x 12.2 x 8.7" |
