User Manual for Ken-A-Vision T-26001 VisionScope 2 7-45x Stereo Zoom Microscope Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision T-26001 VisionScope 2 7-45x Stereo
- Product category: Microscopes Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Microscopes
 |
User manual for the Ken-A-Vision T-26001 VisionScope 2 7-45x Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|

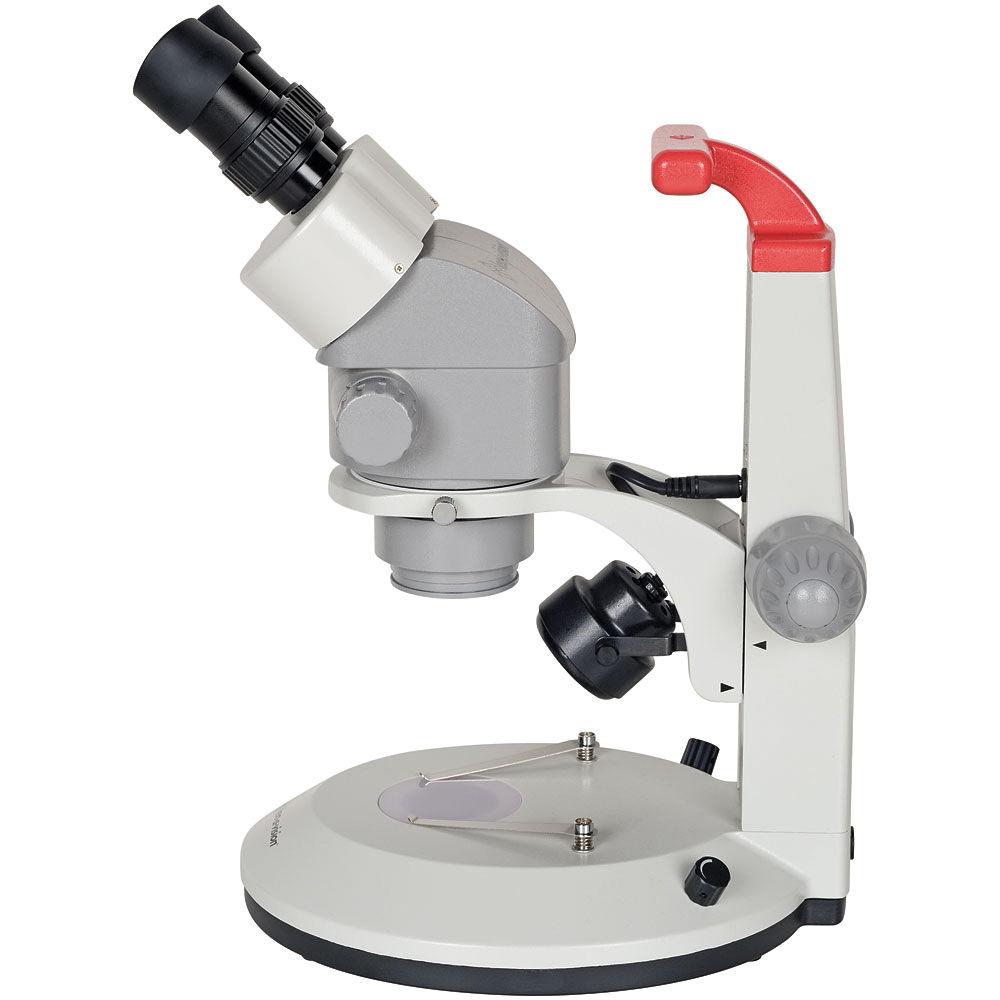

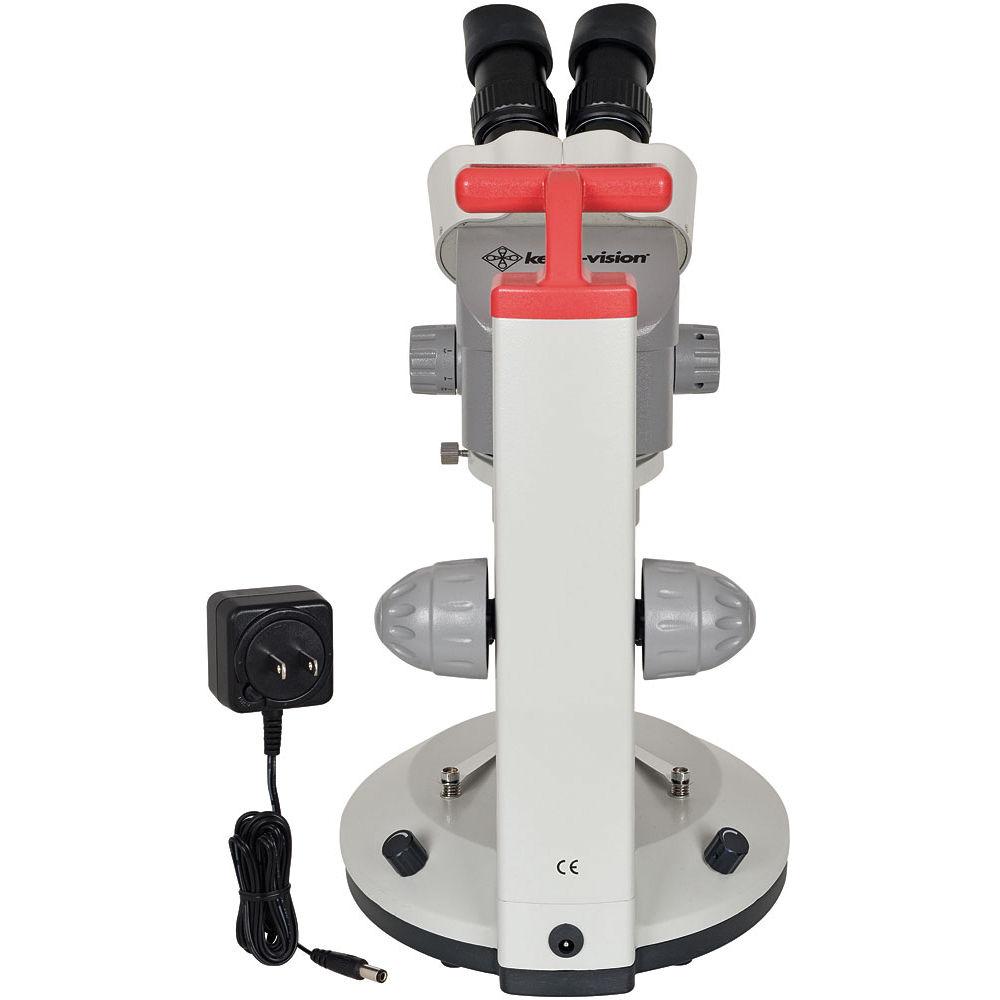

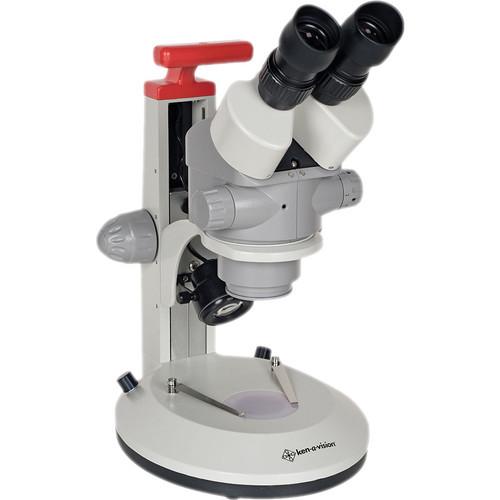

Product description The T-26001 VisionScope 2 7-45x Stereo Zoom Microscope from Ken-a-Vision is a stereoscopic zoom microscope designed for elementary and middle school students. The two eyepiece configuration is preferred by most researchers and students because of the superior depth of field and comfort compared to monocular microscopes. This model of the VisionScope 2 has a paired 10x eyepiece delivering a 7-45x continuous magnification range. The achromatic objective system is parfocalled throughout the zoom range, keeping the specimen in focus while zooming in or out.A user-friendly design complements the range of features that make the VisionScope 2 microscope a welcome addition to labs and classrooms. The viewing head is capable of 360° rotation to help share the stereo eyepiece among colleagues and students without moving the microscope. The rack and pinion system has dual focus dials and includes tension adjustment and rack stop mechanisms that prevent damaging the specimen and objective. The adjustable interpupillary distance and and individually adjustable diopter correction also provide the VisionScope 2 series with the flexibility needed to create a customized viewing experience. - Optical System
-
- 10x stereo eyepieces
- 0.7-4.5x parfocalled achromat objective system
- 7-45x magnification range
- Lead-free moisture-resistant optics
- Inclined viewing head with 360° rotation
- ±0.20 diopter adjustment, 30mm interpupillary range
- Focusing
-
- Rack and pinion focus mechanism
- Coarse and fine control focus controls
- Tension adjustment and rack stop
- 36cm working distance
- Lighting
-
- Incident and transmitted LED illumination
- Base-mounted On/Off switch
- Rheostat adjustable brightness control
- Stage
-
- 2.4x2.4" (6x6cm) frosted glass plate and reversible contrast plate
- Spring-loaded stage clips
- Construction Details
-
- Integrated carry handle
- Built-in rechargeable battery
- Interchangeable viewing head
- Height: 15.75"
- Weight: 6.5 lb
In the Box Ken-A-Vision T-26001 VisionScope 2 7-45x Stereo Zoom Microscope Dust Cover 120 - 240V AC Power Adapter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision T-26001 VisionScope 2 7-45x Stereo Zoom Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision T-26001 Specs | Microscope Type | Stereo | | Body Type | Inclined (45°) binocular | | Nosepiece | Built-in zoom turret | | Eyepiece | 10.0x | | Objective(s) | 0.7-4.5x | | Magnification | 7.0 - 45.0x | | Diopter Range | ±0.20 | | Interpupillary Adjustment | 30 mm range | | Focuser | Rack and pinion with coarse and fine focus controls | | Light Source | LED (top/bottom) with On/Off switch, rheostat dimmer | | Specimen Stage | 2.4 x 2.4" (6 x 6 cm) frosted glass plate, black/white reversible contrast plate | | Power Supply | 120V AC | | Dimensions | 15.75 x 10 x 8.5" (40 x 25 x 22 cm) | | Weight | 6.5 lb (2.95 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 20.0 x 14.0 x 10.0" |
