Product description

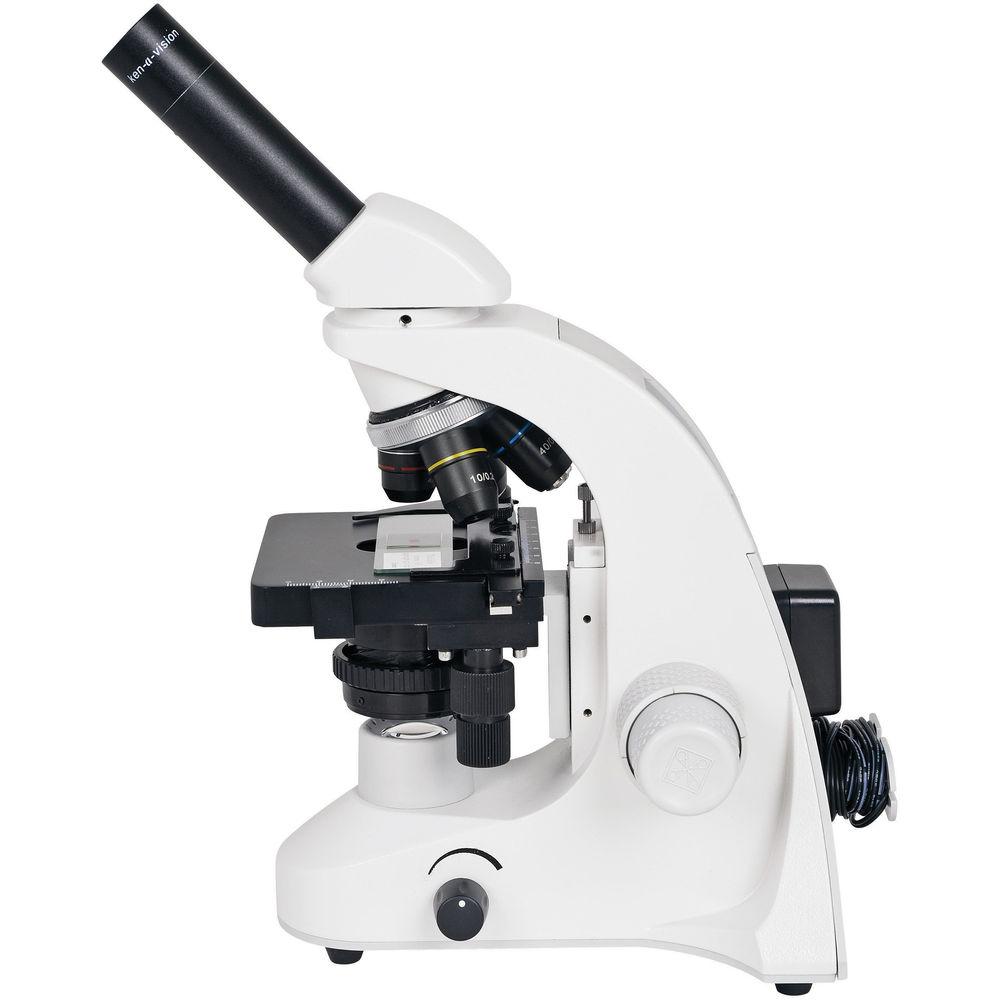

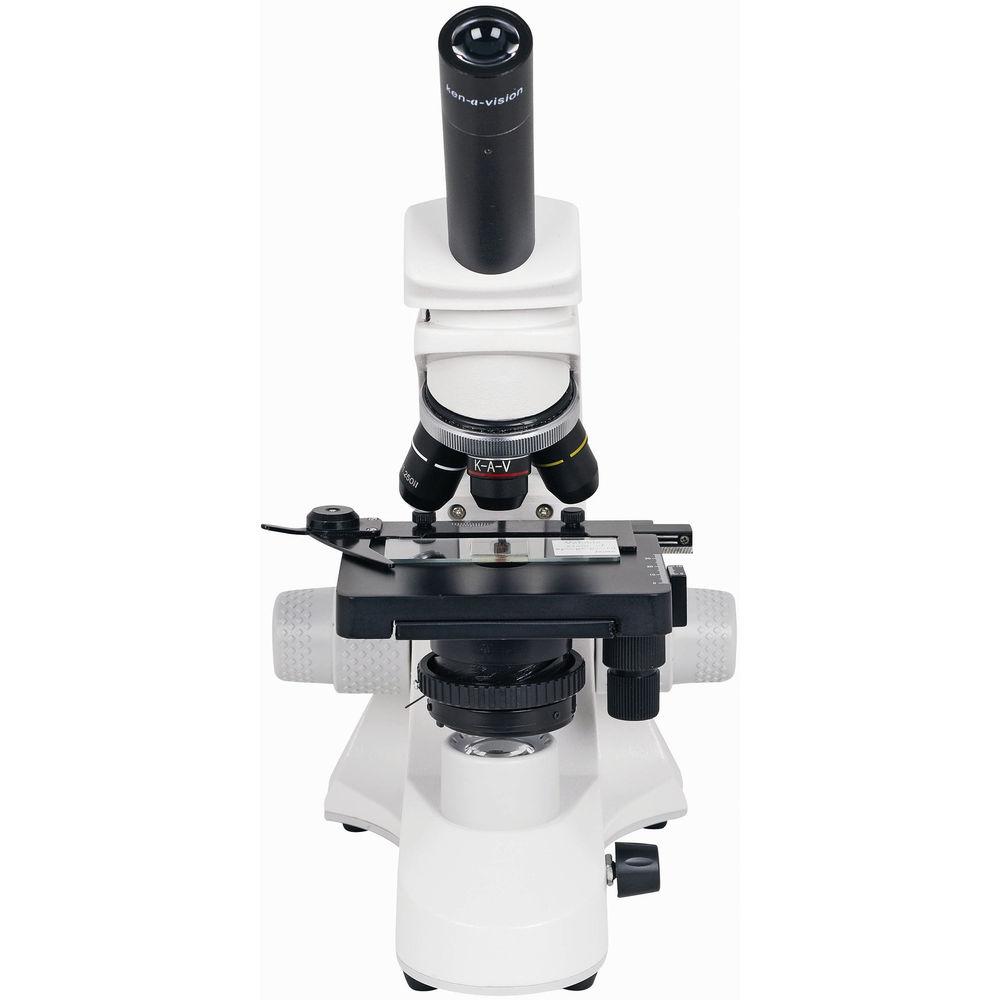

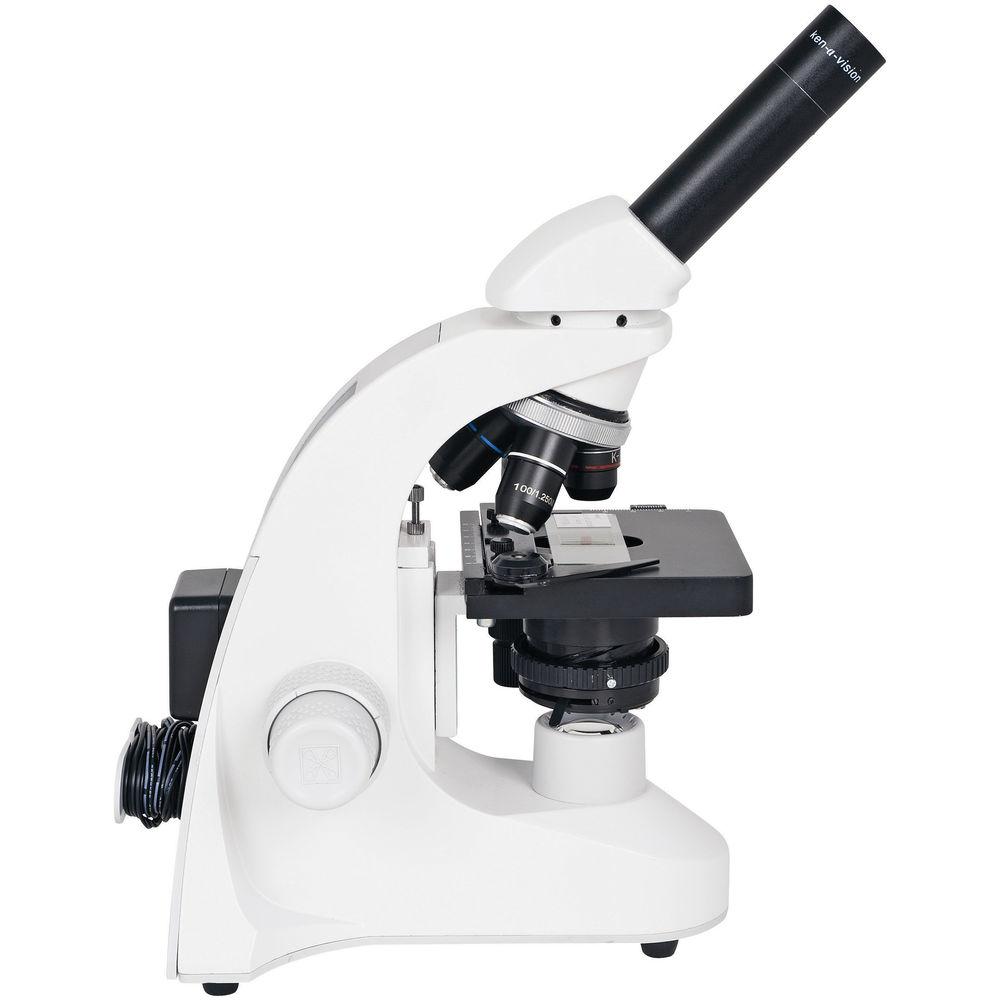

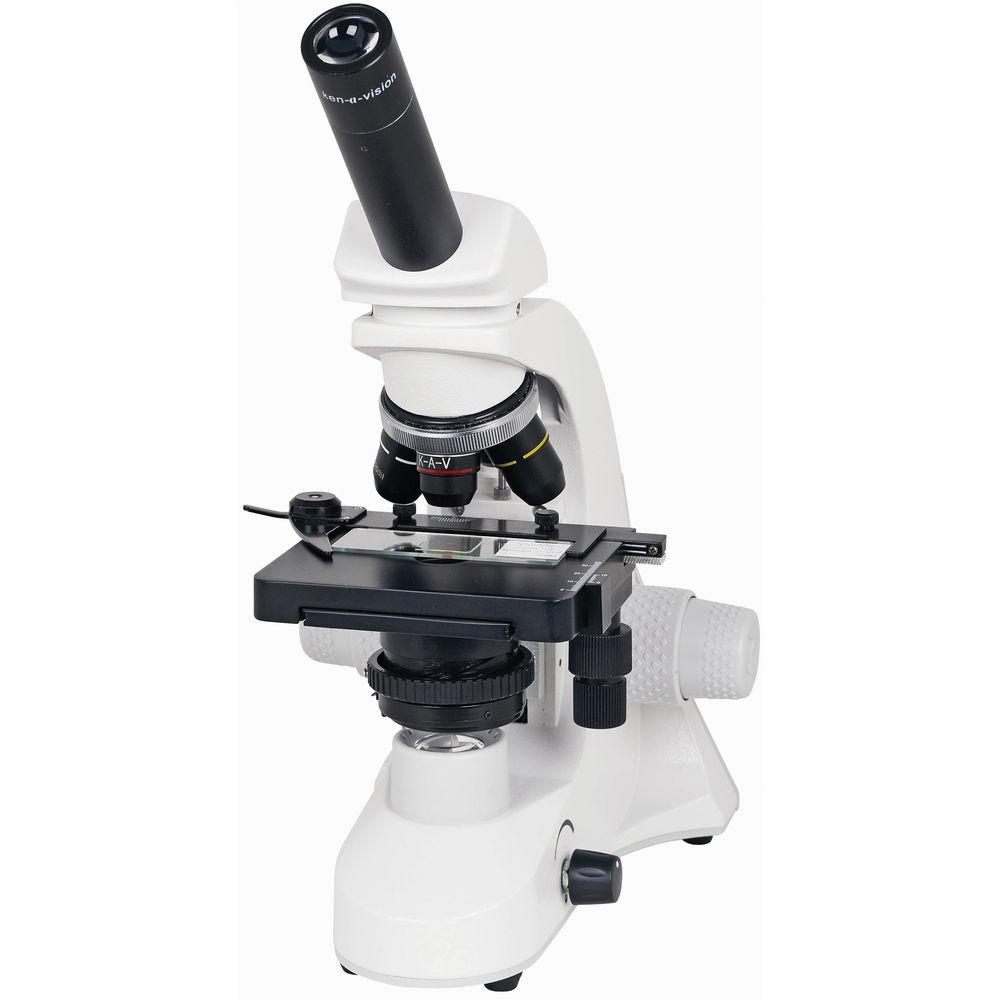

The 45° inclined viewing TU-17012C CoreScope 2 Microscope with Achromatic Objectives from Ken-A-Vision features a mechanical stage, four achromatic objectives, 4x, 10x, 40xS, and 100xS, and a 360° rotating head. The retractable 40xS and 100xS objectives have spring-loaded lenses which will retract when they touches the slide in order to protect the lens and the slide. The 100xS objective ought to be used with immersion oil. Both the turret and the included objectives adhere to DIN microscope objective standard. This means that you can use any DIN objective with this microscope without worrying about your microscope ever becoming obsolete. With a wide field 10 x eyepiece, the microscope provides a total magnification of 40x, 100x, 400x, and 1000x. The supplied achromatic objectives reduce color distortions introduced by imperfections in optical elements better than regular objectives and provide higher contrast images. The lenses are also coated with special coatings that protect their surfaces against mold in high humidity and high heat regions. The parfocalled and parcentered design allows for switching objectives without having to realign your sample and without losing focus. The focusing system has a coaxial coarse and fine focus adjustments with and a scale. To view details of our specimens more easily, the microscope features a white LED illumination system with adjustable brightness and an On-Off switch. The bright white light from the bottom LED emitter is collimated with a 1.25 NA Abbe condenser and can be regulated by a build-in iris diaphragm.

The microscope also features a coated 5.1 x 4.7" mechanical stage with two low position coaxial X-Y motion controls and a bracket for holding your specimen slides. The frame of the microscope is made of cast aluminum with a cream-colored enamel finish. Included with the microscope is a USB cable, a wall charger, three rechargeable AA batteries, and a dustcover. To recharge your microscope's batteries, just connect the microscope's USB cable to the wall charger or a USB port.
    Optical System and Focusing
    • Coatings protect lenses against mold in high humidity and high heat regions
    • DIN 4x, 10x, 40xS, 100xS objectives are achromatic, parfocalled and parcentered
    • The 40xS objective is spring-loaded and retractable
    • Total magnification: 40x, 100x, 400x, 1000xS
    • Monocular viewing is 45° inclined
    • Head rotates 360°
    • Fine and coarse focusing
      Illumination
      • White LED illumination provides bright white light without heating up your slides
      • Illuminator has a separate switch and a dimmer for brightness control
      • Cordless operation with three included rechargeable AA batteries
        Stage
        • Coated mechanical stage features low position coaxial X-Y controls with rack & pinion
        • 1.25NA Abbé condenser and iris diaphragm
        • Bracket for holding specimen slides
        • Stage dimensions: 5.1 x 4.7"
          Construction Details

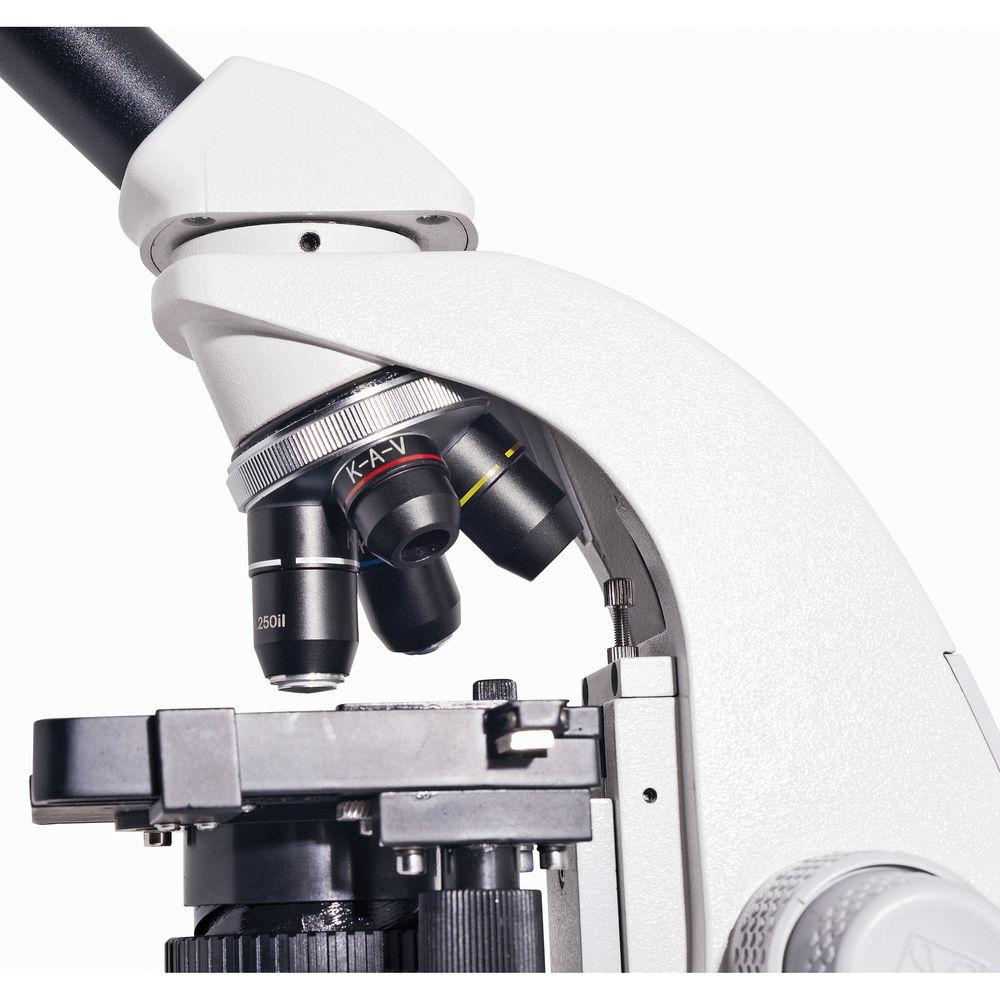

          • Objective turret:
            - Four objective holes
            - Reverse position head
            - Mount with ball bearings

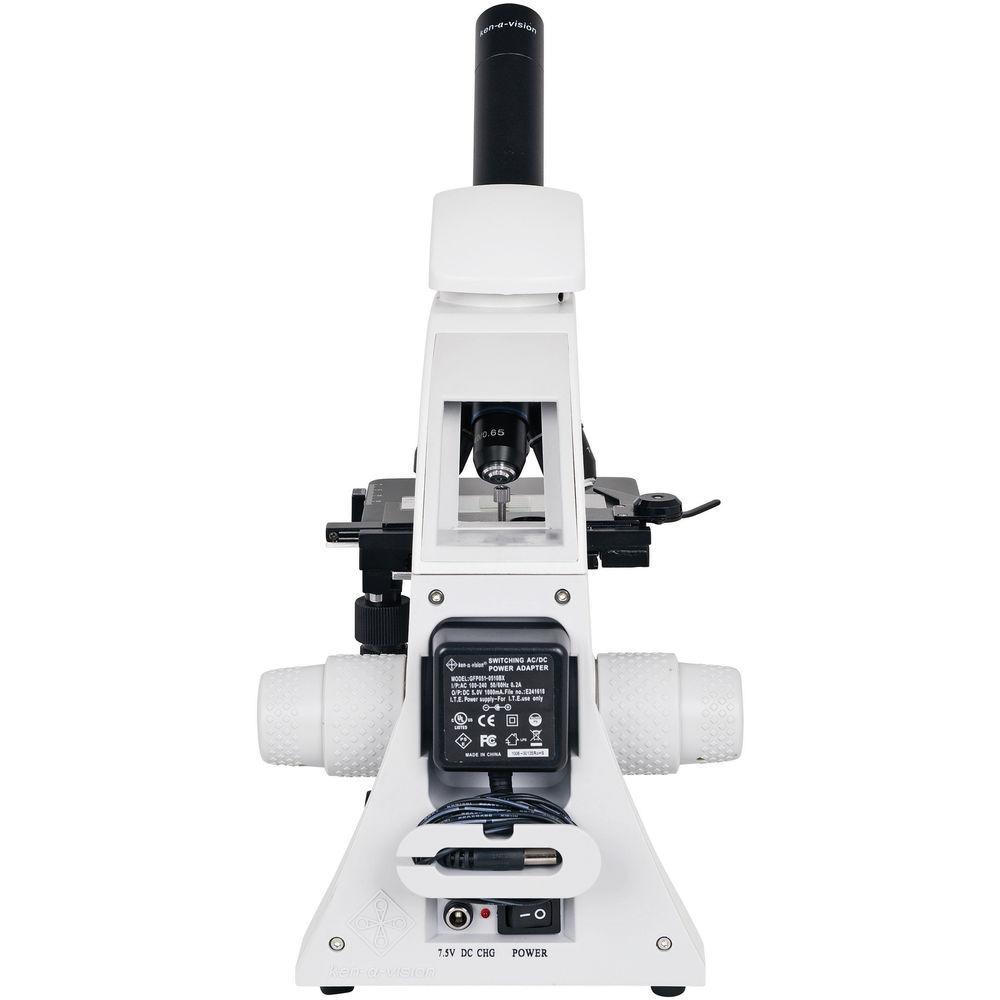

          • Housing has a compartment for a USB cable and a wall adapter
          • Cast aluminum frame with a cream-colored enamel finish
          • Rubberized coaxial focusing knobs
          In the Box Ken-A-Vision TU-17012C CoreScope 2 Microscope with Achromatic Objectives (110-120V)
        • Dustcover
        • Wall Charger
        • USB Charging Cable
        • 3 x Rechargeable AA Batteries
        • Limited 10-Year Warranty
        • Limited 6-Month Warranty on LED and Batteries
        Table of Contents




Upload User Manual

Have you got an user manual for the Ken-A-Vision TU-17012C CoreScope 2 Microscope with Achromatic Objectives in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Ken-A-Vision TU-17012C Specs

Microscope Type Compound
Eyepiece 10x, wide field
Nosepiece Reverse, 4 holes
Objective(s) DIN 4x, 10x, 40xS, 100xS, achromatic, parfocalled, parcentered
40xS and 100xS are retractable
100xS ought to be used with immersion oil
Head Rotating 360°
Focuser Fine and coarse, coaxial
Light Source LED
Light Control Rheostat
Power Requirements 110-120 VAC
Specimen Stage 5.1 x 4.7" (13 x 12 cm)
Overall Dimensions 15.75 x 12 x 9" (40 x 30.5 x 23 cm)
Weight 5.1 lb (2.3 kg)
Package Weight 7.0 lb
Box Dimensions (LxWxH) 16.0 x 12.0 x 10.0"

Rating

90% users recommend this product to others. And what about you?
Rating: 4.5 of 5

This product has already been rated by 33 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

Post new comment to Ken-A-Vision TU-17012C CoreScope 2 Microscope with Achromatic Objectives

Subject: Light not bright enough
Date: 29.04.2022 13:01:33Name: Jen
My school has several of these microscopes. However, the light is not bright enough to view the slides. How do I make the light brighter?
