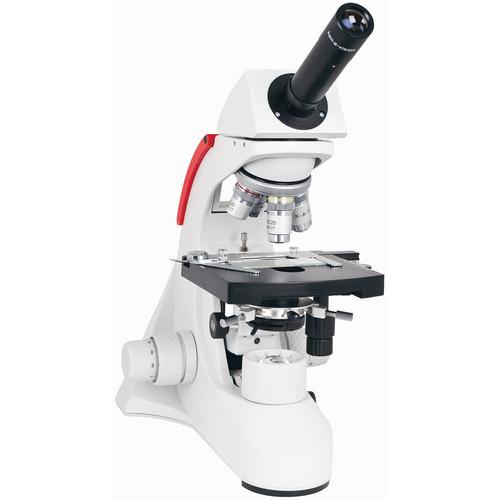

User Manual for Ken-A-Vision TU-19012C Comprehensive Scope 2 Microscope with Achromatic Objectives Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision TU-19012C Comprehensive Scope 2 Microscope
- Product category: Microscopes Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Microscopes
 |
User manual for the Ken-A-Vision TU-19012C Comprehensive Scope 2 Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|
Product description The 45° inclined viewing TU-19012C Comprehensive Scope 2 Microscope with Achromatic Objectives from Ken-A-Vision features 4x, 10x, 40xS, 100xS objectives, and a 360° rotating head. The retractable 40xS and 100xS objectives have a spring-loaded lens which will retract when it touches the slide in order to protect the lens and the slide. The 100xS objective ought to be used with immersion oil. The supplied achromatic objectives reduce color distortions introduced by imperfections in optical elements better than regular objectives and provide higher contrast images. Both the turret and the included objectives adhere to DIN microscope objective standard. This means that you can use any DIN objective with this microscope without worrying about your microscope ever becoming obsolete. With a wide field 10 x eyepiece, the microscope provides a total magnification of 40x, 100x, and 400x. The lenses are also coated with special coatings that protect their surfaces against mold in high humidity and high heat regions. The parfocalled and parcentered design allows for switching objectives without having to realign your sample and without losing focus. The focusing system has a coarse focus adjustment with rubberized knobs for a slip-free grip. To view details of our specimens more easily, the microscope features a white LED illumination system with adjustable brightness and a separate switch. The bright white light from the bottom LED emitter is focused with a light shaping lens and can be further collimated using a diaphragm with five apertures of different sizes.
The microscope also features a coated 5.1 x 4.7" mechanical stage with two low position coaxial X-Y motion controls and a bracket for holding your specimen slides. The frame of the microscope is made of cast aluminum with a cream-colored enamel finish. Included with the microscope is a USB cable, a wall charger, three rechargeable AA batteries, and a dustcover. To recharge your microscope's batteries, just connect the microscope's USB cable to the wall charger or a USB port. - Optical System and Focusing
-
- Coatings protect lenses against mold in high humidity and high heat regions
- DIN 4x, 10x, 40xS objectives are achromatic, parfocalled and parcentered
- The 40xS and 100xS objective are spring-loaded and retractable
- The 100xS objective ought to be used with immersion oil
- Total magnification: 40x, 100x, 400x, 100x
- Monocular viewing is 45° inclined
- Head rotates 360°
- Fine and coarse focusing with a scale
- Illumination
-
- White LED illumination provides bright white light
- Illuminator has a separate switch and a dimmer for brightness control
- 1.25 NA Abbe condenser collimates light from the LED source
- Cordless operation using three AA rechargeable batteries
- Iris diaphragm allows controlling size of the illuminated spot
- Stage
-
- 5.1 x 4.7" low profile mechanical stage
- Bracket for holding specimen slides
- Coaxial low position X-Y controls
- Construction Details
-
- Objective turret: - Four objective holes - Reverse position head
- Deployable handle
- Closed compartment for charger and cable
- Cast aluminum frame
- Cream enamel finish
In the Box Ken-A-Vision TU-19012C Comprehensive Scope 2 Microscope with Achromatic Objectives (110-120V) - Dustcover
- Wall Charger
- USB Charging Cable
- 3 x Rechargeable AA Batteries
- Limited 10-Year Warranty
- Limited 6-Month Warranty on LED and Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision TU-19012C Comprehensive Scope 2 Microscope with Achromatic Objectives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision TU-19012C Specs | Microscope Type | Compound | | Eyepiece | 10x, wide field, 19 mm, 45° inclined, with a pointer | | Nosepiece | Reverse, 4 holes | | Objective(s) | DIN 4x, 10x, 40xS, 100xS achromatic | | Head | Rotating 360° | | Focuser | Fine/coarse, coaxial, with scale | | Light Source | LED | | Light Control | Rheostat | | Power Requirements | 110-120 VAC | | Battery / Runtime | 3x rechargeable AA / 40 hr max | | Specimen Stage | 5.1 x 4.7" (13 x 12 cm) | | Overall Dimensions | 13 x 10 x 7" (33 x 25 x 18 cm) | | Weight | 10.4 lb (4.7 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 20.0 x 16.5 x 13.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
