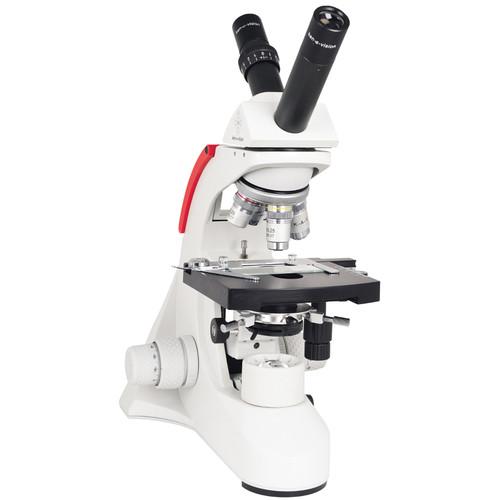

User Manual for Ken-A-Vision TU-19022C Comprehensive Scope 2 Dual View Microscope with Achromatic Objectives Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision TU-19022C Comprehensive Scope 2 Dual
- Product category: Microscopes Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Microscopes
|
User manual for the Ken-A-Vision TU-19022C Comprehensive Scope 2 Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|
Product description To allow more than one person to view specimens at the same time, the TU-19022C Comprehensive Scope 2 Dual View Microscope with Achromatic Objectives from Ken-A-Vision has two 45° inclined eyepieces that are facing in opposite directions. It also features 4x, 10x, 40xS, and 100xS achromatic objectives, and a 360° rotating head. The retractable 40xS and 100xS have a spring-loaded lens which will retract when it touches the slide in order to protect the lens and the slide. The supplied achromatic objectives reduce color distortions introduced by imperfections in optical elements across a wider field of view than regular achromatic objectives and provide higher contrast images. Both the turret and the included objectives adhere to DIN microscope objective standard. This means that you can use any DIN objective with this microscope without worrying about your microscope ever becoming obsolete. The lenses are also coated with special coatings that protect their surfaces against mold in high humidity and high heat regions. The parfocalled and parcentered design allows for switching objectives without having to realign your sample and without losing focus. The focusing system has a fine and a coarse focus adjustment with rubberized knobs for a slip-free grip.
To view details of your specimens more easily, the microscope features a white LED illumination system with adjustable brightness and a separate switch. The bright white light from the bottom LED emitter is focused with a light shaping lens and can be further collimated using a diaphragm with a variable aperture.
The microscope also features a 5.1 x 4.7" mechanical stage with two low position coaxial X-Y motion controls and a bracket for holding your specimen slides. The frame of the microscope is made of a cast aluminum with a cream-colored enamel finish. Included with the microscope are a USB cable, three rechargeable AA batteries, and a dustcover. - Optical System and Focusing
-
- Two 10x wide field eyepieces with a pointer
- Coatings protect lenses against mold in high humidity and high heat regions
- DIN 4x, 10x, 40xS, 100xS objectives are achromatic, parfocalled and parcentered
- The 40xS and 100xS objectives are spring-loaded and retractable
- The 100xS objective ought to be used with immersion oil
- Fine and coarse focusing with a scale
- Scale step is 2µm
- Illumination
-
- White LED illumination provides bright white light
- Illuminator has a separate switch and a dimmer for brightness control
- 1.25 NA Abbe condenser collimates light from the LED source
- Cordless operation using three AA rechargeable batteries
- Iris diaphragm allows controlling size of the illuminated spot
- Stage
-
- 5.1 x 4.7" low profile mechanical stage
- Range of motion: 3.1 x 1.2"
- Scale minimum unit: 100µm
- Bracket for holding specimen slides
- Locking screw for stopping vertical motion and preventing accidental damage
- Head
-
- Two monoculars are 45° inclined
- Head rotates 360°
- Construction Details
-
- Objective turret:
-Four objective holes
-Reverse position head - Deployable handle
- Closed compartment for charger and cable
- Cast aluminum frame
- Cream enamel finish
In the Box Ken-A-Vision TU-19022C Comprehensive Scope 2 Dual View Microscope with Achromatic Objectives (110-120V) - Dustcover
- Wall Charger
- USB Charging Cable
- 3 x Rechargeable AA Batteries
- Limited 10-Year Warranty
- Limited 6-Month Warranty on LED and Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision TU-19022C Comprehensive Scope 2 Dual View Microscope with Achromatic Objectives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision TU-19022C Specs | Microscope Type | Compound | | Eyepiece | Two 10x, wide field, 19 mm, 45° inclined | | Diopter Adjustment | ± 0.2x, one eyepiece | | Nosepiece | Reverse, 4 holes | | Objective(s) | DIN 4x, 10x, 40xS, 100xS achromatic | | Head | Rotating 360° | | Focuser | Fine/coarse, coaxial, with scale
Scale step: 2µm | | Light Source | LED | | Light Control | Rheostat | | Power Requirements | 110-120 VAC | | Battery / Runtime | 3x rechargeable AA / 40 hr max | | Specimen Stage | 5.1 x 4.7" (13 x 12 cm)
Range of motion: 3.1 x 1.2" (80 x 30 mm)
Vernier scale step: 100µm | | Overall Dimensions | 13 x 10 x 7" (33 x 25 x 18 cm) | | Weight | 10.4 lb (4.7 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 20.0 x 16.0 x 13.0" |
